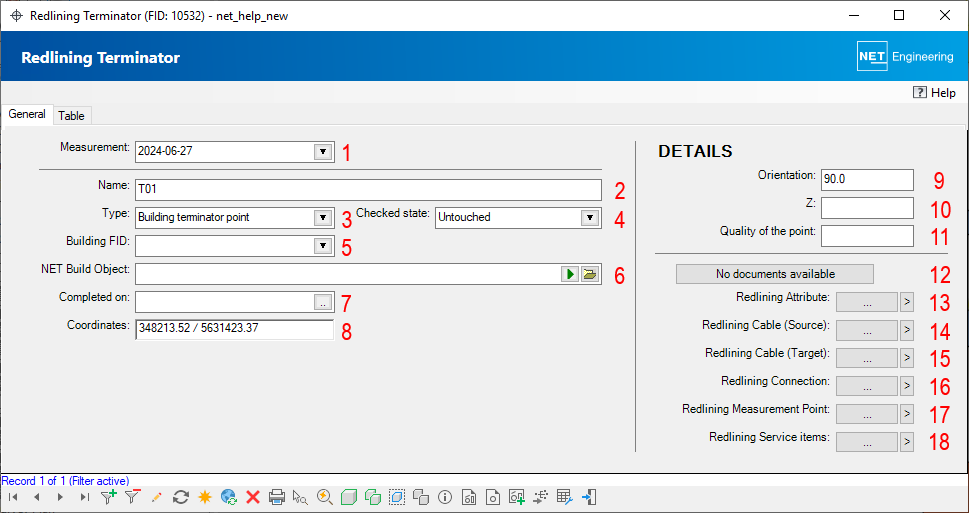

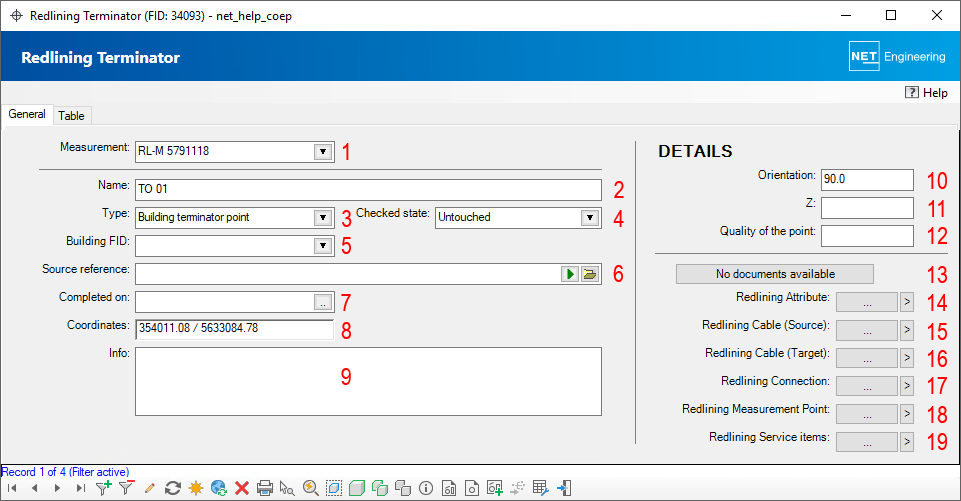

In the form of the redlining (RL) terminator, the attributes are displayed that were assigned to the terminator in NET BUILD.
In addition, the objects of the respective object class belonging to the terminator can be opened.
1. The name of the measurement with which the terminator was imported is displayed.
2. The name of the terminator is displayed.
3. The type of the terminator is displayed or can be selected from the drop-down list.
4. The check state is displayed. This can be adjusted manually or changes automatically when the geometry of the terminator has been edited.
5. The FID of the building to which the terminator is assigned is displayed.
6. The corresponding object from NET BUILD is displayed with its URL.
7. The date of completion, of the segment in NET BUILD, is displayed.
8. The coordinates of the terminator are displayed.
9. The orientation of the point is displayed.
10. The Z-coordinate of the point is displayed.
11. The quality of the point (from the measurement) is displayed.
12. The document management can be opened and files belonging to the terminator can be linked or opened.
13. The RL attributes assigned to the terminator can be opened with in the form or with
for all terminators in the filter. These are the attributes from NET BUILD.
14. The RL cables starting at the terminator can be opened with in the form or with
for all measurements in the filter.
15. The RL cables ending at the terminator can be opened with in the form or with
for all terminators in the filter.
16. The RL connections belonging to the terminator can be opened with in the form or with
for all terminators in the filter.
17. The RL measurement point with which the position of the terminator was created can be opened with in the form or with
for all terminators in the filter.
18. The service items belonging to the terminator can be opened with in the form or with
for all terminators in the filter.
