In the form of the redlining (RL) fitting, the attributes are displayed that were assigned to the fitting in NET Build. The ducts that are connected by the fitting are also displayed.
In addition, the objects of the respective object class belonging to the fitting can be opened.

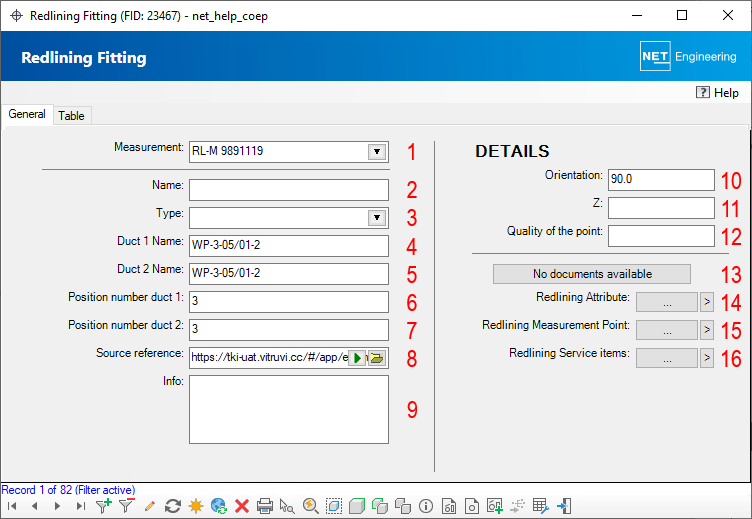

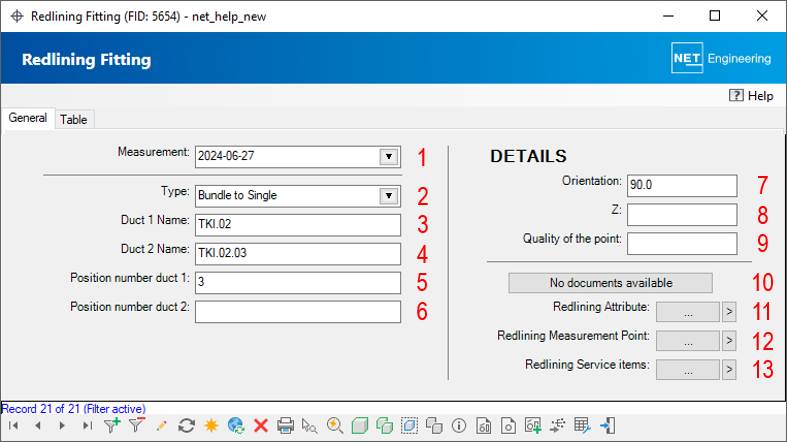

1. The name of the measurement with which the fitting was imported is displayed.
2. The type of the fitting is displayed or can be selected from the drop-down list.
3. The name of the first duct that the fitting connects to the second duct is displayed.
4. The name of the second duct that the fitting connects to the first duct is displayed.
5. The position number of the first duct is displayed.
6. The position number of the second duct is displayed.
7. The orientation of the point is displayed.
8. The Z-coordinate of the point is displayed.
9. The quality of the point (from the measurement) is displayed.
10. The document management can be opened and files belonging to the fitting can be linked or opened.
11. The RL attributes assigned to the fitting can be opened with in the form or with
for all fittings in the filter. These are the attributes from NET BUILD.
12. The RL measurement point with which the position of the fitting was created can be opened with in the form or with
for all fittings in the filter.
13. The service items belonging to the fitting can be opened with in the form or with
for all fittings in the filter.
