RL Measurement Line

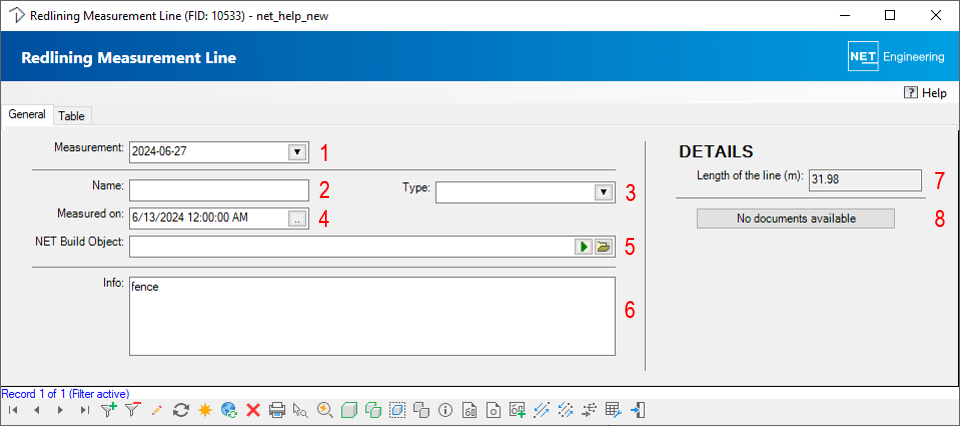

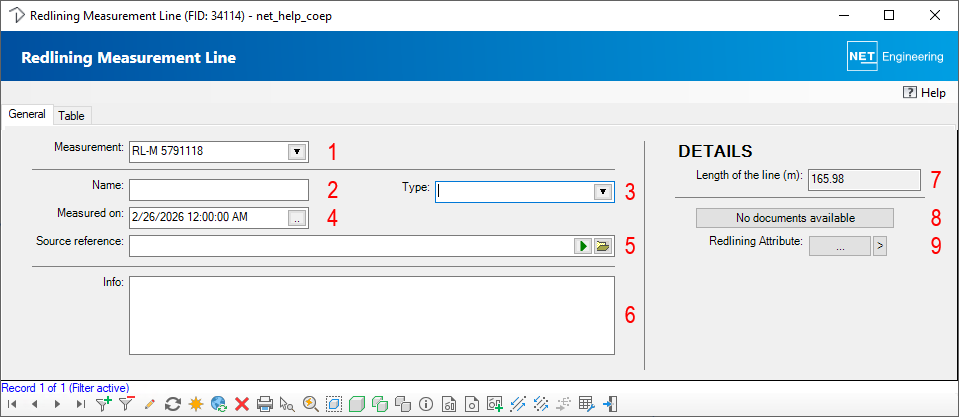

In the form of the redlining (RL) measurement line, the attributes are displayed that were assigned to the measurement line in NET BUILD.


1. The name of the measurement with which the measurement line was imported is displayed.
2. The name of the measurement line is displayed.
3. The type of the measurement line is displayed or can be selected from the drop-down list.
4. The date of the measurement, of the measurement line in NET BUILD, is displayed.
5. The corresponding object from NET BUILD is displayed with its URL.
6. Information on the measurement line can be stored.
7. The length of the line is displayed.
8. The document management can be opened and files belonging to the measurement line can be linked or opened.
