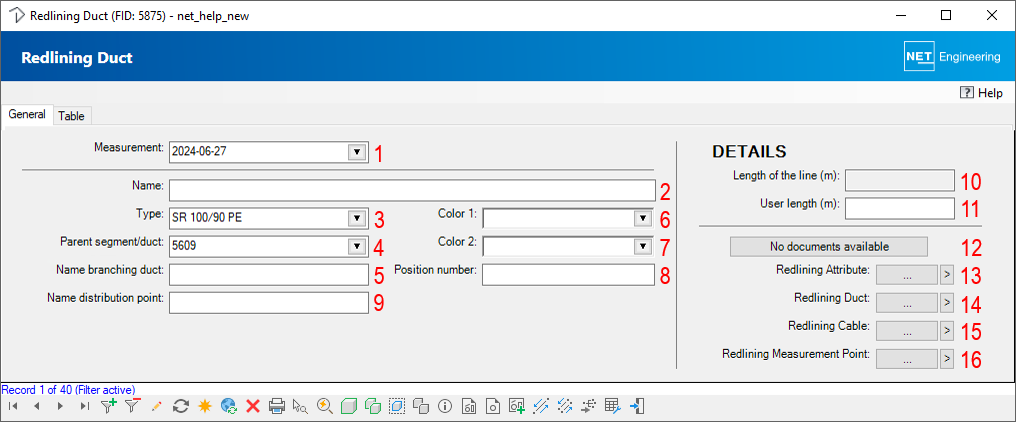

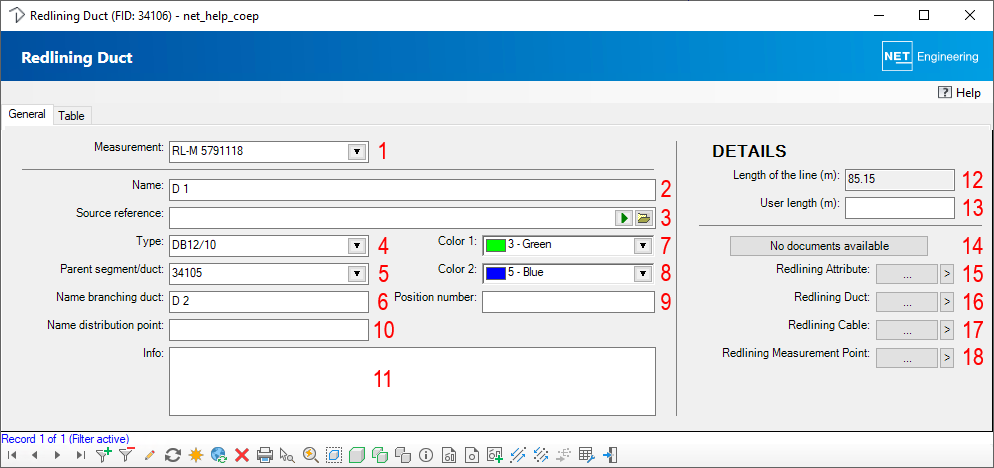

In the form of the redlining (RL) duct, the attributes are displayed that were assigned to the duct in NET Build.
In addition, the objects of the respective object class belonging to the duct can be opened.
1. The name of the measurement with which the duct was imported is displayed.
2. The name of the duct is displayed.
3. The type of the duct is displayed or can be selected from the drop-down list.
4. The FID of the parent segment/duct is displayed.
5. The name of the branching duct is displayed.
6. The first color of the duct is displayed.
7. The second color of the duct is displayed.
8. The position number of the duct is displayed.
9. The name of the distribution point is displayed.
10. The length of the line is displayed.
11. The user length of the line is displayed.
12. The document management can be opened and files belonging to the duct can be linked or opened.
13. The RL attributes assigned to the duct can be opened with in the form or with
for all ducts in the filter. These are the attributes from NET BUILD.
14. The RL ducts imported with the duct can be opened with in the form or with
for all ducts in the filter.
15. The RL cables imported with the duct can be opened with in the form or with
for all ducts in the filter.
16. The RL measurement points with which the position of the duct was created can be opened with in the form or with
for all ducts in the filter.
