DeepUp Import

In order for the DeepUp import interface to be used, the TKI NET Engineering Redlining extension must be activated in the project.
Another basic requirement is the configuration of the duct types and their duct bundle configuration as well as their color schemes for the inner ducts.

Note:
The colors of the ducts must match the colors provided via the DeepUp data. (see duct colors)

Procedure

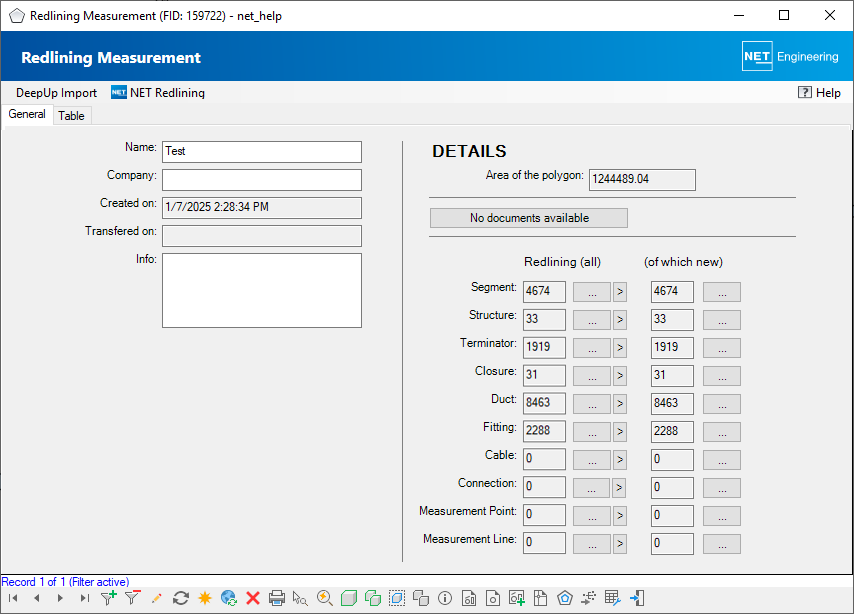

The DeepUp import is called up via the redlining measurement form.

The redlining measurement must have a geometry that is used to retrieve the data. DeepUp only retrieves objects that are located within the polygon boundaries.

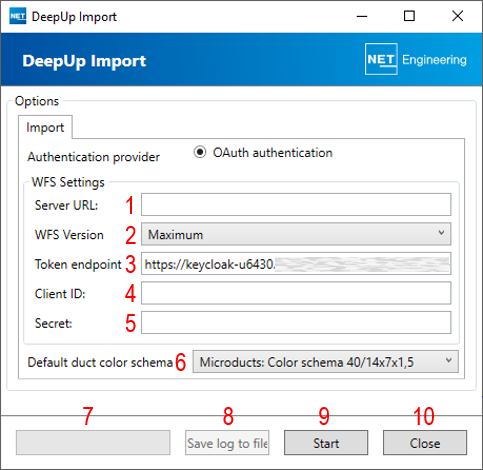

The following dialogue opens:

1. The server URL must contain the address of the DeepUp WFS server.
2. The expected WFS version of the WFS service must be selected. By default, ‘Maximum’ is selected here, which automatically determines the maximum possible version:

3. The endpoint for retrieving the authentication token must be specified.
4. The ID for retrieving the authentication token must be specified.
5. The secret key for retrieving the authentication token must be specified.

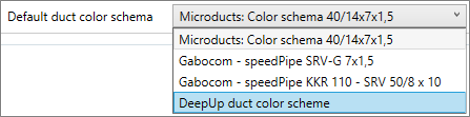

6. The standard duct color scheme specifies a color scheme that is used for duct types that are not yet stored in the NET Engineering data model.

7. Display of the progress bar
8. A log can be saved.
9. The import is started.
10. The dialogue can be closed.

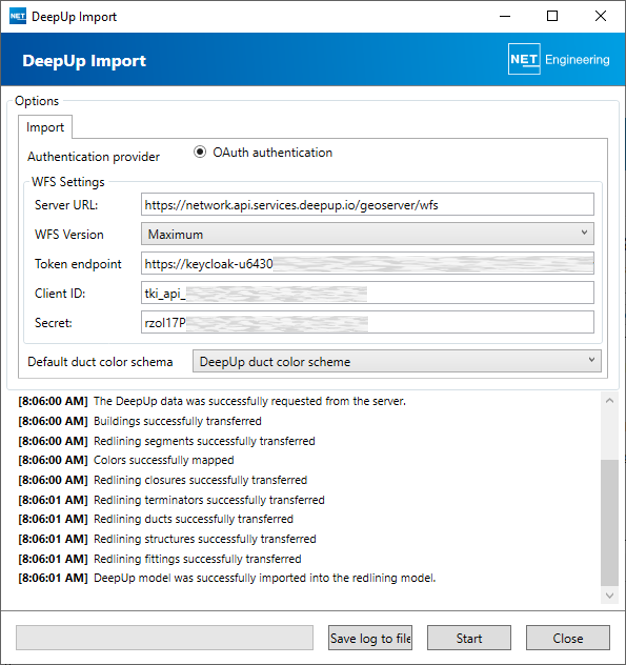

Example

All imported objects can be viewed and opened in the RL Measurement form under Details.

Duct colors
