Release Notes NET 14.0

Summary

With NET 14, we are providing a completely new import function for NET Engineering. It is now possible to import data in shape format directly into the corresponding object classes. In addition to the geometries, the attributes of source and target data can be mapped and imported. Geometric and attributive filters can be used during import.

Support for further data formats will be made available with the next releases.

In NET Design, the setting options for duct coloring when exporting to NET Engineering have been expanded: A separate color scheme can now be defined for each duct type for each network layer. Alternatively, a global color scheme per layer is still possible, which applies to all or only to duct types that are not explicitly set.

In addition, we now support the atesio STRATEGIC 2023 for automatic network calculation.

Note on licensing

New licenses, also known as entitlements, are required for NET 14
These have already been provided for customers using our cloud licensing. Nothing else needs to be done

For customers using the network license server, you must check whether the license server has automatically updated the licenses. If this is not the case, the license sever must be synchronized manually. Remember to update the TKI licensing in advance.

The new licenses are fully compatible with NET 13 and older versions.

Supported Software

  • Autodesk AutoCAD Map 3D

    • Autodesk AutoCAD Map 3D 2023.0.4 - Autodesk AutoCAD 2023.1.6

    • Autodesk AutoCAD Map 3D 2024.0.1 - Autodesk AutoCAD 2024.1.6

    • Autodesk AutoCAD Map 3D 2025.0.1 - Autodesk AutoCAD 2025.0.1

  • TKI PostgreSQL Provider 4.2.1

  • Comsof Fiber Designer 2019.2.2 - Comsof Fiber Designer 22.2

  • Comsof Fiber 23.1 - Comsof Fiber 23.2

  • atesio STRATEGIC 2020 - 2023

  • TKI Lizenzierung 14.0
    (Only required for a manual installation on the network license server)

The specified versions for Autodesk AutoCAD and Map 3D are the ones for which NET was developed. Generally, newer versions can also be used. However, there have been occasional updates in the past that caused crashes in NET.

Note on Autodesk AutoCAD Map 3D 2025

Currently, we advise against the productive use of the 2025 version of Autodesk AutoCAD Map 3D. In our tests, this version of Map 3D has proven to be unstable. Additionally, the compatible PGP version is still under development.

Note on the AutoCAD Map 3D versions

Please note the minimum required versions of Autodesk AutoCAD Map 3D for the operation of NET 14. These have been raised compared to NET 13.3 The versions supported with NET 14 can be found in the “Supported software” section NET will not work without the Autodesk AutoCAD and Map 3D updates.

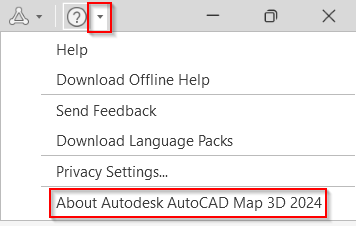

Please check your installed AutoCAD Map 3D version and pay attention to these two version details when doing so:




Release NET 4.0 in Detail

General

  • The data from all layers including Lines and points displayed in Map3D are transferred correctly to the Cyclorama

Dialogs

  • The structure update no longer creates unnecessary control elements in the forms.

Documentation Pack

  • The DocPack output now checks the validity of the selected display model of a DocPack template

  • The DocPack configurator and the DocPack output now have a help button.

  • The Plot Sequence, Plot and Plot Layout forms have been complemented with a help button that links to the NET Help Center.

  • The DocPack report plug-in now also supports MemoryTable reports and can now generate all reports. This means that the previous plug-ins for MemoryTable reports have been removed. Old DocPack configuration files are automatically migrated when opened.

NET Design

Atesio Integration

  • Atesio STRATEGIC 2023 is now supported.

Import

  • The export of CSV data now recognizes separators and quotation marks and quotes them correctly. The import of CSV data can now handle quoted strings correctly.

Dialogs

  • Increased the maximum length of the attribute ABBREVIATION in multiple feature classes of NET Design to have a uniform length of 4.

  • The object class Boundary Type (TC_PL_BOUNDARY_TYPE) has been updated so that data records with identical names are no longer permitted. Existing boundary types with the same name have been consolidated and cleaned up using a structure update.

  • The root node in the tree views of the NET Design result tables no longer contains the entry “Open form”.

Export to NET Engineering

  • In the configuration for detailed planning, the status values are now saved with the names instead of FIDs so that they can be used in other NET Engineering projects in which the status values have a different FID. The old configuration files can still be loaded without any problems.

  • During the export from NET Design to NET Engineering, when any address information is provided in a layer point, a corresponding building data record is now created without geometry and linked to the relevant component.

  • The setting options for duct coloring within the detailed planning have been expanded. Previously, it was only possible to define a fixed color for all ducts, regardless of their type, for each network level. Now it is possible to define a separate color scheme for each individual duct type at each level. It is still possible to define a global color scheme for each level, which is either applied to all duct types or to the ones for which no explicit setting has been made.

NET Engineering

General

  • When drawing duct connection graphics errors are summarized in a log dialog.

  • A duct connection graphic is created only if the line of each fitting can be drawn.

  • The end overviews have a button at the progress bar to update the overview.

  • In the NET Settings, the Fiber optic and Telephony tabs have been aligned as far as possible.

  • New data checks for connection lines and FO/TP terminators.

  • Fixed an error when deleting duct types without a duct template under Oracle.

  • If the option “Automatically rename connected ducts” is activated in the NET options under Survey plan, a warning is now issued if the name of a duct connected by a fitting is changed (confirmation with Yes = make changes to all connected and connected child ducts, confirmation with No = only make changes to this duct).

  • The duct connection editor now shows duct terminations through black colored ports on the ducts. If a duct has a duct termination at this point, this duct cannot be used for new connections. In addition, the ports on ducts are drawn a little larger to make them easier to work with.

  • Name and color schemes are no longer saved as text, but as FID in the Duct type, FO cable type and TP cable type.

Workflows

  • The selection of features in the workflows “Recalculate duct and cable length”, “Create duct end caps”, “Verify duct geometries”, “Verify FO cable geometries”, “Verify TP cable geometries”, “Create and assign ducts (w/o geometry)” and “Create house lead-in” has been optimized and standardized.

  • The cross section of a segment is now updated correctly when using the “Move duct” function.

Connection editor

  • A bug was fixed that could cause a splice and a patch to a technic port to be on the same side of a connector.

  • Clicking on a column header switches between ascending, descending and default sorting.

  • A new action has been added to the connection editor to delete trays.

Dialogs

  • The connections in the “Cabinet”, “Mahole” and “Pole” forms are now also displayed correctly for new data records.

  • The reference to the “FO switching point connection line” and “TP switching point connection line” forms from the “Line” form works again.

  • In the “Cabinet”, “Mahole” and “Pole” forms, there are now additional jump buttons for the linked ducts and in the “Pole” form there are jump buttons for the linked terminators and closures.

  • In the “Person” form, the window for the selection of the place can be opened again using the button behind “Address”.

  • The “Hide cross section” or “Show cross section” function in the “Segment” form now also works correctly after a different cross section template has been stored.

  • The text in the command line of the “Mirror cross section” function in the “Segment” form has been corrected.

  • For attributes whose values are mandatory or must be unique, a standardized and more comprehensible error message is now displayed if one of these conditions is violated.

  • The fibers in the “FO Splice” form are now displayed correctly again under Oracle.

Reports

  • The performance when creating the report “duct tap label” has been optimized.

  • During the creation of the report, errors occurred regarding the consistent assignment of ducts to the left or right side of the connection. Additionally, the report was generally flawed when protective ducts were present.
    These errors were fixed by revising the arrangement of the ducts in the report and ignoring protective ducts altogether.

Import

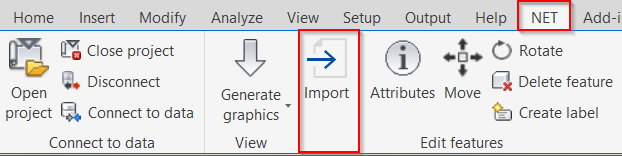

  • There is now a new import function in the NET Engineering ribbon. You can currently import the shape data format. With this function, the source data can be flexibly inserted into various tables. Relationships between the data are displayed graphically and transferred directly during import.


GIS-Nebenbestimmungen

  • The attribute BMVI_IS_COLLOCATION has been added for the feature class TC_FO_CLOSURE. A new control element has been integrated into the “GIS-NB” tab in the FO Closure form for this purpose. The export to GIS-NB takes this attribute into account if it is set. Otherwise, the export behavior remains unchanged.

Bill of Materials

  • When the error overview is opened while creating the bill of materials, old messages from previous executions will not be shown anymore.

TNIM

  • The TNIM import correctly creates dummy splices of stored splitter paths.

Import from NET Build

  • The import from NET Build could no longer be executed due to an API changeover. This error has been fixed.

  • NET Build Objekt is replaced and updated in TC_RL_FITTING, TC_RL_DUCT, TC_RL_CABLE, TC_RL_CONNECTION as Source reference/Quellreferenz correctly

  • When importing from NET Build, the log output has been improved if there are errors in the configuration.

  • The new check status “Blocked” in the redlining objects is now set when importing from NET Build and is taken into account when editing the objects.

  • When importing from NET Build, incorrect behavior occurred when ducts were laid within a protective duct. This resulted in ducts being created multiple times during a further import into the same measurement. This error has been fixed.

Export to NET Build

  • A bug has been fixed that prevented NET Build synchronisation from creating log files.

  • The NET Build script that creates a Geo JSON for invoices now also creates a file for the markups.

Redlining

  • An error in the redlining data transfer has been fixed that prevented the “Link distribution network” action from being completed

One-click-maintenance

  • Issues fixed in the 1 click maintenance “FO connection line check” and “TP connection line check”

  • Some errors related to the connection line geometry have been fixed.
    The connecting lines geometry are also adjusted if the geometry of the switching point changes.
    The existing 1 click maintenance has been updated to fix existing issues related to connection lines.

NET Field Survey

Dialogs

  • The info fields in the forms in NET Field Survey now allow line and word breaks.

Changes to the Data Model since NET 13.0

NET Design

Base Data Model

13.1

  • Added additional target tables in FID_FEATURE to the table TC_PL_ATTR_VALUE.

    • TC_PL_BOUNDARY.FID

    • TC_PL_PARCEL.FID

    • TC_PL_ROLLOUT_AREA.FID

    • TC_PL_SUBAREA.FID

13.2

  • No changes to the data model - Structural update only for new forms and reports

14.0

  • Changed type of field ABBREVIATION to varchar2 with a length of 4. Affected tables:

    • TC_PL_BUILDING

    • TC_PL_DEMAND_POINT

    • TC_PL_HOME_POINT

    • TC_PL_LAYER_POINT

    • TC_PL_POSSIBLE_TRENCH

    • TC_PL_STREET_CL

  • New unique index on column NAME in table TC_PL_BOUNDARY_TYPE.

GIS-Nebenbestimmungen Data Model

13.1

  • Removed "BMVI" from all captions.

  • Added new column BMVI_IS_TECH in TC_PL_DEMAND_POINT with relation to TC_PL_BMVI_TECH_IS_TBD.

  • Added new column BMVI_PLAN_AUSB in TC_PL_DEMAND_POINT with relation to TC_PL_BMVI_PLAN_AUSB_TBD.

  • Added new column BMVI_TECH_1_YEAR_INT in TC_PL_DEMAND_POINT with relation to TC_PL_BMVI_TECH_IS_TBD.

  • Added new column BMVI_TECH_3_YEAR_INT in TC_PL_DEMAND_POINT with relation to TC_PL_BMVI_TECH_IS_TBD.

  • Added new domain table TC_PL_BMVI_PLAN_AUSB_TBD.

    • 3 - Pre-marketing is carried out

  • Added new domain table TC_PL_BMVI_TECH_IS_TBD.

    • 1 - FTTB/H

    • 2 - HFC

    • 8 - Other Technology

13.2

  • The captions of a few remaining identifiers have been changed from “BMVI” to “GIS-NB”. There are not structural changes.

NET Engineering

Base Data Model

13.1

  • No changes to the data model - Structural update only for new forms and reports

13.2

  • The size of the column INFO in the Action area (TC_ACTION_AREA) feature class has been increased to 255 characters.

  • The columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED were added to the following views:

    • TC_M_BUILDING

    • TC_M_CLUSTER_STATISTIC

    • TC_M_SP_CABINET

    • TC_M_SP_MANHOLE

    • TC_M_SP_MARKER

    • TC_M_SP_POLE

    • TC_M_SP_SEGMENT

    • TC_M_SWITCHING_POINT

  • The backing table for the color table (TC_COLOR) was updated.

    • The column AutoCAD index (ACAD_INDEX) is not optional anymore and got the default value 0

    • The column blue value (B_VALUE) is not optional anymore and got the default value 0

    • The column dashed (DASHED) is not optional anymore and got the default value 0

    • The column green value (G_VALUE) is not optional anymore and got the default value 0

    • The column position(ORDER_ID) is not optional anymore and got the default value 0

    • The column red value (R_VALUE) is not optional anymore and got the default value 0

13.3

  • Changed view TC_REP_LINE_FROM_TO.
    This is an internal changed. Interface and output of the view are unchanged.

  • Changed database function TC_F_CONN_WALKER.
    Interface and result of the function remain the same. Only the processing performance got improved.

14.0

  • Update view TC_V_COLOR
    Added the column ACAD_INDEX from TC_COLOR

Duct Data Model

13.1

  • No changes to the data model - Structural update only for new forms and reports

13.2

  • The columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED were added to the following views:

    • TC_M_CS_CABLE

    • TC_M_CS_DUCT

    • TC_M_SP_DUCT

    • TC_M_SP_DUCT_INSERTION

    • TC_M_SP_DUCT_TAP

    • TC_M_SP_FITTING

  • The field LENGTH got added to the view TC_REP_SEGMENTCOSTS, in case it was not present already.

13.3

  • No changes to the data model - Structural update only for new forms and reports

14.0

  • Altered table TC_SP_DUCT_TYPE

    • Added column FID_INNER_DUCT_COLOR_SCHEME with relation to TC_NR_SCHEME.FID

    • Removed column INNER_DUCT_COLOR_SCHEME

Fiber Optic Data Model

13.1

  • No changes to the data model - Structural update only for new forms and reports

  • The columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED were added to the following views:

    • TC_M_FO_CABLE

    • TC_M_FO_CLOSURE

    • TC_M_FO_TERMINATOR

    • TC_M_FO_SP_ASSIGNMENTS

  • The text format of the output of the following views as fixed. There are no structure changes.

    • TC_REP_WO_FO_PATCH

    • TC_REP_WO_FO_SPLICE

  • The size of the column INFO in cable loop (TC_FO_CABLE_LOOP) feature classes got increased to 255 characters

13.2

  • The columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED were added to the following views:

    • TC_M_FO_CABLE

    • TC_M_FO_CLOSURE

    • TC_M_FO_TERMINATOR

    • TC_M_FO_SP_ASSIGNMENTS

  • The text format of the output of the following views as fixed. There are no structure changes.

    • TC_REP_WO_FO_PATCH

    • TC_REP_WO_FO_SPLICE

  • The size of the column INFO in the cable loop (TC_FO_CABLE_LOOP) got increased to 255 characters.

13.3

  • Altered view TC_M_FO_CLOSURE: The columns FID_BUILDING and FID_STRUCTURE_POINT were added.

  • Altered view TC_M_FO_SP_ASSIGNMENTS.

    • FID column does not reference the TC_POINT of the closure or the terminator, but the TC_FO_CONNECTION_LINE

    • DEV_FID references the TC_POINT of the closure or the terminator.

    • GEOM is not generated dynamically anymore, but fetched from TC_FO_CONNECTION_LINE.

  • Altered view TC_M_FO_TERMINATOR: The columns FID_BUILDING and FID_STRUCTURE_POINT were added.

14.0

  • Altered table TC_FO_CABLE_MODEL

    • Added column FID_FIBER_COLOR_SCHEME with relation to TC_NR_SCHEME.FID

    • Added column FID_FIBER_NAME_SCHEME with relation to TC_NR_SCHEME.FID

    • Removed column FIBER_COLOR_SCHEME

    • Removed column FIBER_NAME_SCHEME

Telephony Data Model

13.1

  • No changes to the data model - Structural update only for new forms and reports

13.2

  • The columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED were added to the following views:

    • TC_M_TP_CABLE

    • TC_M_TP_CLOSURE

    • TC_M_TP_TERMINATOR

    • TC_M_TP_SP_ASSIGNMENTS

  • The text format of the output of the following views as fixed. There are no structure changes.

    • TC_REP_WO_TP_PATCH

    • TC_REP_WO_TP_SPLICE

13.3

  • Altered view TC_M_TP_CLOSURE: The columns FID_BUILDING and FID_STRUCTURE_POINT were added.

  • Altered view TC_M_TP_SP_ASSIGNMENTS.

    • FID column does not reference the TC_POINT of the closure or the terminator, but the TC_TP_CONNECTION_LINE

    • DEV_FID references the TC_POINT of the closure or the terminator.

    • GEOM is not generated dynamically anymore, but fetched from TC_TP_CONNECTION_LINE.

  • Altered view TC_M_TP_TERMINATOR: The columns FID_BUILDING and FID_STRUCTURE_POINT were added.

14.0

  • Altered table TC_TP_CABLE_MODEL

    • Added column FID_WIRE_COLOR_SCHEME with relation to TC_NR_SCHEME.FID

    • Added column FID_WIRE_NAME_SCHEME with relation to TC_NR_SCHEME.FID

    • Removed column WIRE_COLOR_SCHEME

    • Removed column WIRE_NAME_SCHEME

GIS-Nebenbestimmungen Data Model

13.1

  • Added new column BMVI_IS_TECH in TC_TG_BUILDING with relation to TC_BMVI_TECH_IS_TBD.ID.

  • Added new column BMVI_PLAN_AUSB in TC_TG_BUILDING with relation to TC_BMVI_PLAN_AUSB_TBD.ID.

  • Added new column BMVI_TECH_1_YEAR_INT in TC_TG_BUILDING with relation to TC_BMVI_TECH_IS_TBD.ID.

  • Added new column BMVI_TECH_3_YEAR_INT in TC_TG_BUILDING with relation to TC_BMVI_TECH_IS_TBD.ID.

  • Added new domain table TC_BMVI_PLAN_AUSB_TBD.

    • 3 - Pre-marketing is carried out

  • Added new domain table TC_BMVI_TECH_IS_TBD.

    • 1 - FTTB/H

    • 2 - HFC

    • 8 - Other Technology

13.2

  • The captions of a few remaining identifiers have been changed from “BMVI” to “GIS-NB”. There are not structural changes.

13.3

  • No changes to the data model - Structural update only for new forms and reports

14.0

  • Added column BMVI_IS_COLLOCATION to table TC_FO_CLOSURE

Redlining Data Model

13.1

  • Added new column FID_STRUCTURE in TC_RL_CLOSURE with relation to TC_RL_STRUCTURE.FID.

  • Additional target table for the relation from TC_RL_MEASUREMENT_POINT.FID_FEATURE to TC_TG_BUILDING.FID.

  • Added new object class TC_RL_MEASUREMENT_L_MODEL.

  • Added new column FID_MODEL in TC_RL_MEASUREMENT_LINE with relation to TC_RL_MEASUREMENT_L_MODEL.FID.

  • Removed column ID_TYPE from TC_RL_MEASUREMENT_LINE.

  • Adjusted the view TC_M_RL_MEASUREMENT_LINE to use FID_MODEL instead of ID_TYPE.

  • Removed domain table TC_RL_MEASUREMENT_L_TYPE_TBD.

  • Added new object class TC_RL_MEASUREMENT_P_MODEL.

  • Added new column FID_MODEL in TC_RL_MEASUREMENT_POINT with relation to TC_RL_MEASUREMENT_P_MODEL.FID.

  • Removed column ID_TYPE from TC_RL_MEASUREMENT_POINT.

  • Adjusted the view TC_M_RL_MEASUREMENT_POINT to use FID_MODEL instead of ID_TYPE.

  • Removed domain table TC_RL_MEASUREMENT_P_TYPE_TBD.

13.2

  • The column FID_PARENT was removed from the Redlining Fitting (TC_RL_FITTING)

  • The German caption of the column CONSTRUCTION_TYPE in Redlining Trasse (TC_RL_SEGMENT) got changed.

13.3

  • New columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED got added to the following tables:

    • TC_RL_SERVICE_ITEM

    • TC_RL_ATTRIBUTE

    • TC_RL_CABLE

    • TC_RL_CLOSURE

    • TC_RL_CONNECTION

    • TC_RL_DUCT

    • TC_RL_FITTING

    • TC_RL_MEASUREMENT

    • TC_RL_MEASUREMENT_LINE

    • TC_RL_MEASUREMENT_POINT

    • TC_RL_SEGMENT

    • TC_RL_STRUCTURE

    • TC_RL_TERMINATOR

  • New columns DATE_CREATED, DATE_MODIFIED, USER_CREATED and USER_MODIFIED got added to the following views:

    • TC_M_RL_MEASUREMENT_LINE

    • TC_M_RL_MEASUREMENT_POINT

    • TC_M_RL_SEGMENT

    • TC_M_RL_STRUCTURE

    • TC_M_RL_TERMINATOR

  • New column NAME got added to TC_PL_SEGMENT.

  • New feature class TC_RL_SCAN was created.

  • Reference column FID_SCAN with a reference to TC_RL_SCAN was added to the following columns:

    • TC_RL_CABLE

    • TC_RL_CLOSURE

    • TC_RL_DUCT

    • TC_RL_FITTING

    • TC_RL_MEASUREMENT_LINE

    • TC_RL_MEASUREMENT_POINT

    • TC_RL_SEGMENT

    • TC_RL_STRUCTURE

    • TC_RL_TERMINATOR

  • New column DATE_SYNC got added to TC_RL_MEASUREMENT.

  • Reference column ID_TYPE_SURVEY with a reference to TC_SP_LINE_TYPE_TBD got added to TC_RL_MEASUREMENT_LINE.

  • Reference column ID_TYPE_SURVEY with a reference to TC_SP_POINT_TYPE_TBD got added to TC_RL_MEASUREMENT_POINT.

  • Added column SOURCE_OBJECT to the following tables

    • TC_RL_CABLE

    • TC_RL_CLOSURE

    • TC_RL_CONNECTION

    • TC_RL_DUCT

    • TC_RL_FITTING

    • TC_RL_MEASUREMENT_LINE

    • TC_RL_MEASUREMENT_POINT

    • TC_RL_SEGMENT

    • TC_RL_STRUCTURE

    • TC_RL_TERMINATOR

  • Added new value to the domain table TC_RL_CHECKED_STATE_TBD

    • 3 - BLOCKED - Blocked

NET Field Survey

Base Data Model

13.3

  • No changes to the data model - Structural update only for new forms and reports

14.0

  • No changes to the data model - Structural update only for new forms and reports

GIS-Nebenbestimmungen Data Model

13.2

  • The captions of a few remaining identifiers have been changed from “BMVI” to “GIS-NB”. There are not structural changes.

DocPack

13.2

  • A new view for the plot sequences has been added (TC_V_PLOT_SEQUENCE)

Changes to the dialogs since NET 13.0

NET Design

Base Data Model

13.1

  • New dialog for Boundary (TC_PL_BOUNDARY): Attribute Value (TC_PL_ATTR_VALUE)

  • New dialog for Parcel (TC_PL_PARCEL): Attribute Value (TC_PL_ATTR_VALUE)

  • New dialog for Rollout Area (TC_PL_ROLLOUT_AREA): Attribute Value (TC_PL_ATTR_VALUE)

  • New dialog for Subarea (TC_PL_SUBAREA): Attribute Value (TC_PL_ATTR_VALUE)

  • New references from Cable Type (TC_PL_CABLE_TYPE.FID)

    • to Building (TC_PL_BUILDING.FID_FORCED_CABLE_TYPE)

    • to Demand Point (TC_PL_DEMAND_POINT.FID_FORCED_CABLE_TYPE)

13.2

  • The number of decimal places for the display has been set to 2.

    • Boundary (TC_PL_BOUNDARY) - Length in m (LENGTH)

    • Boundary (TC_PL_BOUNDARY) - Width (WIDTH)

    • Building → Number of residents (TC_PL_RESIDENT) - Adoption rate (ADOPTION_RATE)

    • Building → Number of residents (TC_PL_RESIDENT) - Expected revenue (EXPECTED_REVENUE)

    • Demand Point → Number of residents (TC_PL_RESIDENT) - Adoption rate (ADOPTION_RATE)

    • Demand Point → Number of residents (TC_PL_RESIDENT) - Expected revenue (EXPECTED_REVENUE)

    • Number of residents (TC_PL_RESIDENT) - Adoption rate (ADOPTION_RATE)

    • Number of residents (TC_PL_RESIDENT) - Expected revenue (EXPECTED_REVENUE)

    • Result Kabelloop (TC_PL_OUT_CABLE_LOOP) - Length (LENGTH)

14.0

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

GIS-Specifications Data Model

13.1

  • Dialog for Demand Point (TC_PL_DEMAND_POINT):

    • Changed control for "Technology within one year" from text field to dropdown. Database field changed from BMVI_TECH_1_YEAR to BMVI_TECH_1_YEAR_INT.

    • Changed control for "Technology within three years" from text field to dropdown. Database field changed from BMVI_TECH_3_YEAR to BMVI_TECH_3_YEAR_INT.

    • Changed control for "Technology Is Supply" from text field to dropdown. Database field changed from BMVI_TECH_IS to BMVI_IS_TECH.

    • Added new dropdown "Expansion Plan" (BMVI_PLAN_AUSB)

13.2

  • The caption “BMVI” has been replaced by “GIS-NB” in the following dialogs:

    • Cable (TC_PL_CABLE)

    • Duct (TC_PL_DUCT)

    • Expansion area (TC_PL_EXPANSION_AREA)

    • Layer Point (TC_PL_LAYER_POINT)

    • Market survey (TC_PL_MARKET_SURVEY)

    • Possible trench (TC_PL_POSSIBLE_TRENCH)

    • Structure (TC_PL_STRUCTURE)

  • Controls related to GIS-NB have been moved to the GIS-NB tab.

    • Expansion area (TC_PL_EXPANSION_AREA)

    • Foreign area (TC_PL_FOREIGN_AREA)

    • Political area (TC_PL_POLITICAL_AREA)

    • White spot (TC_PL_WHITE_SPOT)

  • The number of decimal places for the display has been set to 2.

    • Expansion area (TC_PL_EXPANSION_AREA) - Area (AREA)

    • Foreign area (TC_PL_FOREIGN_AREA) - Area (AREA)

    • Market survey (TC_PL_MARKET_SURVEY) - Area (AREA)

    • Political area (TC_PL_POLITICAL_AREA) - Area (AREA)

    • White spot (TC_PL_WHITE_SPOT) - Area (AREA)

NET Engineering

Base Data Model

13.2

  • The number of decimal places for the display has been set to 2.

    • Action Area (TC_ACTION_AREA) - Area (AREA)

    • Action Area Label (TC_ACTION_AREA_TBL) - Orientation (ORIENTATION)

    • Cluster Grid (TC_CLUSTER_GRID) - Area (AREA)

    • Cabinet Label (TC_SP_CABINET_TBL) - Orientation (ORIENTATION)

    • Manhole Label (TC_SP_MANHOLE_TBL) - Orientation (ORIENTATION)

    • Survey Plan Point (TC_SP_POINT) - Orientation (ORIENTATION)

    • Pole Label (TC_SP_POLE_TBL) - Orientation (ORIENTATION)

    • Segment Label (TC_SP_SEGMENT_TBL) - Orientation (ORIENTATION)

    • Switching Point Label (TC_SP_SWITCHING_POINT_TBL) - Orientation (ORIENTATION)

    • Building Label (TC_TG_BUILDING_TBL) - Orientation (ORIENTATION)

    • Topography point (TC_TG_POINT) - Orientation (ORIENTATION)

    • Topography cluster (TC_TG_POLYGON) - Area (AREA)

    • Street Label (TC_TG_STREET_TBL) - Orientation (ORIENTATION)

  • All Info fields (INFO) have been set to have the height of 51, to support multiple lines and automatically apply line breaks. Changes were done in the following dialogs:

    • Action area (TC_ACTION_AREA)

    • Element library (TC_ELEMENT_LIBRARY)

    • Line (TC_LINE)

    • Point (TC_POINT)

    • Drilling rig (TC_SP_DRILLING_RIG)

    • Marker (TC_SP_MARKER)

    • Marker model (TC_SP_MARKER_MODEL)

    • Patch panel (TC_SP_PATCH_PANEL)

    • Patch panel model (TC_SP_PATCH_PANEL_MODEL)

    • Rack panel (TC_SP_RACK_PANEL)

    • Rack panel model (TC_SP_RACK_PANEL_MODEL)

    • Status (TC_STATUS)

    • Switching point model (TC_SWITCHING_POINT_MODEL)

    • Topography point (TC_TG_POINT)

    • Topography cluster (TC_TG_POLYGON)

13.3

  • Dialog definitions for the following views got removed and replaced with a redirect to the base table.

    • TC_V_COLOR

    • TC_V_CONN

    • TC_V_CONN_DETAILS

    • TC_V_CONN_DETAILS_PERF

    • TC_CONN_DETAILS_TO

14.0

  • Fixed the multi reference control on the Line (TC_LINE) dialog. References to the connection lines are now properly resolved.

  • Updated the dialog for cabinets (TC_SP_CABINET), manholes (TC_SP_MANHOLE) and poles (TC_SP_POLE)

    • Added a reference to the connected ducts

    • Fixed the positioning of the controls

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

Duct Data Model

13.2

  • The number of decimal places for the display has been set to 2.

    • Duct insertion label (TC_SP_DUCT_INSERTION_TBL) - Orientation (ORIENTATION)

    • Duct tap line (TC_SP_DUCT_TAP_LINE) - Length (LENGTH)

    • Duct tap line label (TC_SP_DUCT_TAP_LINE_TBL) - Orientation (ORIENTATION)

    • Duct tap label (TC_SP_DUCT_TAP_TBL) - Orientation (ORIENTATION)

    • Duct label (TC_SP_DUCT_TBL) - Orientation (ORIENTATION)

    • Duct (TC_SP_FITTING_TBL) - Orientation (ORIENTATION)

  • All Info fields (INFO) have been set to have the height of 51, to support multiple lines and automatically apply line breaks. Changes were done in the following dialogs:

    • Duct tap model (TC_SP_DUCT_TAP_MODEL)

13.3

  • New projection added to TC_TG_BUILDING pointing the the duct terminators inside the building.

  • Dialog definitions for the following views got removed and replaced with a redirect to the base table.

    • TC_V_BREAKDOWN_LINES

14.0

  • Dialog Duct type (TC_SP_DUCT_TYPE)

    • Selection for color scheme: Changed referenced database field from INNER_DUCT_COLOR_SCHEME to FID_INNER_DUCT_COLOR_SCHEME

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

Fiber Optic Data Model

13.1

  • Dialog for Fiber Optic Splice (TC_FO_SPLICE):

    • New named filters:

      • Show splices

      • Show stored fibers

      • Show uncut fibers in BA

      • Show uncut fibers

    • New SQL Label "Splice Type" ($SQLLABELSPLICETYPE)

    • Corrected positioning of Document Management ($DOCUMENTMANAGER)

13.2

  • The number of decimal places for the display has been set to 2.

    • FO cable loop label (TC_FO_CABLE_LOOP_TBL) - Orientation (ORIENTATION)

    • FO cable model (TC_FO_CABLE_MODEL) - Diameter (DIAMETER)

    • FO connector label (TC_FO_CONNECTOR_TBL) - Orientation (ORIENTATION)

    • FO fiber label (TC_FO_FIBER_TBL) - Orientation (ORIENTATION)

    • FO patch data (TC_FO_PATCH_DATA) - Attenuation (ATTENUATION)

    • FO patch fiber label (TC_FO_PATCH_FIBER_TBL) - Orientation (ORIENTATION)

    • FO patch label (TC_FO_PATCH_TBL) - Orientation (ORIENTATION)

    • FO splice graphics label (TC_FO_SPLICE_GRAPHICS_TBL) - Orientation (ORIENTATION)

    • FO splice label (TC_FO_SPLICE_TBL) - Orientation (ORIENTATION)

    • FO splitter path label (TC_FO_SPLITTER_PATH_TBL) - Orientation (ORIENTATION)

    • FO splitter label (TC_FO_SPLITTER_TBL) - Orientation (ORIENTATION)

    • FO terminator label (TC_FO_TERMINATOR_TBL) - Orientation (ORIENTATION)

  • All Info fields (INFO) have been set to have the height of 51, to support multiple lines and automatically apply line breaks. Changes were done in the following dialogs:

    • FO cable loop (TC_FO_CABLE_LOOP)

    • FO closure model (TC_FO_CLOSURE_MODEL)

  • New API controls have been added to the FO closure (TC_FO_CLOSURE) and the FO terminator (TC_FO_TERMINATOR)

    • $ENDINGLINECOMPLEX

    • $STARTINGLINECOMPLEX

  • Dialog FO splice (TC_FO_SPLICE) - The display for the connected splitters got corrected. The queries of the controls $SQLLABELSPLITTER1 and $SQLLABELSPLITTER2 got fixed.

13.3

  • New projection added to TC_TG_BUILDING pointing the the fiber optic terminators inside the building.

  • Dialog definitions for the following views got removed and replaced with a redirect to the base table.

    • TC_V_FO_CONN_FIBERTOTRAY

    • TC_V_FO_CONN_FIBER_CONN

    • TC_V_FO_CONN_PATCHFIBER

    • TC_V_FO_CONN_SPLICE

    • TC_V_FO_CONN_SPLITTER

    • TC_V_FO_TRAY

    • TC_V_FO_UNCUT_FIBERS

    • TC_V_FO_WIRING

    • TC_V_SPLICE_OVERVIEW

14.0

  • Dialog fiber optic cable type (TC_FO_CABLE_MODEL)

    • Selection for color scheme: Changed referenced database field from FIBER_COLOR_SCHEME to FID_FIBER_COLOR_SCHEME

    • Selection for naming scheme: Changed referenced database field from FIBER_NAME_SCHEME to FID_FIBER_NAME_SCHEME

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

Telephony Data Model

13.2

  • The number of decimal places for the display has been set to 2.

    • Telephony cable loop (TC_TP_CABLE_LOOP) - Orientation (ORIENTATION)

    • Telephony cable model (TC_TP_CABLE_MODEL) - Diameter (DIAMETER)

    • Telephony cable label (TC_TP_CABLE_TBL) - Orientation (ORIENTATION)

    • Telephony closure label (TC_TP_CLOSURE_TBL) - Orientation (ORIENTATION)

    • Telephony patch data (TC_TP_PATCH_DATA) - Attenuation (ATTENUATION)

    • Telephony patch label (TC_TP_PATCH_TBL) - Orientation (ORIENTATION)

    • Telephony pin data (TC_TP_PIN_DATA) - Attenuation (ATTENUATION)

    • Telephony splice data (TC_TP_SPLICE_DATA) - Attenuation (ATTENUATION)

    • Telephony splice graphics label (TC_TP_SPLICE_GRAPHICS_TBL) - Orientation (ORIENTATION)

    • Telephony terminator label (TC_TP_TERMINATOR_TBL) - Orientation (ORIENTATION)

    • Telephony wire data (TC_TP_WIRE_DATA) - Attenuation (ATTENUATION)

  • New API controls have been added to the Telephony closure (TC_TP_CLOSURE) and the Telephony terminator (TC_TP_TERMINATOR)

    • $ENDINGLINECOMPLEX

    • $STARTINGLINECOMPLEX

13.3

  • New projection added to TC_TG_BUILDING pointing the the telephony terminators inside the building.

  • Dialog definitions for the following views got removed and replaced with a redirect to the base table.

    • TC_V_TP_CONN_DETAILS

    • TC_V_TP_CONN_SPLICE

    • TC_V_TP_CONN_WIRE_PIN

    • TC_V_TP_PINS

    • TC_V_TP_WIRING

14.0

  • Dialog telephony cable type (TC_TP_CABLE_MODEL)

    • Selection for color scheme: Changed referenced database field from WIRE_COLOR_SCHEME to FID_WIRE_COLOR_SCHEME

    • Selection for naming scheme: Changed referenced database field from WIRE_NAME_SCHEME to FID_WIRE_NAME_SCHEME

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

Redlining Data Model

13.1

  • Dialog for Redlining Closure (TC_PL_CLOSURE):

    • New reference field for Redlining Structure (FID_STRUCTURE)

    • Corrected positioning of Redlining Source Object (SOURCE_OBJECT)

  • Dialog for Measurement Line (TC_RL_MEASUREMENT_LINE):

    • Replaced reference to type ID_TYPE with FID_MODEL

    • Corrected positioning of all controls

  • New dialog for Measurement Line Model (TC_RL_MEASUREMENT_L_MODEL)

  • Dialog for Measurement Point (TC_RL_MEASUREMENT_POINT):

    • Extended target tables for parent object (FID_PARENT) to include Building (TC_TG_BUILDING)

    • Replaced reference to type ID_TYPE with FID_MODEL

    • Corrected positioning of all controls

  • New dialog for Measurement Point Model (TC_RL_MEASUREMENT_P_MODEL)

  • Corrected positioning of Source Object (SOURCE_OBJECT) in Redlining Segment (TC_RL_SEGMENT)

  • Corrected positioning of Source Object (SOURCE_OBJECT) in Redlining Structure (TC_RL_STRUCTURE)

  • Corrected positioning of Source Object (SOURCE_OBJECT) in Redlining Terminator (TC_RL_TERMINATOR)

13.2

  • The links to the online help got updated in the following dialogs

    • Redlining attribute (TC_RL_ATTRIBUTE)

    • Redlining cable (TC_RL_CABLE)

    • Redlining closure (TC_RL_CLOSURE)

    • Redlining connection (TC_RL_CONNECTION)

    • Redlining duct (TC_RL_DUCT)

    • Redlining fitting (TC_RL_FITTING)

    • Redlining measurement (TC_RL_MEASUREMENT)

    • Redlining measurement line (TC_RL_MEASUREMENT_LINE)

    • Redlining measurement point (TC_RL_MEASUREMENT_POINT)

    • Redlining segment (TC_RL_SEGMENT)

    • Redlining service item (TC_RL_SERVICE_ITEM)

    • Redlining structure (TC_RL_STRUCTURE)

    • Redlining terminator (TC_RL_TERMINATOR)

  • A new reference to the Redlining service item ($REF_TC_RL_SERVICE_ITEM) has been added to the following dialogs:

    • Redlining closure (TC_RL_CLOSURE)

    • Redlining fitting (TC_RL_FITTING)

    • Redlining segment (TC_RL_SEGMENT)

    • Redlining structure (TC_RL_STRUCTURE)

    • Redlining terminator (TC_RL_TERMINATOR)

  • The reference to the Redlining fitting ($REF_TC_RL_FITTING) has been removed from the dialog Redlining duct (TC_RL_DUCT)

  • The reference to the Redlining fitting ($REF_TC_RL_FITTING) has been removed from the dialog Redlining segment (TC_RL_SEGMENT)

  • The reference to the parent object (FID_PARENT) has been removed from the dialog for the Redlining fitting (TC_RL_FITTING)

13.3

  • A new control (FID_SCAN) with a reference to the Redlining Scan table got added to the following dialogs:

    • TC_RL_CABLE

    • TC_RL_CLOSURE

    • TC_RL_DUCT

    • TC_RL_FITTING

    • TC_RL_MEASUREMENT_LINE

    • TC_RL_MEASUREMENT_POINT

    • TC_RL_SEGMENT

    • TC_RL_STRUCTURE

    • TC_RL_TERMINATOR

  • A set of new controls got added to the Redlining Measurement (TC_RL_MEASUREMENT) containing the number of individual features that got added during the last pull from NET Build.

  • New selection for the survey plan type stored in TC_RL_MEASUREMENT_L_MODEL

  • New selection for the survey plan type stored in TC_RL_MEASUREMENT_P_MODEL

  • New text box for the NAME added to TC_RL_SEGMENT

  • Completely new dialog for TC_RL_SCAN


14.0

  • Redlining cable (TC_RL_CABLE)

    • Fixed tab-key sequence in the dialog

    • New text input control for column SOURCE_OBJECT

  • Redlining closure (TC_RL_CLOSURE) - New text input control for column SOURCE_OBJECT

  • Redlining connection (TC_RL_CONNECTION)

    • Positionierung der Steuerelemente im Formular korrigiert

    • New text input control for column SOURCE_OBJECT

  • Redlining duct(TC_RL_DUCT)

    • Positionierung der Steuerelemente im Formular korrigiert

    • New text input control for column SOURCE_OBJECT

  • Redlining fitting(TC_RL_FITTING)

    • Fixed tab-key sequence in the dialog

    • New text input control for column SOURCE_OBJECT

  • Redlining measurement line (TC_RL_MEASUREMENT_LINE) - New text input control for column SOURCE_OBJECT

  • Redlining measurement point (TC_RL_MEASUREMENT_POINT) - New text input control for column SOURCE_OBJECT

  • Redlining segment (TC_RL_SEGMENT) - New text input control for column SOURCE_OBJECT

  • Redlining structure (TC_RL_STRUCTURE) - New text input control for column SOURCE_OBJECT

  • Redlining terminator (TC_RL_TERMINATOR) - New text input control for column SOURCE_OBJECT

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

GIS-Nebenbestimmung Data Model

13.1

  • Dialog for Building (TC_TG_BUILDING):

    • Changed control for "Technology within one year" from text field to dropdown. Database field changed from BMVI_TECH_1_YEAR to BMVI_TECH_1_YEAR_INT.

    • Changed control for "Technology within three years" from text field to dropdown. Database field changed from BMVI_TECH_3_YEAR to BMVI_TECH_3_YEAR_INT.

    • Changed control for "Technology Is Supply" from text field to dropdown. Database field changed from BMVI_TECH_IS to BMVI_IS_TECH.

    • Added new dropdown "Expansion Plan" (BMVI_PLAN_AUSB)

13.2

  • The number of decimal places for the display has been set to 2.

    • Expansion area (TC_BMVI_EXPANSION_AREA) - Area (AREA)

    • Foreign area (TC_BMVI_FOREIGN_AREA) - Area (AREA)

    • Market survey (TC_BMVI_MARKET_SURVEY) - Area (AREA)

    • Political area (TC_BMVI_POLITICAL_AREA) - Area (AREA)

    • Supply area (TC_BMVI_SUPPLY_AREA) - Area (AREA)

    • White spot (TC_BMVI_WHITE_SPOT) - Area (AREA)

    • Building (TC_TG_BUILDING) - Loss (BMVI_LOSS)

13.3

  • Update of the spatial queries for the living and business units, as well as schools, public institutions and hospitals in TC_BMVI_WHITE_SPOTS and TC_BMVI_EXPANSION_AREA. Building that are only partially inside of the cluster, will now be counted as well.

14.0

  • Added new checkbox for the column BMVI_IS_COLLOCATION in dialog for the fiber optic closure (TC_FO_CLOSURE)

  • Updated mandatory flags and enabled the client side unique check for all dialog controls according to the database definition.
    This update affects every dialog and updates the flags according to the definition in the database.

Changes of the reports since NET 13.0

NET Engineering

Base Data Model

13.1

  • Support function to identify the location of images was updated in all reports.

13.2

  • The base filter of the reports were changed, to prevent an error showing up in case there are no rows selected in the corresponding dialog.

    • NET network overview service (NET Network Overview Service)

    • NET network overview service (just points) (NET Network Overview of Service(just Points))

    • NET point table (NET Point Table)

    • NET reports (NET Reports)

    • NET segment cost (NET Segment Cost)

    • NET work order (NET Work Order)

  • Replaced automatic line break with with manual line break in the report NET work order (NET Work Order).

13.3

  • The base filter for the reports got changed for Oracle databases, to allow the reports being created once again without an error. The following reports got changed.

    • NET network overview service (NET Network Overview Service)

    • NET network overview service (just points) (NET Network Overview of Service(just Points))

    • NET point table (NET Point Table)

    • NET reports (NET Reports)

    • NET segment cost (NET Segment Cost)

    • NET work order (NET Work Order)

Duct Data Model

13.1

  • The vertical text alignment has been fixed in the columns for the start and end node in the “duct tap connections” report.

  • Support function to identify the location of images was updated in all reports.

13.2

  • The base filter of the reports were changed, to prevent an error showing up in case there are no rows selected in the corresponding dialog.

    • NET duct end overview (Duct End Overview)

  • NET duct tap label (NET Duct Tap Label) - color 2 of the duct on the right side fixed

13.3

  • The base filter for the reports got changed for Oracle databases, to allow the reports being created once again without an error. The following reports got changed.

    • NET duct end overview (Duct End Overview)

Fiber Optic Data Model

13.1

  • Support function to identify the location of images was updated in all reports.

13.2

  • The base filter of the reports were changed, to prevent an error showing up in case there are no rows selected in the corresponding dialog.

    • NET cable cost (NET Cable Cost)

    • NET FO cable section brief overview (NET FO Cable Section Brief Overview)

    • NET FO cable section service customer (NET FO Cable Section Service Customer)

    • NET FO cable section without trunk (NET FO Cable Section Without Trunk)

    • NET FO cable section (NET FO Cable Section)

    • NET FO cable trunk duct route (NET FO Cable Trunk Duct Route)

    • NET FO closure trays (NET FO Closure Trays)

    • NET FO connector used at switching point (NET FO Connector Used at Switching Point)

    • NET FO connector used at terminator (NET FO Connector Used at Terminator)

    • NET FO connector used with service at switching point (NET FO Connector Used with Service at Switching Point)

    • NET FO connector used with service at terminator (NET FO Connector Used with Service at Terminator)

    • NET FO connector at switching point (NET FO Connector at Switching Point)

    • NET FO connector at terminator (NET FO Connector at Terminator)

    • NET FO patch overview from connectors (NET FO Patch Overview from Connectors)

    • NET FO patches in switching point (NET FO Patches in Switching Point)

    • NET FO patches in terminator (NET FO Patches in Terminator)

    • NET FO terminator overview (NET FO Terminator Overview)

13.3

  • The base filter for the reports got changed for Oracle databases, to allow the reports being created once again without an error. The following reports got changed.

    • NET cable cost (NET Cable Cost)

    • NET FO cable section brief overview (NET FO Cable Section Brief Overview)

    • NET FO cable section service customer (NET FO Cable Section Service Customer)

    • NET FO cable section without trunk (NET FO Cable Section Without Trunk)

    • NET FO cable section (NET FO Cable Section)

    • NET FO cable trunk duct route (NET FO Cable Trunk Duct Route)

    • NET FO closure trays (NET FO Closure Trays)

    • NET FO connector used at switching point (NET FO Connector Used at Switching Point)

    • NET FO connector used at terminator (NET FO Connector Used at Terminator)

    • NET FO connector used with service at switching point (NET FO Connector Used with Service at Switching Point)

    • NET FO connector used with service at terminator (NET FO Connector Used with Service at Terminator)

    • NET FO connector at switching point (NET FO Connector at Switching Point)

    • NET FO connector at terminator (NET FO Connector at Terminator)

    • NET FO patch overview from connectors (NET FO Patch Overview from Connectors)

    • NET FO patches in switching point (NET FO Patches in Switching Point)

    • NET FO patches in terminator (NET FO Patches in Terminator)

    • NET FO terminator overview (NET FO Terminator Overview)

Telephony Data Model

13.1

  • Support function to identify the location of images was updated in all reports.

13.2

  • The base filter of the reports were changed, to prevent an error showing up in case there are no rows selected in the corresponding dialog.

    • NET Telephony cable section brief overview (NET TP Cable Section Brief Overview)

    • NET Telephony cable section service customer (NET TP Cable Section Service Customer)

    • NET Telephony cable section without trunk (NET TP Cable Section without Trunk)

    • NET Telephony cable section (NET TP Cable Section)

    • NET Telephony cable trunk duct route (NET TP Cable Trunk Duct Route)

    • NET Telephony network overview template (NET TP Network Overview Template)

    • NET Telephony patches in switching point (NET TP Patches in Switching point)

    • NET Telephony patches in terminator (NET TP Patches in Terminator)

    • NET Telephony pins in switching point (NET TP Pins in Switching point)

    • NET Telephony pins in terminator (NET TP Pins in Terminator)

    • NET Telephony splice overview closure (NET TP Splice Overview Closure)

    • NET Telephony splice overview terminator (NET TP Splice Overview Terminator)

13.3

  • The base filter for the reports got changed for Oracle databases, to allow the reports being created once again without an error. The following reports got changed.

    • NET Telephony cable section brief overview (NET TP Cable Section Brief Overview)

    • NET Telephony cable section service customer (NET TP Cable Section Service Customer)

    • NET Telephony cable section without trunk (NET TP Cable Section without Trunk)

    • NET Telephony cable section (NET TP Cable Section)

    • NET Telephony cable trunk duct route (NET TP Cable Trunk Duct Route)

    • NET Telephony network overview template (NET TP Network Overview Template)

    • NET Telephony patches in switching point (NET TP Patches in Switching point)

    • NET Telephony patches in terminator (NET TP Patches in Terminator)

    • NET Telephony pins in switching point (NET TP Pins in Switching point)

    • NET Telephony pins in terminator (NET TP Pins in Terminator)

    • NET Telephony splice overview closure (NET TP Splice Overview Closure)

    • NET Telephony splice overview terminator (NET TP Splice Overview Terminator)
