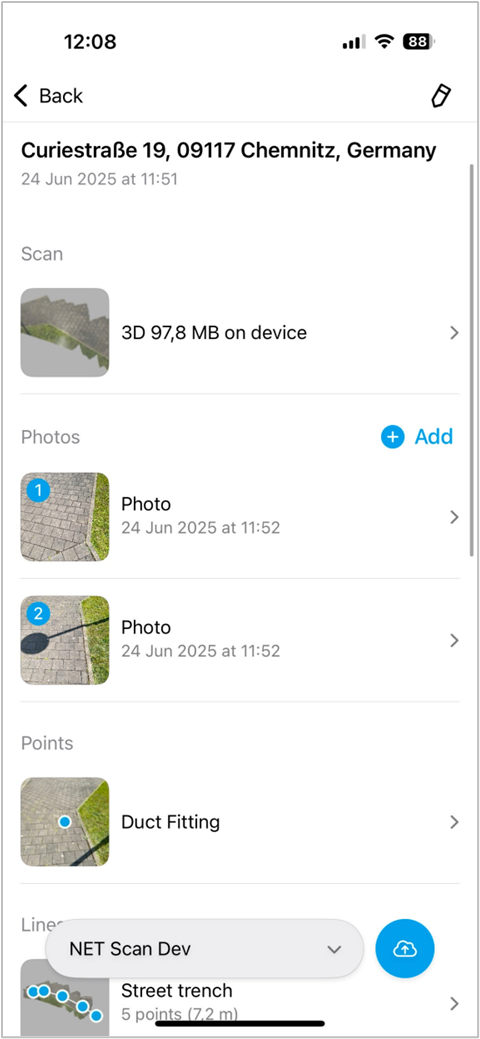

To edit a saved scan, select it in the detail list and click on the edit symbol in the top right-hand corner. This switches you to edit mode. Changes can be discarded with ‘Cancel’ or saved with ‘Save’. Adding comments also activates the edit mode. Comments can be added at the bottom of the detail view. The scan details can also be viewed there, the project can be changed and the scan can be uploaded.

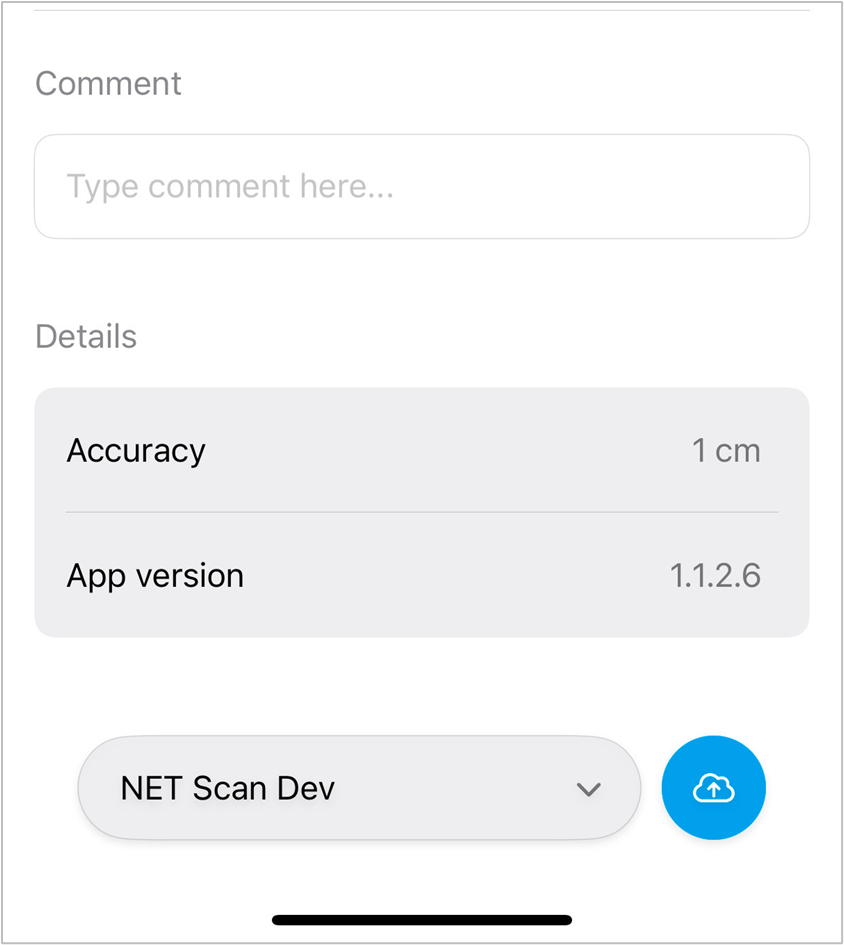

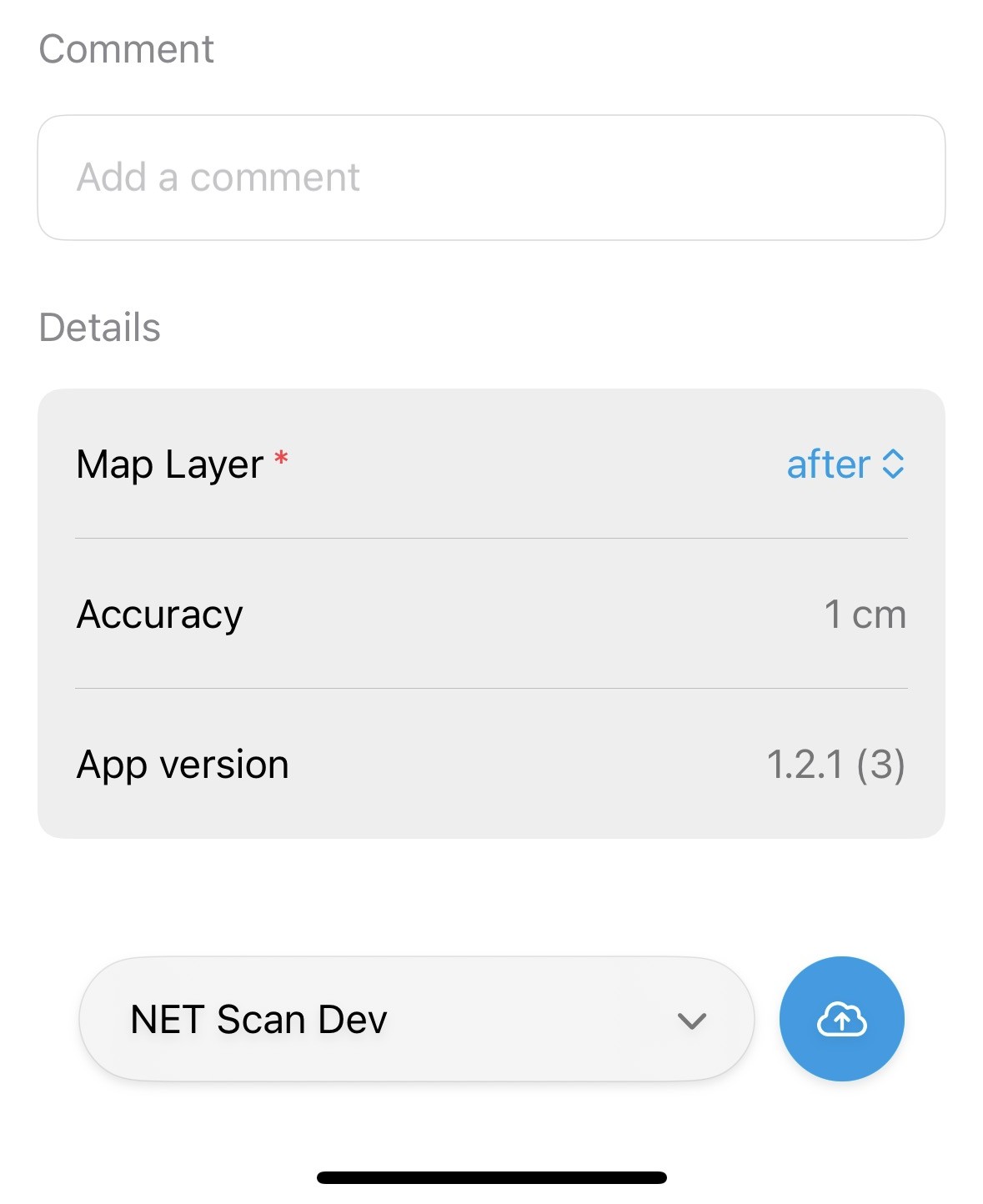

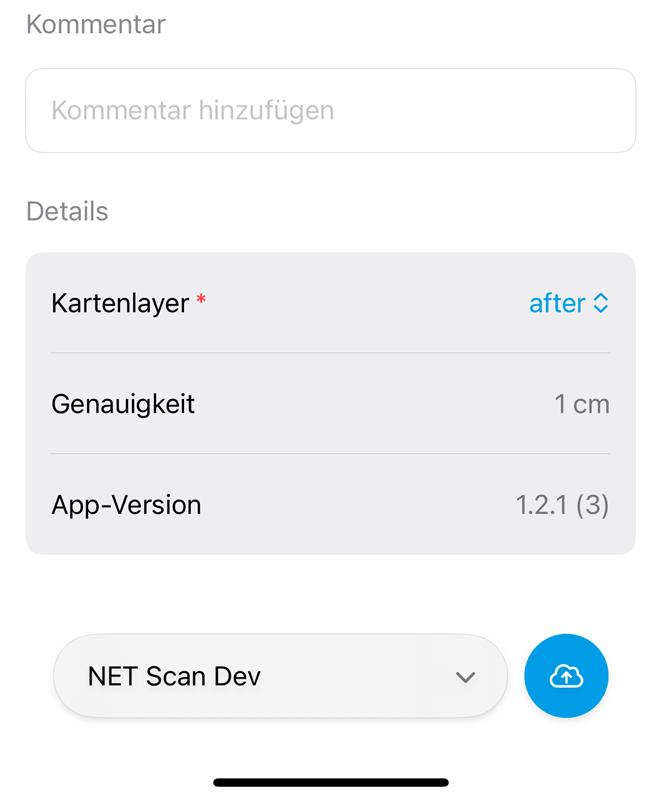

Figure: End of Detail Page

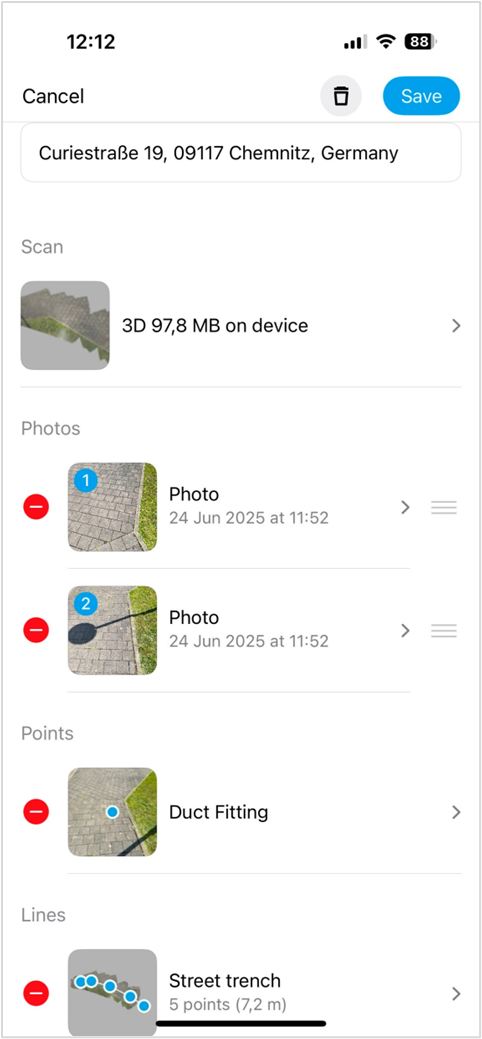

During editing, scans, photos, and objects can be selected and deleted simultaneously.
Figure: Deleting Multiple Photos, Points, Lines

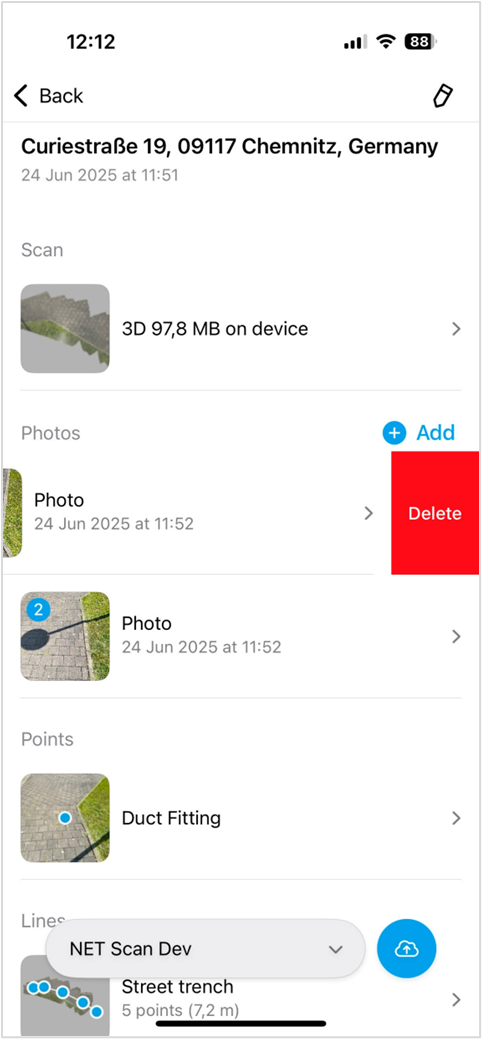

Deleting individual scans, photos, or objects is also possible outside of edit mode. By swiping left, a single element can be removed.

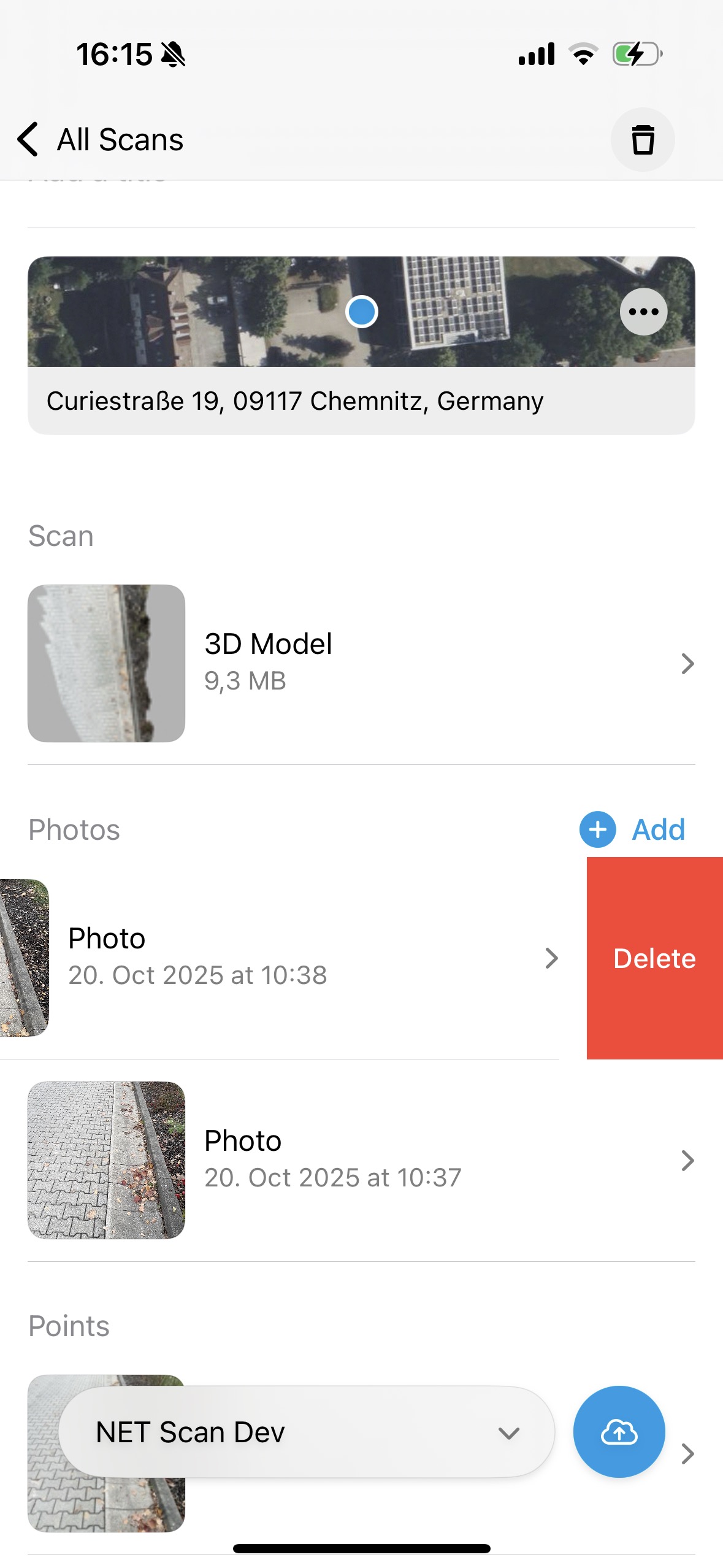

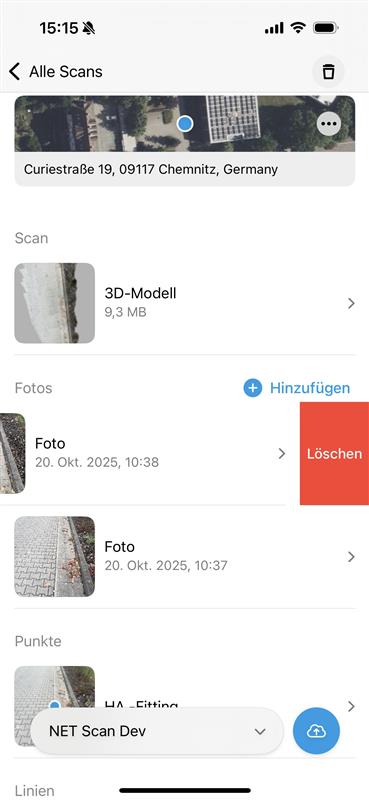

Figure: Deleting a Single Element
Add Photos

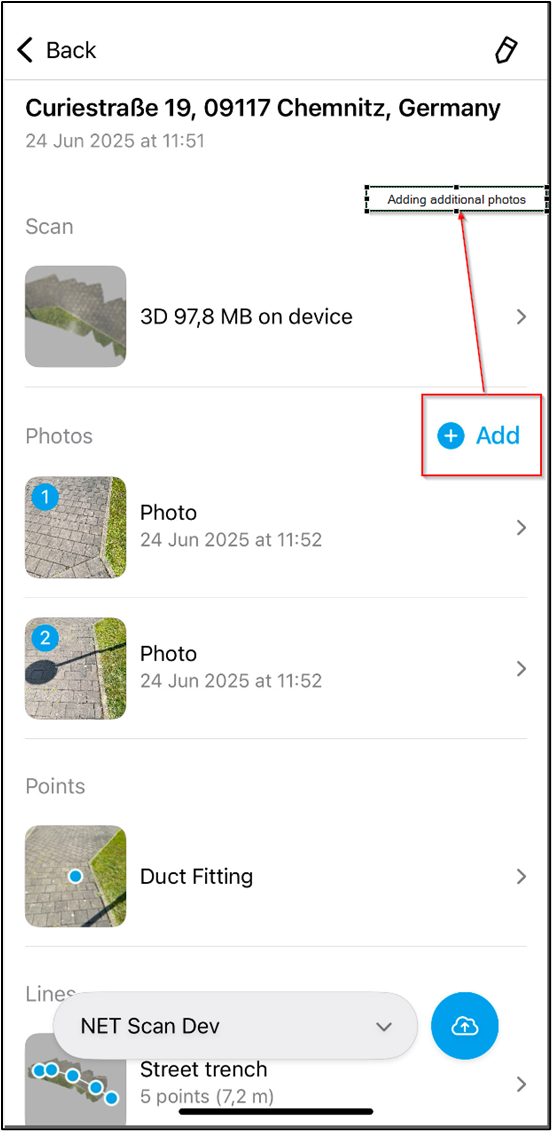

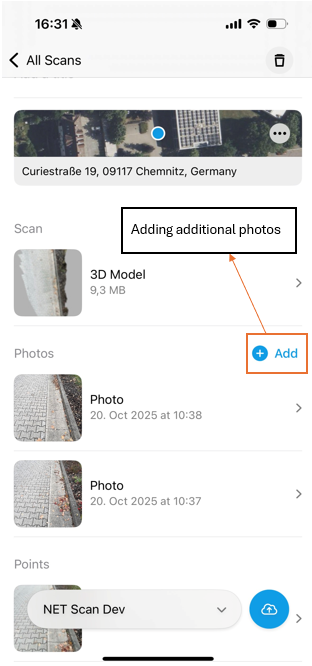

If photos are available, they will be listed after the scan. Using “Add”, new photos can be taken and added to the scan, as long as it has not yet been uploaded.

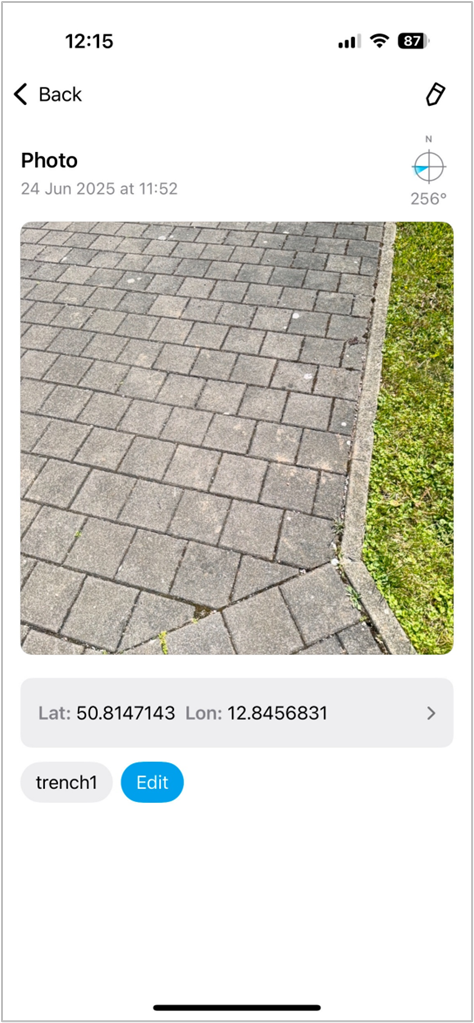

When a photo is selected, a detailed view opens. This view shows positioning information and allows assigning a new title to the photo. Tapping on the image opens it in full-screen mode, where you can zoom in and navigate to other photos.

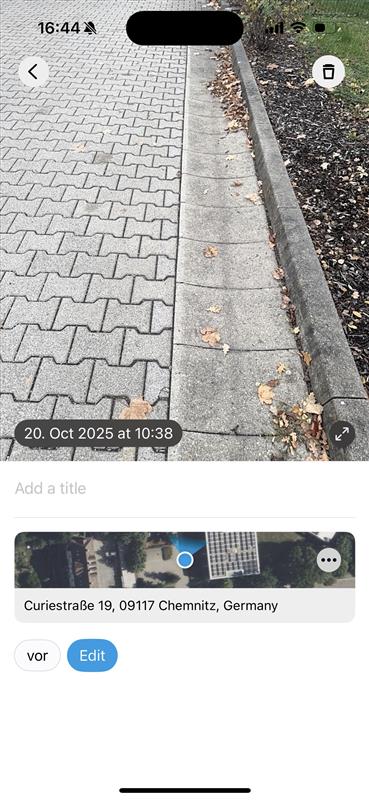

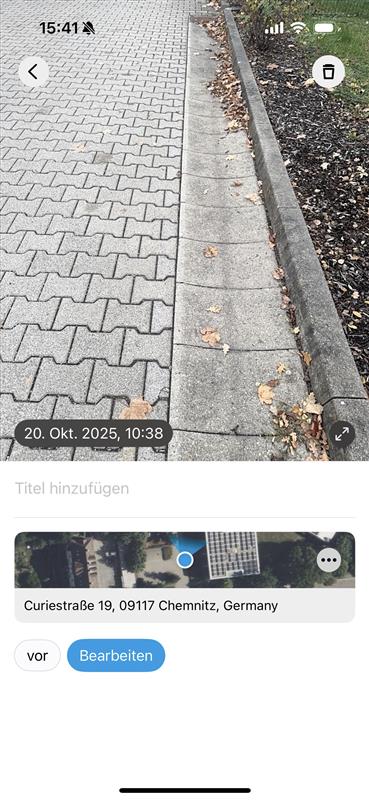

Figure: Photo Detail View
Objects
If available, the captured points are listed along with a thumbnail preview, date, and time of capture.
Following that, lines are listed—if any were added to the scan, such as “Main Roads.” Each line entry also includes a thumbnail, the capture date, and time.

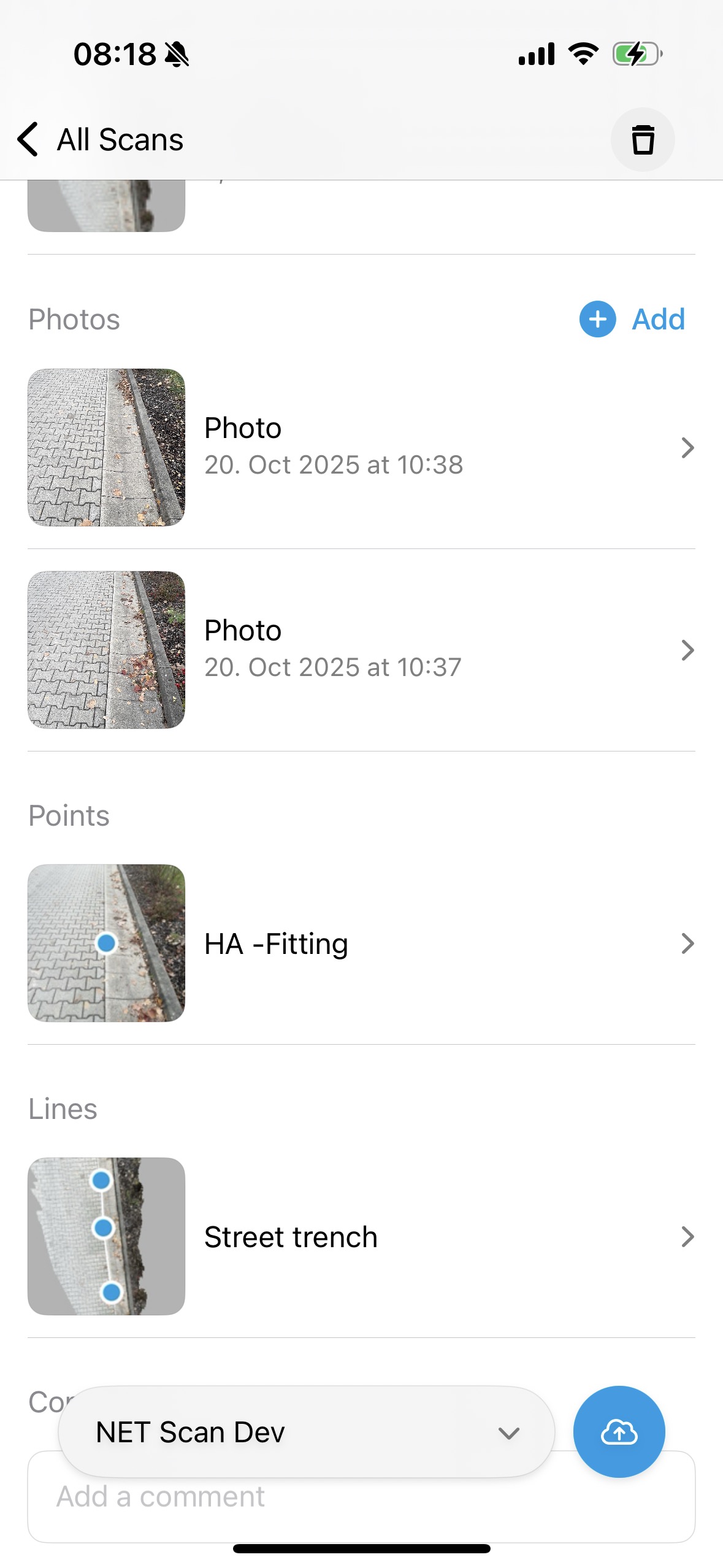

Figure: Objects
When a line is selected, an expanded view opens, displaying its properties such as width, depth, construction type, and materials. If these properties were not defined during the scanning process, they must be added here or later within the NET Cloud.
Figure: Line Object Properties
After the scanning process is completed, it is no longer possible to add additional points or lines, as the exact positioning cannot be guaranteed afterward due to technical constraints. Therefore, it is essential that points and lines are captured during the scanning process.
