Main Screen
The main screen consists of the project selection, a list of all recorded scans or taken photos, and the navigation bar.
Project Selection
The project selection displays the currently active project. Tapping on it allows you to choose a different project, if available.

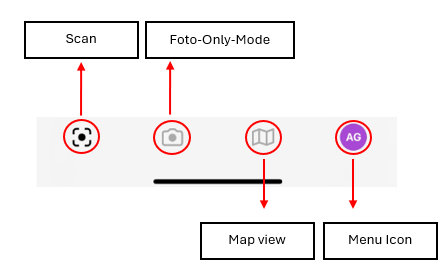

Navigation Bar
The navigation bar provides quick access to the main functions of NET Scan. It remains visible across all screens for easy navigation between features.
Scans Icon (Left)

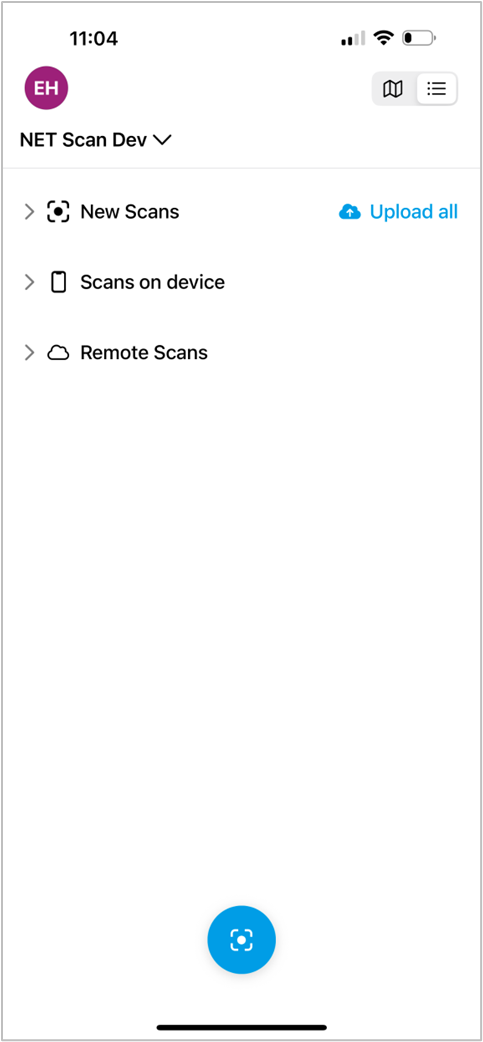

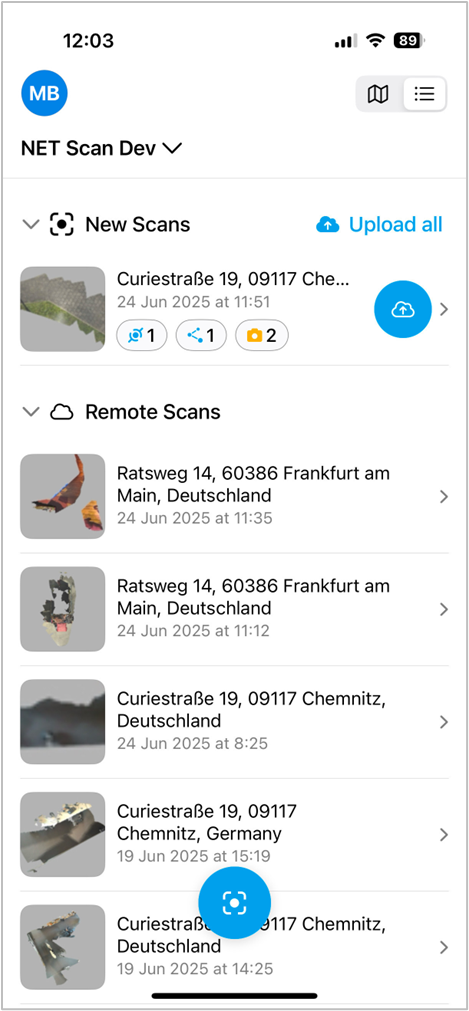

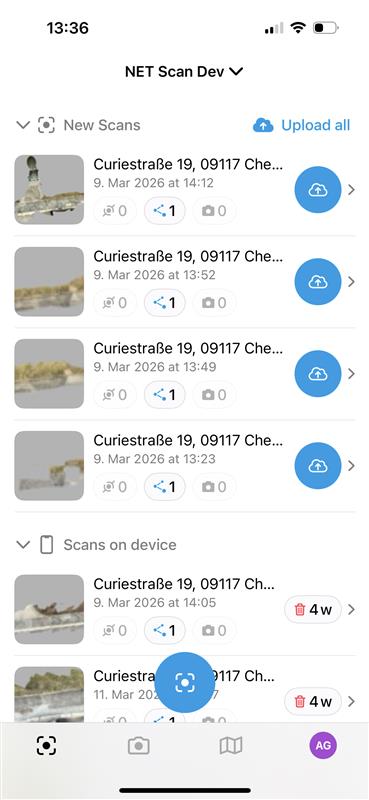

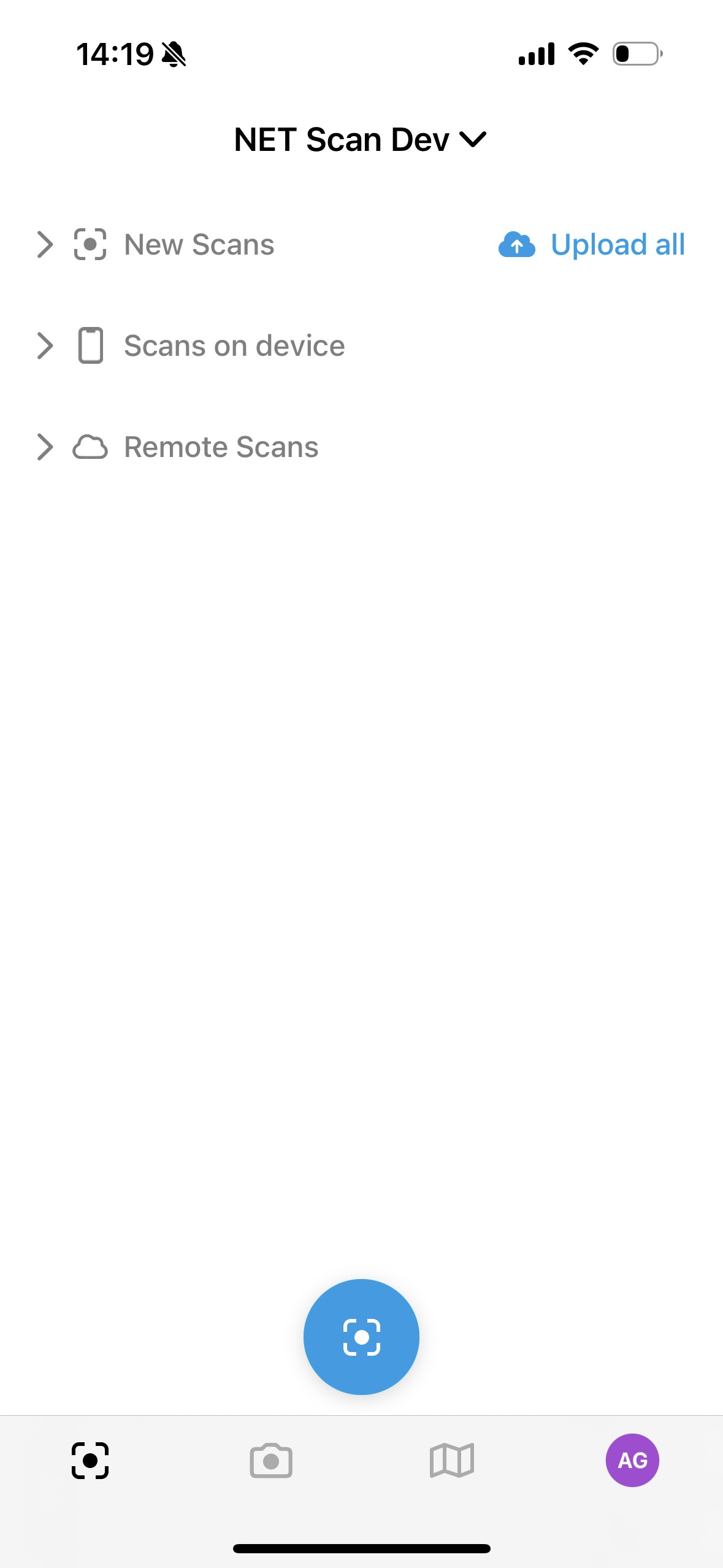

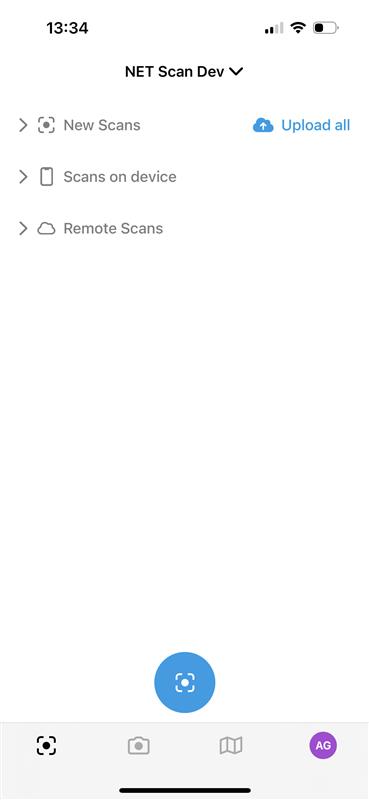

The scan list is divided into three categories: New Scans, Scans on Device, and Remote Scans. New Scans include all scans that have been saved but not yet uploaded. Scans on Device are stored locally and available on the iPhone. Remote Scans have already been uploaded to the NET Cloud but are no longer stored on the device.
Each scan in this list can be uploaded individually using the corresponding button in the right-hand column. If you want to upload all scans at once, this can be done via the "Upload All" icon in the upper-right corner.

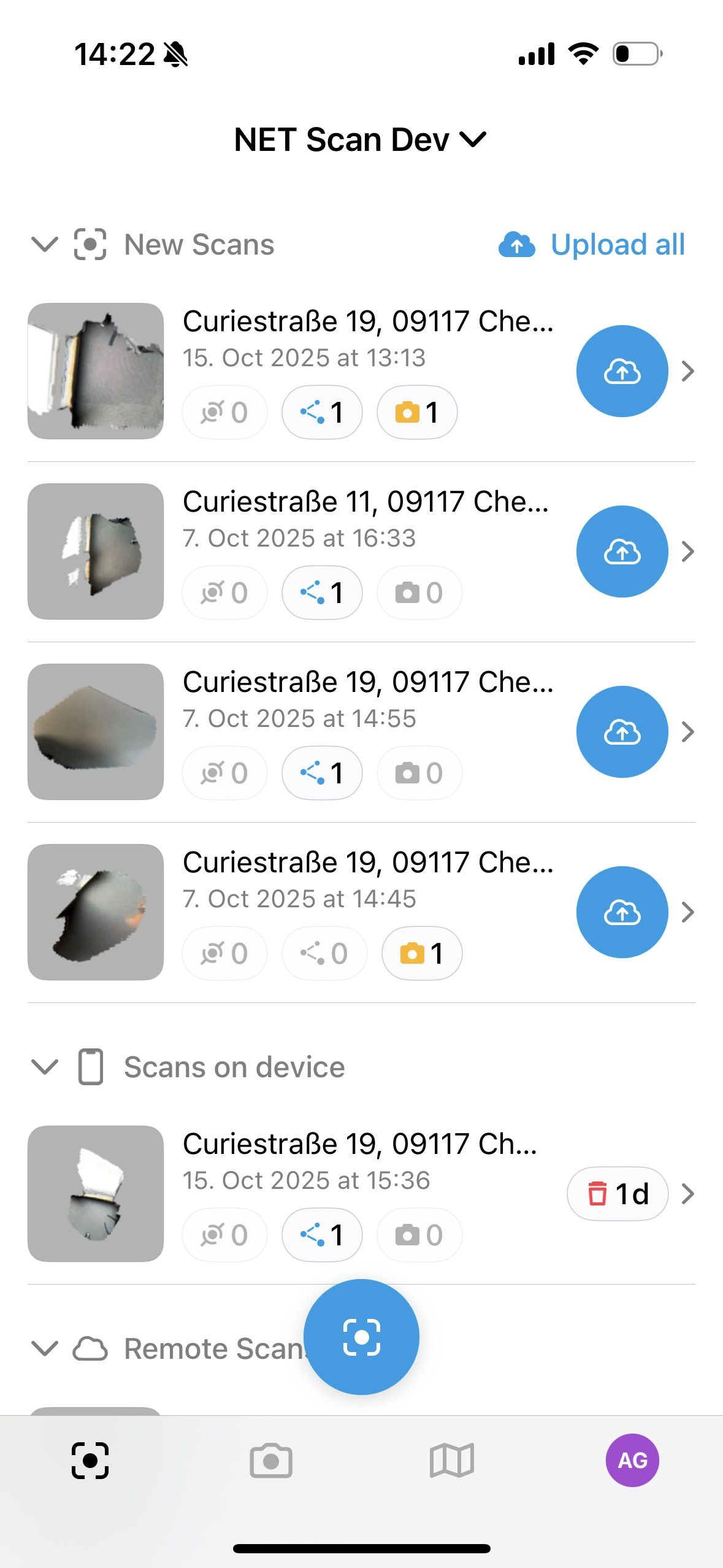

Each scan entry displays a thumbnail of the scan, the title—ideally based on the location—, the date and time of the scan, and indicators showing whether points, lines, and photos were added. A scan can be tapped to open the detailed view.
Photo only mode Icon (Second from Left)

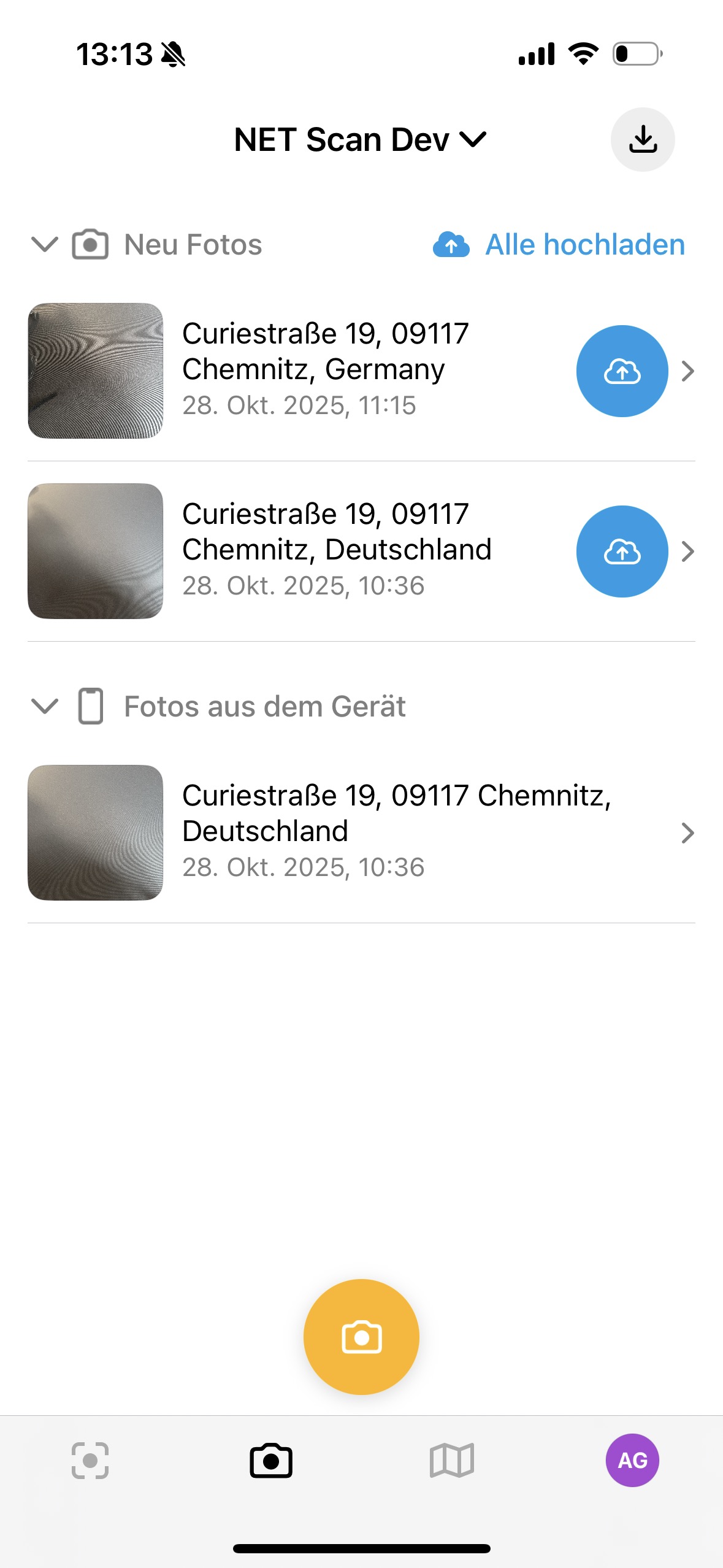

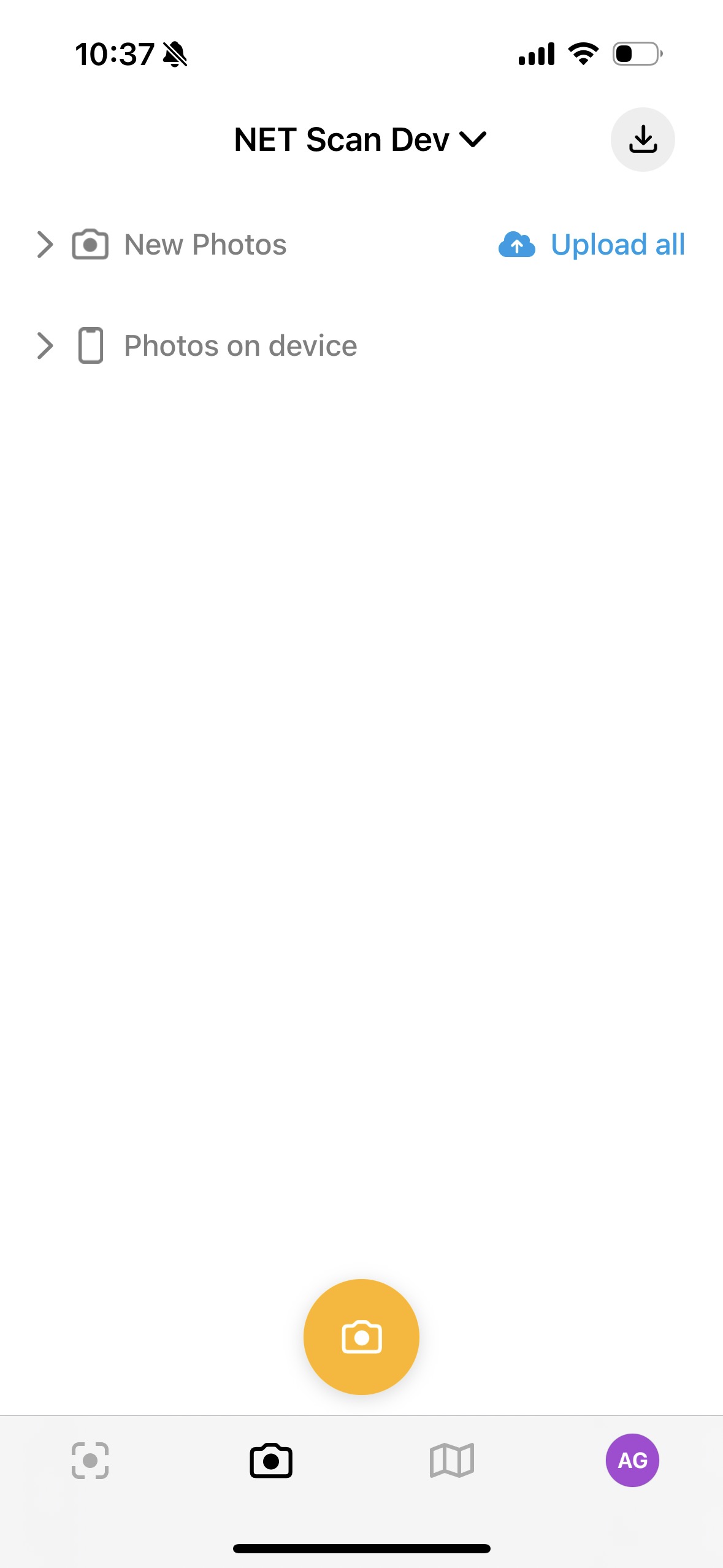

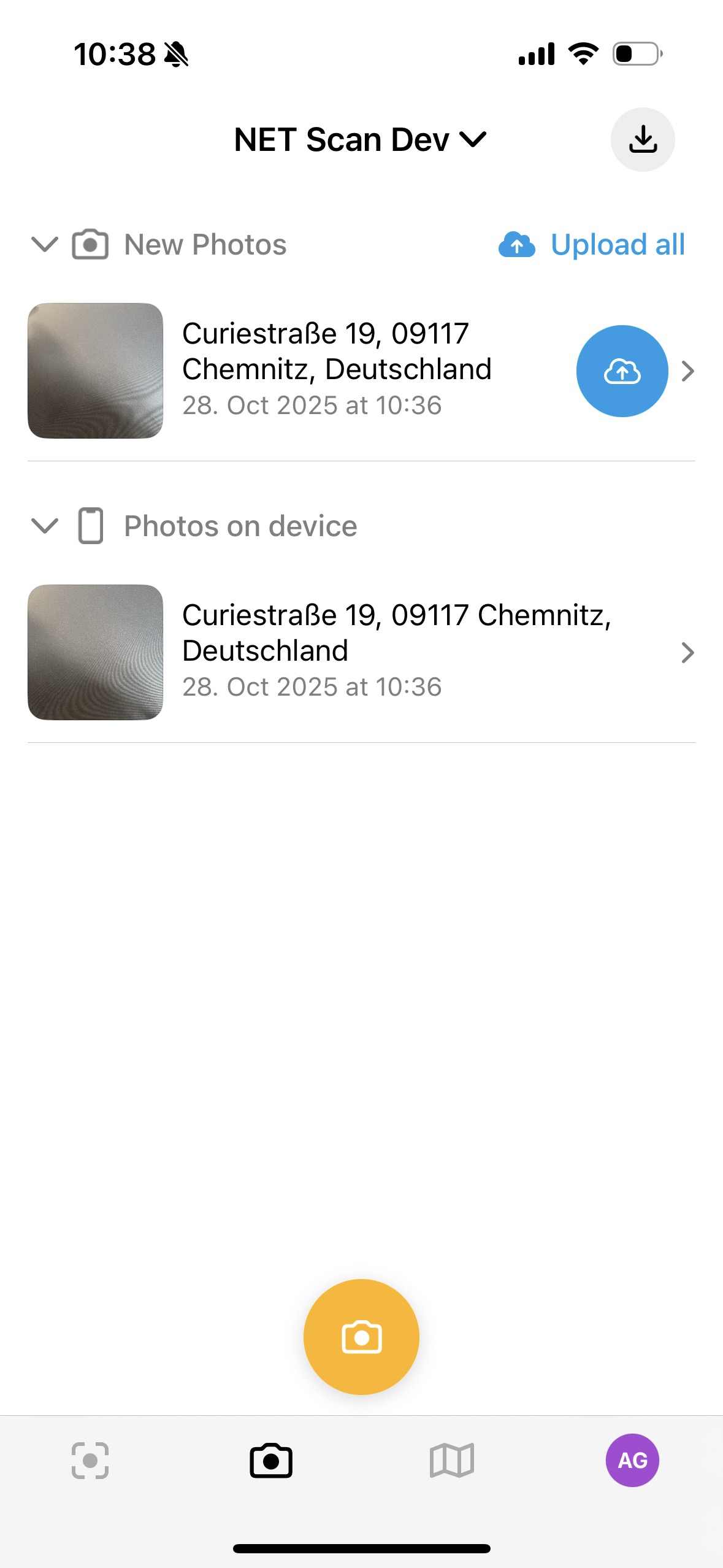

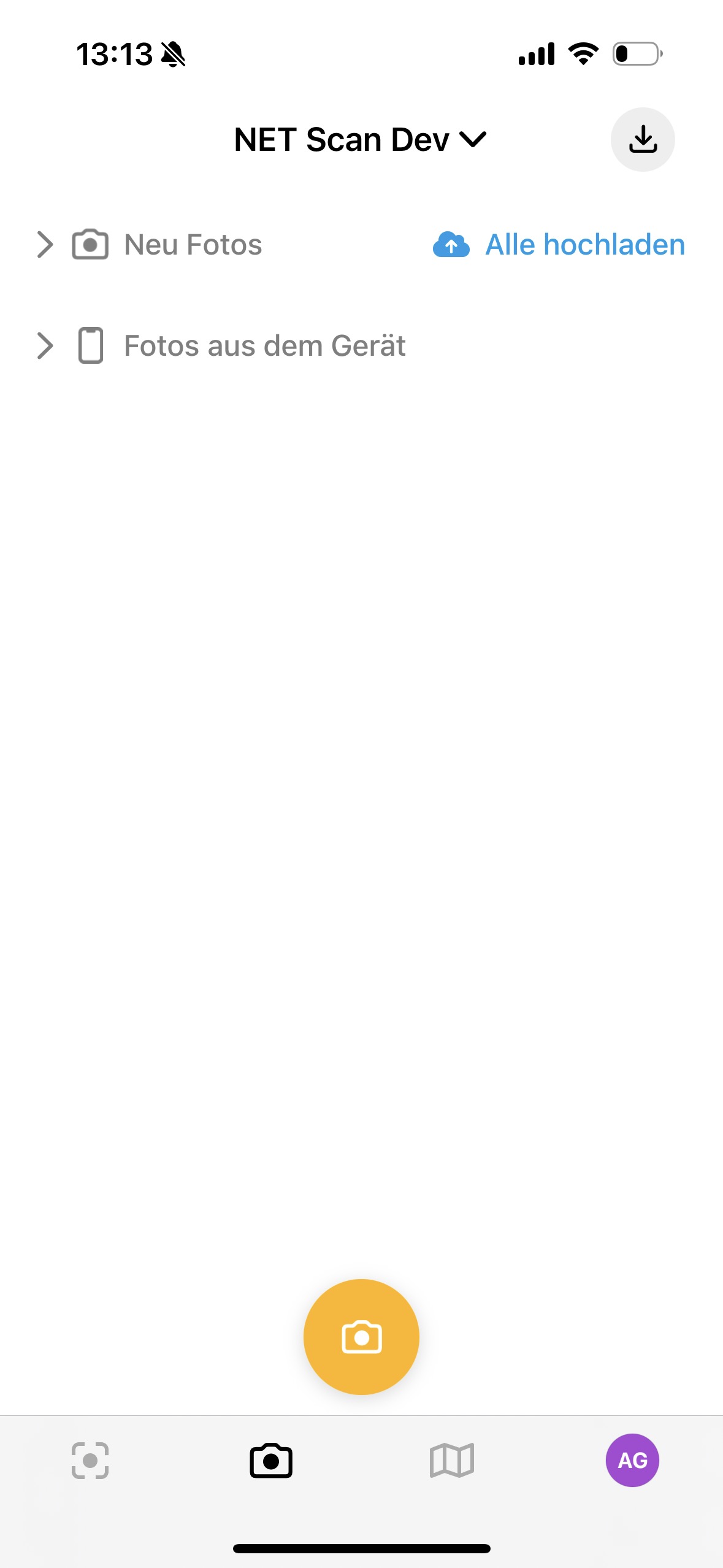

The photo list is divided into tow categories: New Photos and Photos on Device. New Photos include all Photos that have been saved but not yet uploaded. Photos on Device are stored locally and have already been uploaded to the NET Cloud.
Each photo in this list can be uploaded individually using the corresponding button in the right-hand column. If you want to upload all scans at once, this can be done via the "Upload All" icon in the upper-right corner.
Each photo entry displays a thumbnail of the photo, the title—ideally based on the location—, the date and time of the photo. A photo can be tapped to open the detailed view.

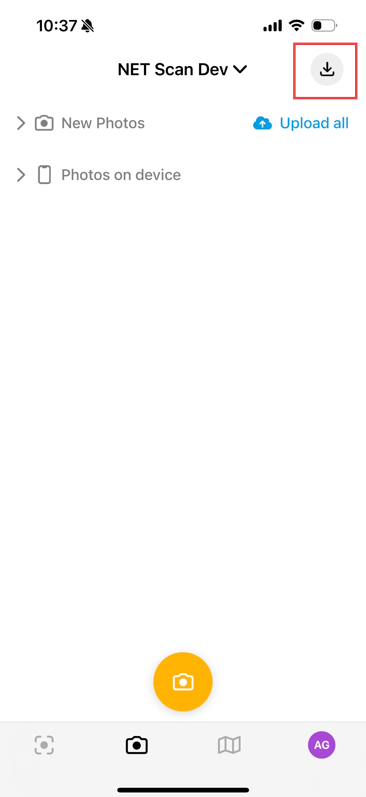

Photos can be added directly from the device’s gallery using the “Import from Gallery” button located in the upper-right corner of the screen. Selecting this option opens the gallery, where images can be chosen for import. The imported photos will then appear under New Photos.
Map view Icon (Second from Right)

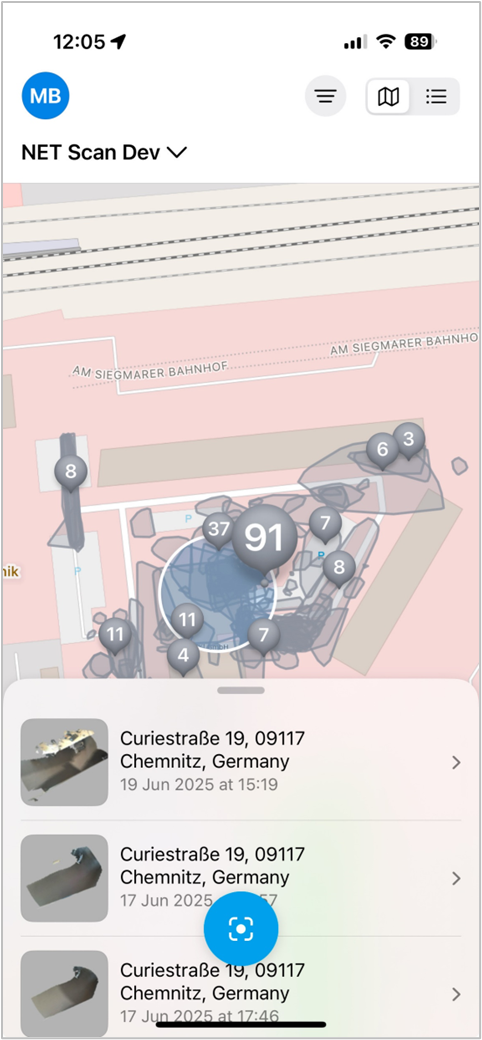

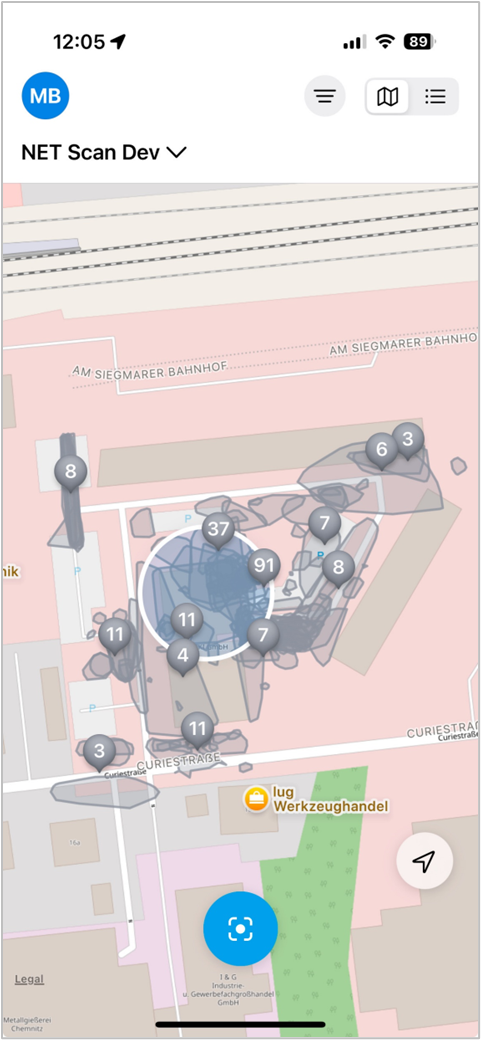

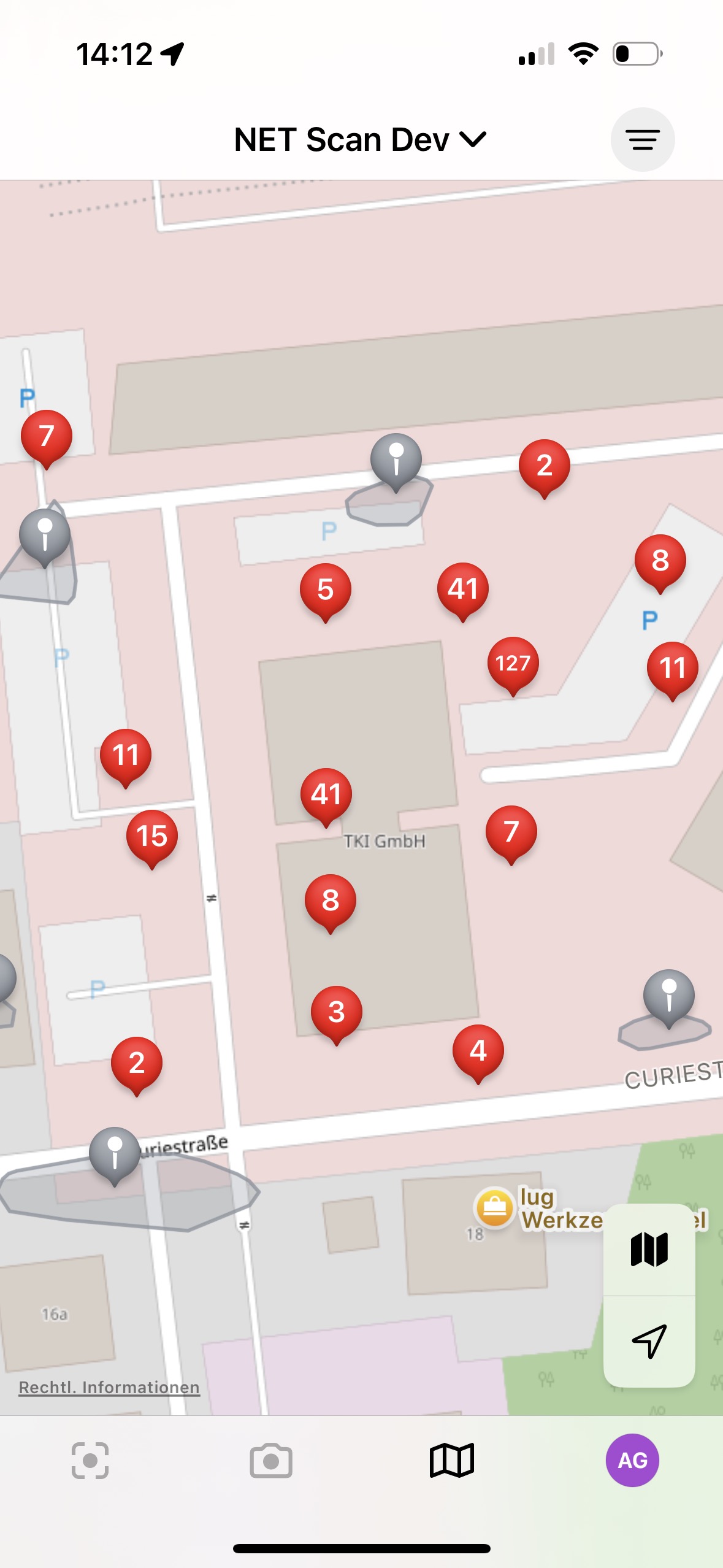

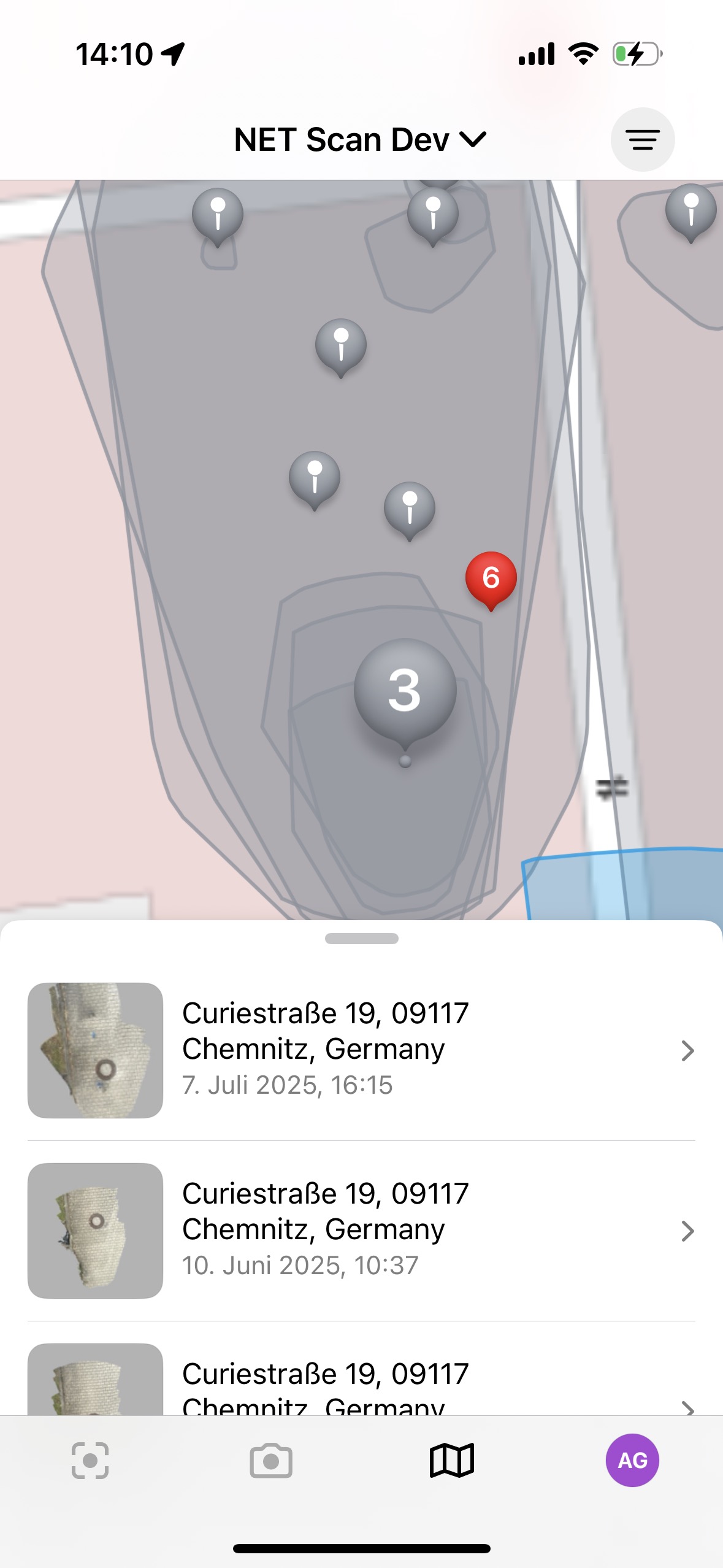

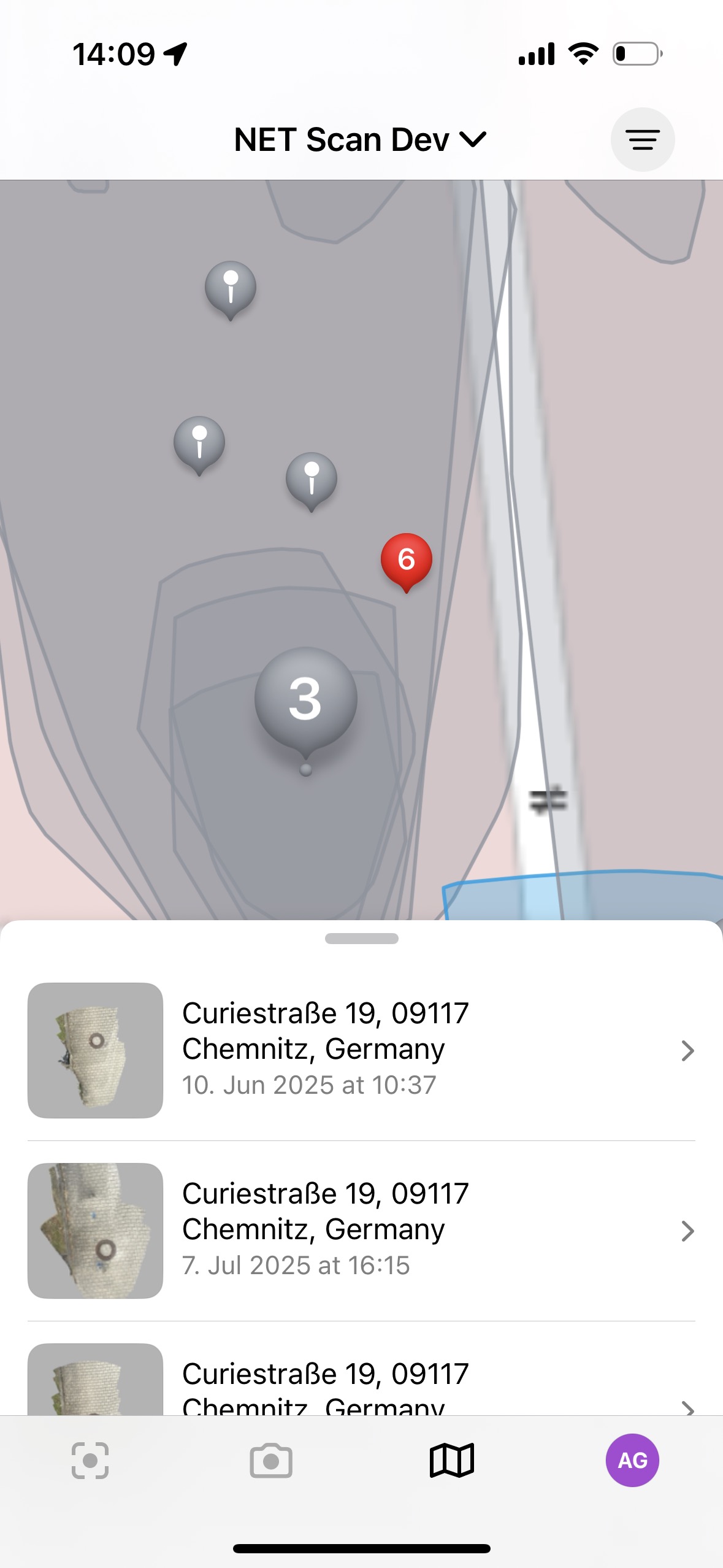

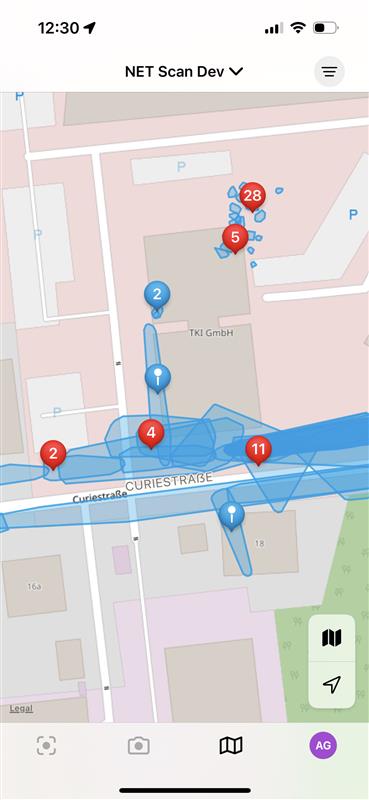

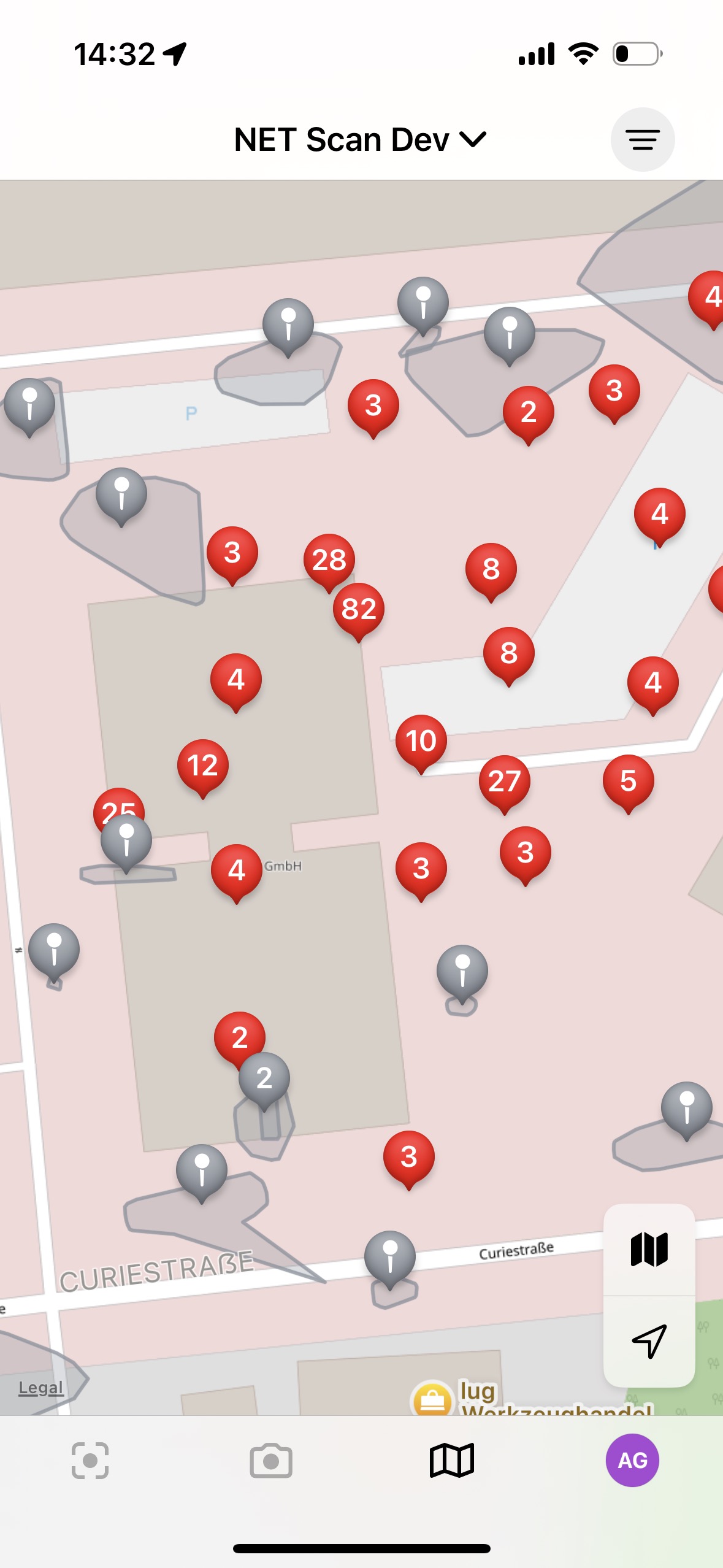

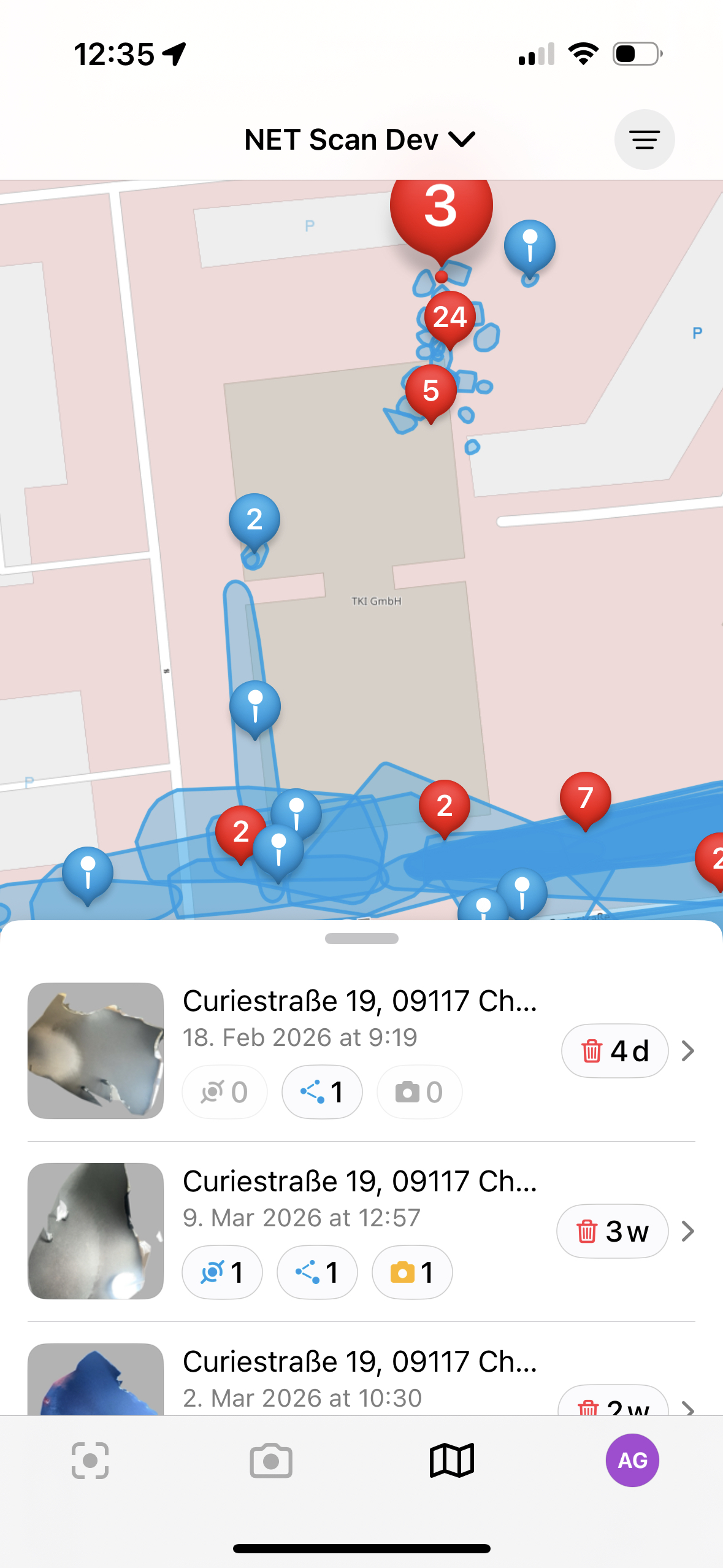

Switching to the map view changes the overview to a map-based layout. Navigation follows familiar map controls: the map can be moved with one finger and zoomed with two fingers. Scans are displayed on the map as clusters. To view scan details, tap on the corresponding scan or cluster. The list view then slides up from the bottom of the screen, allowing you to select the correct scan.
Icon (Right Corner)
Tapping the menu icon provides access to the settings and the option to log out of the Scan App.

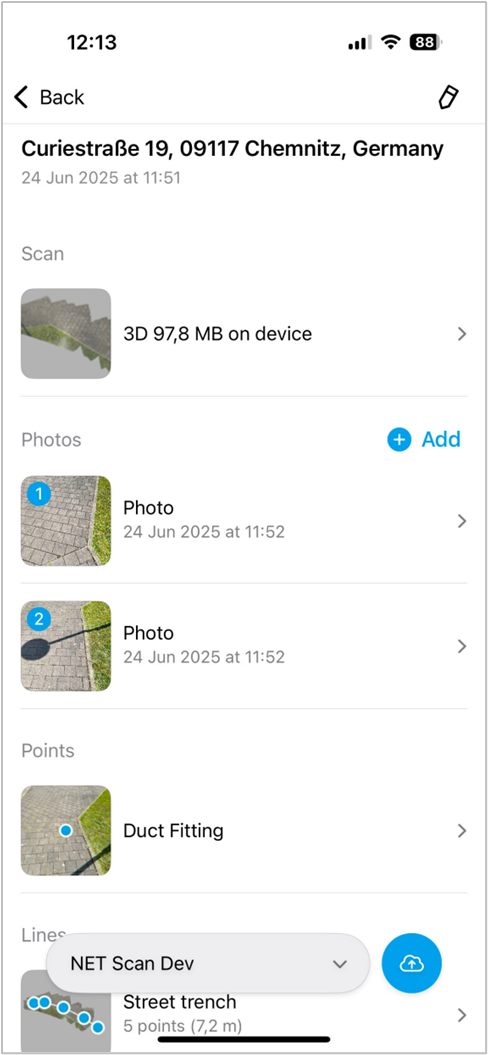

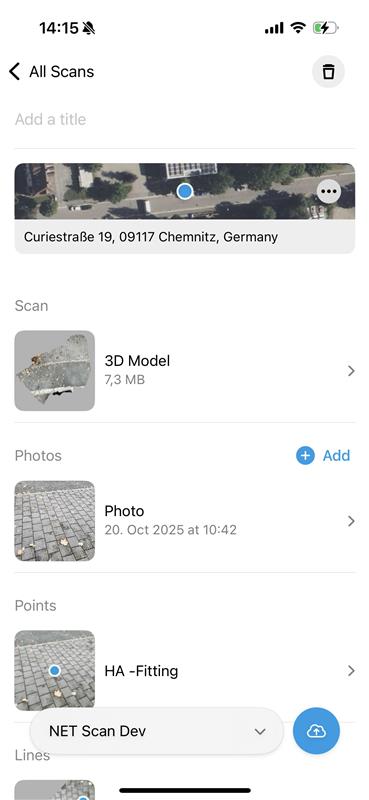

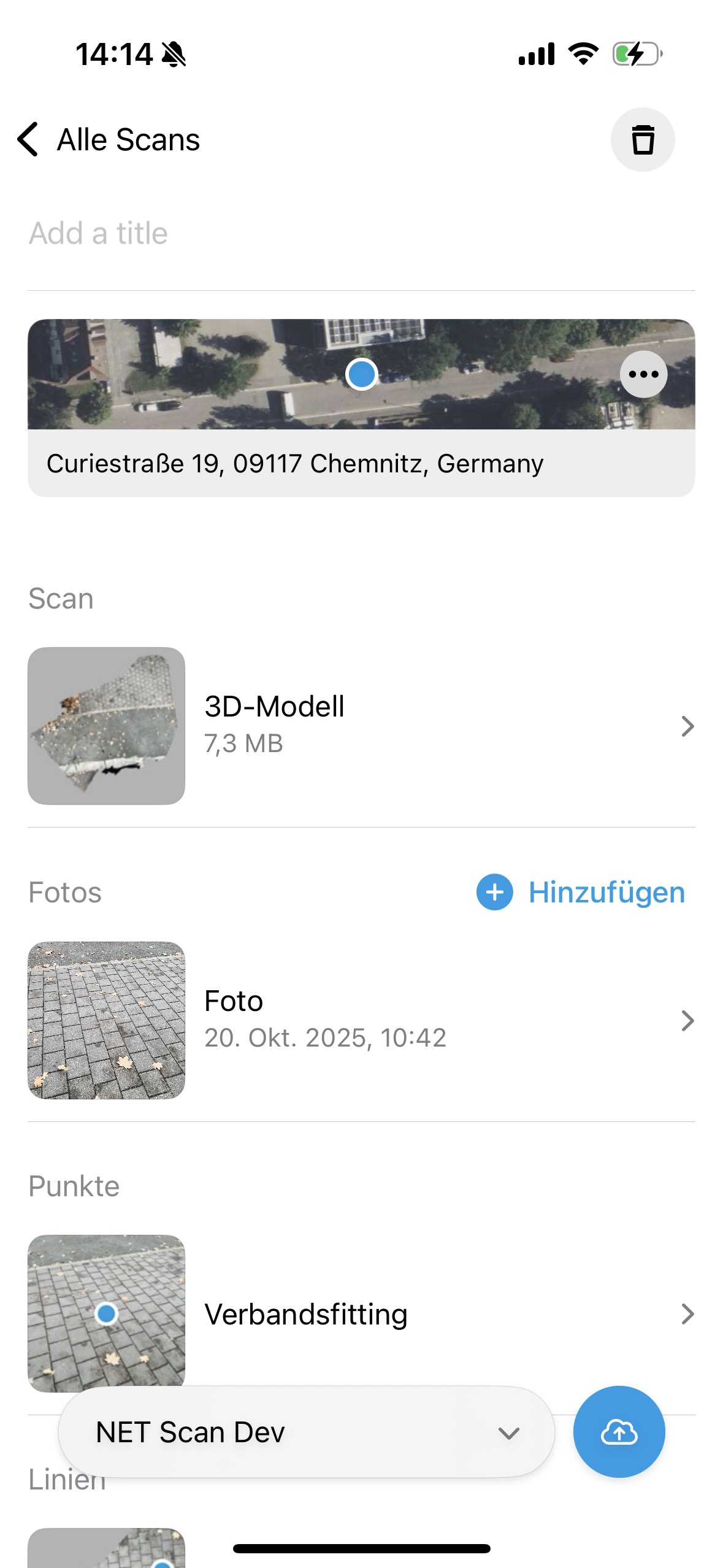

Scan Detail Page
The detail page provides additional information about the selected scan. It displays the scan title, its position on the map, and the associated project. If the positional accuracy is poor, a corresponding warning message appears below this information.
Additional details and functions are only available for scans on the device and for new scans. More information about the available content and editing options can be found in Section 4: Post-Processing.
Below the scan position, the scan preview is displayed. Tapping on it allows you to view the scan in a 3D view or export it in various formats.
