Summary

Starting from version NET 14.1.1, the "plot" and "plot sequence" templates in the Documentation Pack are functional again.

In NET Engineering, stability issues with tree views have been resolved. The assignment of devices to buildings or structures now works correctly again. Additionally, the delete function for clusters has been optimized.

In the General Import, the display of filter conditions has been improved, and specific coordinate systems of individual geometries are now taken into account.

The import and export from NET Build have been expanded to support reference edges and reference points. Furthermore, planning objects are now consistently updated.

Additionally, there are several smaller improvements and bug fixes across various areas of NET.

Supported Software

• Autodesk AutoCAD Map 3D

  • Autodesk AutoCAD Map 3D 2023.0.4 - Autodesk AutoCAD 2023.1.6

  • Autodesk AutoCAD Map 3D 2024.0.1 - Autodesk AutoCAD 2024.1.6

  • Autodesk AutoCAD Map 3D 2025.0.1 - Autodesk AutoCAD 2025.1.1

• TKI PostgreSQL Provider 4.2.1

• Comsof Fiber Designer 2019.2.2 - Comsof Fiber Designer 22.2

• Comsof Fiber 23.1 - Comsof Fiber 23.2

• atesio STRATEGIC 2020 - 2023

• TKI Lizenzierung 14.0
  (Only required for a manual installation on the network license server)

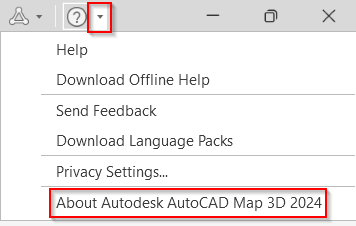

Please check your installed AutoCAD Map 3D version and pay attention to these two version details when doing so:



Release NET 14.1.1 in Detail

General

Documentation Pack

• Templates of the type “plot” and “plot sequence” - showing an error with NET 14.1 - now allow the execution again.

One-click-maintenance

• The 1-click maintenance “TKI: Empty/duplicate DialogLayoutName attributes” has been extended and now also generates warnings if duplicate names for form types exist. These problems are fixed by giving the duplicates an ascending number at the end so that they are unique again.

NET Engineering

General

• Upon opening a form or workflow containing tree views there was a chance of errors occurring in case a node type was not handled explicitly by the rendering logic. This was fixed by using a default naming scheme for non-configurable elements.

• The query regarding the assignment of a device to a building or structure or vice versa, including the option to apply the selection to all objects, now works as expected again.

• A bug in the cluster deletion function has been fixed.

• In the “Create and assign ducts (w/o geometry)” workflow, there is now a meaningful error if the workflow is to be executed for a duct that was deleted while the workflow was open.

• The objects loaded from Map3d into Cyclorama now have a property for calling a Map3d form so that a direct jump from the Cyclorama view into Map3d is possible.

Connection editor

• The connection editor no longer displays a message if internal adjustments were made to the data as a side effect of the actions performed. These adjustments have no effect on working with the connection editor.

Dialogs

• Updating multiple splitters globally now causes the associated splitter paths to be recalculated.

Reports

• In the diagram “FO Connection Plan” the cable alias for incoming cables is now correctly aligned.

Import

• Globally in the project settings set values for the status and the client via the NET ribbon no longer overwrite values set during import.

• The display of filter conditions in the general import has been improved.

• The “Quote” input field in the general import has been limited to one character.

• The selected import template is loaded correctly.

• In the general import, an error has been fixed that resulted in the selection of the mandatory field being removed.

• If a geometry has a different coordinate system than the one preselected during import, the specific coordinate system is now taken into account.

• Tooltips have been added to all pages of the general import.

• The display of attribute assignments in the general import has been improved.

• The data preview for the attribute assignments of the general import now only shows the selected attributes.

TNIM

• The TNIM import and TNIM export now have a help button that redirects to the relevant page in the online help.

Import from NET Build

• When importing from NET Build, an error occurred if a user-defined field did not have a value.

• The import from NET Build has been extended so that objects for reference edges and reference points can now be loaded via the standard interface.

Export to NET Build

• The geometry of a planning object is now also updated if there is an applicable update configuration and no measurement has yet taken place for the object.

• The name of planning objects is now always overwritten during an update.

• Distribution clusters are now only exported if they are completely within their parent cluster.

Changes to the Data Model since NET 14.0

NET Design

Base Data Model

14.1

• New feature class “Surface areas” (TC_PL_SURFACE_AREA)

NET Engineering

Base Data Model

14.1

• No changes to the data model - Structural update only for new forms and reports

Duct Data Model

14.1

• No changes to the data model - Structural update only for new forms and reports

Fiber Optic Data Model

14.1

• Changed the views TC_M_FO_CLOSURE and TC_M_FO_TERMINATOR

  • New column TRUNK_NAME
    Contains the name of the cable trunk that is assigned in the closure or the terminator.

Telephony Data Model

14.1

• Changed the views TC_M_TP_CLOSURE and TC_M_TP_TERMINATOR

  • New column TRUNK_NAME
    Contains the name of the cable trunk that is assigned in the closure or the terminator.

Redlining Data Model

14.1

Only for PostgreSQL

• New trigger function tc_f_rl_scan_delete_trigger_function that is cleaning up the database in case a scan is removed from the redlining data model.

• New trigger trg_rl_scan_after_delete for the table tc_rl_scan

DocPack

14.1

• New domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD) containing the following values:

  • 1 - Active

  • 2 - Inactive

  • 3 - Archived

• New column “Status” (ID_STATUS) in the feature class “Plot sequence” (TC_PLOT_SEQUENCE) with a relation to the domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD)

Changes to the dialogs since NET 14.0

NET Design

Base Data Model

14.1

• New dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)

Base Data Model

14.1

• New API controls $BTNSHOWALLCABLES, $BTNSHOWALLDUCTS, $BTNSHOWALLSERVICES got added to the feature class “Segment” (TC_SP_SEGMENT)

Duct Data Model

14.1

• New API controls $BTNSHOWALLCABLES, $BTNSHOWALLSEGMENTS, $BTNSHOWALLSERVICES got added to the feature class “Duct” (TC_SP_DUCT)

Fiber Optic Data Model

14.1

• New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Fo cable” (TC_FO_CABLE)

• Decimal places for the column “Attenuation” got increased from two to three for the following feature classes.

  • Fo connector data (TC_FO_CONNECTOR_DATA)

  • Fo fiber data (TC_FO_FIBER_DATA)

  • Fo patch data (TC_FO_PATCH_DATA)

  • Fo splice data (TC_FO_SPLICE_DATA)

  • Fo splitter data (TC_FO_SPLITTER_DATA)

• The format of the attenuation in the field “wave length/attenuation” got fixed in the following feature classes.

  • Fo connector model (TC_FO_CONNECTOR_MODEL)

  • Fo fiber model (TC_FO_FIBER_MODEL)

  • Fo splitter model (TC_FO_SPLITTER_MODEL)

• The projections to the fiber and the fiber optic cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

Telephony Data Model

14.1

• New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Tp cable” (TC_TP_CABLE)

• The projections to the wire and the telephony cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

DocPack

14.1

• New control “Status” for the column ID_STATUS added to the dialog for the feature class “plot sequence” (TC_PLOT_SEQUENCE)

Changes of the reports since NET 14.0

NET Engineering

Telephony Data Model

14.1

• The reports for the network overviews got fixed to allow the creation of an aggregated report, created by the DocPack.
