The Infrastructure Atlas (ISA) is operated by the "zentralen Informationsstelle des Bundes (ZIS)" of the "Bundesnetzagentur". It is the central information and planning tool for gigabit expansion in Germany.
Certain companies and local authorities are obliged to provide data for the infrastructure atlas.
NET Engineering supports the output of this network data via the ISA export.
Quick overview of the ISA Export
The ISA Export module must be activated in Admin.
The export is started by right-clicking on the project in the tray explorer.
Data for which the ‘Included’ attribute is set to ‘YES’ on the ISA tab is exported.
Data with invalid geometries is not exported.
Currently, the result is always output in the ‘ETRS89/UTM32N - 25832’ coordinate system, regardless of the coordinate system of the source data.
The output format is .shape. A .shape file is created for the lines and the points.
ISA Export in detail
The following objects can be written via the ISA Export:
- Manhole/cabinet/pole
- ducts and their microducts
- Fibre optic cable, fibre optic sleeve and fibre optic termination
Necessary settings in the Autodesk Infrastructure Administrator

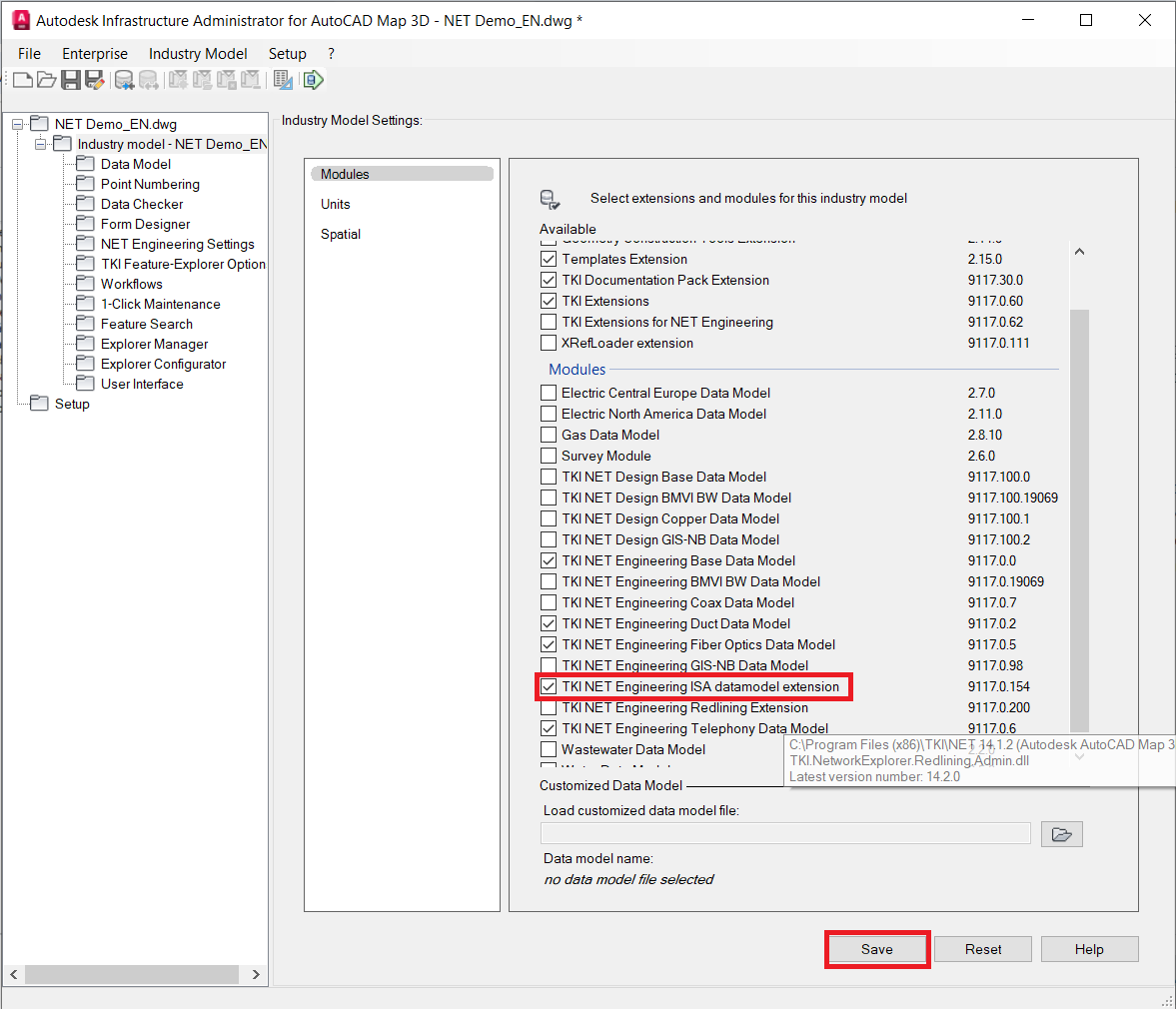

The ISA Export module must be activated in the Autodesk Infrastructure Administrator. Do not forget to save the setting.
During the structure update, the ‘ISA’ tab is created on the forms of the relevant object classes. The attributes relevant for the export can be found there.
Start of the ISA Export

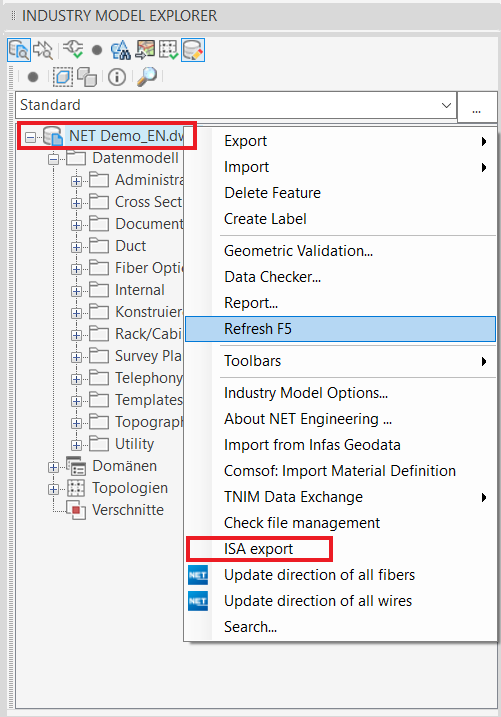

The export is started by right-clicking on the project in the tray explorer.
The ISA Export dialogue opens.

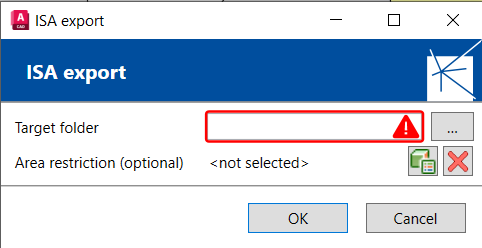

Selecting the output folder
Select the target folder for the output of the ISA.shape export data.
Selecting the output cluster

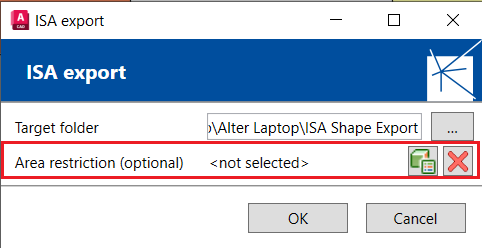

If the ISA Export is only to take place via a specific area, use the button to start the selection of the cluster for the output.

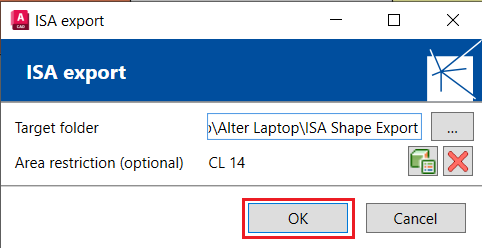

"OK" button starts the ISA Export.
Control the output of the data

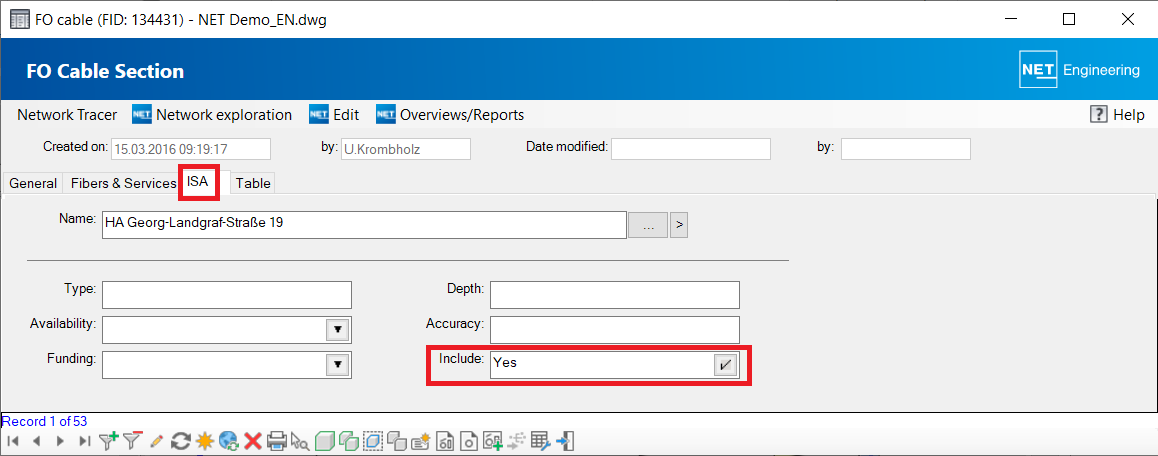

The attributes relevant for the export can be entered or selected on the ISA tab for the object classes relevant for the ISA export.
Only data for which the ‘is included’ attribute is set to ‘YES’ is output.
Objects with invalid geometry are not exported.
