Release Notes NET 14.3 (English)

Summary

Version NET 14.3 brings numerous improvements and new features for the planning, documentation, and operation of telecommunications networks. The main highlights of this version are:

Support for the new version atesio STRATEGIC 2024 in NET Design
Comsof Fiber 24.2 enabled for calculations – including support for duct clusters
New “Test Run” button in the general import window for risk-free trial runs
Import details are now fully output in the log, improving traceability
The CO overview has been significantly expanded: complex paths are now correctly represented, and export to Excel, CSV, JSON, and HTML is possible
The connection editor can now work better with work orders. Elements in other orders are displayed but greyed out. Elements in the active work order can be edited as usual.
New GIS-NB report “Documentation House Connection Micro-duct” for subsidy-compliant documentation of house connections

Supported Software

Autodesk AutoCAD Map 3D
- Autodesk AutoCAD Map 3D 2023.0.4 - Autodesk AutoCAD 2023.1.6
- Autodesk AutoCAD Map 3D 2024.0.1 - Autodesk AutoCAD 2024.1.7
- Autodesk AutoCAD Map 3D 2025.0.1 - Autodesk AutoCAD 2025.1.2
TKI PostgreSQL Provider 4.2.1 and 5.0.0
Comsof Fiber Designer 2019.2.2 - Comsof Fiber Designer 22.2
Comsof Fiber 23.1 - Comsof Fiber 24.2
atesio STRATEGIC 2020 - 2023
TKI Lizenzierung 14.0
(Only required for a manual installation on the network license server)

The specified versions for Autodesk AutoCAD and Map 3D are the ones for which NET was developed. Generally, newer versions can also be used. However, there have been occasional updates in the past that caused crashes in NET.

Note on the AutoCAD Map 3D versions

Please note the minimum required versions of Autodesk AutoCAD Map 3D for the operation of NET 14.3. The version for Autodesk Map 3D 2024 has been updated since NET 14.2. The patched version is required for NET to work correctly.

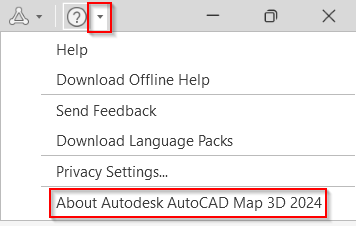

Please check your installed AutoCAD Map 3D version and pay attention to these two version details when doing so:

Release NET 14.3 in Detail

General

An error in the processing of shape files has been fixed: empty fields or incompatible field types previously caused an error. These cases are now correctly recognised – instead of an error, the value ‘no value’ is returned for the corresponding fields.

Documentation Pack

Fixed an issue where incorrect values were read from layouts with multiple viewports during the “Create plot sequences” workflow.
An issue when linking new documents from the DocPack output to the document management was fixed.

NET Design

atesio Integration

Atesio STRATEGIC 2024 is now supported.

Comsof Fiber Integration

Fixed a bug that caused AutoCAD to crash when the Comsof Advanced Settings window was closed before the “Configure Input.Properties” window.
The Comsof Fiber 24.2.X versions have been activated and can be used for the calculation. These new versions support duct-clusters.

Dialogs

“Connection Method” has been consistently renamed to “Connection Type” across all forms and domain tables.

Low level design

Conversion from NET Design to NET Engineering now fills the position number of the segment ducts, and the ducts in the trench form are sorted accordingly by this position number.

NET Engineering

General

Fixed a bug that caused the structure update to create a naming scheme twice.
The view for FO cable sections or TP cable sections has been expanded to include the number of wired fibers or wires, so that this can now be filtered in the display model, for example.

Import

OSM Overpass Endpunkt field value is autopopulated successfully when OSM Straßen Import plugin is opened
A help button has been added to the general import, which leads directly to the import overview page in the NET Help Center.
A new button “Test Run” is added to general Import window.
It is now possible to save the import template when closing the import window.
The source coordinate system is now automatically applied from the document.
A general notification message is now displayed in the general import whenever a link contains errors or warnings in its subordinate attributes.
The geometry attributes have been removed from the attribute selection for the data matching.
The validation message for the possible conversion of the source data type is now no longer displayed as a warning, but as a note.
If you delete or edit the source file while the same file is open in the import window, a corresponding message will be displayed
When importing Infas geodata, the selection of the cluster name has been changed. In addition, the entries are now sorted in ascending order.
The import details are now available in the protocol.
The filter selection has been extended to include the “Does not contain” attribute filter.
The spatial filter is now correctly removed when the geometry columns are set to ‚None‘.
An error that occurred during attributive filtering of invalid geometries has been fixed.
The summary of errors and warnings for attribute assignments is now displayed.
The display of the result message for the general import has been improved.
The display and behaviour of links in the attribute assignments have been improved. The selected link is now displayed as the source attribute.

Workflows

In the “Create house lead-in” workflow, the CAD length of the relevant ducts and cables is now calculated again as expected if automatic length calculation is activated in the NET options.
The automatic length calculation now calculates the CAD length of a microduct again if the parent duct has its own geometry and is split using the “Split ducts” workflow.
The user interface of the “Split FO cable” and “Split telephony cable” workflows has been completely revised and optimized by integrating the feature selection for cable or closure/terminator, improving the arrangement of the user controls with regard to the process flow and correcting the display in the dark colour scheme.
In the “Create and assign ducts (w/o geometry)” workflow, all child cables are now displayed again in the tree view.
The “Create house lead-in” workflow can now properly process predefined lead-in segments that consist of multiple sections.
The performance of the “Split ducts” workflow has been improved.
The user interface of the Name scheme editor and the Attribute scheme editor has been optimized by, among other things, aligning the preview in both editors, directly displaying the colors in the Name scheme editor and automatically updating values/colors there as soon as something changes in the Attribute scheme.

Connection editor

The functionality of the Connection Editor in interaction with work orders has been revised. Elements associated with splices or patches of the active work order can be edited. Elements related to other work orders are now taken into account and displayed, but appear grayed out and cannot be modified.

Dialogs

A bug in the splice form under Oracle was fixed that caused the fiber name not to be displayed.
In the “Segment” form, the named projection “List of all direct child ducts of filtered segments” is available again.
The missing german translation for two buttons in the “Line” form has been added.
A duct with multiline geometry can now be opened without errors in the form.
In the “Status” form, the buttons for jumping to the “Line”, “Point” and “Cluster” forms are displayed correctly again.
If a different Cable Type is stored in the FO Cable Section or TP Cable Section, a query now appears asking whether the numbering or color scheme of the new Cable Type should be applied. In addition, the colors of microducts can no longer be changed if a color scheme has already been defined in the associated parent duct - neither in the form of the microduct in question, nor with the “Edit inner ducts attributes” function in the parent duct.
The error message in the FO/TP closure/terminator form has been revised. When attempting to remove the assignment of an incoming or outgoing cable while connections still exist, a clearer error message is now displayed.
In the “FO Closure”, “FO Terminator”, “TP Closure” and “TP Terminator” forms, double-clicking on the selection field behind “Switching point” now opens the “Switching Point” form directly.
Fixed a bug where cable type would not be deleted if a fiber type is assigned to it. Additionally, a fiber type can no longer be deleted if a cable type is assigned to it. This fix also applies to FM cables and wires.
When removing a cable loop, the user length of the cable was displayed with too many decimal places. This display issue has been corrected.
A bug was fixed where opening cable cross-sections did not redirect to the corresponding cable forms.

Reports

When creating the report from the Closure form, the installation type value is now also displayed.
The closure allocation plan has been updated as per the requirements.
The cable jointing diagram can now be generated in SVG format.
The content of the duct connection report was inconsistent depending on whether it was generated via AutoCAD or the corresponding REST endpoint. This issue has been resolved.
The “NET Current Breakdowns” report now also works correctly under Map3D 2025
The CO-Overview has been updated and now includes the following enhancements:
The new version of the CO-Overview can now handle complex paths with multiple fo closures between the switching point and the building, displaying them correctly.
The new overview can be exported to Excel, CSV, JSON and HTML.
The new version is accessible, as before, via the switching point dialog and the fo terminator dialog.
The previous version of the CO-Overview will remain available for now and can be used alongside the new version.

GIS-Nebenbestimmungen

Within the GIS side-conditions (GIS-NB) integration, a new report is now available. The report reproduces the table “Documentation House Connection Micro-duct” defined in the Aconium material concept, including every column (street, duct no., colour-stripe combination, micro-duct type, connection point, date, etc.). The output can be exported in a funding-compliant format, allowing planning and documentation teams to submit the proof to the project sponsor without additional formatting. The mandatory requirement for this table is stated on page 8 of the material concept.
The loading of funding projects has been improved.
Only COs / POPs are displayed in ID_NETZE in the consumer layer.

Import from NET Build

The Redlining Building Unit now has the “Source reference” attribute. This is included during import from NET Build and during data transfer to NET Engineering.

Export to NET Build

When exporting to NET Build, a region is now prevented from being assigned to itself.

Redlining

The function for cascading deletion of linked redlining scan elements is now also available for Oracle databases.

One-click-maintenance

The 1-click maintenance “NET Engineering: Check polygon geometries” no longer incorrectly removes holes from polygons.

Data check

The data checks “Line connections”, “FO Connectors without assigned terminators”, “FO Splices without assigned terminators/closures”, “FO Trays without assigned terminators/closures”, “TP Pins without assigned terminators/closures” and “TP Splices without assigned terminators/closures” now work correctly again under Oracle.
The data checks “TP Cable ends” and “CX Cable ends” now also work under PostgreSQL versions lower than 16.
Data check - check for multiple cables in a microduct added

NET Operations

Network routing

The network path search now displays a permanently visible log with all analysis steps.

NET Cloud Administrator

Geoserver configuration

A warning is now issued during the geoserver publication if a style is published without an identifier.
When publishing, scales will be merged if they are continuous and contain identical styles, even across different zoom levels. Scales with differing styles or those that are not continuous remain separate.
Stroke-widths of 0 are now automatically converted to the value 1 for point, line, block, and polygon symbolizers during publishing to geoserver
Styles containing WKT-based vector graphics are no longer published, and users receive a clear warning in the logs.
When exporting layers to Geoserver, filters that use ‘INTERSECTS’ are not exported. All filters, whether applied or skipped, are listed as warnings in the log.

Changes to the Data Model since NET 14.0

NET Design

Base Data Model

14.1

New feature class “Surface areas” (TC_PL_SURFACE_AREA)

14.2

New entry for the domand table “demand type” (TC_PL_DEMAND_CONN_TYPE_TBD)
- 15 - No private connection

14.3

New entry for the domand table “Cluster type” (TC_PL_CLUSTER_TYPE_TBD)
- 4 - Duct cluster

NET Engineering

Base Data Model

14.1

No changes to the data model - Structural update only for new forms and reports

14.2

New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
- TC_CLUSTER
- TC_PERSON
- TC_SWITCHING_POINT
- TC_SP_PATCH_PANEL
- TC_SP_PATCH_PANEL_MODEL
- TC_SP_RACK_PANEL
- TC_SP_RACK_PANEL_MODEL
- TC_SP_CABINET_MODEL
- TC_SP_MANHOLE_MODEL
- TC_SP_MARKER
- TC_SP_MARKER_MODEL
- TC_SP_POLE_MODEL
- TC_SP_SEGMENT_MODEL
- TC_TG_BUILDING
- TC_TG_BUILDING_UNIT
- TC_LINE
- TC_POINT
New feature class “data source” (TNIM_SOURCE)

14.3

No changes to the data model - Structural update only for new forms and data checks

Duct Data Model

14.1

No changes to the data model - Structural update only for new forms and reports

14.2

New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
- TC_SP_DUCT_TYPE
- TC_SP_DUCT_BUNDLE
- TC_SP_DUCT_INSERTION
- TC_SP_DUCT_INSERTION_MDL
- TC_SP_FITTING_MODEL

14.3

No changes to the data model - Structural update only for new forms and reports

Fiber Optic Data Model

14.1

Changed the views TC_M_FO_CLOSURE and TC_M_FO_TERMINATOR
- New column TRUNK_NAME
  Contains the name of the cable trunk that is assigned in the closure or the terminator.

14.2

New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
- TC_FO_CABLE_MODEL
- TC_FO_CLOSURE_MODEL
- TC_FO_CONNECTOR_MODEL
- TC_FO_FIBER_MODEL
- TC_FO_SPLITTER_MODEL
- TC_FO_TERMINATOR_MODEL
- TC_FO_TRAY
- TC_FO_TRAY_MODEL
- TC_FO_TRUNK

14.3

Extended the map view for fiber optic cables (TC_M_FO_CABLE)
- New column FIBER_COUNT containing the number of fibers used by a service.
Fixed the relation between the fiber optic cable type and the fiber type.

Telephony Data Model

14.1

Changed the views TC_M_TP_CLOSURE and TC_M_TP_TERMINATOR
- New column TRUNK_NAME
  Contains the name of the cable trunk that is assigned in the closure or the terminator.

14.2

New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
- TC_TP_CABLE_MODEL
- TC_TP_CLOSURE_MODEL
- TC_TP_PIN_MODEL
- TC_TP_TERMINATOR_MODEL
- TC_TP_WIRE_MODEL

14.3

Extended the map view for telephony cables (TC_M_TP_CABLE)
- New column WIRE_COUNT containing the number of wires used by a service.
Fixed the relation between the telephony cable type and the wire type.

Redlining Data Model

14.1

Only for PostgreSQL

New trigger function tc_f_rl_scan_delete_trigger_function that is cleaning up the database in case a scan is removed from the redlining data model.
New trigger trg_rl_scan_after_delete for the table tc_rl_scan

14.2

New columns in the table service item (TC_RL_SERVICE_ITEM)
- Approval date (DATE_APPROVAL)
- Report date (DATE_SUBMITTED)
- Crew (NAME_CREW)
- Sub-contractor (NAME_SUBCONTRACTOR)
New columns in the table Redlining cable(TC_RL_CABLE)
- Cable reserve start (CABLE_RESERVE_START)
- Cable reserve end (CABLE_RESERVE_END)
- Cable type (ID_CABLE_TYPE)
New columns in the table Redlining scan (TC_RL_SCAN)
- GNSS device (GNSS_DEVICE)
- Positioning quality (ID_POSITIONING_QUALITY)
Relation of Redlining attribute (TC_RL_ATTRIBUTE) column feature (FID_FEATURE) extended to target additional feature classes:
- Redlining building(TC_RL_BUILDING)
- Redlining building unit(TC_RL_BUILDING_UNIT)
- Redlining cluster (TC_RL_CLUSTER)
- Redlining measurement line (TC_RL_MEASUREMENT_LINE)
- Redlining measurement point (TC_RL_MEASUREMENT_POINT)
Relation to building (TC_TG_BUILDING) removed from redning attribute (TC_RL_ATTRIBUTE) - clumn feature (FID_FEATURE).
Relation to Redlining building (TC_RL_BUILDING) added to Redlining measurement point (TC_RL_MEASUEMENT_POINT) - column feature (FID_FEATURE)
Relation to Redlining building (TC_RL_BUILDING) added to Redlining segment (TC_RL_SEGMENT) - column feature (FID_FEATURE)
Relation to Redlining building (TC_RL_BUILDING) added to Redlining terminator (TC_RL_TERMINATOR) - column feature (FID_FEATURE)
New feature classes:
- Redlining building(TC_RL_BUILDING)
- Redlining building unit(TC_RL_BUILDING_UNIT)
- Redlining cluster (TC_RL_CLUSTER)
New domain table positioning quality (TC_RL_SCAN_POS_QUALITY_TBD)
- 1 - RTK Fix
- 2 - GNSS antenne only
- 3 - Mobiles GPS
- 4 - Manual entry
- 99 - unknown
Column person (FID_PERSON) removed from Redlining measurement (TC_RL_MEASUREMENT)

14.3

New column “Source object” (SOURCE_OBJECT) in added to Redlining building unit (TC_RL_BUILDING_UNIT).

DocPack

14.1

New domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD) containing the following values:
- 1 - Active
- 2 - Inactive
- 3 - Archived
New column “Status” (ID_STATUS) in the feature class “Plot sequence” (TC_PLOT_SEQUENCE) with a relation to the domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD)

14.2

Added missing caption to plot seqence (TC_PLOT_SEQUENCE) feature class - No structural changes

Changes to the dialogs since NET 14.0

NET Design

Base Data Model

14.1

New dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)

14.2

Updated dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)
- Area value is now rounded to two decimal places
- The selection list for the trench type is now sorted by name

Base Data Model

14.1

New API controls $BTNSHOWALLCABLES, $BTNSHOWALLDUCTS, $BTNSHOWALLSERVICES got added to the feature class “Segment” (TC_SP_SEGMENT)

14.2

New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
- Cluster (TC_CLUSTER)
- Line (TC_LINE)
- Person (TC_PERSON)
- Point (TC_POINT)
- Cabinet type (TC_SP_CABINET_MODEL)
- Manhole type (TC_SP_MANHOLE_MODEL)
- Marker (TC_SP_MARKER)
- Marker Model (TC_SP_MARKER_MODEL)
- Patch Panel (TC_SP_PATCH_PANEL)
- Patch Panel type (TC_SP_PATCH_PANEL_MODEL)
- Pole Model (TC_SP_POLE_MODEL)
- Rack Panel (TC_SP_RACK_PANEL)
- Rack Panel type (TC_SP_RACK_PANEL_MODEL)
- Segment type (TC_SP_SEGMENT_MODEL)
- Switching point type (TC_SWITCHING_POINT_MODEL)
- Building (TC_TG_BUILDING)
- Building unit (TC_TG_BUILDING_UNIT)
New dialog for the data source (TNIM_SOURCE)

14.3

Test button ($BTNTEST) removed from the dialog for the numbering scheme (TC_NR_SCHEME)
Fixed the layout for the status (TC_STATUS) dialog

Duct Data Model

14.1

New API controls $BTNSHOWALLCABLES, $BTNSHOWALLSEGMENTS, $BTNSHOWALLSERVICES got added to the feature class “Duct” (TC_SP_DUCT)

14.2

Removed projections from duct (TC_SP_DUCT) dialog
- Show all outer ducts of the filtered ducts
- Show all outer trenches of the filtered ducts
New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
- Duct bundle (TC_SP_DUCT_BUNDLE)
- Duct insertion model (TC_SP_DUCT_INSERTION_MDL)
- Duct type (TC_SP_DUCT_TYPE)
- Fitting type (TC_SP_FITTING_MODEL)
Removed projections from trench (TC_SP_SEGMENT) dialog
- Show all inner ducts from the filtered trenches

14.3

Added projection to the trench (TC_SP_SEGMENT) dialog - Show all direct inner ducts

Fiber Optic Data Model

14.1

New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Fo cable” (TC_FO_CABLE)
Decimal places for the column “Attenuation” got increased from two to three for the following feature classes.
- Fo connector data (TC_FO_CONNECTOR_DATA)
- Fo fiber data (TC_FO_FIBER_DATA)
- Fo patch data (TC_FO_PATCH_DATA)
- Fo splice data (TC_FO_SPLICE_DATA)
- Fo splitter data (TC_FO_SPLITTER_DATA)
The format of the attenuation in the field “wave length/attenuation” got fixed in the following feature classes.
- Fo connector model (TC_FO_CONNECTOR_MODEL)
- Fo fiber model (TC_FO_FIBER_MODEL)
- Fo splitter model (TC_FO_SPLITTER_MODEL)
The projections to the fiber and the fiber optic cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

14.2

Removed projects from the dialog for the fiber optic cable (TC_FO_CABLE)
- Show all ducts assigned to the current filtered cables
- Show all trenches assigned to the current filtered cables
New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
- Fiber optic cable type (TC_FO_CABLE_MODEL)
- Fiber optic closure type (TC_FO_CLOSURE_MODEL)
- Fiber optic connector type (TC_FO_CONNECTOR_MODEL)
- Fiber type (TC_FO_FIBER_MODEL)
- Fiber optic splitter type (TC_FO_SPLITTER_MODEL)
- Fiber optic terminator type (TC_FO_TERMINATOR_MODEL)
- Fiber optic tray (TC_FO_TRAY)
- Fiber optic tray type (TC_FO_TRAY_MODEL)
- Fiber optic trunk (TC_FO_TRUNK)
Removed projects from the dialog for the duct (TC_SP_DUCT)
- Show all cables for the current filtered ducts
Removed projects from the dialog for the trench (TC_SP_SEGMENT)
- Show all cables for the current filtered trenches

14.3

Improved selection of the switching point in the dialogs for the fiber optic closure (TC_FO_CLOSURE) and the fiber optic terminator (TC_FO_TERMINATOR)
- FID reference control removed ($FIDREFERENCE1)
- Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)
Fixed the order of the fiber selection list in the fiber optic splice (TC_FO_SPLICE) dialog

Telephony Data Model

14.1

New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Tp cable” (TC_TP_CABLE)
The projections to the wire and the telephony cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

14.2

Removed projects from the dialog for the duct (TC_SP_DUCT)
- Show all cables for the current filtered ducts
Removed projects from the dialog for the trench (TC_SP_SEGMENT)
- Show all cables for the current filtered trenches
New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
- Telephony cable type (TC_TP_CABLE_MODEL)
- Telephony closure type (TC_TP_CLOSURE_MODEL)
- Telephony pin type (TC_TP_PIN_MODEL)
- Telephony terminator type (TC_TP_TERMINATOR_MODEL)
- Wire type (TC_TP_WIRE_MODEL)

14.3

Improved selection of the switching point in the dialogs for the fiber optic closure (TC_FO_CLOSURE) and the fiber optic terminator (TC_FO_TERMINATOR)
- FID reference control removed ($FIDREFERENCE1)
- Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)
Fixed the order of the fiber selection list in the fiber optic splice (TC_FO_SPLICE) dialog
- Improved selection of the switching point in the dialogs for the telephony closure (TC_TP_CLOSURE) and the telephony terminator (TC_TP_TERMINATOR)
  - FID reference control removed ($FIDREFERENCE1)
  - Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)

Redlining Data Model

14.2

Updated the list of target tables for the parent feature in the dialog for the feature class Redlining attribute (TC_RL_ATTRIBUTE). The changes of the data model are reflected.
New dialog for the Redlining building (TC_RL_BUILDING)
New dialog for the Redlining building unit (TC_RL_BUILDING_UNIT)
New dialog for the Redlining cluster (TC_RL_CLUSTER)
New controls added to the dialog for the Redlining cable (TC_RL_CABLE)
- New selction control for the cable category (ID_CABLE_TYPE)
- New text field for the cable reserve start (CABLE_RESERVE_START)
- New text field for the cable reserve end (CABLE_RESERVE_END)
New reference to the Redlining attribute (TC_RL_ATTRIBUTE) added to the following dialogs
- Redlining measurement point (TC_RL_MEASUREMENT_POINT)
- Redlining measurement line (TC_RL_MEASUREMENT_LINE)
New controls added to the dialog for Redlining scan (TC_RL_SCAN)
- New selection control for the positioning quality (ID_POSITIONING_QUALITY)
- New text field for the GNSS device (GNSS_DEVICE)
Added Redlining building (TC_RL_BUILDING) as detail table to the Redlining segment (TC_RL_SEGMENT)
New controls added to the dialog for Redlining service item (TC_RL_SERVICE_ITEM)
- New text field for the approval date (DATE_APPROVAL)
- New text field for the submittet date (DATE_SUBMITTED)
- New text field for the crew (NAME_CREW)
- New text field for the subcontractor (NAME_SUBCONTRACTOR)
Added Redlining building (TC_RL_BUILDING) as detail table to the Redlining terminator (TC_RL_TERMINATOR)
Removed control linking the Redlining measurement (TC_RL_MEASUREMENT) to the person (FID_PERSON) from the dialog.
New text field synchronization date (DATE_SYNC) added to the Redlining measurement (TC_RL_MEASUREMENT) dialog.

14.3

New text field for the source object (SOURCE_OBJECT) added to the Redlining building unit (TC_RL_BUILDING_UNIT)

DocPack

14.1

New control “Status” for the column ID_STATUS added to the dialog for the feature class “plot sequence” (TC_PLOT_SEQUENCE)

Changes of the reports since NET 14.0

NET Engineering

Base Data Model

14.3

An error breaking the fault report in Autodesk Map 3D 2025 got fixed

LWL-Datenmodell

14.3

The installation location is now correctly displayed in the report for the trays in closures
The alignment of the text inside the columns of the splice overview got fixed

Telephony Data Model

14.1

The reports for the network overviews got fixed to allow the creation of an aggregated report, created by the DocPack.
