Summary

Version NET 14.3.2 is a combined function and maintenance update for the entire NET product family. It mainly improved the stability of the import and export functions as well as the workflows. The user experience got improved and a few new functions got added.

Supported Software

• Autodesk AutoCAD Map 3D
  • Autodesk AutoCAD Map 3D 2023.0.4 - Autodesk AutoCAD 2023.1.6
  • Autodesk AutoCAD Map 3D 2024.0.1 - Autodesk AutoCAD 2024.1.7
  • Autodesk AutoCAD Map 3D 2025.0.1 - Autodesk AutoCAD 2025.1.2
• TKI PostgreSQL Provider 4.2.1 and 5.1
• Comsof Fiber Designer 2019.2.2 - Comsof Fiber Designer 22.2
• Comsof Fiber 23.1 - Comsof Fiber 24.2
• atesio STRATEGIC 2020 - 2023
• TKI Lizenzierung 14.0
  (Only required for a manual installation on the network license server)

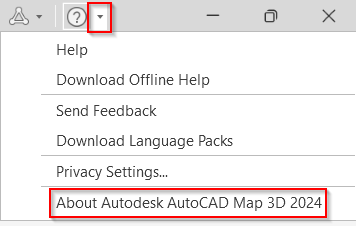

Please check your installed AutoCAD Map 3D version and pay attention to these two version details when doing so:

Release NET 14.3.2 in Detail

General

• A validation has been added when importing Excel and CSV files to check the data format of the selected geometry columns.

Documentation Pack

• An issue that prevented the creation of plots and plot sequences has been resolved.
• In certain cases, the wrong viewport was used when determining plot sizes. This issue has been resolved.

NET Design

Import

• Error logs for Special attributes and Custom attributes are logged successfully in General Import for NET Design

NET Engineering

General

• If a cable with its own geometry is separated geometrically from the closure/terminator in which the cable has splices, these splices are not removed, and the cable remains topologically connected to the closure/terminator.
• The action “Disconnect all connections” is only performed after the user has confirmed it again.
• A new option has been added to the NET options that allows only duct bundles and their occupied microducts to be displayed for the route assignment text.
• Improvement of the UI/UX in ISA Export.
• A bug was fixed that caused the ISA export to fail when a multi-line geometry was present in the project.
• A bug has been fixed where the inner ducts were incorrectly deleted when changing the pipe type of a protective duct with a different pipe template.

Import

• A critical error in general import has been fixed, which could result in missing data when importing into a PostgreSQL database.
• During general import, fields containing floating point numbers were incorrectly logged as errors, even though automatic conversion to integers was intended. The conversion now works as expected.

Workflows

• The colors are now also displayed for fibers/wires in the Name scheme editor.
• With color display enabled, ducts without a color assignment are now displayed neutrally rather than in black.

Connection editor

• The connection editor has a new column called “Work order”. It displays the name of one or more work orders if the associated splice or patch belongs to a non-active work order.
• The fiber connection editor now again allows a connector to be connected to both a fiber and a splitter path.
• The connection editor now, depending on the selected action, once again displays trays without free splice places as targets for placing fibers or splitter paths. Fully occupied trays can also be edited again.

Dialogs

• Zooming, highlighting, and moving the viewport works when using the functions “Zoom to the geometry of the selected object”, “Zoom to highlight”, “Highlight the geometry of the selected object”, “Highlight all objects in the selection set”, “Highlight all objects associated with the selected object” and “Remove object highlighting” in the corresponding forms now works consistently and analogously to the segments for ducts and cables without their own geometries.
• In the connection overview within the form of manholes, cabinets, and poles, fittings assigned to the respective structure via the installation location are now also displayed.

Reports

• The end overviews now display the correct result even when the cable direction differs from the fiber or wire direction.

GIS-Nebenbestimmungen

• The import of UUIDs according to GIS ancillary provisions can now be started centrally via the general import function.

TNIM

• The TNIM Import now contains an option to deactivate the validation of the data.
• The import validations in TNIM Import V2.1 now also take into account existing objects in the database and the impact of the import on them.

Import from NET Build

• The validation of insufficient GPS accuracy now supports configurable texts for heading, listing, and closing line.

Export to NET Build

• The export to NET Build has been expanded to include an option that allows you to transfer either all values from selection lists or only those that are actually used.
• In the “Push to NET Build” dialog, obsolete options were removed, labels updated, tooltips added, and the arrangement of settings improved.

NET Operations

General

• The connection plan has been corrected so that it now shows the complete and correct network path when output is generated by multiple services.

Changes to the Data Model since NET 14.0

NET Design

Base Data Model

14.1

• New feature class “Surface areas” (TC_PL_SURFACE_AREA)

14.2

• New entry for the domand table “demand type” (TC_PL_DEMAND_CONN_TYPE_TBD)
  • 15 - No private connection

14.3

• New entry for the domand table “Cluster type” (TC_PL_CLUSTER_TYPE_TBD)
  • 4 - Duct cluster

NET Engineering

Base Data Model

14.1

• No changes to the data model - Structural update only for new forms and reports

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_CLUSTER
  • TC_PERSON
  • TC_SWITCHING_POINT
  • TC_SP_PATCH_PANEL
  • TC_SP_PATCH_PANEL_MODEL
  • TC_SP_RACK_PANEL
  • TC_SP_RACK_PANEL_MODEL
  • TC_SP_CABINET_MODEL
  • TC_SP_MANHOLE_MODEL
  • TC_SP_MARKER
  • TC_SP_MARKER_MODEL
  • TC_SP_POLE_MODEL
  • TC_SP_SEGMENT_MODEL
  • TC_TG_BUILDING
  • TC_TG_BUILDING_UNIT
  • TC_LINE
  • TC_POINT
• New feature class “data source” (TNIM_SOURCE)

14.3

• No changes to the data model - Structural update only for new forms and data checks

Duct Data Model

14.1

• No changes to the data model - Structural update only for new forms and reports

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_SP_DUCT_TYPE
  • TC_SP_DUCT_BUNDLE
  • TC_SP_DUCT_INSERTION
  • TC_SP_DUCT_INSERTION_MDL
  • TC_SP_FITTING_MODEL

14.3

• No changes to the data model - Structural update only for new forms and reports

Fiber Optic Data Model

14.1

• Changed the views TC_M_FO_CLOSURE and TC_M_FO_TERMINATOR
  • New column TRUNK_NAME
    Contains the name of the cable trunk that is assigned in the closure or the terminator.

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_FO_CABLE_MODEL
  • TC_FO_CLOSURE_MODEL
  • TC_FO_CONNECTOR_MODEL
  • TC_FO_FIBER_MODEL
  • TC_FO_SPLITTER_MODEL
  • TC_FO_TERMINATOR_MODEL
  • TC_FO_TRAY
  • TC_FO_TRAY_MODEL
  • TC_FO_TRUNK

14.3

• Extended the map view for fiber optic cables (TC_M_FO_CABLE)
  • New column FIBER_COUNT containing the number of fibers used by a service.
• Fixed the relation between the fiber optic cable type and the fiber type.

Telephony Data Model

14.1

• Changed the views TC_M_TP_CLOSURE and TC_M_TP_TERMINATOR
  • New column TRUNK_NAME
    Contains the name of the cable trunk that is assigned in the closure or the terminator.

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_TP_CABLE_MODEL
  • TC_TP_CLOSURE_MODEL
  • TC_TP_PIN_MODEL
  • TC_TP_TERMINATOR_MODEL
  • TC_TP_WIRE_MODEL

14.3

• Extended the map view for telephony cables (TC_M_TP_CABLE)
  • New column WIRE_COUNT containing the number of wires used by a service.
• Fixed the relation between the telephony cable type and the wire type.

Redlining Data Model

14.1

Only for PostgreSQL

• New trigger function tc_f_rl_scan_delete_trigger_function that is cleaning up the database in case a scan is removed from the redlining data model.
• New trigger trg_rl_scan_after_delete for the table tc_rl_scan

14.2

• New columns in the table service item (TC_RL_SERVICE_ITEM)
  • Approval date (DATE_APPROVAL)
  • Report date (DATE_SUBMITTED)
  • Crew (NAME_CREW)
  • Sub-contractor (NAME_SUBCONTRACTOR)
• New columns in the table Redlining cable(TC_RL_CABLE)
  • Cable reserve start (CABLE_RESERVE_START)
  • Cable reserve end (CABLE_RESERVE_END)
  • Cable type (ID_CABLE_TYPE)
• New columns in the table Redlining scan (TC_RL_SCAN)
  • GNSS device (GNSS_DEVICE)
  • Positioning quality (ID_POSITIONING_QUALITY)
• Relation of Redlining attribute (TC_RL_ATTRIBUTE) column feature (FID_FEATURE) extended to target additional feature classes:
  • Redlining building(TC_RL_BUILDING)
  • Redlining building unit(TC_RL_BUILDING_UNIT)
  • Redlining cluster (TC_RL_CLUSTER)
  • Redlining measurement line (TC_RL_MEASUREMENT_LINE)
  • Redlining measurement point (TC_RL_MEASUREMENT_POINT)
• Relation to building (TC_TG_BUILDING) removed from redning attribute (TC_RL_ATTRIBUTE) - clumn feature (FID_FEATURE).
• Relation to Redlining building (TC_RL_BUILDING) added to Redlining measurement point (TC_RL_MEASUEMENT_POINT) - column feature (FID_FEATURE)
• Relation to Redlining building (TC_RL_BUILDING) added to Redlining segment (TC_RL_SEGMENT) - column feature (FID_FEATURE)
• Relation to Redlining building (TC_RL_BUILDING) added to Redlining terminator (TC_RL_TERMINATOR) - column feature (FID_FEATURE)
• New feature classes:
  • Redlining building(TC_RL_BUILDING)
  • Redlining building unit(TC_RL_BUILDING_UNIT)
  • Redlining cluster (TC_RL_CLUSTER)
• New domain table positioning quality (TC_RL_SCAN_POS_QUALITY_TBD)
  • 1 - RTK Fix
  • 2 - GNSS antenne only
  • 3 - Mobiles GPS
  • 4 - Manual entry
  • 99 - unknown
• Column person (FID_PERSON) removed from Redlining measurement (TC_RL_MEASUREMENT)

14.3

• New column “Source object” (SOURCE_OBJECT) in added to Redlining building unit (TC_RL_BUILDING_UNIT).

DocPack

14.1

• New domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD) containing the following values:
  • 1 - Active
  • 2 - Inactive
  • 3 - Archived
• New column “Status” (ID_STATUS) in the feature class “Plot sequence” (TC_PLOT_SEQUENCE) with a relation to the domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD)

14.2

• Added missing caption to plot seqence (TC_PLOT_SEQUENCE) feature class - No structural changes

Changes to the dialogs since NET 14.0

NET Design

Base Data Model

14.1

• New dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)

14.2

• Updated dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)
  • Area value is now rounded to two decimal places
  • The selection list for the trench type is now sorted by name

Base Data Model

14.1

• New API controls $BTNSHOWALLCABLES, $BTNSHOWALLDUCTS, $BTNSHOWALLSERVICES got added to the feature class “Segment” (TC_SP_SEGMENT)

14.2

• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Cluster (TC_CLUSTER)
  • Line (TC_LINE)
  • Person (TC_PERSON)
  • Point (TC_POINT)
  • Cabinet type (TC_SP_CABINET_MODEL)
  • Manhole type (TC_SP_MANHOLE_MODEL)
  • Marker (TC_SP_MARKER)
  • Marker Model (TC_SP_MARKER_MODEL)
  • Patch Panel (TC_SP_PATCH_PANEL)
  • Patch Panel type (TC_SP_PATCH_PANEL_MODEL)
  • Pole Model (TC_SP_POLE_MODEL)
  • Rack Panel (TC_SP_RACK_PANEL)
  • Rack Panel type (TC_SP_RACK_PANEL_MODEL)
  • Segment type (TC_SP_SEGMENT_MODEL)
  • Switching point type (TC_SWITCHING_POINT_MODEL)
  • Building (TC_TG_BUILDING)
  • Building unit (TC_TG_BUILDING_UNIT)
• New dialog for the data source (TNIM_SOURCE)

14.3

• Test button ($BTNTEST) removed from the dialog for the numbering scheme (TC_NR_SCHEME)
• Fixed the layout for the status (TC_STATUS) dialog

Duct Data Model

14.1

• New API controls $BTNSHOWALLCABLES, $BTNSHOWALLSEGMENTS, $BTNSHOWALLSERVICES got added to the feature class “Duct” (TC_SP_DUCT)

14.2

• Removed projections from duct (TC_SP_DUCT) dialog
  • Show all outer ducts of the filtered ducts
  • Show all outer trenches of the filtered ducts
• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Duct bundle (TC_SP_DUCT_BUNDLE)
  • Duct insertion model (TC_SP_DUCT_INSERTION_MDL)
  • Duct type (TC_SP_DUCT_TYPE)
  • Fitting type (TC_SP_FITTING_MODEL)
• Removed projections from trench (TC_SP_SEGMENT) dialog
  • Show all inner ducts from the filtered trenches

14.3

• Added projection to the trench (TC_SP_SEGMENT) dialog - Show all direct inner ducts

Fiber Optic Data Model

14.1

• New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Fo cable” (TC_FO_CABLE)
• Decimal places for the column “Attenuation” got increased from two to three for the following feature classes.
  • Fo connector data (TC_FO_CONNECTOR_DATA)
  • Fo fiber data (TC_FO_FIBER_DATA)
  • Fo patch data (TC_FO_PATCH_DATA)
  • Fo splice data (TC_FO_SPLICE_DATA)
  • Fo splitter data (TC_FO_SPLITTER_DATA)
• The format of the attenuation in the field “wave length/attenuation” got fixed in the following feature classes.
  • Fo connector model (TC_FO_CONNECTOR_MODEL)
  • Fo fiber model (TC_FO_FIBER_MODEL)
  • Fo splitter model (TC_FO_SPLITTER_MODEL)
• The projections to the fiber and the fiber optic cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

14.2

• Removed projects from the dialog for the fiber optic cable (TC_FO_CABLE)
  • Show all ducts assigned to the current filtered cables
  • Show all trenches assigned to the current filtered cables
• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Fiber optic cable type (TC_FO_CABLE_MODEL)
  • Fiber optic closure type (TC_FO_CLOSURE_MODEL)
  • Fiber optic connector type (TC_FO_CONNECTOR_MODEL)
  • Fiber type (TC_FO_FIBER_MODEL)
  • Fiber optic splitter type (TC_FO_SPLITTER_MODEL)
  • Fiber optic terminator type (TC_FO_TERMINATOR_MODEL)
  • Fiber optic tray (TC_FO_TRAY)
  • Fiber optic tray type (TC_FO_TRAY_MODEL)
  • Fiber optic trunk (TC_FO_TRUNK)
• Removed projects from the dialog for the duct (TC_SP_DUCT)
  • Show all cables for the current filtered ducts
• Removed projects from the dialog for the trench (TC_SP_SEGMENT)
  • Show all cables for the current filtered trenches

14.3

• Improved selection of the switching point in the dialogs for the fiber optic closure (TC_FO_CLOSURE) and the fiber optic terminator (TC_FO_TERMINATOR)
  • FID reference control removed ($FIDREFERENCE1)
  • Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)
• Fixed the order of the fiber selection list in the fiber optic splice (TC_FO_SPLICE) dialog

Telephony Data Model

14.1

• New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Tp cable” (TC_TP_CABLE)
• The projections to the wire and the telephony cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

14.2

• Removed projects from the dialog for the duct (TC_SP_DUCT)
  • Show all cables for the current filtered ducts
• Removed projects from the dialog for the trench (TC_SP_SEGMENT)
  • Show all cables for the current filtered trenches
• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Telephony cable type (TC_TP_CABLE_MODEL)
  • Telephony closure type (TC_TP_CLOSURE_MODEL)
  • Telephony pin type (TC_TP_PIN_MODEL)
  • Telephony terminator type (TC_TP_TERMINATOR_MODEL)
  • Wire type (TC_TP_WIRE_MODEL)

14.3

• Improved selection of the switching point in the dialogs for the fiber optic closure (TC_FO_CLOSURE) and the fiber optic terminator (TC_FO_TERMINATOR)
  • FID reference control removed ($FIDREFERENCE1)
  • Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)
• Fixed the order of the fiber selection list in the fiber optic splice (TC_FO_SPLICE) dialog
  • Improved selection of the switching point in the dialogs for the telephony closure (TC_TP_CLOSURE) and the telephony terminator (TC_TP_TERMINATOR)
    • FID reference control removed ($FIDREFERENCE1)
    • Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)

Redlining Data Model

14.2

• Updated the list of target tables for the parent feature in the dialog for the feature class Redlining attribute (TC_RL_ATTRIBUTE). The changes of the data model are reflected.
• New dialog for the Redlining building (TC_RL_BUILDING)
• New dialog for the Redlining building unit (TC_RL_BUILDING_UNIT)
• New dialog for the Redlining cluster (TC_RL_CLUSTER)
• New controls added to the dialog for the Redlining cable (TC_RL_CABLE)
  • New selction control for the cable category (ID_CABLE_TYPE)
  • New text field for the cable reserve start (CABLE_RESERVE_START)
  • New text field for the cable reserve end (CABLE_RESERVE_END)
• New reference to the Redlining attribute (TC_RL_ATTRIBUTE) added to the following dialogs
  • Redlining measurement point (TC_RL_MEASUREMENT_POINT)
  • Redlining measurement line (TC_RL_MEASUREMENT_LINE)
• New controls added to the dialog for Redlining scan (TC_RL_SCAN)
  • New selection control for the positioning quality (ID_POSITIONING_QUALITY)
  • New text field for the GNSS device (GNSS_DEVICE)
• Added Redlining building (TC_RL_BUILDING) as detail table to the Redlining segment (TC_RL_SEGMENT)
• New controls added to the dialog for Redlining service item (TC_RL_SERVICE_ITEM)
  • New text field for the approval date (DATE_APPROVAL)
  • New text field for the submittet date (DATE_SUBMITTED)
  • New text field for the crew (NAME_CREW)
  • New text field for the subcontractor (NAME_SUBCONTRACTOR)
• Added Redlining building (TC_RL_BUILDING) as detail table to the Redlining terminator (TC_RL_TERMINATOR)
• Removed control linking the Redlining measurement (TC_RL_MEASUREMENT) to the person (FID_PERSON) from the dialog.
• New text field synchronization date (DATE_SYNC) added to the Redlining measurement (TC_RL_MEASUREMENT) dialog.

14.3

• New text field for the source object (SOURCE_OBJECT) added to the Redlining building unit (TC_RL_BUILDING_UNIT)

DocPack

14.1

• New control “Status” for the column ID_STATUS added to the dialog for the feature class “plot sequence” (TC_PLOT_SEQUENCE)

Changes of the reports since NET 14.0

NET Engineering

Base Data Model

14.3

• An error breaking the fault report in Autodesk Map 3D 2025 got fixed

FO Data Model

14.3

• The installation location is now correctly displayed in the report for the trays in closures
• The alignment of the text inside the columns of the splice overview got fixed

Telephony Data Model

14.1

• The reports for the network overviews got fixed to allow the creation of an aggregated report, created by the DocPack.
