Action area

Action areas are used for the surface allocation of infrastructure to a specific area. Various evaluations, such as the display of statistics or the export of a bill of material, can be carried out for a action area. In addition, target and actual dates for planning and construction can be documented.

The form for the action area is opened by right-clicking on Industry Model Explorer > Administration > Action area.

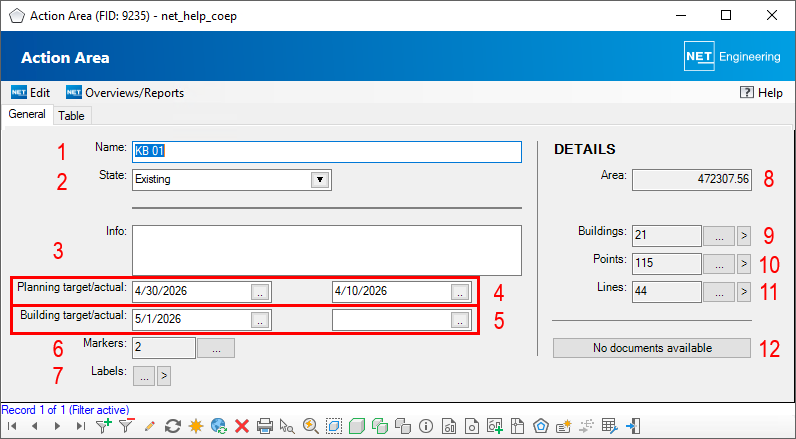

Tabs

General

Attribute	Description
Name	Enter a name for the action area here. (1)
State	A state can be selected for the action area. (2)
Info	Information about the action area can be entered. (3)
Planning target/actual	The date for planning (target and actual) can be entered. (4)
Building target/actual	The date for building (target and actual) can be entered. (5)
Markers	The number of markers present in the action area is displayed. Clicking on opens the forms for all markers in the action area. (6)
Labels	The labels for the action area can be opened using , and the labels for all action areas in the filter can be viewed using . (7)
Area	The area of the action area in the graphic is displayed. (6)
Assignments	The number of buildings in the action area is displayed. Clicking on opens the forms for all buildings in the action area. The button displays all buildings assigned to a action area in the filter. The number of points in the action area is displayed. Clicking on opens the forms for all points in the action area. The button displays all points assigned to a action area in the filter. The number of lines in the action area is displayed. Clicking on opens the forms for all lines in the action area. The button displays all lines assigned to a action area in the filter. (7)
Documents	It shows whether any documents have been attached to the record. (8)

Menu items

Edit

Using the ‘Edit’ menu, you can view the statistics, export the materials list and refresh the status.

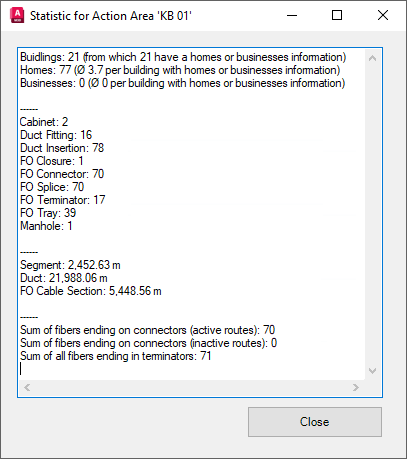

Clicking ‘Show statistics’ opens a window containing details about the action area:

Export Bill of materials

A materials list can be generated following a design phase or to determine the quantities required for a specific area.
The NET options allow you to specify how edges that intersect action area boundaries should be calculated.
The values are transferred to the materials list unrounded and displayed rounded to two decimal places. This may result in minor discrepancies in the totals.

Update status

Once a status has been assigned to the action area in (3), it can be assigned to all objects within the action area.

A prompt will first appear asking whether the new status should also be applied to objects that already have a different status assigned to them.

A prompt will then appear asking whether the status should also be updated for subordinate objects.

Overviews/Reports

You can open the forms for the generated labels via the ‘Overviews/Reports’ menu.
