RL Cluster

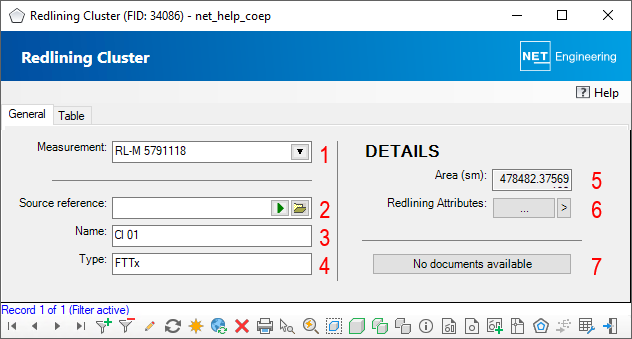

The Redlining (RL) cluster form displays the attributes that have been assigned to the cluster in NET BUILD.


1. The name of the measurement used to import the cluster is displayed.
2. The corresponding object from NET BUILD is displayed along with its URL.
3. The name of the cluster is displayed.
4. The type of the cluster is displayed.
5. The area of the cluster is given in square metres.
6. The RL attributes assigned to the cluster can be opened in the form using Button_drei Punkte_aktueller DS.png or for all clusters in the filter using Button_Pfeil_alle im Filter.png.
7. The document management function can be opened and files belonging to the cluster can be linked or opened.
