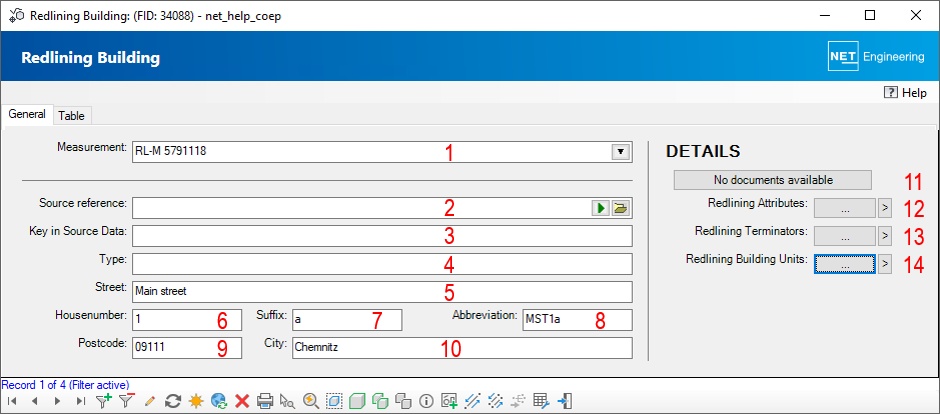

The Redlining (RL) building form displays the attributes that have been assigned to the building in NET BUILD.
1. The name of the measurement used to import the building is displayed.
2. The corresponding object from NET BUILD is displayed along with its URL.
3. The key in the source file is displayed.
4. The type of building is displayed.
5. The name of the street to which the building is assigned is displayed.
6. The building’s house number is displayed.
7. The suffix for the building is displayed. This may consist of additional characters appended to the house number.
8. An abbreviation is displayed. This may be a combination of the street abbreviation and the house number.
9. The postcode for the area in which the building is located is displayed.
10. The city in which the building is located is displayed.
11. The document management system can be opened, and files belonging to the cluster can be linked or opened.
12. The RL attributes assigned to the building can be opened in the form using or, for all buildings in the filter, using
.
13. The RL terminators assigned to the building can be opened in the form using or, for all buildings in the filter, using
.
14. The building units linked to the building can be opened using in the form, or using
for all buildings in the filter.
