Summary

In version NET 15.0.1, major enhancements were made across import workflows, validation, and engineering tools. Key highlights:

• TANNIS import is now fully integrated into the general import workflow.
• New TNIM key-uniqueness check ensures consistent data (warnings on export, blocking errors on import).
• Validation can now be cancelled at any time, including a confirmation dialog.
• Improved stability in form logic, import filtering, workflows, and Redlining validation.
• Numerous fixes across NET Engineering, especially for connections, deletion processes, and geometry-related behavior.

Supported Software

• Autodesk AutoCAD Map 3D
  • Autodesk AutoCAD Map 3D 2024.0.1 - Autodesk AutoCAD 2024.1.8
  • Autodesk AutoCAD Map 3D 2025.0.2 - Autodesk AutoCAD 2025.1.3
  • Autodesk AutoCAD Map 3D 2026.0.2 - Autodesk AutoCAD 2026.1
• TKI PostgreSQL Provider 4.2.1 and later
• Comsof Fiber Designer 2019.2.2 - Comsof Fiber Designer 22.2
• Comsof Fiber 23.1 - Comsof Fiber 25.1
• atesio STRATEGIC 2020 - 2024
• TKI Lizenzierung 14.0
  (Only required for a manual installation on the network license server)

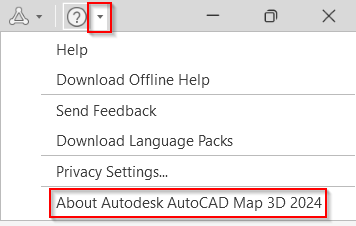

Please check your installed AutoCAD Map 3D version and pay attention to these two version details when doing so:

Release NET 15.0.1 in Detail

General

GIS-Nebenbestimmungen

• GIS-NB: The user experience when loading funding projects has been improved.

NET Design

Comsof Fiber Integration

• A bug was fixed where trenches could not be created based on the parcels for the function ‘buried’, depending on the settings in the advanced optimisation settings for comsof.

NET Engineering

General

• A bug was fixed that could cause error messages to appear multiple times in the fo closure and fo terminator forms.
• If there are still connected duct insertions or fittings when deleting manholes/cabinets/poles, or if there are still elements assigned to a service when deleting closures/terminators, a query or error message will appear stating that deletion is not possible. This query or error can now be hidden for the rest of the session so that it is not displayed multiple times when deleting several data records.

Import

• Attributfilters are working as expected with Null values for all the available Source type
• The TANNIS import can now be accessed via the general import. The previous access via the context menu has been removed.
• Data records that violate the length restriction of the database are filtered and listed in the import protocol.

Workflows

• In the “Split FO cable” and “Split telephony cable” workflows, it is now possible to split the cable at an existing closure or terminator that is already on the cable.
• The placement of error icons in the drop-down menus of the various workflows has been corrected.
• With the workflow “Create and assign ducts (w/o geometry)”, ducts can now be created without errors again if the parent feature of the duct does not have its own geometry.
• In the “Create duct template” workflow, the control for displaying existing duct templates of a duct type has been removed from AutoCAD Map3D 2025 due to incorrect scaling. Instead, existing duct templates are now displayed as a tooltip in the duct type to be selected.

Connection editor

• Cross sections are now displayed correctly across all levels after assigning a new duct or removing such an assignment.

Dialogs

• The insertion grid form logic has been improved to ensure correct updates and consistent assignments.
• Fixed an error when opening connection overview for a duct without an existing route.

TNIM

• For TNIM v2.1, a check for unique TNIM keys (consisting of a TNIM ID and a TNIM source) has been implemented for each feature class. Duplicate keys are reported as warnings during export, and cause the import to abort with a clear log message.

Export to NET Build

• When exporting to NET Build, the address of the lead-in segment is now also set.
• Improvement of involed routes for pipe fittings are donecorrectly when Export to NET Build is performed

Redlining

• A new validation has been added to the Redlining data transfer to check whether lead-in ducts are missing the name of the distribution point.

Validation

• Project validation now includes a cancel option. Once a check is started, users can stop the process at any time using a new “Abort” button. This gives users more control over long-running validations and allows them to stop them early if needed. A short confirmation is requested when cancelling.

Changes to the Data Model since NET 14.0

NET Design

Base Data Model

14.1

• New feature class “Surface areas” (TC_PL_SURFACE_AREA)

14.2

• New entry for the domain table “demand type” (TC_PL_DEMAND_CONN_TYPE_TBD)
  • 15 - No private connection

14.3

• New entry for the domain table “Cluster type” (TC_PL_CLUSTER_TYPE_TBD)
  • 4 - Duct cluster

15.0

• New entry for the domain table “trench class” (TC_PL_TRENCH_CLASS_TBD)
  • 12 - CO transition

NET Engineering

Base Data Model

14.1

• No changes to the data model - Structural update only for new forms and reports

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_CLUSTER
  • TC_PERSON
  • TC_SWITCHING_POINT
  • TC_SP_PATCH_PANEL
  • TC_SP_PATCH_PANEL_MODEL
  • TC_SP_RACK_PANEL
  • TC_SP_RACK_PANEL_MODEL
  • TC_SP_CABINET_MODEL
  • TC_SP_MANHOLE_MODEL
  • TC_SP_MARKER
  • TC_SP_MARKER_MODEL
  • TC_SP_POLE_MODEL
  • TC_SP_SEGMENT_MODEL
  • TC_TG_BUILDING
  • TC_TG_BUILDING_UNIT
  • TC_LINE
  • TC_POINT
• New feature class “data source” (TNIM_SOURCE)

14.3

• No changes to the data model - Structural update only for new forms and data checks

15.0

• The columns FIELDCOLOR1 and FIELDCOLOR2 have been removed from the table “Number Scheme Type” (TC_NR_SCHEME_TYPE).
• A new field has been added to Status (TC_STATUS) for Status Category (ID_STATUS_CATEGORY), with a link to the Status Category table (TC_STATUS_CATEGORY_TBD).
• A new column “Name” (NAME) has been added to Building Unit (TC_TG_BUILDING_UNIT).
• The column “Connector” (FID_CONNECTOR) has been removed from Building Unit (TC_TG_BUILDING_UNIT).
  It is replaced by the ONT tables that have been added to the fiber data model.
• New object class “Insertion Grid” (TC_SP_INSERTION_GRID) added.
• New object class “Insertion Grid Type” (TC_SP_INSERTION_GRID_MDL) added.
• New object class “Insertion Grid Group” (TC_SP_INSERTION_GROUP) added.
• New object class “Insertion Grid Group Template” (TC_SP_INSERTION_GROUP_TBL) added.
• New domain table for Status Category (ID_STATUS_CATEGORY) added.
  The following predefined values are included in the domain:
  • 1 – Planning
  • 2 – Existing
  • 3 – Under Construction
  • 4 – Built
  • 5 – Reserve
  • 6 – Discarded
  • 7 – Blocked
  • 8 – Decommissioned
  • 9 – Unknown

Duct Data Model

14.1

• No changes to the data model - Structural update only for new forms and reports

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_SP_DUCT_TYPE
  • TC_SP_DUCT_BUNDLE
  • TC_SP_DUCT_INSERTION
  • TC_SP_DUCT_INSERTION_MDL
  • TC_SP_FITTING_MODEL

14.3

• No changes to the data model - Structural update only for new forms and reports

15.0

• The map view for Building (TC_M_BUILDING) has been extended to include the number of building units (NUMBER_OF_BLDG_UNITS).
• A new column “Insertion Group” (FID_INSERTION_GROUP) has been added to Duct Insertion (TC_SP_DUCT_INSERTION), with a relation to Insertion Group (TC_SP_INSERTION_GROUP).
• A new column “Position in Insertion Group” (INSERTION_GROUP_PLACE_NUMBER) has been added to Duct Insertion (TC_SP_DUCT_INSERTION).

Fiber Optic Data Model

14.1

• Changed the views TC_M_FO_CLOSURE and TC_M_FO_TERMINATOR
  • New column TRUNK_NAME
    Contains the name of the cable trunk that is assigned in the closure or the terminator.

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_FO_CABLE_MODEL
  • TC_FO_CLOSURE_MODEL
  • TC_FO_CONNECTOR_MODEL
  • TC_FO_FIBER_MODEL
  • TC_FO_SPLITTER_MODEL
  • TC_FO_TERMINATOR_MODEL
  • TC_FO_TRAY
  • TC_FO_TRAY_MODEL
  • TC_FO_TRUNK

14.3

• Extended the map view for fiber optic cables (TC_M_FO_CABLE)
  • New column FIBER_COUNT containing the number of fibers used by a service.
• Fixed the relation between the fiber optic cable type and the fiber type.

15.0

• A new column “ONT” (FID_ONT) has been added to Connector (TC_FO_CONNECTOR), linking to ONT (TC_FO_ONT).
• New object class “Fiber ONT” (TC_FO_ONT) added.
• New object class “Fiber ONT Model” (TC_FO_ONT_MODEL) added.
• New domain table “Fiber ONT Category” (TC_FO_ONT_TYPE_TBD) added, with the following predefined values:
  • 1 – Active (fiber modem)
  • 2 – Passive (fiber outlet)
  • 99 – Unknown

Telephony Data Model

14.1

• Changed the views TC_M_TP_CLOSURE and TC_M_TP_TERMINATOR
  • New column TRUNK_NAME
    Contains the name of the cable trunk that is assigned in the closure or the terminator.

14.2

• New columsn for data source (FID_TNIM_SOURCE) and source key (TNIM_SOURCE_KEY) in the following tables:
  • TC_TP_CABLE_MODEL
  • TC_TP_CLOSURE_MODEL
  • TC_TP_PIN_MODEL
  • TC_TP_TERMINATOR_MODEL
  • TC_TP_WIRE_MODEL

14.3

• Extended the map view for telephony cables (TC_M_TP_CABLE)
  • New column WIRE_COUNT containing the number of wires used by a service.
• Fixed the relation between the telephony cable type and the wire type.

15.0

• Updated domain entries for the domain table “Frequency” (TC_TP_FREQUENCY_TBD)
  • 2 - 0.8kHz
  • 3 - 16.8kHz

Redlining Data Model

14.1

Only for PostgreSQL

• New trigger function tc_f_rl_scan_delete_trigger_function that is cleaning up the database in case a scan is removed from the redlining data model.
• New trigger trg_rl_scan_after_delete for the table tc_rl_scan

14.2

• New columns in the table service item (TC_RL_SERVICE_ITEM)
  • Approval date (DATE_APPROVAL)
  • Report date (DATE_SUBMITTED)
  • Crew (NAME_CREW)
  • Sub-contractor (NAME_SUBCONTRACTOR)
• New columns in the table Redlining cable(TC_RL_CABLE)
  • Cable reserve start (CABLE_RESERVE_START)
  • Cable reserve end (CABLE_RESERVE_END)
  • Cable type (ID_CABLE_TYPE)
• New columns in the table Redlining scan (TC_RL_SCAN)
  • GNSS device (GNSS_DEVICE)
  • Positioning quality (ID_POSITIONING_QUALITY)
• Relation of Redlining attribute (TC_RL_ATTRIBUTE) column feature (FID_FEATURE) extended to target additional feature classes:
  • Redlining building(TC_RL_BUILDING)
  • Redlining building unit(TC_RL_BUILDING_UNIT)
  • Redlining cluster (TC_RL_CLUSTER)
  • Redlining measurement line (TC_RL_MEASUREMENT_LINE)
  • Redlining measurement point (TC_RL_MEASUREMENT_POINT)
• Relation to building (TC_TG_BUILDING) removed from redning attribute (TC_RL_ATTRIBUTE) - clumn feature (FID_FEATURE).
• Relation to Redlining building (TC_RL_BUILDING) added to Redlining measurement point (TC_RL_MEASUEMENT_POINT) - column feature (FID_FEATURE)
• Relation to Redlining building (TC_RL_BUILDING) added to Redlining segment (TC_RL_SEGMENT) - column feature (FID_FEATURE)
• Relation to Redlining building (TC_RL_BUILDING) added to Redlining terminator (TC_RL_TERMINATOR) - column feature (FID_FEATURE)
• New feature classes:
  • Redlining building(TC_RL_BUILDING)
  • Redlining building unit(TC_RL_BUILDING_UNIT)
  • Redlining cluster (TC_RL_CLUSTER)
• New domain table positioning quality (TC_RL_SCAN_POS_QUALITY_TBD)
  • 1 - RTK Fix
  • 2 - GNSS antenne only
  • 3 - Mobiles GPS
  • 4 - Manual entry
  • 99 - unknown
• Column person (FID_PERSON) removed from Redlining measurement (TC_RL_MEASUREMENT)

14.3

• New column “Source object” (SOURCE_OBJECT) in added to Redlining building unit (TC_RL_BUILDING_UNIT).

DocPack

14.1

• New domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD) containing the following values:
  • 1 - Active
  • 2 - Inactive
  • 3 - Archived
• New column “Status” (ID_STATUS) in the feature class “Plot sequence” (TC_PLOT_SEQUENCE) with a relation to the domain table “Plot sequence status” (TC_PLOT_SEQUENCE_STATUS_TBD)

14.2

• Added missing caption to plot seqence (TC_PLOT_SEQUENCE) feature class - No structural changes

Changes to the dialogs since NET 14.0

NET Design

Base Data Model

14.1

• New dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)

14.2

• Updated dialog for the feature class “Surface area” (TC_PL_SURFACE_AREA)
  • Area value is now rounded to two decimal places
  • The selection list for the trench type is now sorted by name

NET Engineering

Base Data Model

14.1

• New API controls $BTNSHOWALLCABLES, $BTNSHOWALLDUCTS, $BTNSHOWALLSERVICES got added to the feature class “Segment” (TC_SP_SEGMENT)

14.2

• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Cluster (TC_CLUSTER)
  • Line (TC_LINE)
  • Person (TC_PERSON)
  • Point (TC_POINT)
  • Cabinet type (TC_SP_CABINET_MODEL)
  • Manhole type (TC_SP_MANHOLE_MODEL)
  • Marker (TC_SP_MARKER)
  • Marker Model (TC_SP_MARKER_MODEL)
  • Patch Panel (TC_SP_PATCH_PANEL)
  • Patch Panel type (TC_SP_PATCH_PANEL_MODEL)
  • Pole Model (TC_SP_POLE_MODEL)
  • Rack Panel (TC_SP_RACK_PANEL)
  • Rack Panel type (TC_SP_RACK_PANEL_MODEL)
  • Segment type (TC_SP_SEGMENT_MODEL)
  • Switching point type (TC_SWITCHING_POINT_MODEL)
  • Building (TC_TG_BUILDING)
  • Building unit (TC_TG_BUILDING_UNIT)
• New dialog for the data source (TNIM_SOURCE)

14.3

• Test button ($BTNTEST) removed from the dialog for the numbering scheme (TC_NR_SCHEME)
• Fixed the layout for the status (TC_STATUS) dialog

15.0

• Detail form for Number Scheme (Number Scheme Type) – TC_NR_SCHEME#TC_NR_SCHEME_TYPE
  • Field FIELDCOLOR1 removed
  • Field FIELDCOLOR2 removed
• New form for Insertion Grid (TC_SP_INSERTION_GRID)
• New form for Insertion Grid Type (TC_SP_INSERTION_GRID_MDL)
  • New detail form for Insertion Grid Group Template (TC_SP_INSERTION_GROUP_TBL)
• New form for Insertion Grid Group (TC_SP_INSERTION_GROUP)
• New form for Insertion Grid Group Template (TC_SP_INSERTION_GROUP_TBL)
• New control in the Status form (TC_STATUS)
  • Status Category (ID_STATUS_CATEGORY) added as a dropdown field
• New detail form under Building (TC_TG_BUILDING) for Building Unit (TC_TG_BUILDING_UNIT) – TC_TG_BUILDING#TC_TG_BUILDING_UNIT
• The control for Building (FID_BUILDING) in Building Unit (TC_TG_BUILDING_UNIT) has been changed:
  The display now shows the building name.
• Several columns have been removed from the Building Unit (TC_TG_BUILDING_UNIT) form:
  • Connector (FID_CONNECTOR)
  • Source Data Store (FID_TNIM_SOURCE)
  • Source ID (TNIM_SOURCE_KEY)
• New column Name (NAME) added to Building Unit (TC_TG_BUILDING_UNIT)

Duct Data Model

14.1

• New API controls $BTNSHOWALLCABLES, $BTNSHOWALLSEGMENTS, $BTNSHOWALLSERVICES got added to the feature class “Duct” (TC_SP_DUCT)

14.2

• Removed projections from duct (TC_SP_DUCT) dialog
  • Show all outer ducts of the filtered ducts
  • Show all outer trenches of the filtered ducts
• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Duct bundle (TC_SP_DUCT_BUNDLE)
  • Duct insertion model (TC_SP_DUCT_INSERTION_MDL)
  • Duct type (TC_SP_DUCT_TYPE)
  • Fitting type (TC_SP_FITTING_MODEL)
• Removed projections from trench (TC_SP_SEGMENT) dialog
  • Show all inner ducts from the filtered trenches

14.3

• Added projection to the trench (TC_SP_SEGMENT) dialog - Show all direct inner ducts

15.0

• New controls in the form for Duct Insertion (TC_SP_DUCT_INSERTION):
  • Button to highlight connected ducts ($HIGHLIGHTCONNECTEDDUCT)
  • Selection field for Insertion Group (FID_INSERTION_GROUP)
  • Input field for Position in Insertion Group (INSERTION_GROUP_PLACE_NUMBER)

Fiber Optic Data Model

14.1

• New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Fo cable” (TC_FO_CABLE)
• Decimal places for the column “Attenuation” got increased from two to three for the following feature classes.
  • Fo connector data (TC_FO_CONNECTOR_DATA)
  • Fo fiber data (TC_FO_FIBER_DATA)
  • Fo patch data (TC_FO_PATCH_DATA)
  • Fo splice data (TC_FO_SPLICE_DATA)
  • Fo splitter data (TC_FO_SPLITTER_DATA)
• The format of the attenuation in the field “wave length/attenuation” got fixed in the following feature classes.
  • Fo connector model (TC_FO_CONNECTOR_MODEL)
  • Fo fiber model (TC_FO_FIBER_MODEL)
  • Fo splitter model (TC_FO_SPLITTER_MODEL)
• The projections to the fiber and the fiber optic cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

14.2

• Removed projects from the dialog for the fiber optic cable (TC_FO_CABLE)
  • Show all ducts assigned to the current filtered cables
  • Show all trenches assigned to the current filtered cables
• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Fiber optic cable type (TC_FO_CABLE_MODEL)
  • Fiber optic closure type (TC_FO_CLOSURE_MODEL)
  • Fiber optic connector type (TC_FO_CONNECTOR_MODEL)
  • Fiber type (TC_FO_FIBER_MODEL)
  • Fiber optic splitter type (TC_FO_SPLITTER_MODEL)
  • Fiber optic terminator type (TC_FO_TERMINATOR_MODEL)
  • Fiber optic tray (TC_FO_TRAY)
  • Fiber optic tray type (TC_FO_TRAY_MODEL)
  • Fiber optic trunk (TC_FO_TRUNK)
• Removed projects from the dialog for the duct (TC_SP_DUCT)
  • Show all cables for the current filtered ducts
• Removed projects from the dialog for the trench (TC_SP_SEGMENT)
  • Show all cables for the current filtered trenches

14.3

• Improved selection of the switching point in the dialogs for the fiber optic closure (TC_FO_CLOSURE) and the fiber optic terminator (TC_FO_TERMINATOR)
  • FID reference control removed ($FIDREFERENCE1)
  • Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)
• Fixed the order of the fiber selection list in the fiber optic splice (TC_FO_SPLICE) dialog

15.0

• New controls in the form for Fiber Connector (TC_FO_CONNECTOR):
  • Jump button to ONT ($APICONTROLCONNECTEDONT)
  • Reference to ONT ($REFERENCEONT)
  • New label for ONT ($LABEL1)
• Label for unit of measure ($LABEL1) removed from the Connector Data form (TC_FO_CONNECTOR_DATA)
• Label for unit of measure ($LABEL4) removed from the Connector Type form (TC_FO_CONNECTOR_MODEL)
• Label for unit of measure ($LABEL2) removed from the Fiber Data form (TC_FO_FIBER_DATA)
• Label for unit of measure ($LABEL3) removed from the Fiber Type form (TC_FO_FIBER_MODEL)
• New form for ONT (TC_FO_ONT)
• New form for ONT Model (TC_FO_ONT_MODEL)

Telephony Data Model

14.1

• New API controls $BTNSHOWALLCABLELOOPS, $BTNSHOWALLDUCTS, $BTNSHOWALLSEGMENTS got added to the feature class “Tp cable” (TC_TP_CABLE)
• The projections to the wire and the telephony cable originating from the service (TC_SERVICE) got fixed. The change only affects SQLite and results in the target dialogs showing the correct number of features.

14.2

• Removed projects from the dialog for the duct (TC_SP_DUCT)
  • Show all cables for the current filtered ducts
• Removed projects from the dialog for the trench (TC_SP_SEGMENT)
  • Show all cables for the current filtered trenches
• New Combobox control for data source (FID_TNIM_SOURCE) and a new text box for the Source ID (TNIM_SOURCE_KEY) got added in the following dialogs:
  • Telephony cable type (TC_TP_CABLE_MODEL)
  • Telephony closure type (TC_TP_CLOSURE_MODEL)
  • Telephony pin type (TC_TP_PIN_MODEL)
  • Telephony terminator type (TC_TP_TERMINATOR_MODEL)
  • Wire type (TC_TP_WIRE_MODEL)

14.3

• Improved selection of the switching point in the dialogs for the fiber optic closure (TC_FO_CLOSURE) and the fiber optic terminator (TC_FO_TERMINATOR)
  • FID reference control removed ($FIDREFERENCE1)
  • Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)
• Fixed the order of the fiber selection list in the fiber optic splice (TC_FO_SPLICE) dialog
  • Improved selection of the switching point in the dialogs for the telephony closure (TC_TP_CLOSURE) and the telephony terminator (TC_TP_TERMINATOR)
    • FID reference control removed ($FIDREFERENCE1)
    • Contents of the selection box for the switching point improved (FID_SWITCHING_POINT)

Redlining Data Model

14.2

• Updated the list of target tables for the parent feature in the dialog for the feature class Redlining attribute (TC_RL_ATTRIBUTE). The changes of the data model are reflected.
• New dialog for the Redlining building (TC_RL_BUILDING)
• New dialog for the Redlining building unit (TC_RL_BUILDING_UNIT)
• New dialog for the Redlining cluster (TC_RL_CLUSTER)
• New controls added to the dialog for the Redlining cable (TC_RL_CABLE)
  • New selction control for the cable category (ID_CABLE_TYPE)
  • New text field for the cable reserve start (CABLE_RESERVE_START)
  • New text field for the cable reserve end (CABLE_RESERVE_END)
• New reference to the Redlining attribute (TC_RL_ATTRIBUTE) added to the following dialogs
  • Redlining measurement point (TC_RL_MEASUREMENT_POINT)
  • Redlining measurement line (TC_RL_MEASUREMENT_LINE)
• New controls added to the dialog for Redlining scan (TC_RL_SCAN)
  • New selection control for the positioning quality (ID_POSITIONING_QUALITY)
  • New text field for the GNSS device (GNSS_DEVICE)
• Added Redlining building (TC_RL_BUILDING) as detail table to the Redlining segment (TC_RL_SEGMENT)
• New controls added to the dialog for Redlining service item (TC_RL_SERVICE_ITEM)
  • New text field for the approval date (DATE_APPROVAL)
  • New text field for the submittet date (DATE_SUBMITTED)
  • New text field for the crew (NAME_CREW)
  • New text field for the subcontractor (NAME_SUBCONTRACTOR)
• Added Redlining building (TC_RL_BUILDING) as detail table to the Redlining terminator (TC_RL_TERMINATOR)
• Removed control linking the Redlining measurement (TC_RL_MEASUREMENT) to the person (FID_PERSON) from the dialog.
• New text field synchronization date (DATE_SYNC) added to the Redlining measurement (TC_RL_MEASUREMENT) dialog.

14.3

• New text field for the source object (SOURCE_OBJECT) added to the Redlining building unit (TC_RL_BUILDING_UNIT)

DocPack

14.1

• New control “Status” for the column ID_STATUS added to the dialog for the feature class “plot sequence” (TC_PLOT_SEQUENCE)

Changes of the reports since NET 14.0

NET Engineering

Base Data Model

14.3

• An error breaking the fault report in Autodesk Map 3D 2025 got fixed

15.0

• New report function (GETRECORDEXISTSCONDITION) added to all reports. The function checks if the report filter contains any data.

Duct Data Model

15.0

• Added a new function to support dynamic line breaks to the duct end overview

Fiber Optic Data Model

14.3

• The installation location is now correctly displayed in the report for the trays in closures
• The alignment of the text inside the columns of the splice overview got fixed

15.0

• The reports “Fiber Connector Occupancy at Termination” and “Fiber Connector Occupancy (Connected) at Termination” have been revised.
  In both cases, the “Number of Patchings in Termination” has been corrected.
• The reports “Fiber Splice Closure Occupancy Plan” and “Fiber Splice Closure Occupancy Plan – Landscape” have been improved:
  • Cells now expand dynamically based on their content.
  • A new column has been added with information about the splitter.

Telephony Data Model

14.1

• The reports for the network overviews got fixed to allow the creation of an aggregated report, created by the DocPack.
