Import DeepUp

In order to use DeepUp import, the TKI NET Engineering Redlining extension must be activated in the project.
Another basic requirement is the configuration of the duct types and their duct bundle configuration, as well as their color schemes for the inner ducts.

Note:
The colors of the ducts must match the colors provided by the DeepUp data. (see duct colours)

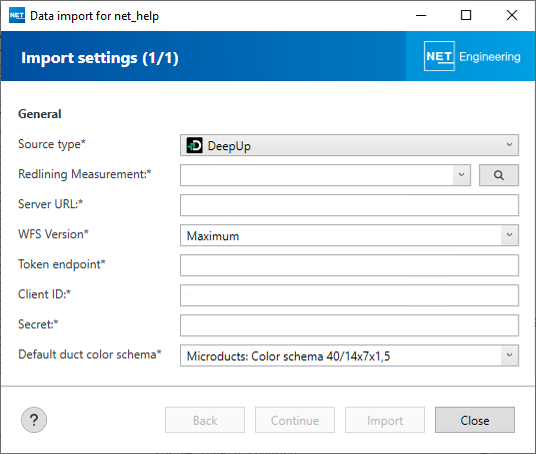

If ‘DeepUp’ was selected as the source type, a corresponding redlining survey must be opened.

The redlining survey must have a geometry that is used to retrieve the data. DeepUp only retrieves objects that are within the polygon boundaries.

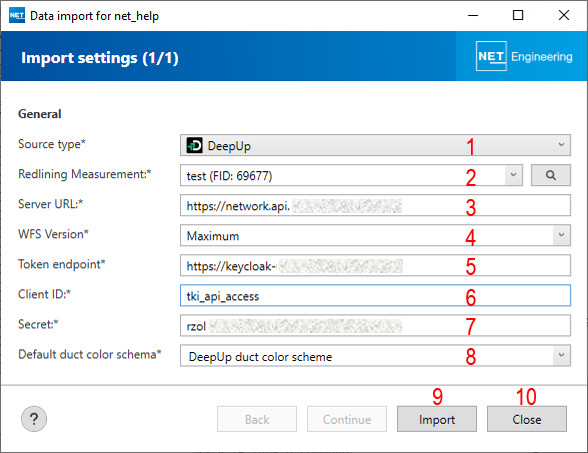

The following dialogue box opens:

1. The source type is displayed.
2. The redlining survey is displayed and can be modified.
3. The server URL must contain the address of the DeepUp WFS server.
4. The expected WFS version of the WFS service must be selected. By default, ‘Maximum’ is selected here, which automatically determines the maximum possible version:

5. The endpoint for retrieving the authentication token must be specified.
6. The ID for retrieving the authentication token must be specified.
7. The secret key for retrieving the authentication token must be specified.

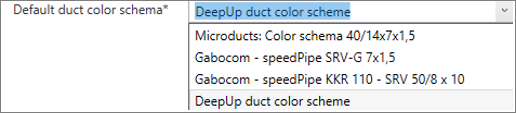

8. The default pipe colour scheme specifies a colour scheme that is used for pipe types that are not yet stored in the NET Engineering data model.

9. The import will start.
10. The dialogue box can be closed.

Duct colors
