Pole type

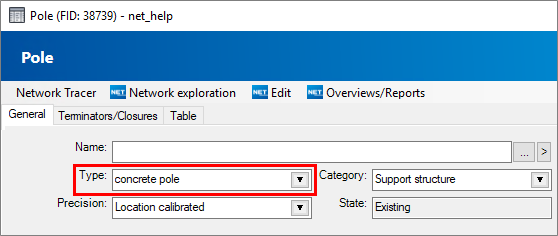

In NET Engineering, users have the option of defining various types of poles themselves. The form is opened by double-clicking in the Type field in the Pole form or in Industry-Model Explorer > Survey plan > Pole > Pole type.


Tabs

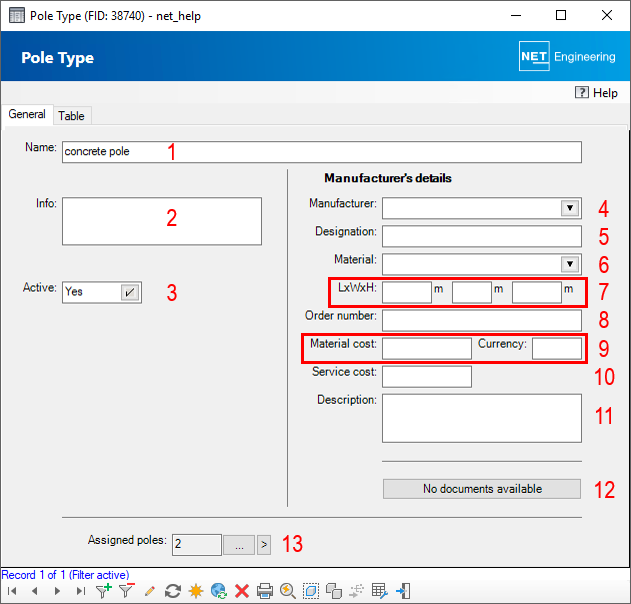

Attribute Description
Name Enter the name of the pole type here. (1)
Info Information about the pole type can be entered. (2)
Active Only active types can be selected from the drop-down list in the detailed form for poles. (3)
Manufacturer’s details
Manufacturers Selection of the manufacturer from a drop-down list. (4)
Designation A designation can be specified. (5)
Material The material for the pole type can be selected from a drop-down list. (6)
L×W×H The dimensions for the pole type can be entered. (7)
Order number Specification of the order number. (8)
Material price Specification of the price and currency for the material. (9)
Labor price Specification of the price for the labor. (10)
Description The description of the type can be entered here. (11)
Documents Whether documents have been attached to the form is displayed. (12)
Assigned poles The number of poles to which this type is assigned is displayed. Clicking on mceclip2.pnglists all poles that use the current type. The mceclip3.pngbutton displays all poles to which a type has been assigned in the filter. (13)
