Segment type

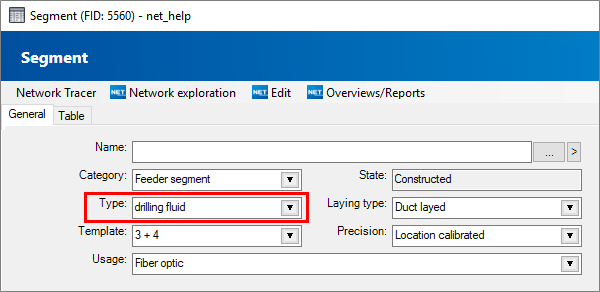

In NET Engineering, users have the option of defining various types of segments themselves. The form is opened by double-clicking in the Type field in the Segment form or in Industry-Model Explorer > Survey plan > Segment > Segment type.

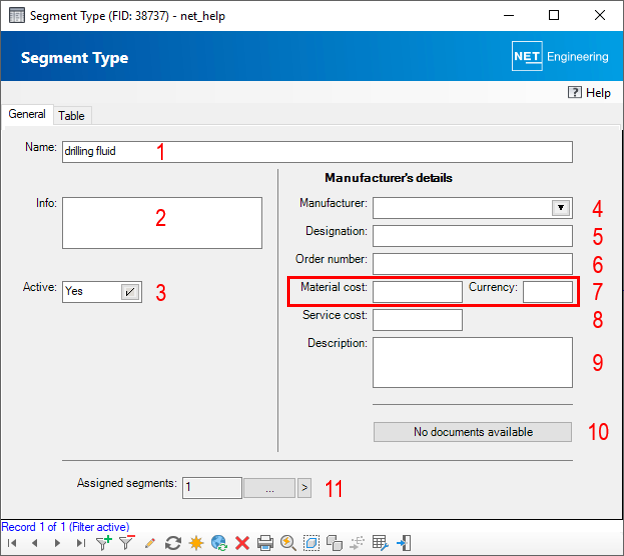

Attribute Description
Name Enter the name of the segment type here. (1)
Info Information about the segment type can be entered. (2)
Active Only active trench types can be selected from the drop-down list in the detailed form for segment. (3)
Manufacturer’s details
Manufacturer Selection of the manufacturer from a drop-down list. (4)
Designation A designation can be specified. (5)
Order number Specification of the order number. (6)
Material cost Specification of the cost and currency for the material. (7)
Service cost Specification of the cost for the service. (8)
Description The description of the segment type can be entered here. (9)
Documents Whether documents have been attached to the form is displayed. (10)
Assigned segments The number of segment to which this type is assigned is displayed. Click on mceclip2.pngto list all segments that use the current segment type. The button mceclip3.pngdisplays all segments to which a segment type has been assigned in the filter. (11)
