State, assessment, classification, note

State

It is possible to assign a state to points and lines, such as “planning”, “in construction” or “existing”.

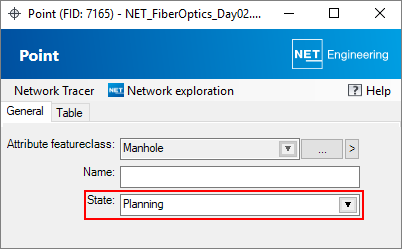

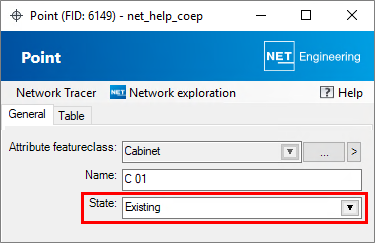

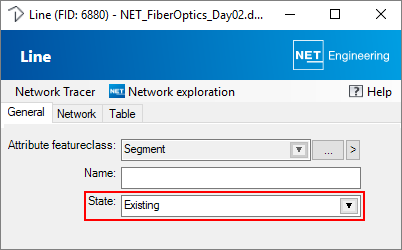

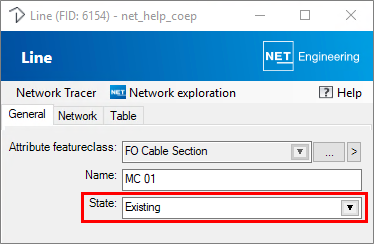

The detailed form for state is opened by double-clicking in the State list box in the detailed forms for lines or points.

mceclip0.png mceclip1.png

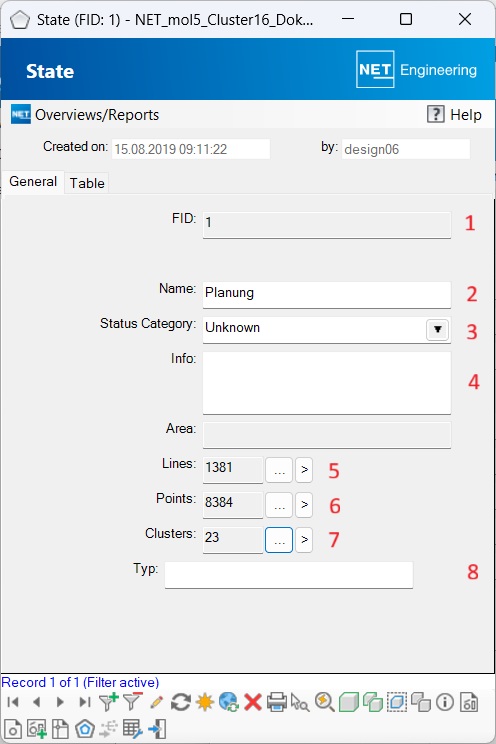

Tabs


1. The FID of the record is displayed.
2. The name of the state can be entered.
3. Additional information on the state can be entered here.
4. If a closed polygon has been digitized to the status, the area is displayed here.
5. Clicking on mceclip2.png lists all lines that use the current status. The mceclip3.png button displays all lines to which a state has been assigned in the filter.
6. Clicking on mceclip2.pnglists all points that use the current status. The mceclip3.png button displays all points to which a state has been assigned in the filter.

7. Cluster

Menu items

A bill of materials with all elements to which the selected status is assigned can be output via the “Overviews/Reports” menu.


Evaluation

It is possible to select different evaluations in order to assign different priorities to services and persons.

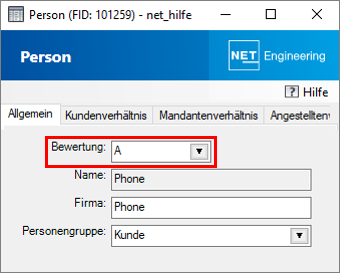

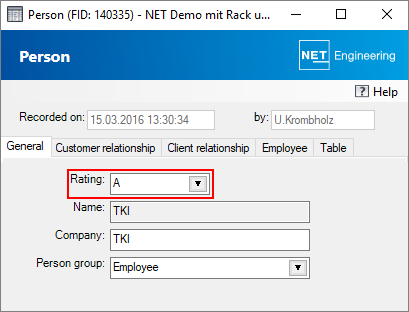

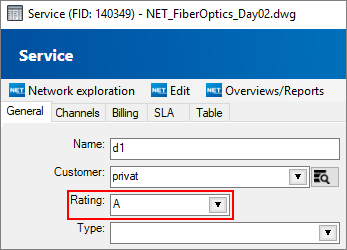

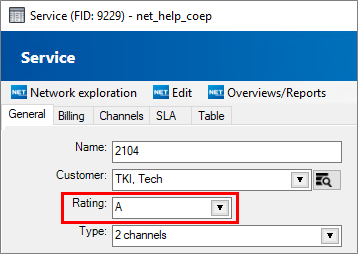

Double-clicking in the Evaluation list box in the detailed forms for services or persons opens the detailed form for evaluation.

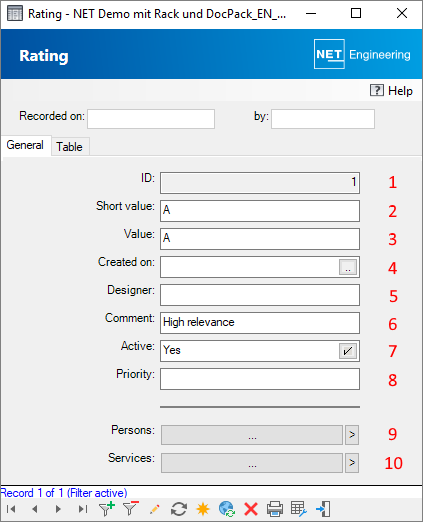

mceclip0.png mceclip4.png

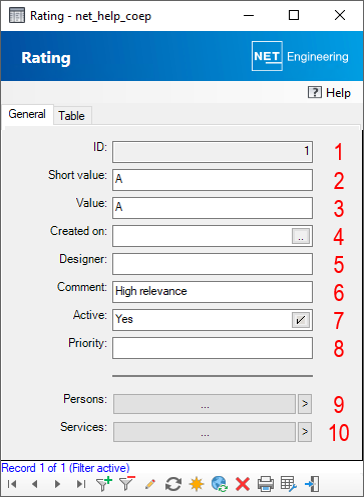

Tabs


1. The ID of the record is displayed.
2. The short name for the evaluation can be entered.
3. Input of the value for the evaluation.
4. The date when the record was created can be selected.
5. The name of the person who created the record can be entered.
6. A comment on the record can be entered.
7. Only active evaluations can be selected from the drop-down lists in the detailed forms for services or persons.
8. A priority for the evaluation can be assigned.
9. Clicking on mceclip2.png lists all persons that use the current evaluation. The mceclip3.png button displays all persons to which an evaluation has been assigned in the filter.
10. Clicking on mceclip2.png lists all services that use the current evaluation. The mceclip3.png button displays all services to which an evaluation has been assigned in the filter.

Classification

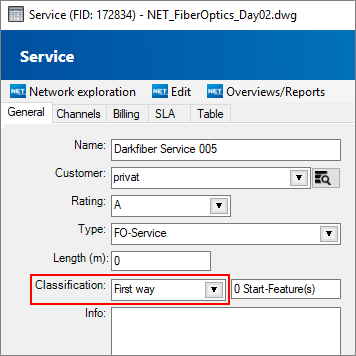

It is possible to assign a classification to services, such as “First way” or “Alternative route”.

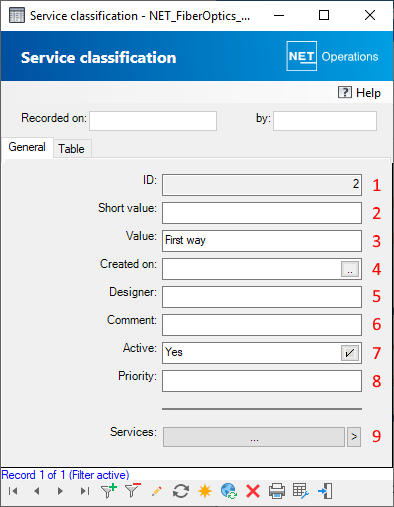

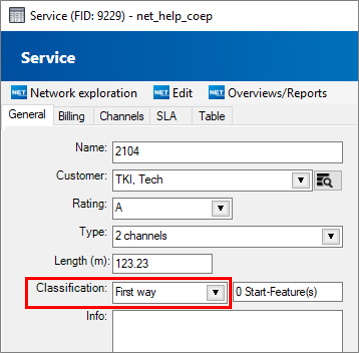

The detailed form for classifications is opened by double-clicking in the classification list box in the detailed form for services.

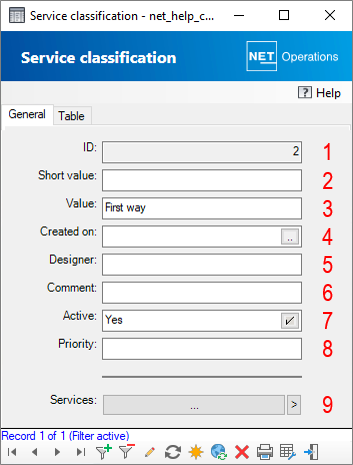

Tabs


1. The ID of the record is displayed.
2. The short value for the classification can be entered.
3. Input of the value for the classification.
4. The date when the record was created can be selected.
5. The name of the person who created the record can be entered.
6. A comment on the record can be entered.
7. Only active classifications can be selected from the drop-down list in the detailed form for services.
8. A priority for classification may be assigned.
9. Clicking on mceclip2.png lists all services that use the current classification. The mceclip3.png button displays all services to which an classification has been assigned in the filter.

Note

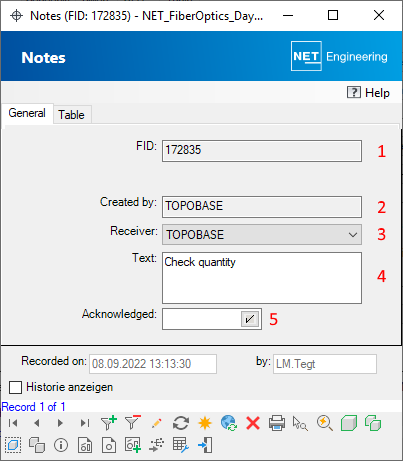

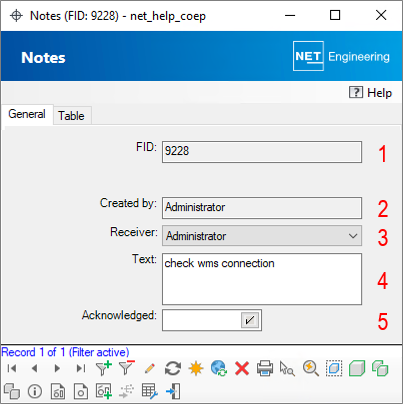

The Notes form is opened by right-clicking on Industry Model Explorer > Administration > Notes. There, information can be documented and assigned to a specific user.

Tabs


1. The FID of the record is displayed.
2. The name of the creator is displayed. The name of the person logged in to the program is automatically displayed.

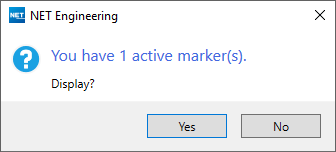

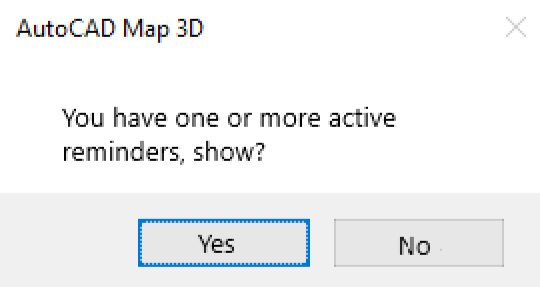

3. The name of the recipient can be selected from a drop-down list. If this person logs in to the program, the following message will appear:


If this message is confirmed with “Yes”, the form of the associated note is opened and can be edited accordingly.
4. The text that the note should contain can be entered.
5. If the content of the note has been checked and edited, the note can be acknowledged with “Yes”.
