Creating an Enterprise project and Industry Model

For database-based work, you first need to create an Enterprise project. If you are working file-based on the basis of SQLite, this step is omitted and you can start directly with the “Creation of a new industry model for SQLite projects”.

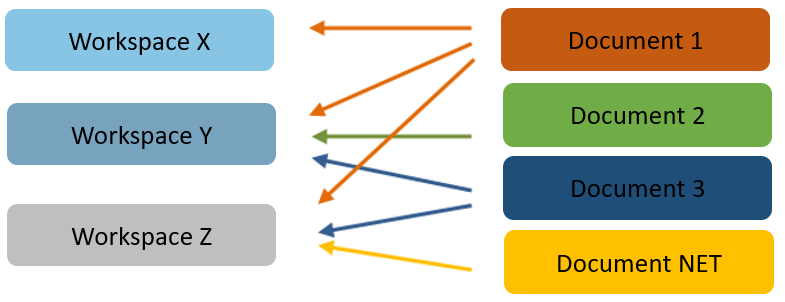

An enterprise project or workspace consists of one or more documents or industry models

Creating an Enterprise project

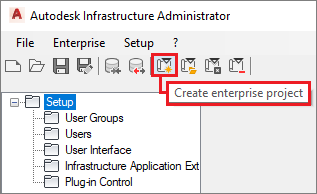

Create a new workspace using the icon in the button bar

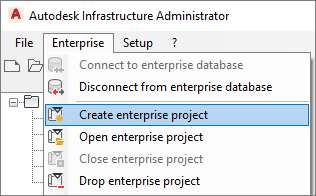

or alternatively via the “Enterprise” menu item.

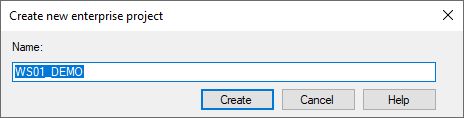

Then name your new workspace.

The “Create” button is used to create and open the enterprise project.

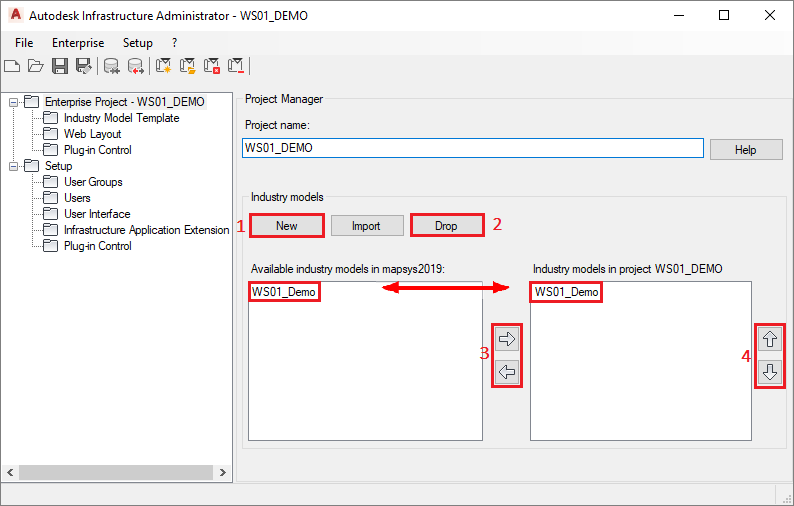

Overview

1. Create Industry Models / Documents

2. Delete Industry Models

3. Include existing Industry Models in the enterprise project or exclude Industry Models from the Enterprise project without deleting them

4. Determine the order of the Enterprise projects using or

Create a new Oracle or PostgreSQL industry model

Click on to create a new industry model and assign a name (and password, if desired).

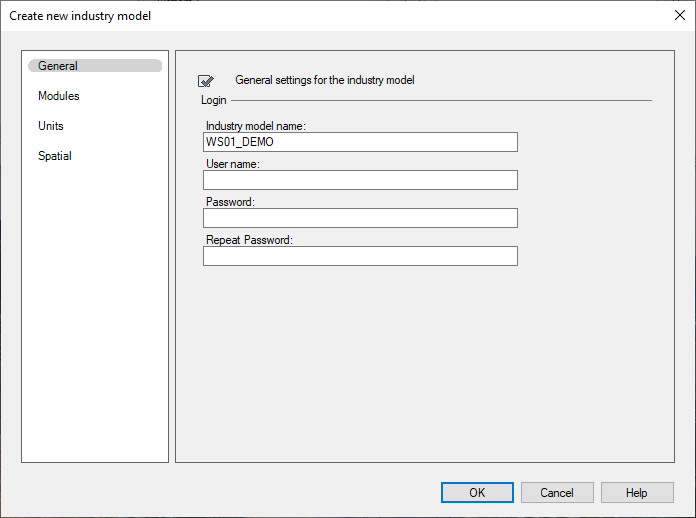

General

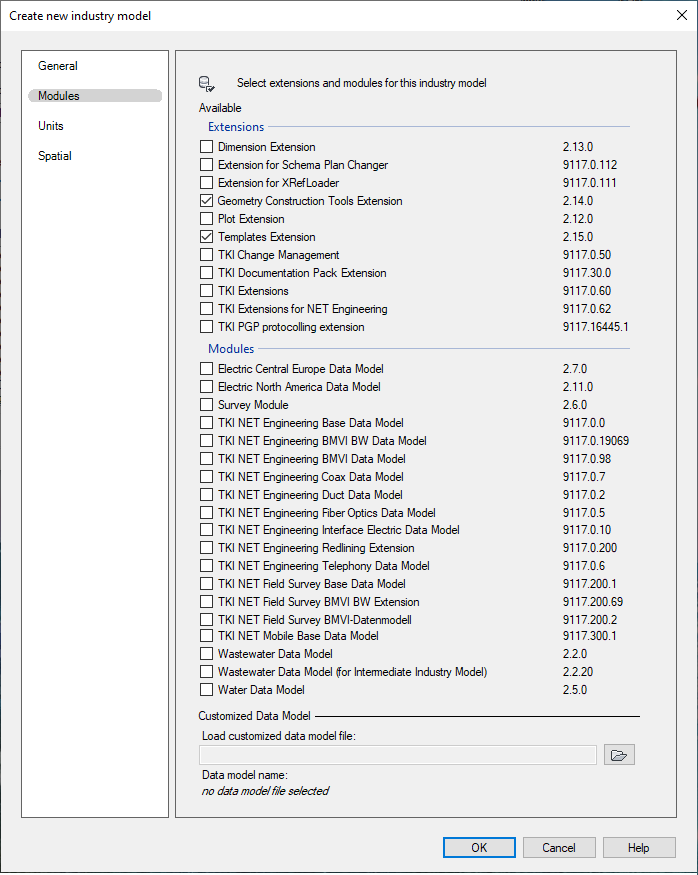

Modules

Activate the desired modules.

Under Extensions, set the check marks as shown.

Under Modules, always select the TKI NET basic data model as well as all other NET modules that you have purchased.

A list of the available extensions and modules with an overview of the essential functions can be found in the following table.

Extension	Contents
TKI Change Management	Documentation of changes within projects Displays of histories
TKI Documentation Pack Extension	Workflow for creating plot outputs Feature class for plot frames
TKI Extensions	TKI Feature Explorer Searching for elements via a structure tree within a project For use with TKI NET Engineering only
TKI PGP protocolling extension	Includes logging of changes to a project at database layer
Dimension Extension	AutoCAD default function for creating dimensionings
Extension for Schema Plan Changer	Extension for linking world and schematic-plan displays NET engineering only
Extension for XRefLoader	Extension for the automated loading of external references (AutoCAD command xref) for projects based on PostgreSQL databases NET engineering only
Geometry Construction Tools Extension	AutoCAD default function for construction
Template Extension	Extension for using trench cross-section and duct templates NET engineering only

Module	Contents
TKI NET Design Basic Data Model	Includes all feature classes, forms and workflows for the preparation and implementation of automated planning Data import, preprocessing, calculation, intervention in the calculation, export to NET Engineering and other supported data formats
TKI NET Design BMVI Data Model	Feature classes, forms and workflows for planning in accordance with GIS subsidiary provisions Provides additional attributes for feature classes from the basic data model Export of planning data in accordance with GIS subsidiary provisions
TKI NET Design BMVI BW Data Model	Additional attributes and export options for planning according to GIS subsidiary provisions for Baden Württemberg Requires TKI NET Design BMVI Data Model
TKI NET Design Copper Data Model	Additional feature classes, forms and workflows for planning hybrid networks (fiber and copper)
TKI NET Engineering Base Data Model	Includes all feature classes, forms and workflows for the implementation of detailed planning Documentation of networks Manholes, cabinets, segments/trenches, clusters, buildings Management of services and breakdowns in connection with NET Operations
TKI NET Engineering BMVI Data Model	Feature classes, forms and workflows for the documentation according to GIS Nebenbestimmungen Requires TKI NET Engineering basic, duct and FO data model
TKI NET Engineering BMVI BW Data Model	Additional attributes and export options for documentation according to GIS Nebenbestimmungen for Baden Württemberg Requires TKI NET Engineering BMVI data model
TKI NET Engineering TP Data Model	Feature classes, forms and workflows for the documentation and management of copper networks TP cables, TP closures, TP terminators Requires TKI NET Engineering basic- and duct-data model
TKI NET Engineering Coax Data Model	Feature classes, forms and workflows for the documentation and management of coax networks Coax cables, coax closures, coax terminators Requires TKI NET Engineering basic- and duct-data model
TKI NET Engineering FO Data Model	Feature classes, forms and workflows for the documentation and management of FO networks FO cables, FO closures, FO terminators, FO splices, FO splitters Requires TKI NET Engineering basic- and duct-data model
TKI NET Engineering Duct Data Model	Feature classes, forms and workflows for the documentation of the duct infrastructure Ducts, duct insertions, fittings, duct points Requires TKI NET Engineering Basic Data Model
TKI NET Engineering Power Interface Data Model	Expands Autodesk’s Electric Industry Model Enables the coupling of FO elements and the Autodesk power industry model Requires TKI NET Engineering FO data model
TKI NET Field Survey Basic Data Model	Feature classes, forms, and workflows for working with NET Field Survey Including feature classes for planning according to GIS subsidiary provisions For on-site data collection and data processing—NET Cloud—and in AutoCAD Map3D Can only be used on a PG basis
TKI NET Field Survey BMVI BW Extension	Additional feature classes and attributes for planning according to GIS subsidiary provisions for Baden Württemberg Requires TKI NET Field Survey Basic Data Model
TKI NET Mobile Basic Data Model	Additional feature classes for displaying and processing data in NET Mobile or NET Cloud (data exchange with Geoserver) Mobile recording of comments, photos, videos, etc. Requires TKI NET Engineering Basic Data Model or TKI NET Field Survey Basic Data Model
Surveying Data Model	Contains tools for processing field recordings Importing field recordings Calculation of coordinates Analysis of results Transfer from the survey database to GIS databases

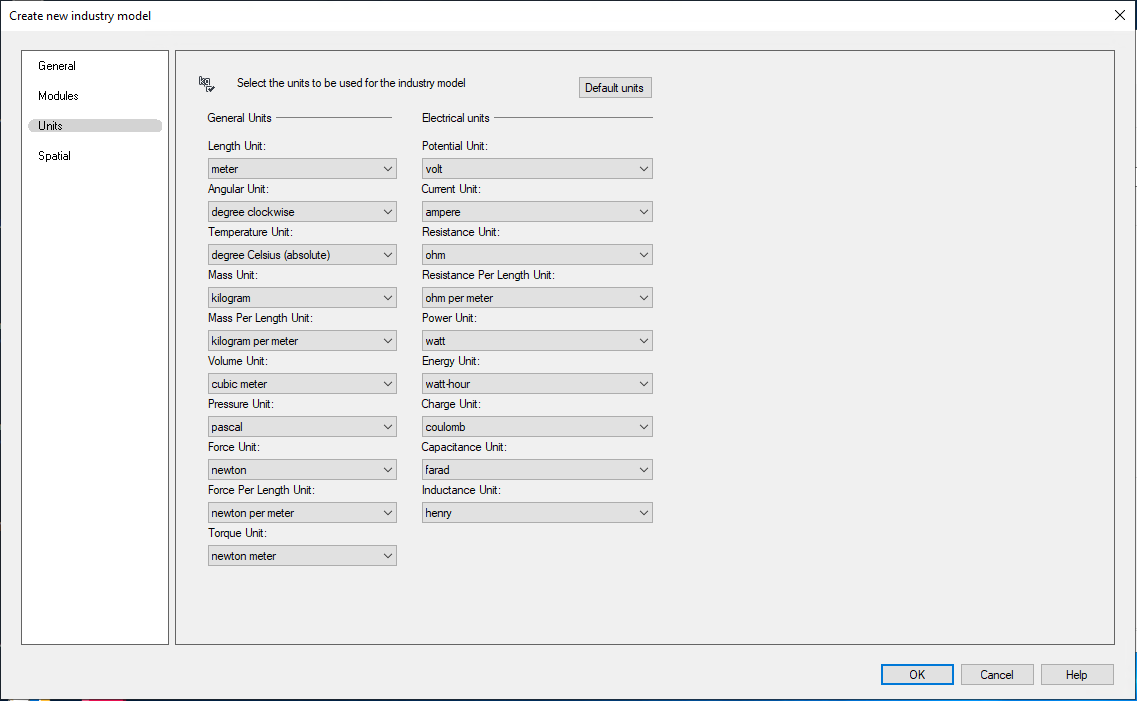

Units

In the units part you decide which units you want to use in your industry model. If you use the NET modules, only the length unit is used. In some spatial reference systems, the unit for the length is included. Is such a spatial reference system is set, you will be unable to select the length unit.

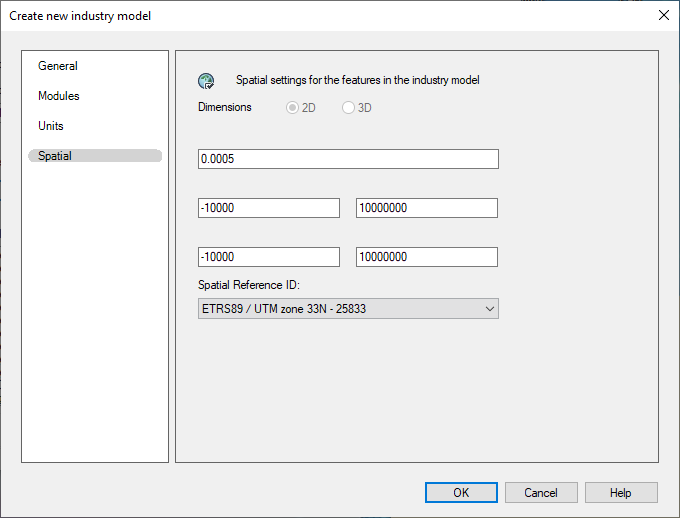

Spatial

This is where you select the coordinate system for your project. Select the appropriate coordinate system under Spatial Reference ID.

Check the maximum easting and northing values for the usual settings in the selected coordinate system (for recommendations, see screen shot).

When you have made all the settings, finish the configuration of the industry model with “OK” .

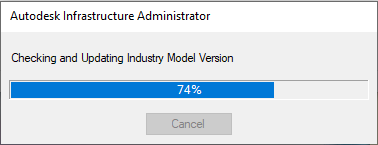

A progress indicator visualizes the creation of the industry model.

Subsequently, the data model is created for the project.

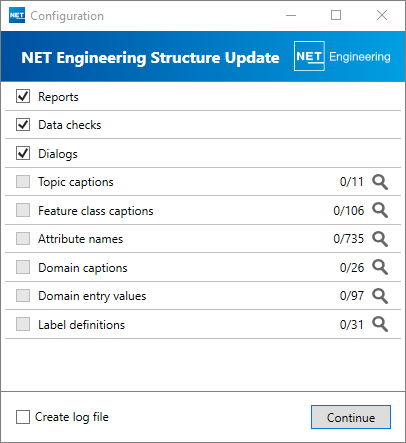

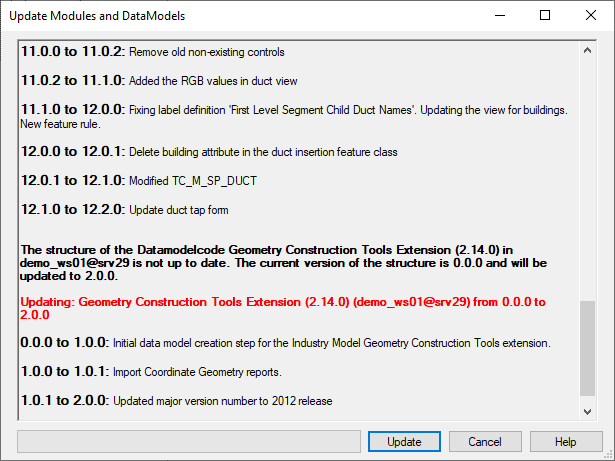

Start the structure update with “Update”, which creates the data model for the individual modules.

If the message “3 structure update plugin(s) failed” appears, please restart the update. This may repeat the process several times until the message “Update completed” appears.

Note

As soon as you have installed a new NET version, it is absolutely necessary to open the already set-up enterprise projects in Infrastructure Administrator and to execute the newly received structure updates.

This is necessary in order to keep the data model homogeneous with the new NET version.

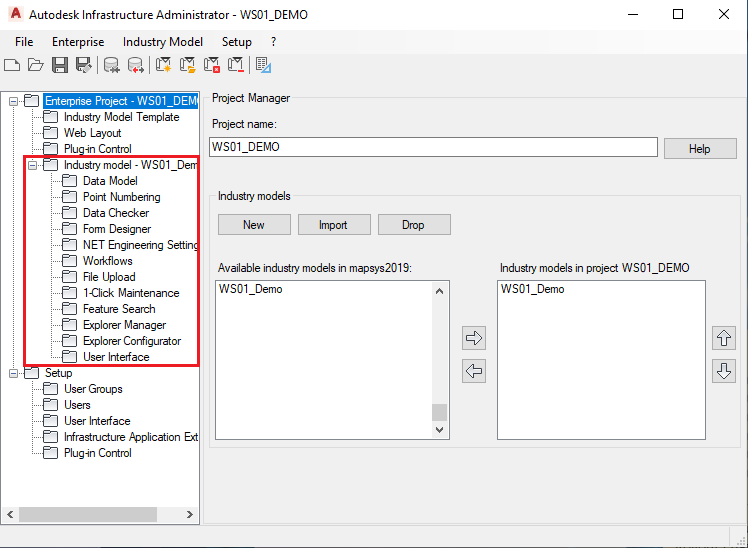

The result is a newly created workspace.

Please perform a 1-Click-Maintenance after you created the industry model. How this is done can be read here.

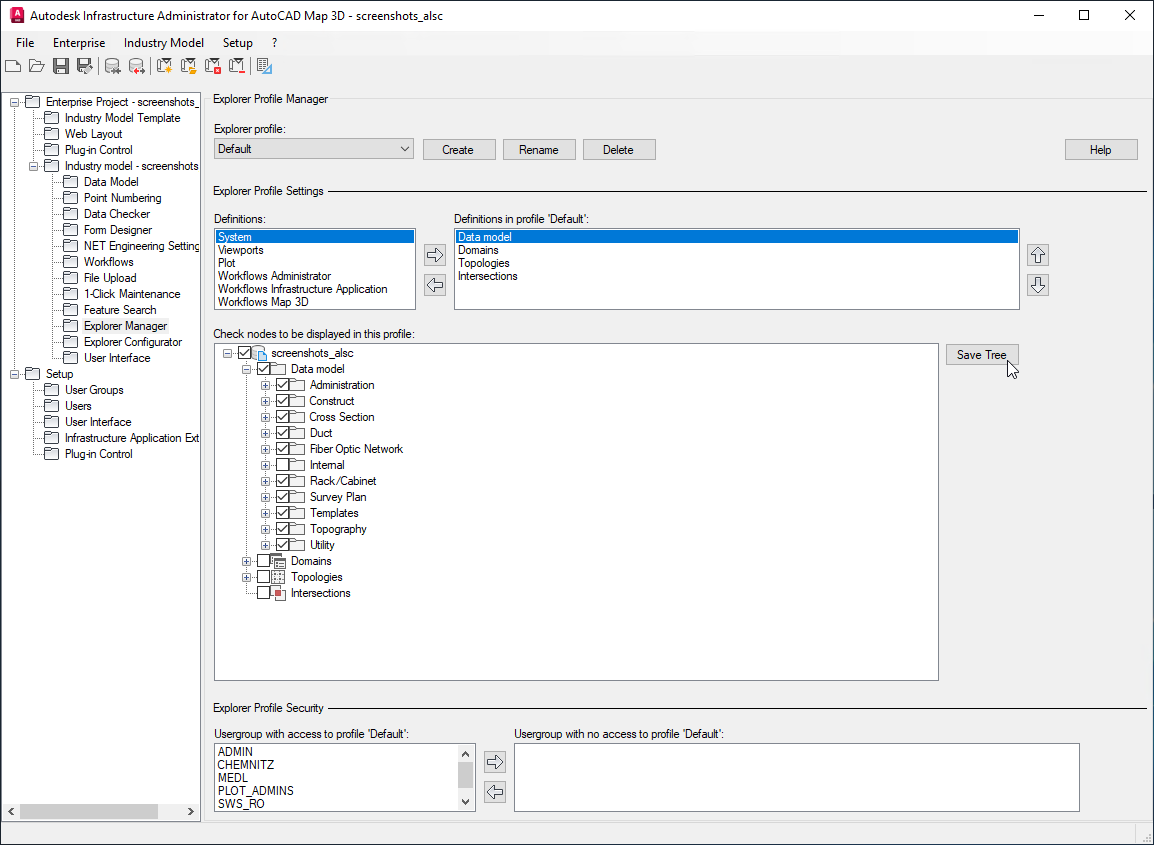

Also the feature explorer has to be configured, after the indurstry model is created. To do this, pleas click on "Explorer Manager".

In the right area you can see the feature explorer tree. To configure the explorer, check the box bevore the featureclass, that should be visible. If everything is checked, then click "Save Tree".

You will find more information about this topic at the page settings in explorer manager.

Creating a new Industry Model for SQLite projects

In addition to the database-based variant, a file-based Industry Model can also be created based on SQLite. This is very well suited, for example, for planning projects with individual project participants or for the implementation and comparison of different planning options.

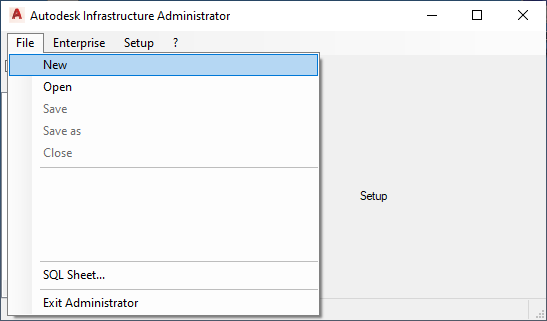

Creating an empty file-based industry model via File > New.

Note

Make sure that you have disconnected from the database in advance.

Then the same steps must be performed here as when Setting up a new database-based Industry Model

Select modules
Specify units
Define spatial settings
Import form
Import report

Note

Once you have initially created the Industry Model, you can save the dwt (drawing template) separately and reuse it for new projects. This allows you to set up new file-based projects without having to set them up again in the Administrator.

When working in SQLite files, note that you must save changes.

Deleting industry models

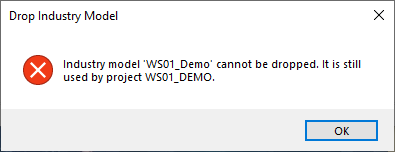

The deletion of industry models is only possible for unused industry models.
