Splitting a TP cable

If a cable is cut during construction work, the cable sections have to be reconnected. This is where a repair closure is placed on site. All wires of the now separated cables are spliced through in the closure.
With the workflow “Split telephony cable”, the user has the option of digitizing a (repair) closure. The cable present at this point is automatically split. The resulting cable sections with the wires are automatically spliced in the closure.

If a new branch is to be inserted on a cable that has been separated in a planned manner, a corresponding closure can be used on which the new cable section is integrated.

Procedure

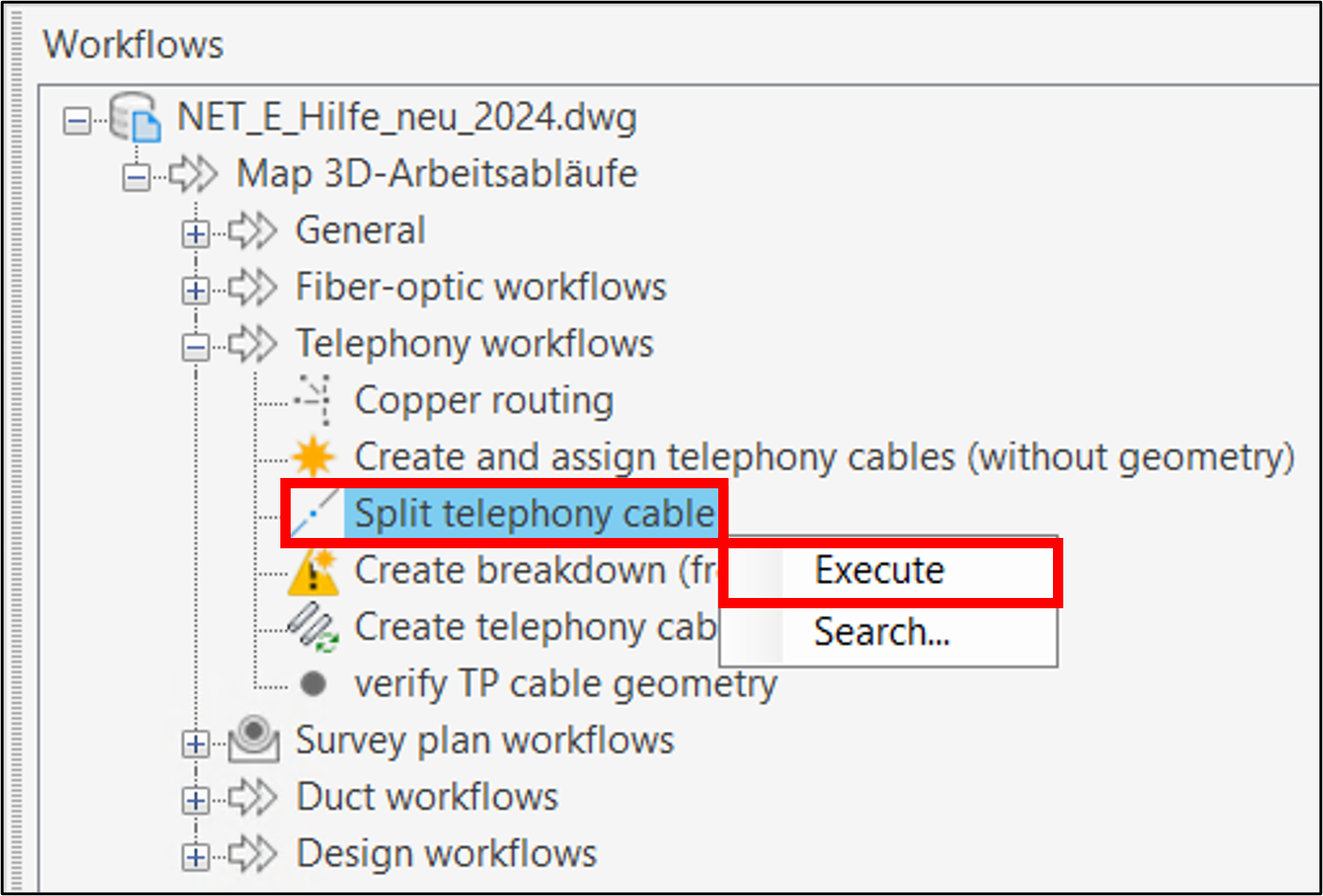

Start the workflow in Workflow Explorer > Telephony workflows > Split telephony cable by double-clicking it, from the context menu or by clicking the mceclip2.png button in the lower right area of the workflow explorer:

Arbeitsablauf_FM-Kabel teilen_starten_engl.png

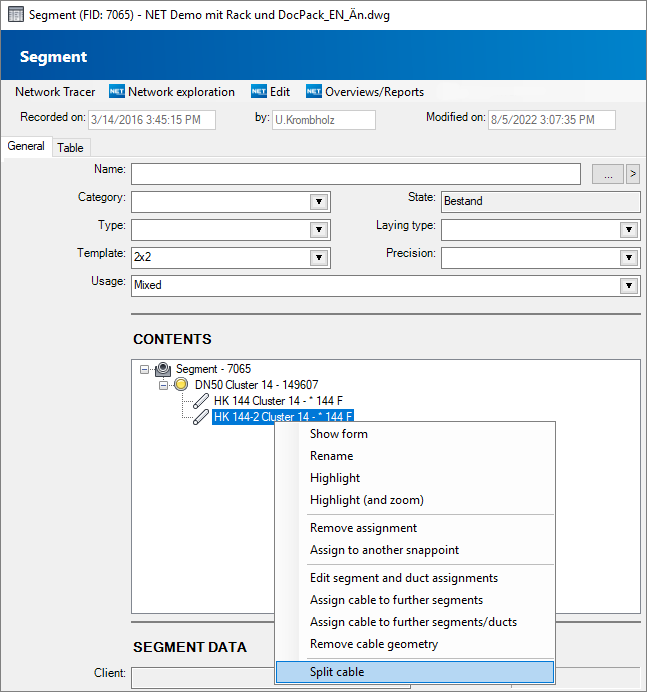

or in the segment or duct form in the respective context menu for the cable:

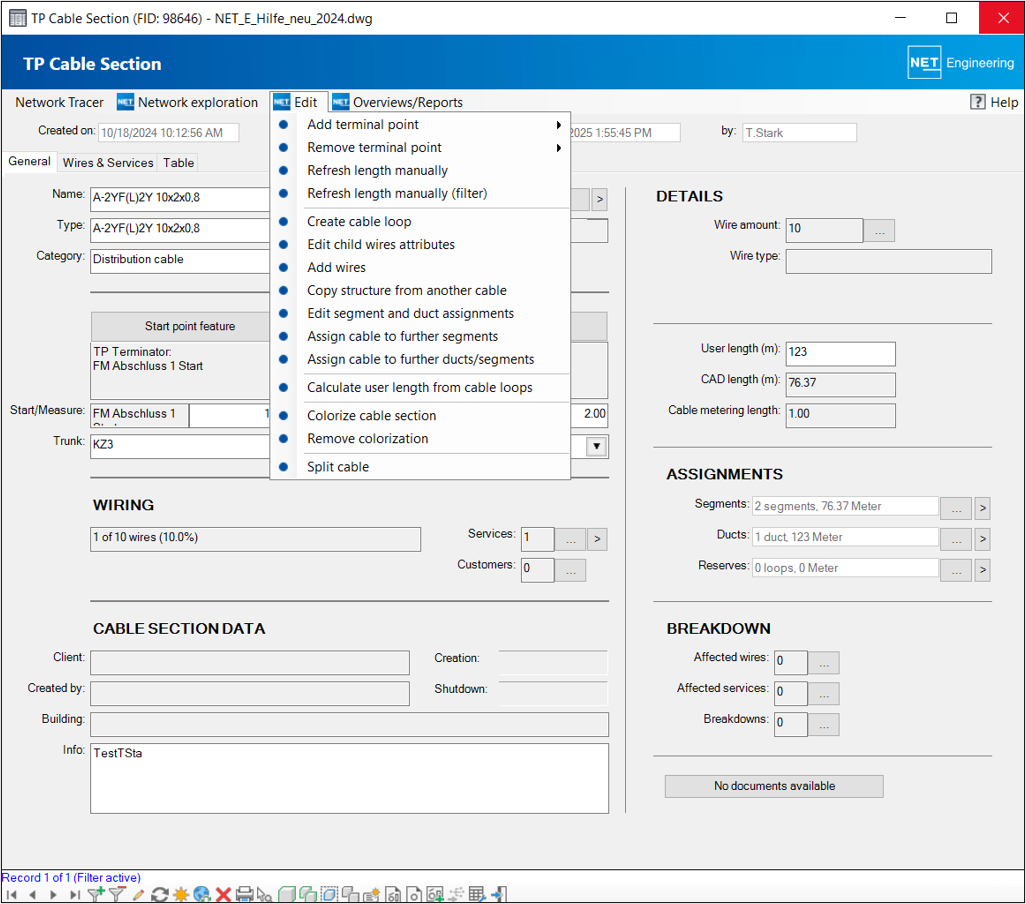

or in the TP Cable Section form in the “Edit” menu:

Arbeitsablauf_FM-Kabel teilen_starten2_engl.png

Note
If the workflow was started from one of the forms, the cable is automatically selected. Then continue with point 3.

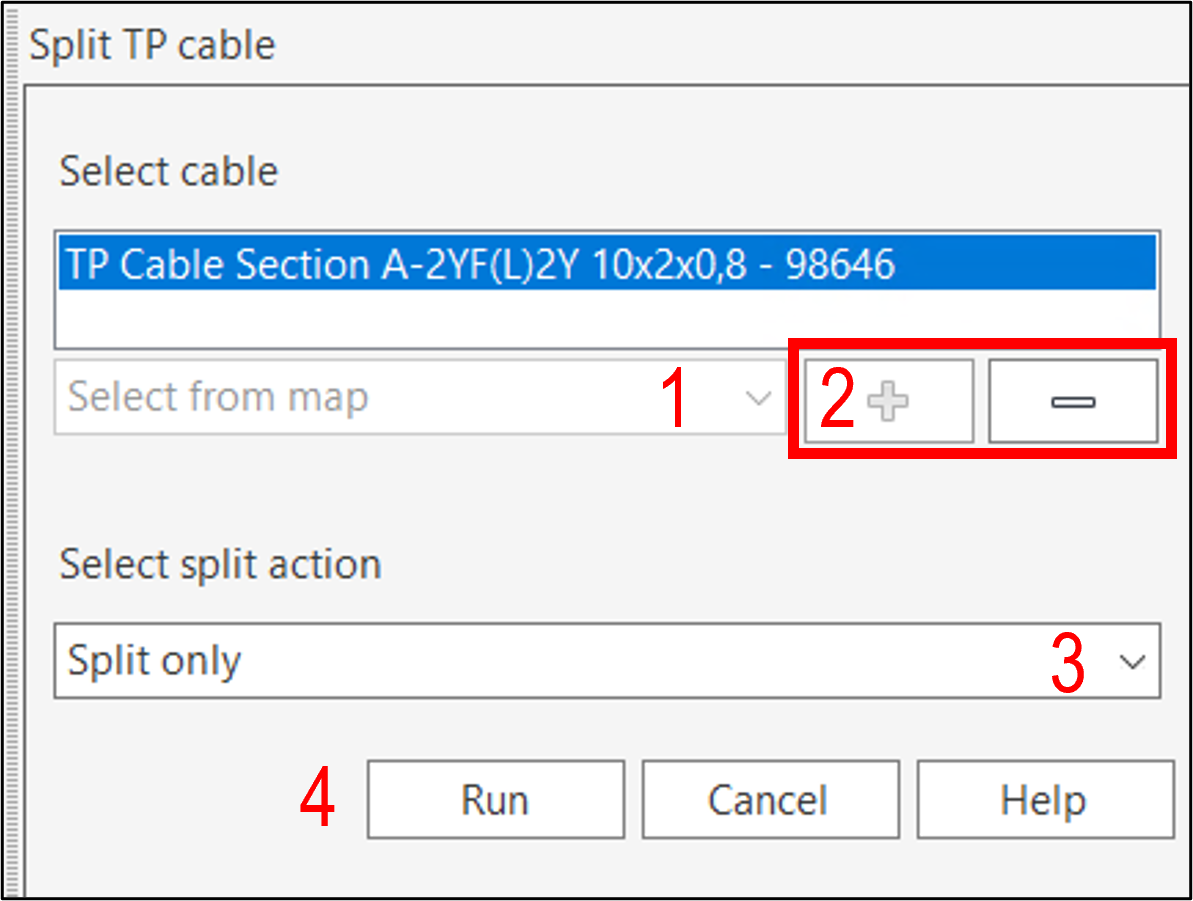

This will open the workflow for splitting the cable:

Arbeitsablauf_FM-Kabel teilen_geöffnet_engl.png

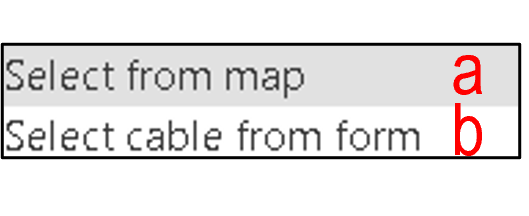

1. You can select how the object selection is to be made:

Arbeitsablauf_FM-Kabel teilen_Objektauswahl_engl.png

a) The cable can be selected in the map.
b) The cable can be taken from the form.

Note
Currently, it is not possible to split cables that lie in ducts with their own geometry. The cable must lie in a segment. It is also not possible to split cables with incorrect geometry or cables that were created as multilines.

2. The entries can be added or removed.

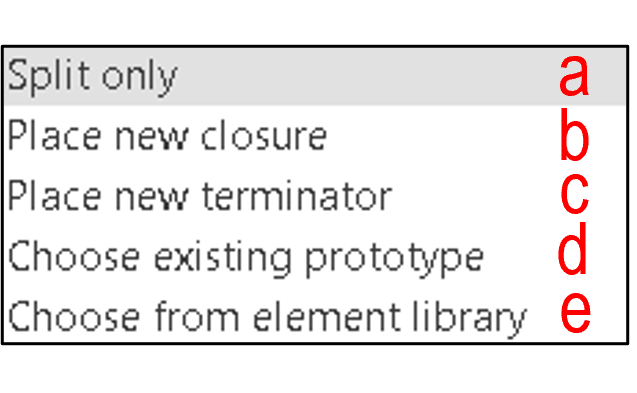

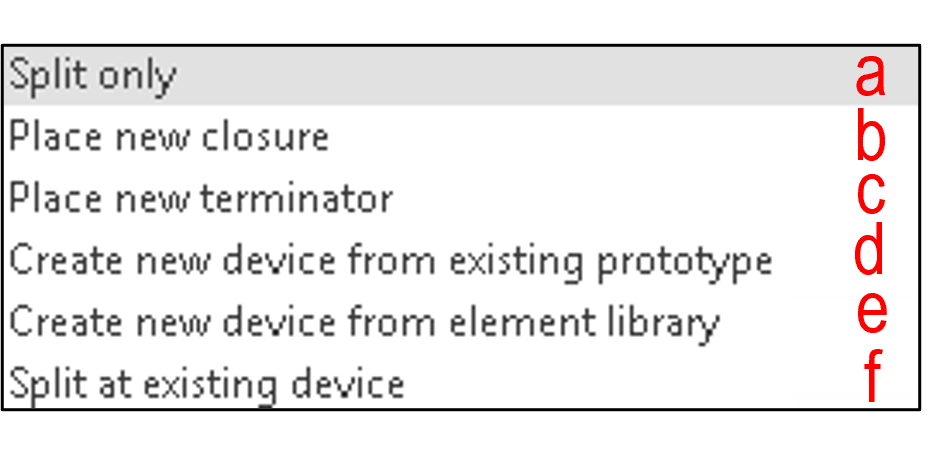

3. The split action can be selected:

Arbeitsablauf_FM-Kabel teilen_Aktion zum Teilen_engl.png

a) The cable can be split without creating a closure or terminator.
b) A new closure without attributes can be created.
c) A new terminator without attributes can be created.

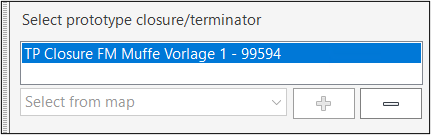

d) An existing closure/terminator can be selected from the map or from the form:

Arbeitsablauf_FM-Kabel teilen_Prototyp_engl.png

In this case, the attributes type and status as well as the splices are transferred from the prototype to the new closure/terminator.

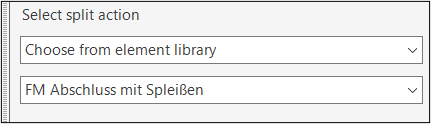

e) A closure/terminator can be selected that is defined in the element library:

Arbeitsablauf_FM-Kabel teilen_Elementbibliothek_engl.png

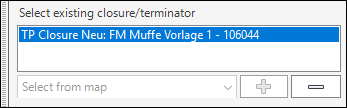

f) The cable can be split at an existing closure/terminator on the cable route. In this case, the existing device must then be selected:

Arbeitsablauf_FM-Kabel teilen_Bestehende Muffe_Abschluss wählen_engl.png

The following splice types are possible:

Arbeitsablauf_FM-Kabel teilen_Spleißart_engl.png

4. The “Run” button starts the selection of the split point at which the cable is to be split and, if necessary, the closure/terminator is to be created (Exception: If the “Split at existing device” option has been selected, it is no longer necessary to select a split point).

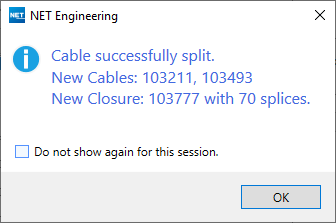

After successful completion, a final feedback dialog is displayed showing which new features have been created (cables, closures/terminators and splices):

Arbeitsablauf_FM-Kabel teilen_Feedback-Dialog_engl.PNG

A look at the splice overview shows that the wires of the cable sections have been spliced according to the selected template.

Note
The prototype of the closure/terminator must be able to process the number of wires of the cable sections in terms of structure and class.
