Setting the drawing sequence for data layers

You have the option of adapting the sequence for displaying the individual layers to your requirements.

Example of use

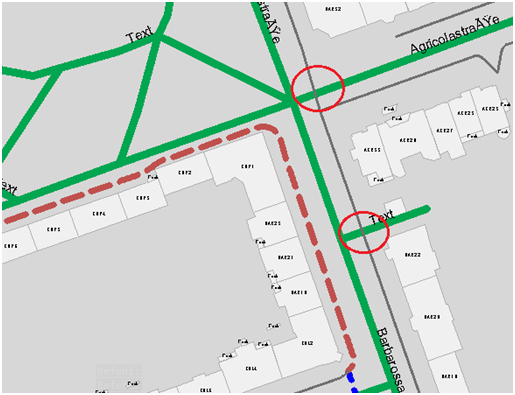

In this section, the drawing sequence should be changed so that the “Street” layer does not overlap the trenches.

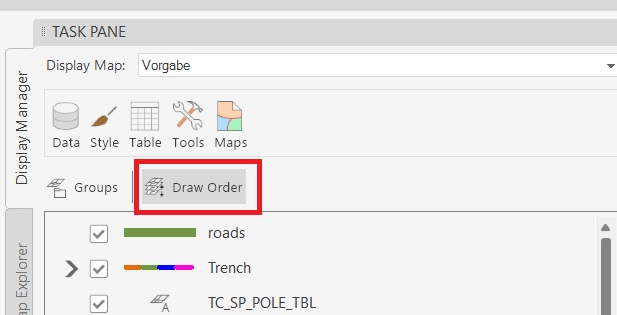

To do this, switch from the “Groups” display to the “Drawing sequence” display in the display management

The layers at the top are shown as the top layer in the graphic.

The order in which the layers are displayed can be controlled by changing the positions of the individual layers.

Select the desired layer (in this case “roads”). With the left mouse button pressed, drag it below the desired layer (in this case “Trench”).







If you want to keep this setting, save the display model.
