Duct-insertion type

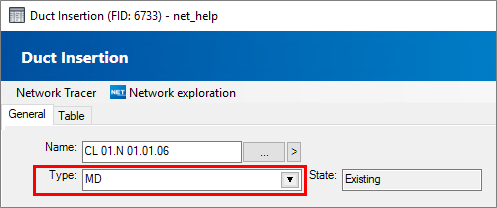

In NET Engineering, users have the option of defining duct-insertion types themselves. The form is opened by double-clicking in the Type field in the Duct insertion form or in Industry-Model Explorer > Duct > Duct insertion > Duct-insertion type.


Tabs

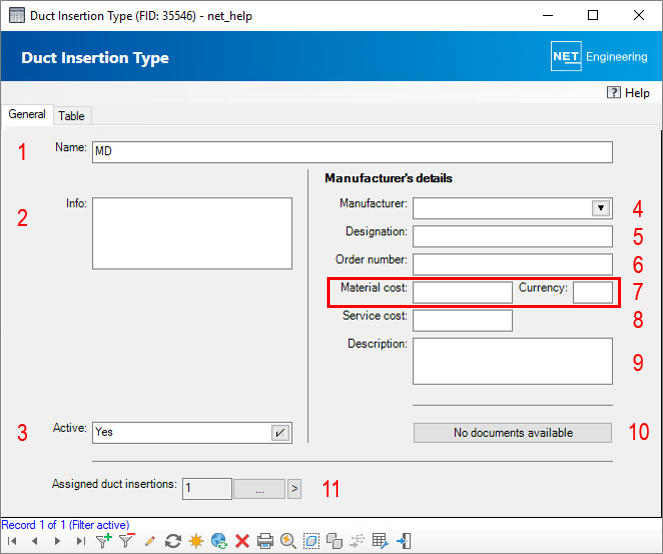

Attribute Description
Name Enter the name of the duct-insertion type here. (1)
Info Entry of information regarding the duct-insertion type. (2)
Active Only active duct-insertion types can be selected from the drop-down list in the detailed form for duct insertions. (3)
Manufacturer’s details
Manufacturer This is where the manufacturer can be selected from the database. (4)
Designation The designation of the manufacturer for the duct-insertion type can be entered. (5)
Material The material for the duct-insertion type can be selected from a drop-down list. (6)
L×W×H The dimensions for the duct-insertion type can be entered. (7)
Order number Specification of the order number. (8)
Material price Specification of the price and currency for the material. (9)
Labor price Specification of the price for the labor. (10)
Description The description of the duct-insertion type can be entered here. (11)
Documents Whether documents have been attached to the form is displayed. (12)
Assigned duct insertions The number of duct insertions to which this type is assigned is displayed. Clicking on mceclip2.pnglists all duct insertions that use the current duct-insertion type. The mceclip3.pngbutton displays all duct insertions to which a duct-insertion type has been assigned in the filter. (13)
