Endings overview

The end overview provides an overview of the network paths of the selected object (duct, FO/TP cable, fibers/wires, connectors/pins) via a tracing.

The endings overview replaces the following former overviews:

Duct-end overview
Fiber-end overview
Connector-end overview
Countercoupling overview
Wire-end overview
Pin-end overview
Counterpin overview

Options

The options in the upper part of the overview do not differ for the different feature classes. Which options are activated depends on the respective feature class.

Tracing options

	The network paths are displayed up to the end point—even via patches.
	The network paths are displayed up to the points where only a patch continues.
	This displays all inactive paths. These are network paths that contain inactive splices or patches.

Filter options

	This displays only the network paths in the overview that have been connected with services.
	This displays the parent node (switching points) for start and end points.

Highlight

	This highlights the network path of the selected object in the graphic.
	This highlights the network paths of all objects in the overview in the graphic.
	This button cancels the selection of the elements in the graphic.
	You can select whether or not the network path of the selected object is to be highlighted. If so, you can choose between auto-highlighting with zoom or auto-highlighting without zoom over the entire network path. If you move the cursor to the next record, the network path of that object is automatically highlighted in the graphic.

Exporting

	The contents of the overview can be copied to the clipboard to paste them into another document.
	The contents of the overview can be exported in HTML format.
	The contents of the overview can be exported to Excel.
	The contents of the overview can be opened as a report.

Progress

	A progress bar is displayed when opening for the first time and switching between different options. Once the overview is complete, the bar is gray.
	The opening or rebuilding of the overview (after changing the options) can be aborted.

Ducts

The duct endings overview provides the user with a meaningful overview of the duct routing in a selected trench or higher-layer duct. A tracing provides a tabular overview of the ducts including all subordinate microducts. A button gives users the option of highlighting the corresponding duct routings in the graphic.

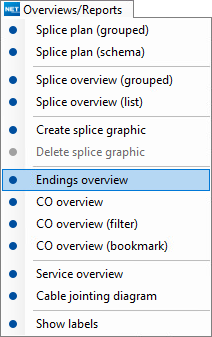

The creation of a duct endings overview with the “Overviews/Reports” menu can be started on the basis of these feature classes:

Segment	Duct	Manhole/Cabinet/Pole

The endings overview starts a tracing in both directions on the duct layer. The tracing takes place along the ducts connected via fittings up to their open end or the introduction into a manhole, cabinet or building.
The result of the duct endings overview is presented to the user in the following overview.

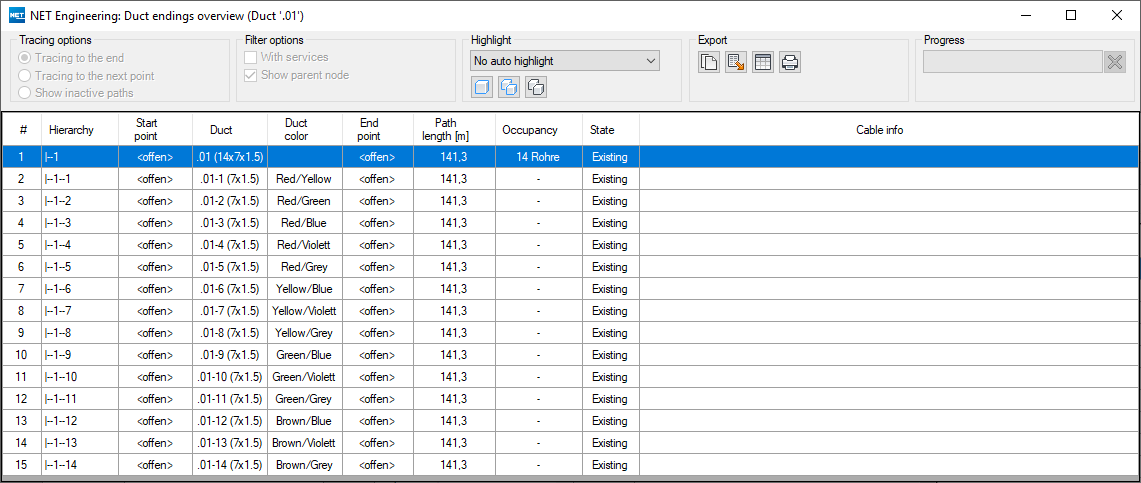

Endings overview for duct structure

#	All elements within the overview are numbered consecutively.
Hierarchy	In the Hierarchy column, the ducts are numbered according to their higher-layer duct and their duct layer.
Start point	The start point column displays the points (start points) where the ducts are inserted. If a duct does not end in a manhole, cabinet or building, the end point is “(open)”.
Duct	The duct appears with its name in the Duct column.
Duct color	The color of the duct is displayed.
End point	The end point column displays the points (end points) where the ducts are inserted. If a duct does not end in a manhole, cabinet or building, the end point is “(open)”.
Path length [m]	The path length of the connected ducts is displayed.
Occupancy	The occupancy of the ducts with subordinate ducts and cables is displayed.
State	The state assigned to the duct in the line form is displayed.
Cable Info	The cable name and cable type are displayed.

FO

Cable

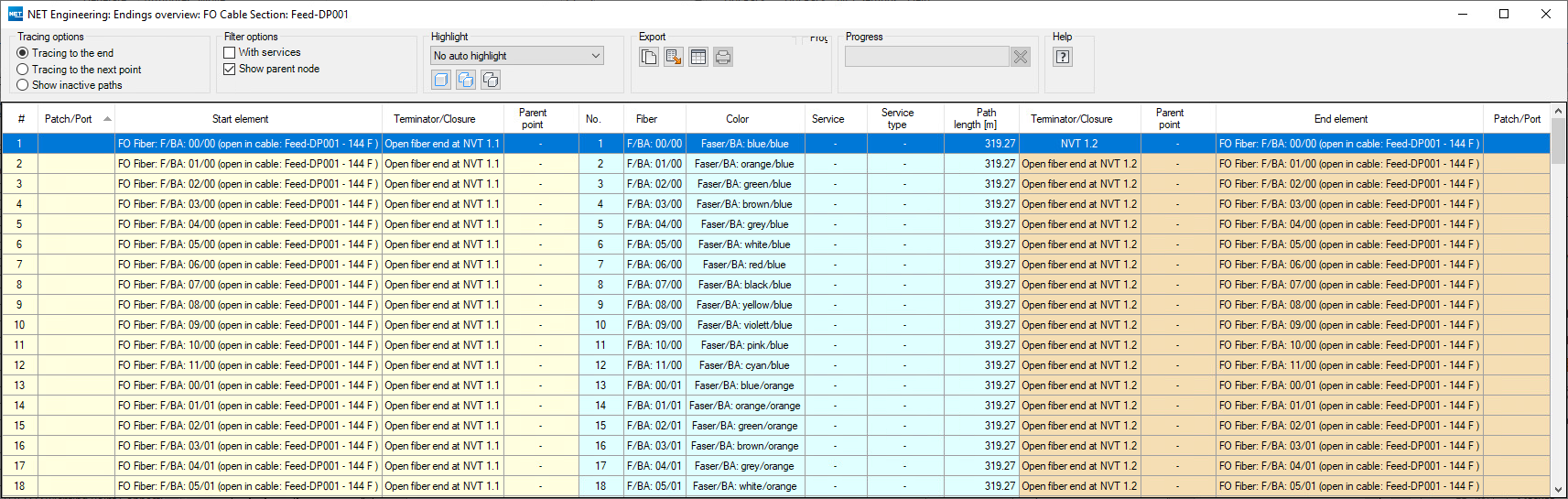

The ending overview (formerly “Fiber-end overview”) for FO cables is opened in the “Overviews/Reports” menu.

#	All elements within the overview are numbered consecutively.
Patch/Port	The patch where the network path starts is displayed.
Start element	Point or line where the network path of the fiber begins. The fiber can be spliced onto a connector (the connector name or the patch, if the connector has been patched to a technical port, is specified) or be located as the fiber end in a tray or as the open end in the closure or terminator (fiber name is specified).
Terminator/Closure	Point where the network path of the fiber begins (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
No.	The number of the fiber is displayed.
Fiber	The name of the fiber is displayed.
Color	The color of the fiber and the bundled wire is displayed.
Service	The service with which the fiber has been connected is displayed.
Service type	The type of service with which the fiber has been connected is displayed.
Path length [m]	The length of the network path of the fiber is displayed.
Terminator/Closure	Point where the network path of the fiber ends (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
End element	Point or line where the network path of the fiber ends. The fiber can be spliced onto a connector (connector name is specified) or be located as the fiber end in a tray or as the open end in the closure or terminator (fiber name is specified).
Patch/Port	The patch where the network path ends is displayed.

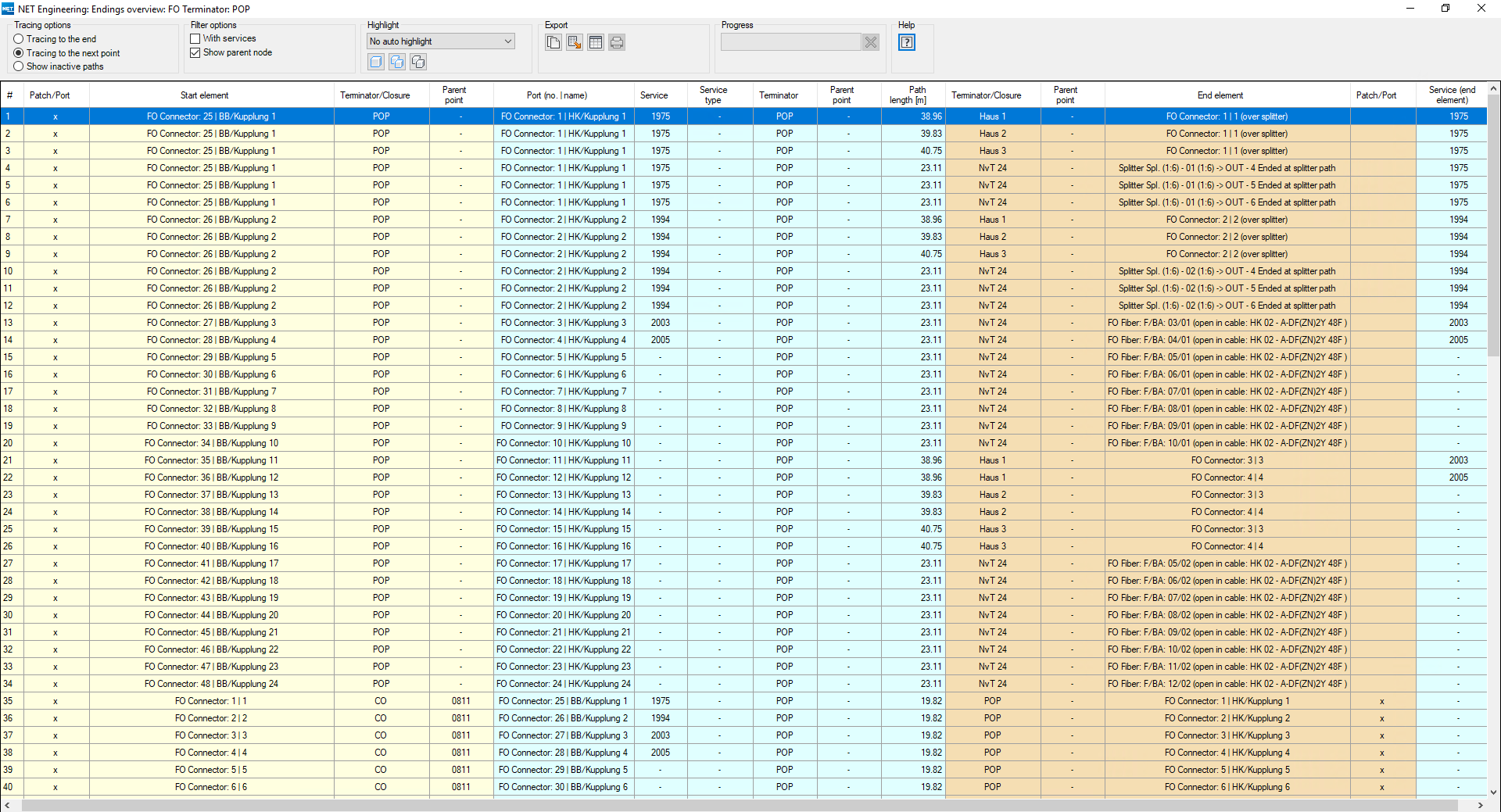

Terminator

The ending overview for FO Terminators is opened in the “Overviews/Reports” menu.

The selected tracing option specifies the point up to which the network path is to be displayed.

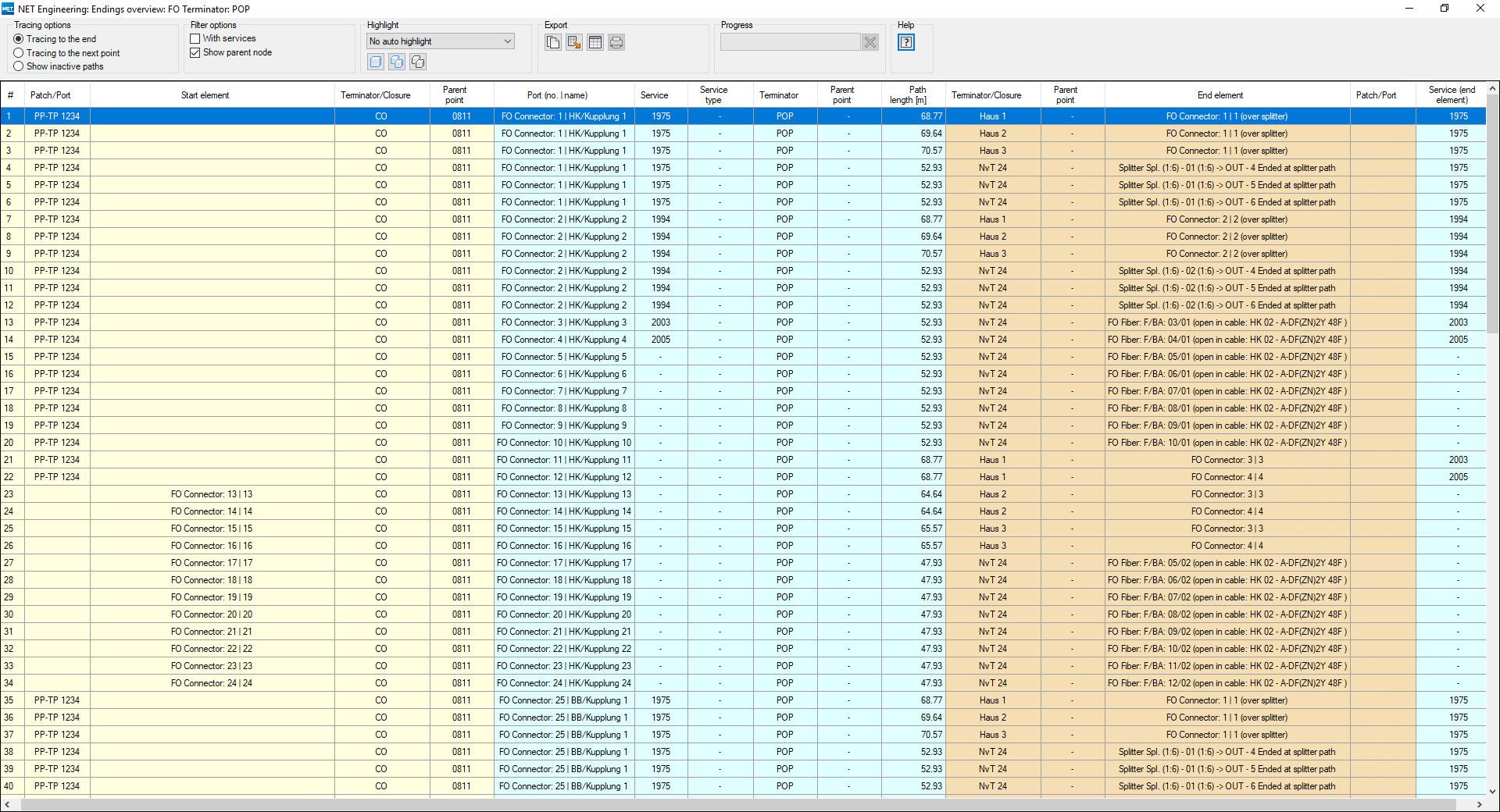

Tracing up to the end (formerly “Connector-end overview”)

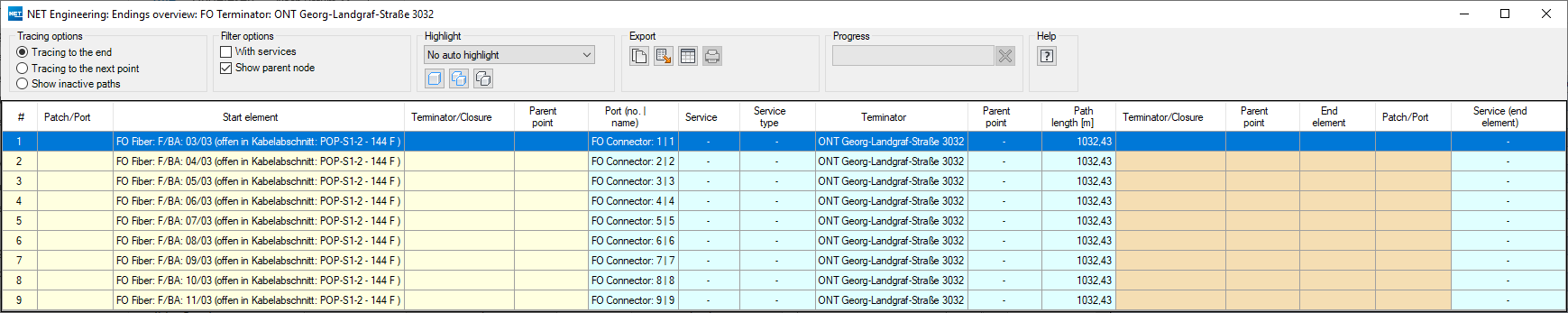

Tracing to the next point (formerly “Countercoupling overview”)

#	All elements within the overview are numbered consecutively.
Patch/Port	The patch where the network path starts is displayed.
Start element	Point or line where the network path of the fiber begins. The fiber can be spliced onto a connector (the connector name or the patch, if the connector has been patched to a technical port, is specified) or be located as the fiber end in a tray or as the open end in the closure or terminator (fiber name is specified).
Terminator/Closure	Point where the network path of the fiber begins (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
Port (no.\| name)	The number and name of the connector, the terminator in which the end overview was opened, is displayed.
Service	The service with which the fiber has been connected is displayed.
Service type	The type of service with which the fiber has been connected is displayed.
Terminator	The name of the terminator in which the endings overview was opened is displayed.
Parent point	The name of the switching point to which the terminator in which the end overview was opened is assigned is displayed.
Path length [m]	The length of the network path of the fiber is displayed.
Terminator/closure	Point where the network path of the fiber ends (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
End element	Point or line where the network path of the fiber ends. The fiber can be spliced onto a connector (connector name is specified) or be located as the fiber end in a tray or as the open end in the closure or terminator (fiber name is specified).
Patch/Port	The patch where the network path ends is displayed.
Service (end element)	The service on the last object of the network path is displayed. This is important for checking the network paths. On the one hand, whether the service was correctly transferred to the entire network path and, on the other hand, if there are splitters in the network path that distribute the services differently.

TP

Cable

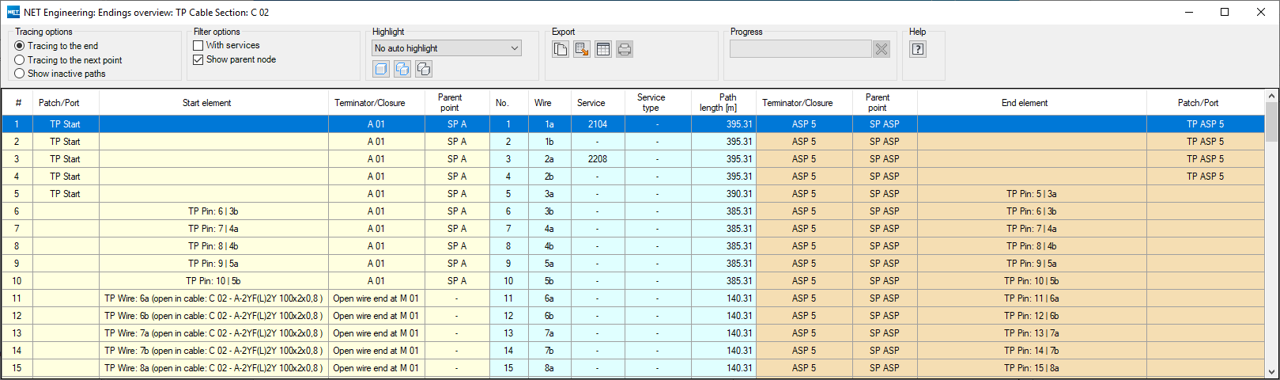

The end overview (formerly “Wire-end overview”) for TP cables is opened in the “Overviews/Reports” menu.

#	All elements within the overview are numbered consecutively.
Patch/port	The patch where the network path starts is displayed.
Start element	Point or line in which the network path of the wire begins. The wire can be spliced onto a pin (the pin name or the patch, if the pin has been patched to a technical port, is specified) or be located as an open end in the closure or the terminator (wire name is specified).
Terminator/closure	Point where the network path of the wire begins (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
No.	The number of the wire is displayed.
Wire	The name of the wire is displayed.
Service	The service with which the wire has been connected is displayed.
Service type	The type of service with which the wire has been connected is displayed.
Path length [m]	The length of the network path of the wire is displayed.
Terminator/closure	Point where the network path of the wire ends (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
End element	Point or line where the network path of the wire ends. The wire can be spliced onto a pin (pin name is specified) or be located as an open end in the closure or terminator (wire name is specified).
Patch/port	The patch where the network path ends is displayed.

Terminator

The endings overview for TP Terminators is opened in the “Overviews/Reports” menu.

The selected tracing option specifies the point up to which the network path is to be displayed.

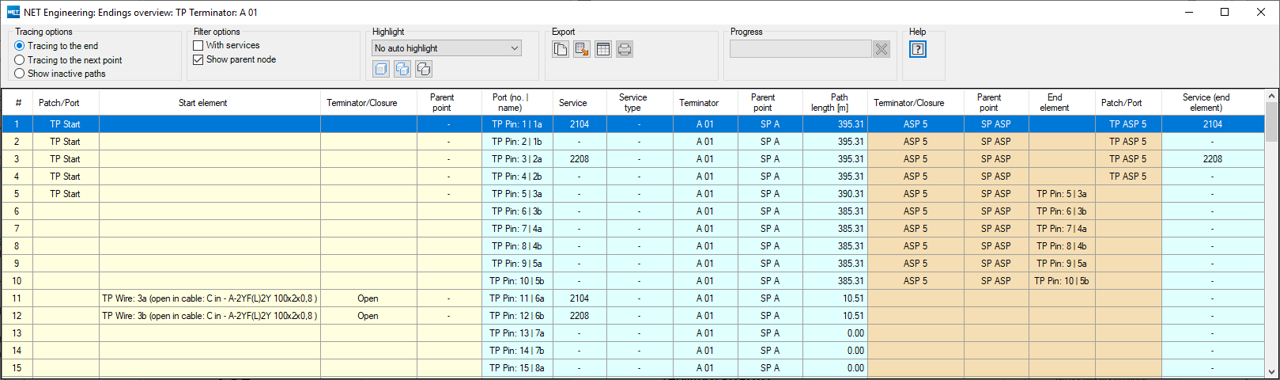

Tracing up to the end (formerly “Pin-end overview”)

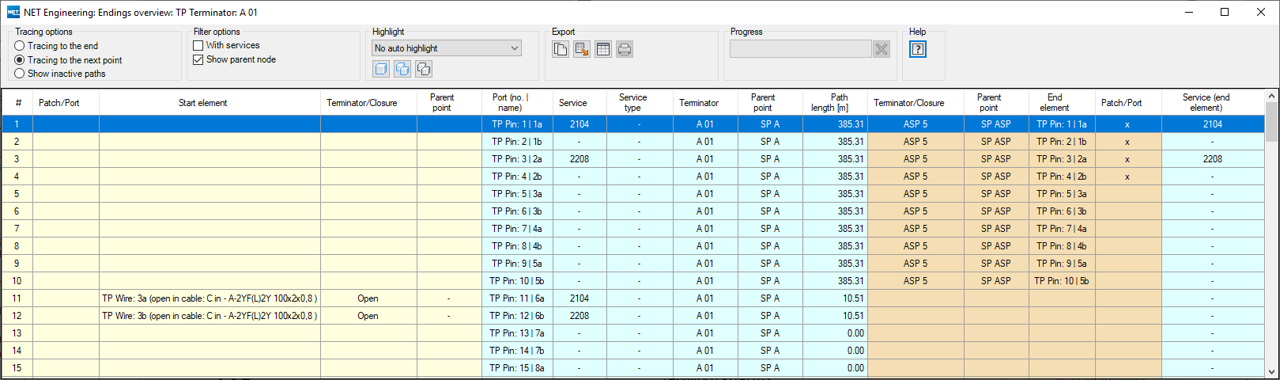

Tracing to the nearest point (formerly “Counterpin overview”)

#	All elements within the overview are numbered consecutively.
Patch/port	The patch where the network path starts is displayed.
Start element	Point or line in which the network path of the wire begins. The wire can be spliced onto a pin (the pin name or the patch, if the pin has been patched to a technical port, is specified) or be located as an open end in the closure or the terminator (wire name is specified).
Terminator/closure	Point where the network path of wire begins (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
Port (no.\| name)	The number and name of the pin, the terminator in which the endings overview was opened, is displayed.
Service	The service with which the wire has been connected is displayed.
Service type	The type of service with which the wire has been connected is displayed.
Terminator	The name of the terminator in which the endings overview was opened is displayed.
Parent point	The name of the switching point to which the terminator in which the end overview was opened is assigned is displayed.
Path length [m]	The length of the network path of the wire is displayed.
Terminator/closure	Point where the network path of wire ends (closure or terminator).
Parent point	A parent point only exists if the point has been assigned to a switching point.
End element	Point or line where the network path of the wire ends. The wire can be spliced onto a pin (the pin name or the patch, if the pin has been patched to a technical port, is specified) or be located as an open end in the closure or the terminator (wire name is specified).
Patch/port	The patch where the network path ends is displayed.
Service (end element)	The service on the last object of the network path is displayed. This is important for checking the network paths to see if the service was correctly transferred to the entire network path.
