Closure type

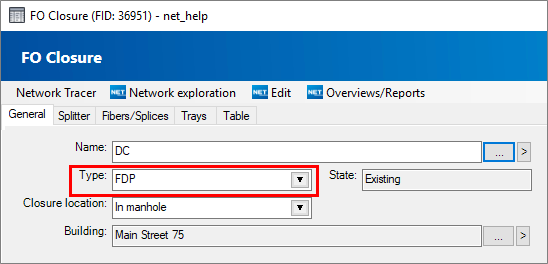

In NET Engineering, users have the option of defining closure types themselves. The form is opened by double-clicking in the Type field in the FO terminator form or in Industry-Model Explorer > FO network > FO closure > FO closure type.


Tabs

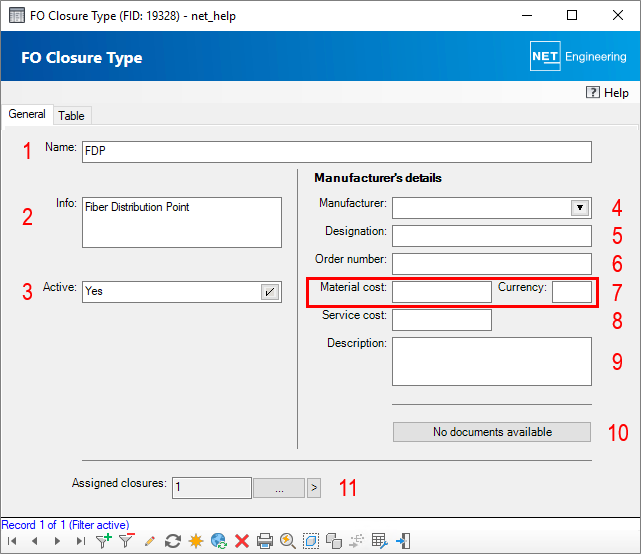

Attribute Description
Name Enter the name of the closure type here. (1)
Info Information about the closure type can be entered. (2)
Active Only active types can be selected from the drop-down list in the detailed form for FO closures. (3)
Manufacturer’s details
Manufacturers Selection of the manufacturer from a drop-down list. (4)
Designation A designation can be specified. (5)
Order number Specification of the order number. (6)
Material price Specification of the price and currency for the material. (7)
Labor price Specification of the price for the labor. (8)
Description The description of the type can be entered here. (9)
Documents Whether documents have been attached to the form is displayed. (10)
Assigned closures The number of FO closures to which this type is assigned is displayed. Clicking on mceclip2.pnglists all FO closures that use the current type. The mceclip3.pngbutton displays all FO closures to which a type has been assigned in the filter. (11)
