Tray type

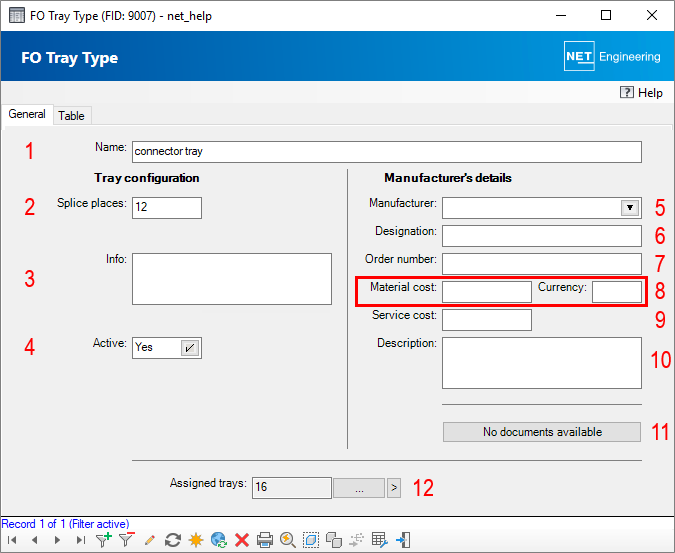

In NET Engineering, users have the option of defining tray types themselves. The form is opened by double-clicking in the Tray-type field in the FO tray form or in Industry-Model Explorer > FO network > FO tray > FO-tray type.


Tabs


Attribute Description
Name Enter the name of the tray type here. (1)
Splice locations Indication of the number of splice locations for the tray type.(2)
Info Information about the tray type can be entered. (3)
Active Only active types can be selected from the drop-down list in the detailed form for trays. (4)
Manufacturer’s details
Manufacturers Selection of the manufacturer from a drop-down list. (5)
Designation A designation can be specified. (6)
Order number Specification of the order number. (7)
Material price Specification of the price and currency for the material. (8)
Labor price Specification of the price for the labor. (9)
Description The description of the type can be entered here. (10)
Documents Whether documents have been attached to the form is displayed. (11)
Assigned trays The number of trays to which this type is assigned is displayed. Clicking on mceclip2.pnglists all trays that use the current type. The mceclip3.pngbutton displays all trays to which a type has been assigned in the filter. (12)
