Connector type

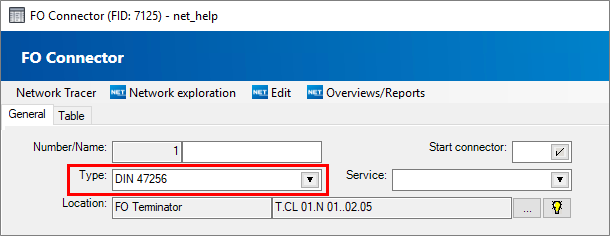

In NET Engineering, users have the option of defining connector types themselves. The form is opened by double-clicking in the Connector-type field in the FO connector form or in Industry-Model Explorer > FO network > FO connector > FO connector type.


Tabs

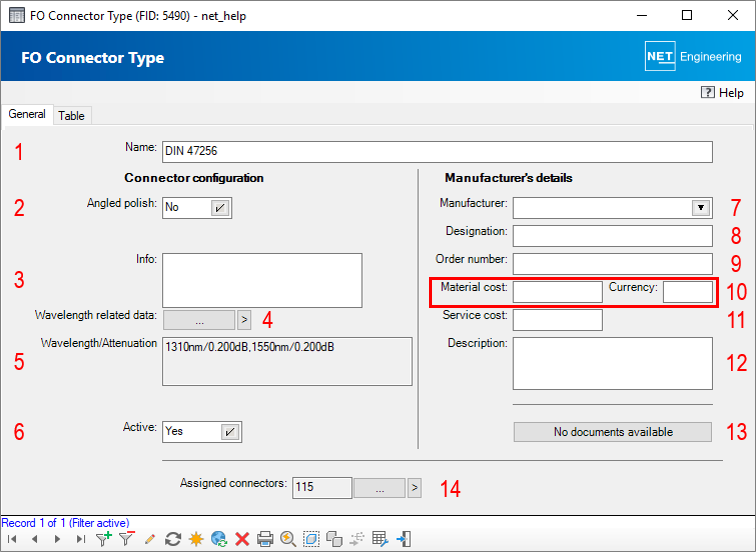

Attribute Description
Name Enter the name of the connector type here. (1)
Angled physical contact Selection of whether or not the connector has an angled physical coontact: yes or no. (2)
Info Information about the connector type can be entered. (3)
Wavelength-related data Opens a form with wavelength-related data for the connector type. See Connector data for more information. (4)
Wavelength/attenuation The wavelength and attenuation recorded for the connector data are displayed here. (5)
Active Only active types can be selected from the drop-down list in the detailed form for FO connectors. (6)
Manufacturer’s details
Manufacturers Selection of the manufacturer from a drop-down list. (7)
Designation A designation can be specified. (8)
Order number Specification of the order number. (9)
Material price Specification of the price and currency for the material. (10)
Labor price Specification of the price for the labor. (11)
Description The description of the type can be entered here. (12)
Documents Whether documents have been attached to the form is displayed. (13)
Assigned connectors The number of connectors to which this type is assigned is displayed. Clicking on mceclip2.pnglists all connectors that use the current type. The mceclip3.pngbutton shows all connectors to which a type has been assigned in the filter. (14)
