Cable Loop Type

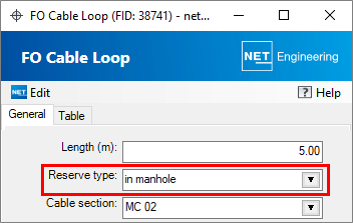

In NET Engineering, users have the option of defining loop types themselves. The form is opened by double-clicking in the Reserve type field in the FO Cable Loop form.

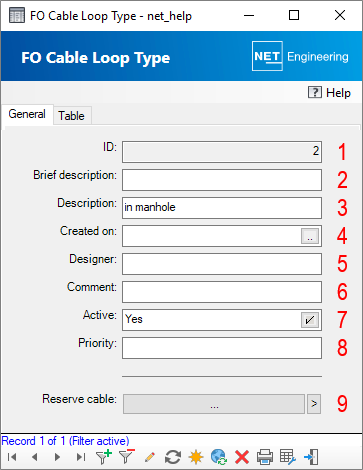

Attribute Description
ID The ID of the loop type is displayed. (1)
Brief description This is where you enter the short value. (2)
Description Enter the name of the loop type here. (3)
Created on The date when the record was created can be specified. (4)
Designer The person who created the record can be entered. (5)
Comment A comment on the loop type can be entered here. (6)
Active Only active loop types can be selected from the drop-down list in the detailed form for FO cable loops. (7)
Priority A priority for the loop type can be assigned. (8)
Reserve cable Clicking on mceclip2.pnglists all reserve cable that use the current cable-loop type. The mceclip3.pngbutton shows all cable loops to which a loop type has been assigned in the filter. (9)
