Measurement type

For the description of a measurement, it is necessary to know the type of measurement. Therefore, the measurement type can be described in more detail in this form.

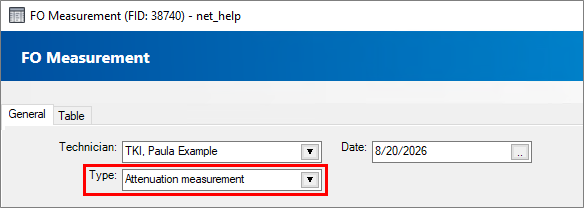

In NET Engineering, users have the option of defining measurement types themselves. The form is opened by double-clicking in the Type field in the FO measurement form.


Tabs

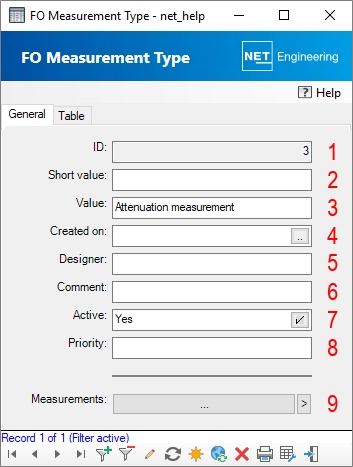

Attribute Description
ID The ID of the measurement type is displayed. (1)
Short value This is where you enter the short name. (2)
Value Enter the name of the measurement type here. (3)
Created on The date when the record was created can be specified. (4)
Author The person who created the record can be entered. (5)
Comment A comment on the measurement type can be entered here. (6)
Active Only active measurement types can be selected from the drop-down list in the detailed form for measurements. (7)
Priority A priority for the measurement type can be assigned. (8)
Assigned measurements Clicking on mceclip2.pnglists all measurements that use the current type. The mceclip3.pngbutton displays all measurements to which a type has been assigned in the filter. (9)
