Terminator type

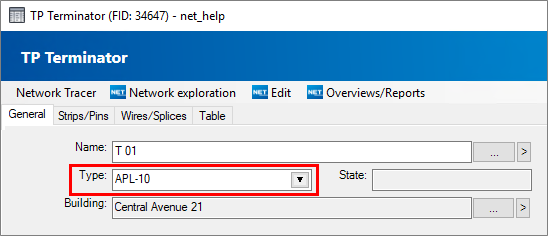

In NET Engineering, users have the option of defining terminator types themselves. The form is opened by double-clicking in the Type field in the TP terminator form or in Industry-Model Explorer > TP network > TP terminator > TP terminator type.


Tabs

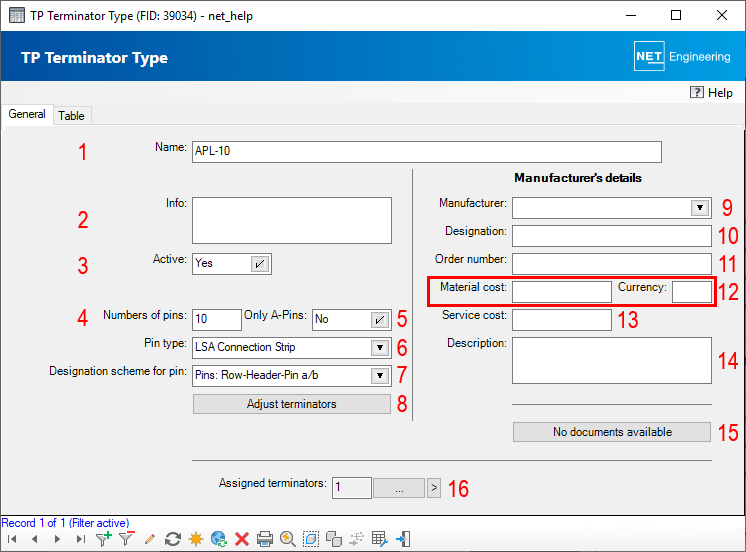

Attribute Description
Name Enter the name of the terminator type here. (1)
Info Information about the terminator type can be entered. (2)
Active Only active types can be selected from the drop-down list in the detailed form for TP terminators. (3)
Number of pins The number of pins can be assigned to the terminator type. (4)
A-pins only It can be defined whether only A-pins or A/B-pins are to be generated. (5)
Pin type The pin type can be selected from a drop-down list. (6)
Designation scheme for pins The designation scheme for the numbering of the pins can be specified. (7)
Adjusting terminators All terminators that have been assigned this terminator type can be adjusted to the changed settings. (8)
Manufacturer’s details
Manufacturer Selection of the manufacturer from a drop-down list. (9)
Designation A designation can be specified. (10)
Order number Specification of the order number. (11)
Material price Specification of the price and currency for the material. (12)
Labor price Specification of the price for the labor. (13)
Description The description of the type can be entered here. (14)
Documents Whether documents have been attached to the form is displayed. (15)
Assigned terminators The number of TP terminators to which this type is assigned is displayed. Clicking on mceclip2.pnglists all TP terminators that use the current type. The mceclip3.pngbutton displays all TP terminators to which a type has been assigned in the filter. (16)
