Closure Type

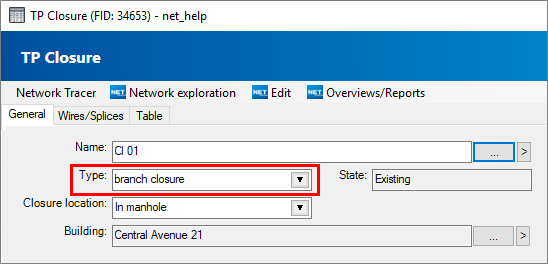

In NET Engineering, users have the option of defining Closure Types themselves. The form is opened by double-clicking in the Type field in the TP Closure form or in Industry-Model Explorer > TP Network > TP Closure > TP Closure Type.

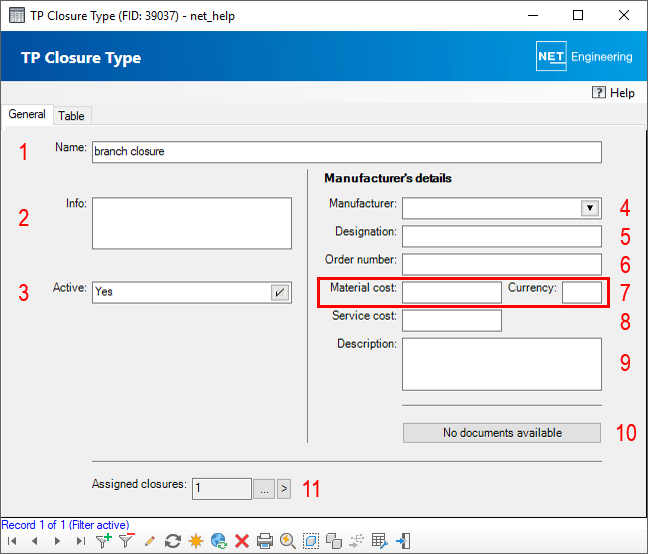

Attribute Description
Name Enter the name of the closure type here. (1)
Info Information about the closure type can be entered. (2)
Active Only active types can be selected from the drop-down list in the detailed form for TP closures. (3)
Manufacturer’s details
Manufacturer Selection of the manufacturer from a drop-down list. (4)
Designation A designation can be specified. (5)
Order number Specification of the order number. (6)
Material cost Specification of the cost and currency for the material. (7)
Service cost Specification of the cost for the service. (8)
Description The description of the type can be entered here. (9)
Documents Whether documents have been attached to the form is displayed. (10)
Assigned closures The number of TP Closures to which this type is assigned is displayed. Clicking on mceclip2.pnglists all TP Closures that use the current type. The mceclip3.pngbutton displays all TP Closures to which a type has been assigned in the filter. (11)
