Wire category

A specific category can be assigned to a wire type.

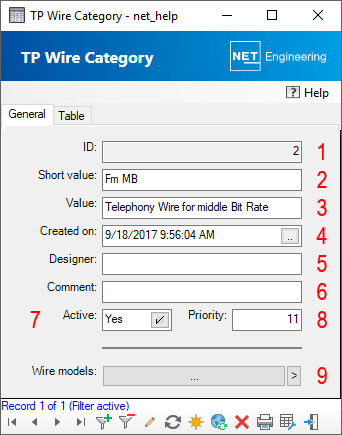

In NET Engineering, users have the option of defining wire categories themselves. The form is opened by double-clicking in the Category field in the wire type form.


Tabs


Attribute Description
ID The ID of the wire category is displayed. (1)
Short value This is where you enter the short value. (2)
Value Enter the name of the wire category here. (3)
Created on The date when the record was created can be specified. (4)
Author The person who created the record can be entered. (5)
Comment A comment on the wire category can be entered here. (6)
Active Only active wire categories can be selected from the drop-down list in the detailed form for wire types. (7)
Priority A priority can be assigned for the category. (8)
Wire types Clicking on mceclip2.pnglists all wires that use the current type. The mceclip3.pngbutton displays all wires to which a type has been assigned in the filter. (9)
