Splice type

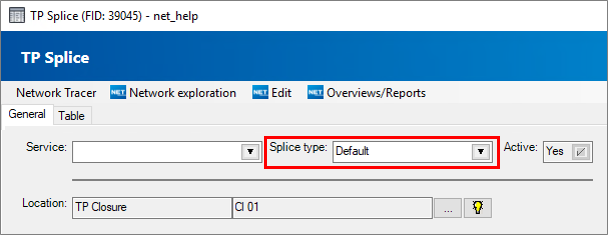

In NET Engineering, users have the option of defining splice types themselves. The form is opened by double-clicking in the Splice type field in the TP Splice form.


Tabs

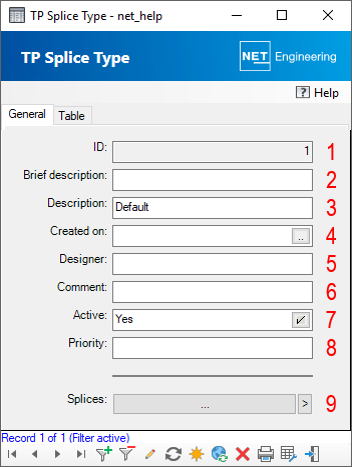

Attribute Description
ID The ID of the splice type is displayed. (1)
Brief description This is where you enter the brief description. (2)
Description Enter the name of the splice type here. (3)
Created on The date when the record was created can be specified. (4)
Designer The person who created the record can be entered. (5)
Comment A comment on the splice type can be entered here. (6)
Active Only active splice types can be selected from the drop-down list in the detailed form for TP splices. (7)
Priority A priority for the splice type can be assigned. (8)
Splices Clicking on mceclip2.pnglists all TP Splices that use the current splice type. The mceclip3.pngbutton displays all TP Splices to which a splice type has been assigned in the filter. (9)
