Cable loop

Tabs

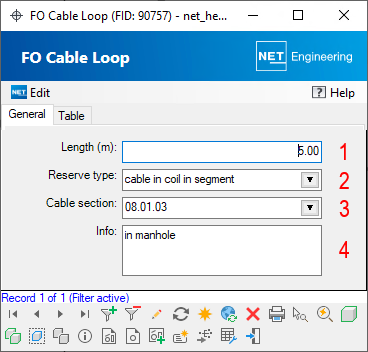

The “General” home tab contains general information, such as name, type, cable section, and information.


1. The length of the cable loop [in m] is displayed.
2. The loop type is displayed. Double-clicking in the list box opens the form for the loop type.
3. The name and type of the cable section to which the cable loop has been assigned is displayed.
4. Information on the cable loop, as documented in the workflow, is displayed or can be entered.

Menu items

With a changed cable section geometry, the geometry of the cable loop can be corrected using the “Edit” menu. In this process, the shortest path between the cable loop and the new cable-section geometry is sought and the cable loop is placed on the cable.
