Pin type

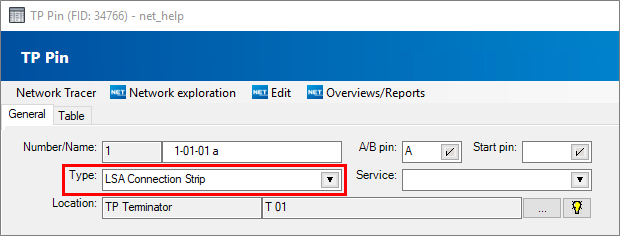

In NET Engineering, users have the option of defining pin types themselves. The form is opened by double-clicking in the Pin-type field in the TP pin form or in Industry-Model Explorer > TP network > TP pin > TP pin type.


Tabs

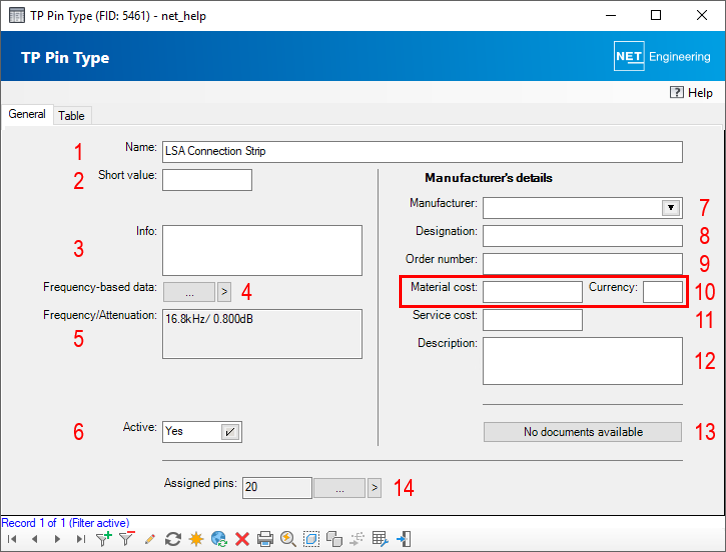

Attribute Description
Name Enter the name of the pin type here. (1)
Short name A short name for the pin type can be assigned here. (2)
Info Information about the pin type can be entered. (3)
Frequency-related data Opens a form with frequency-related data for the pin type. See Pin data for more information. (4)
Frequency/attenuation The frequency and attenuation recorded for the pin data are displayed here. (5)
Active Only active types can be selected from the drop-down list in the detailed form for pins. (6)
Manufacturer’s details
Manufacturers Selection of the manufacturer from a drop-down list. (7)
Designation A designation can be specified. (8)
Order number Specification of the order number. (9)
Material price Specification of the price and currency for the material. (10)
Labor price Specification of the price for the labor. (11)
Description The description of the type can be entered here. (12)
Documents Whether documents have been attached to the form is displayed. (13)
Assigned pins The number of pins to which this type is assigned is displayed. Clicking on mceclip2.pnglists all pins that use the current type. The mceclip3.pngbutton shows all pins to which a type has been assigned in the filter. (14)
