Person groups

Persons must be available for selection in a wide variety of forms. It is therefore necessary to divide them into groups. In the case of the services, for example, the group of “customers” is required; in the case of points and lines, the group of “clients”; in the case of the component types, the group of “manufacturers”; and in the case of the documentation of processing operations, the group of “employees”.

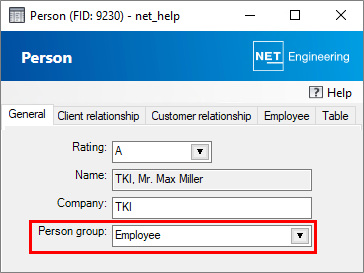

In NET Engineering, users have the option of defining person groups themselves. The form is opened by double-clicking in the Person groups field in the person form.


Tabs

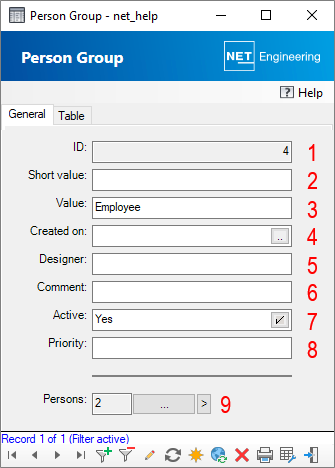

Attribute Description
ID The ID of the record is displayed. (1)
Short value A short name for the person group can be entered. (2)
Value Input of the name for the person group. (3)
Created on The date when the record was created can be selected. (4)
Author The name of the person who created the record can be entered. (5)
Comment A comment on the record can be entered. (6)
Active Only active person groups can be selected from the drop-down list in the detailed form for persons. (7)
Priority A priority for the person group type can be assigned. (8)
Persons The number of persons assigned to this group is displayed. Clicking on mceclip2.png lists all persons that use the current person group. The mceclip3.png button displays all persons to which a person group has been assigned in the filter. (9)
