Connection editor from NET 11

Connections at the fiber/wire layer are created with the connection editor. Depending on the point from which the connection editor was opened, different connection options result.

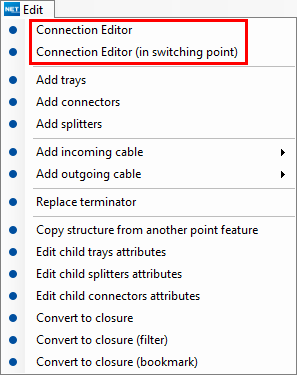

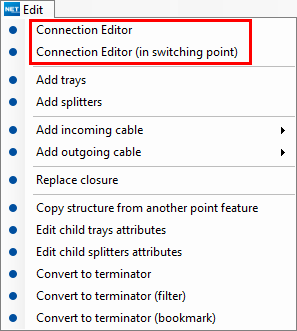

The connection editor can be opened in the FO/TP Terminator, FO/TP Closure or Switching point form and from the NET tab.


FO Terminator FO closure
mceclip0.png mceclip2.png


TP Terminator TP Closure
mceclip0.png mceclip1.png


Switching point Work order
mceclip3.png mceclip4.png

Points between which connections are possible:

Point Point Connection
FO Terminator FO Closure Patch Fiber
FO Terminator FO Terminator Patch/Switching fiber
FO Closure FO Closure Patch Fiber
TP Terminator TP Terminator Patch

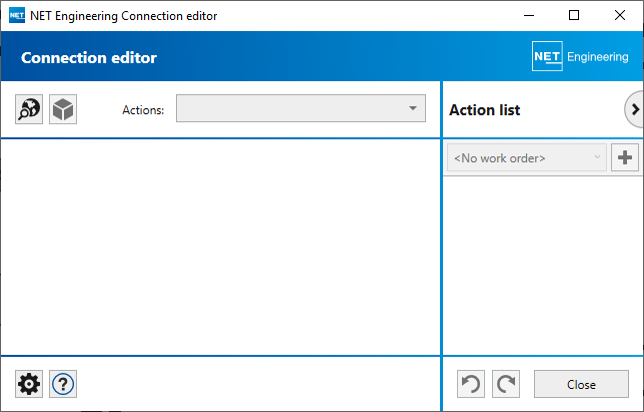

If you open the connection editor from the NET tab, there are no objects in the preview yet. The points in which connections are to be created must be selected in the graphic mceclip5.png. Depending on the connection editor started, only points that belong to the FO Network or TP Network can be selected.


If you open the connection editor from the switching point, the points assigned to the switching point are in the preview or can be selected from the list. In this case, it is automatically checked whether the corresponding points (FO or TP) are assigned to the switching point.

Example: FO

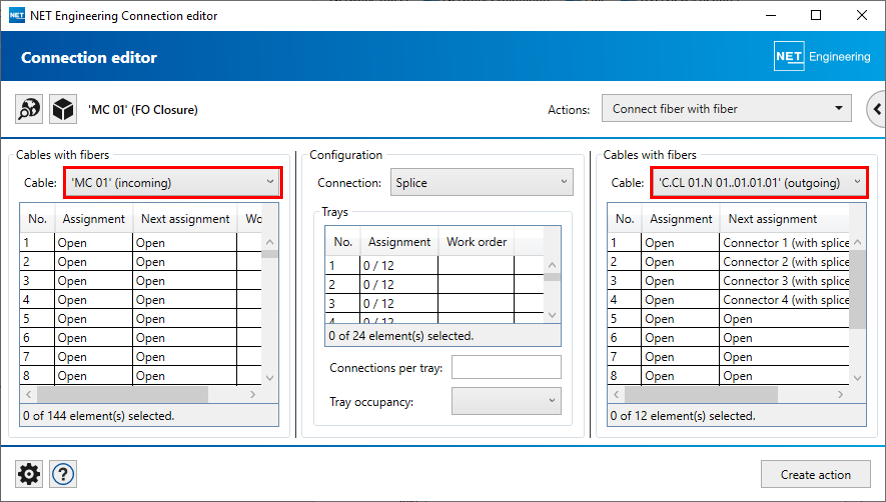

If you open the connection editor from the terminator or the closure, only the incoming/outgoing cables are listed and no other devices.

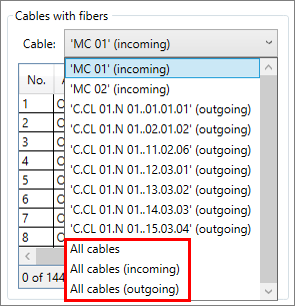

Another point can be selected in the graphic


The selected point is highlighted in the graphic


The options for displaying the columns can be set


NET help can be opened

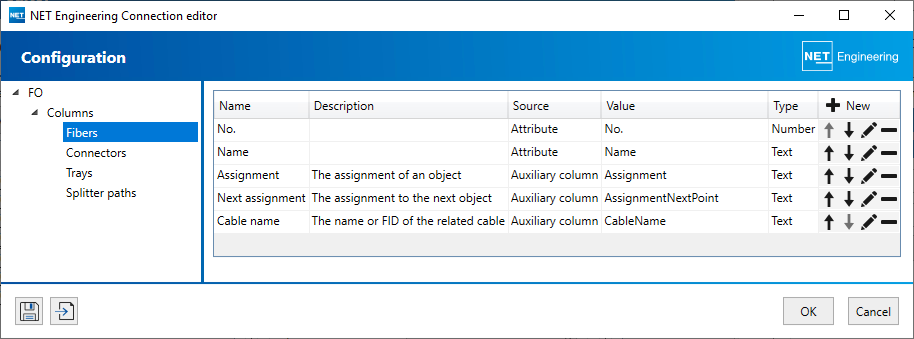

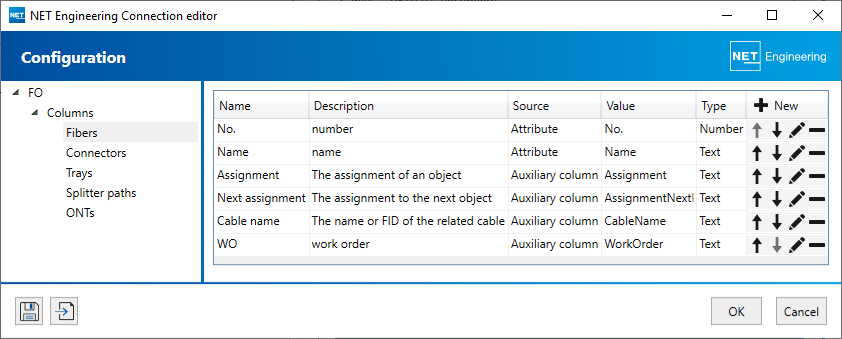

Clicking on the gear-wheel icon opens the dialog for the options:


The columns to be displayed are defined for all types of objects that can be connected.

mceclip9.png Add new column
mceclip6.png Move up/forward in sequence
mceclip7.png Move down/backward in the sequence
mceclip8.png Modify column definition
mceclip9.png Delete column definition
mceclip5.png Save and export the options as a JSON file
mceclip6.png Import options from a JSON file

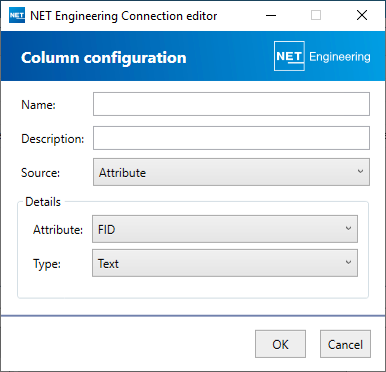

If new columns are to be added, the following dialog opens:


Name The name of the column can be specified.
Description A description for the column can be entered.
Source mceclip12.png An attribute, SQL command or auxiliary column can be selected as the source.
Depending on which source has been selected, the selection options under “Details” will change.

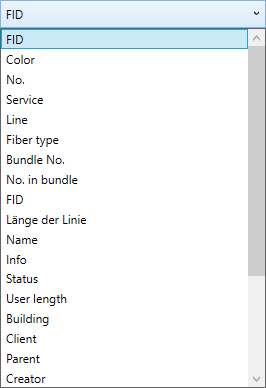

Attribute An attribute of the feature class can be specified.
Type The attribute type can be selected.

Example: Fiber—Attribute

Attribute Type
LWL-Verbindungseditor_Konfiguration_Faser_zusätzliche Spalte_Attribut_engl.png mceclip14.png

Example: Fiber—SQL

SQL Type
mceclip15.png mceclip16.png

Example: Fiber—Auxiliary column

Type Type
LWL-Verbindungseditor_Konfiguration_Faser_zusätzliche Spalte_Typ_engl.png mceclip18.png

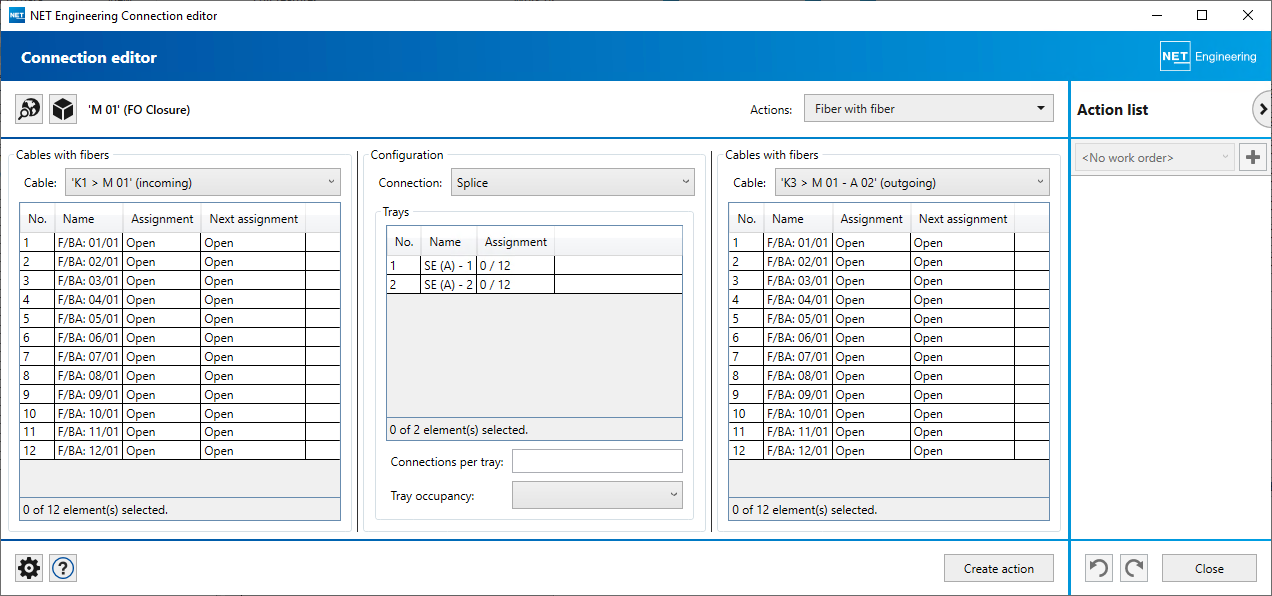

The drop-down list of actions includes all possibilities for connections and their disconnections depending on the objects selected. In addition, trays can be modified and new ones added under Edit.

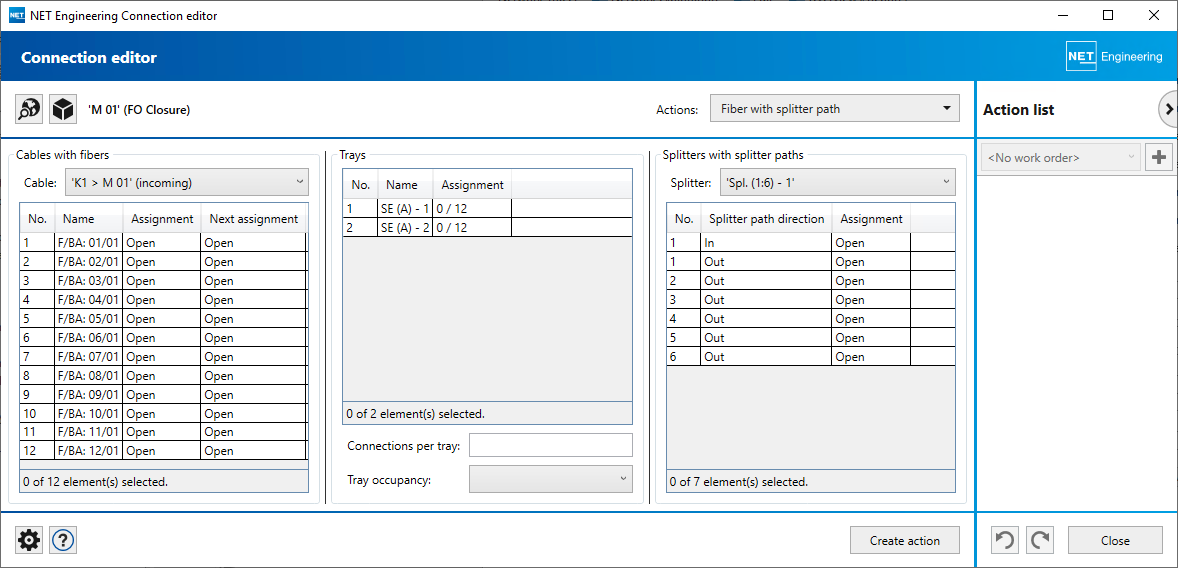

Terminator with connectors and splitters Closure with splitter Switching point
LWL-Verbindungseditor_geöffnet_Verbindungen_LWL-Abschluss_engl.png LWL-Verbindungseditor_geöffnet_Verbindungen_LWL-Muffe_engl.png LWL-Verbindungseditor_geöffnet_Verbindungen_Schaltpunkt_engl.png

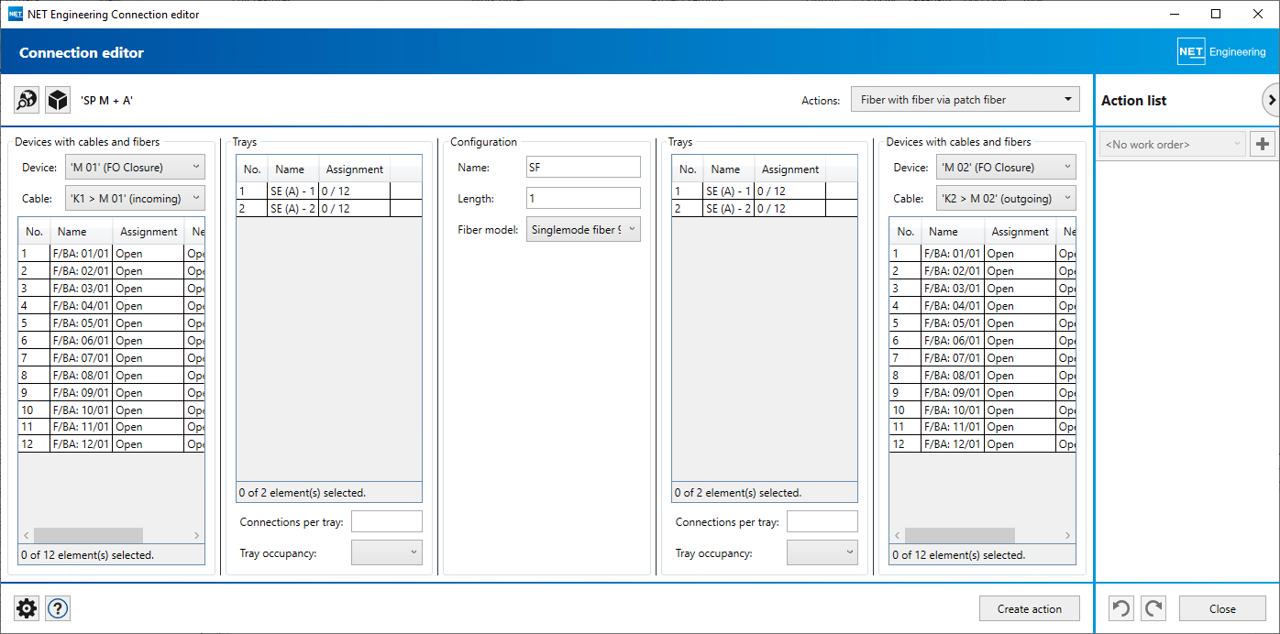

Depending on the selected connection action, the left, center and right panes are adjusted and the corresponding objects are loaded in the preview.


Cables and splitters can be selected from the drop-down lists. Fibers and splitter paths are then selected. In the center, you specify the tray in which the splices are to be placed.

Filtering elements

A variety of filters can be applied in any of the columns.

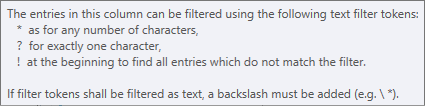

The following text-filtering characters can be used for a filter in Names.


For example, for a filter in numbers, specific quantities of elements can be selected with >, < and =.

Filtering for a specific text in the name with “All cables” selected:

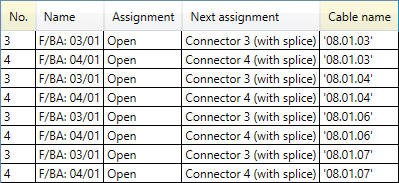

Filtering for all fibers 1 to 4, i.e., less than 5:


Parts of the result:



Terminator with connectors and splitters Closure with splitter Switching point
LWL-Verbindungseditor_geöffnet_auftrennen_LWL-Abschluss_engl.png LWL-Verbindungseditor_geöffnet_auftrennen_LWL-Muffe_engl.png Not possible

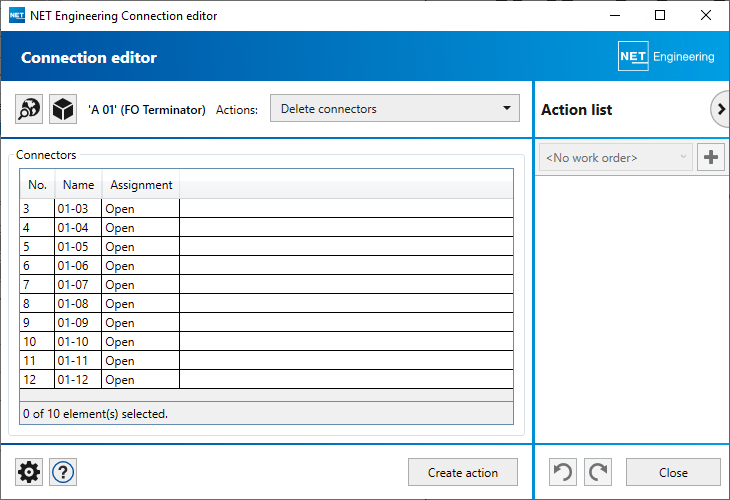

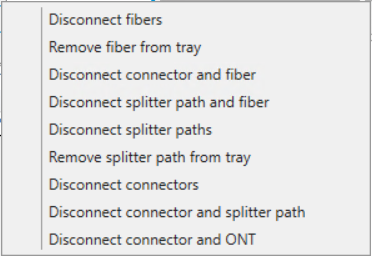

Connections can only be disconnected within a point. Patches or patch fibers between two points can be retrieved, filtered and deleted from the respective terminators/closures.

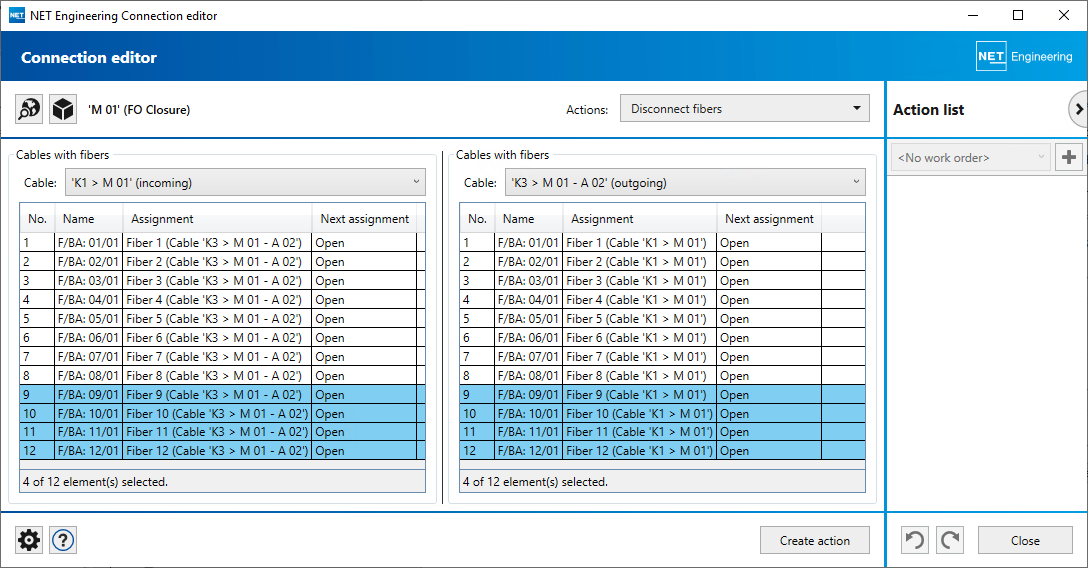

If the connected cables are indicated in “Disconnect fibers”, the connected fibers are likewise selected with the choice of the corresponding fibers.


Terminator with connectors and splitters Closure with splitter Switching point
LWL-Verbindungseditor_geöffnet_Kassetten bearbeiten_engl.png LWL-Verbindungseditor_geöffnet_Kassetten bearbeiten_engl.png Not possible

Existing trays can be modified or new trays can be added.

LWL-Verbindungseditor_geöffnet_Kassetten bearbeiten_Dialog_engl.png

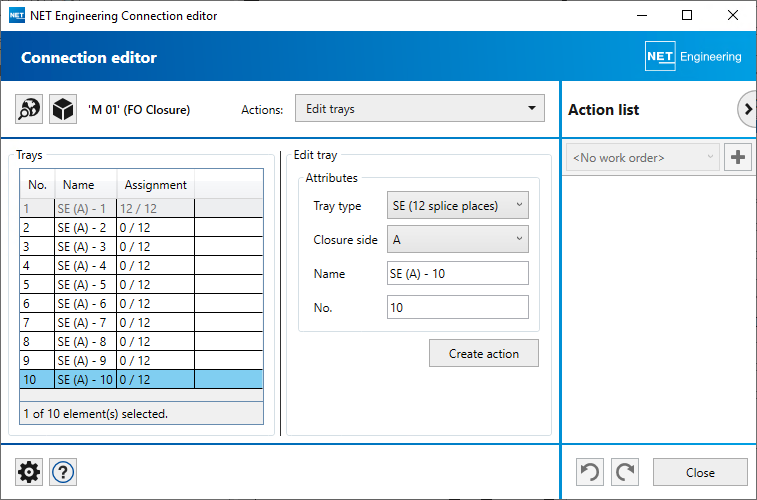

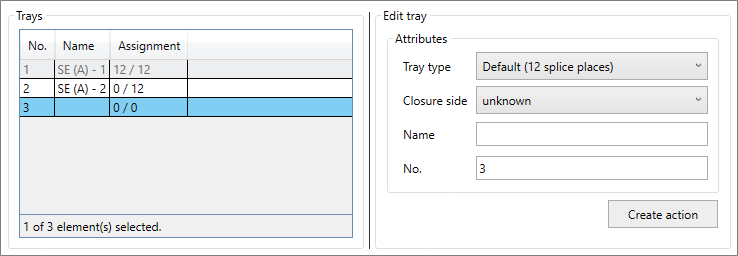

The available trays are displayed in the left pane. If you select one of these, the type, closure side, name and number can be modified in the central pane.

Existing trays can be deleted or new ones added via the context menu in the left pane.

LWL-Verbindungseditor_geöffnet_Kassetten bearbeiten_Kontextmenü_engl.png

If new trays have been added, they can be then be modified.

LWL-Verbindungseditor_geöffnet_Kassetten bearbeiten_Kassette neu_engl.png

With “Create action”, the changes are transferred to the action list and with “Run”, the changes are applied.

A wide variety of actions can be created successively—even in different points—and only run at a later point in time. However, the connection editor must not be closed until then.

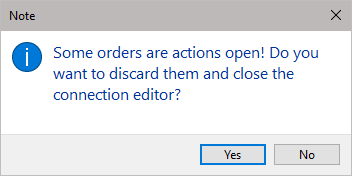

If there are still open actions, the following query appears:

LWL-Verbindungseditor_geöffnet_Meldung_nicht ausgeführte Änderungen_engl.png

You can discard the changes or cancel closing the connection editor.
