CO overview

The network path information in FTTx networks is created with this tabular fiber-path overview. The overview can be used to check all buildings to be connected.

A prerequisite for a correct CO overview is the assignment of the FO terminator to a switching point.

Procedure

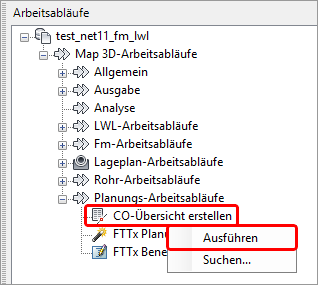

Start the workflow in Workflow Explorer.

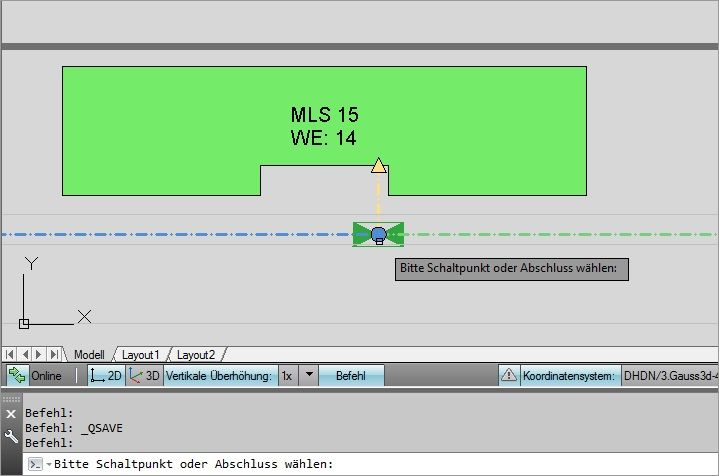

Select the switching point or a terminator as the start point.

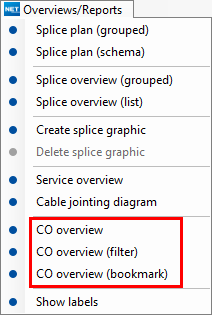

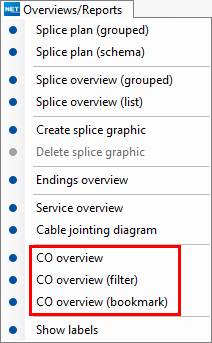

The CO overview can also be started in the Overviews/reports menu item of the Switching point or FO terminator forms.

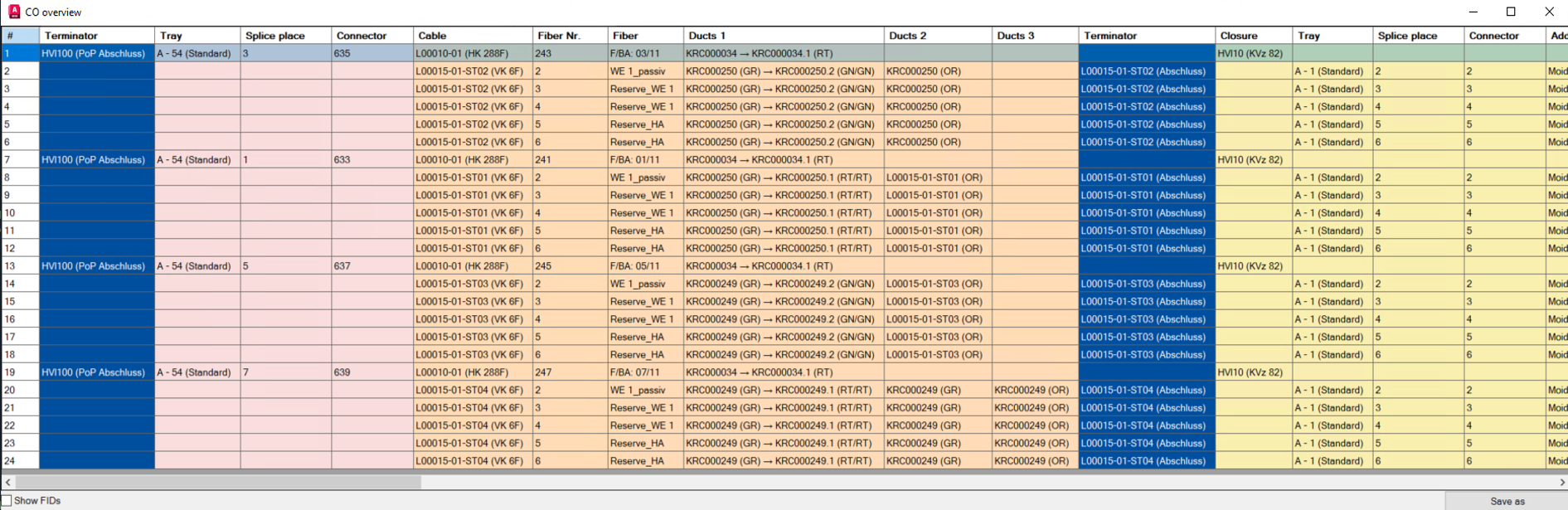

The CO overview / tabular fiber-path overview is opened.

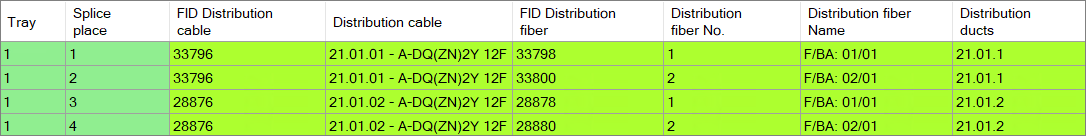

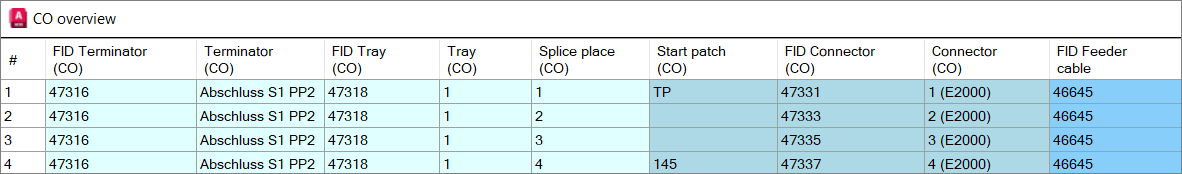

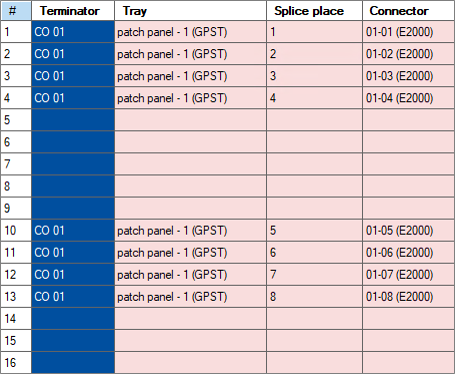

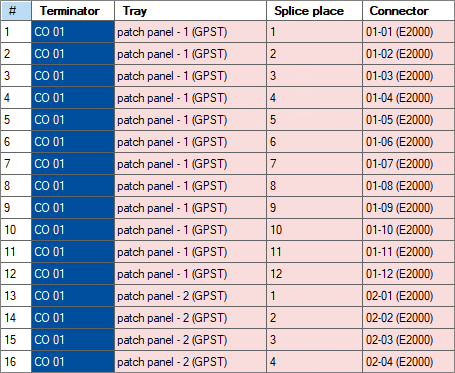

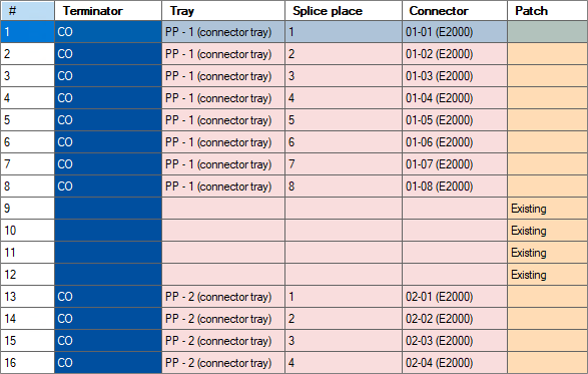

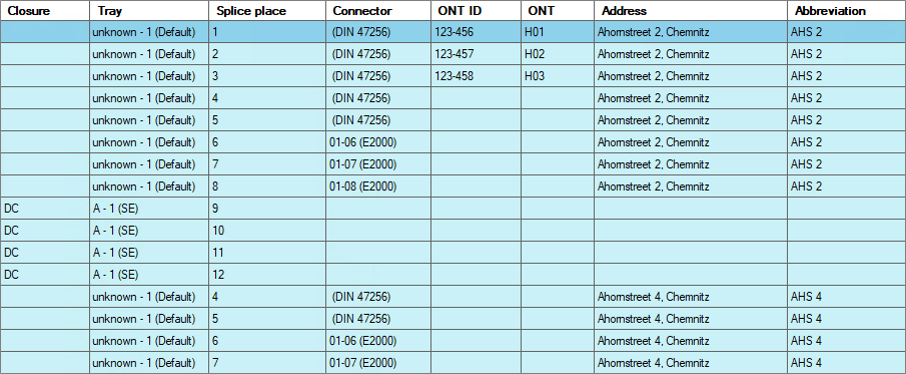

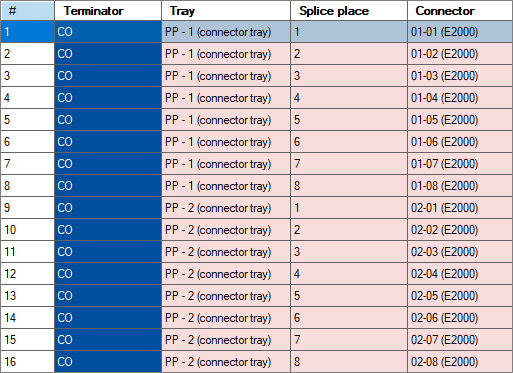

Information on the start point and corresponding components:

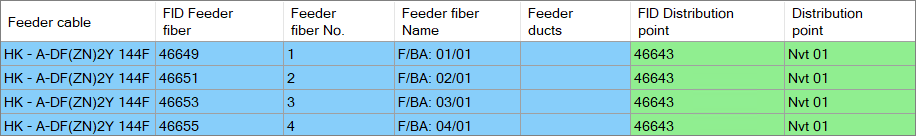

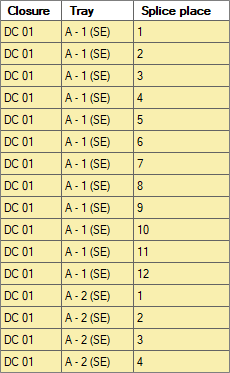

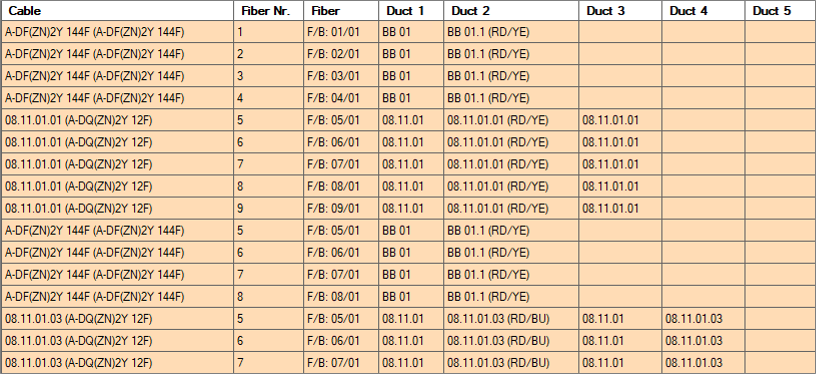

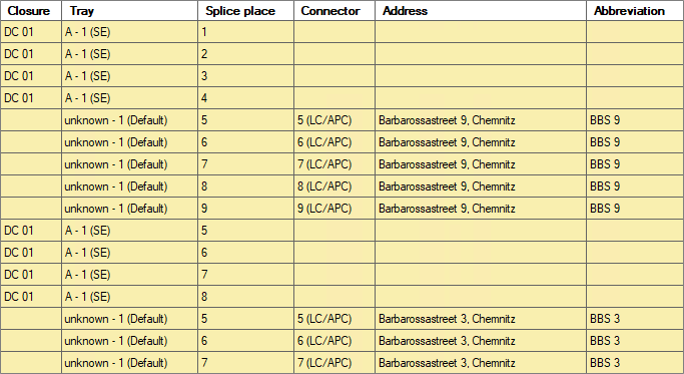

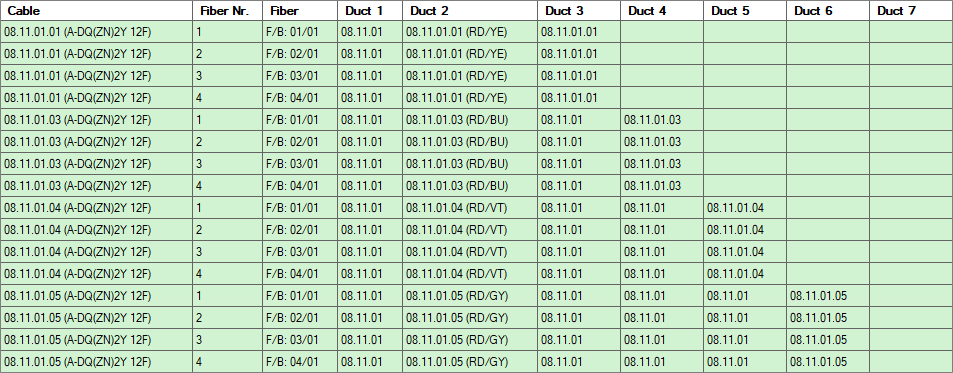

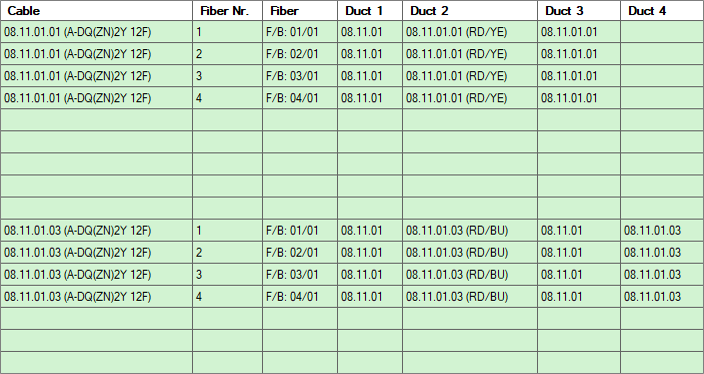

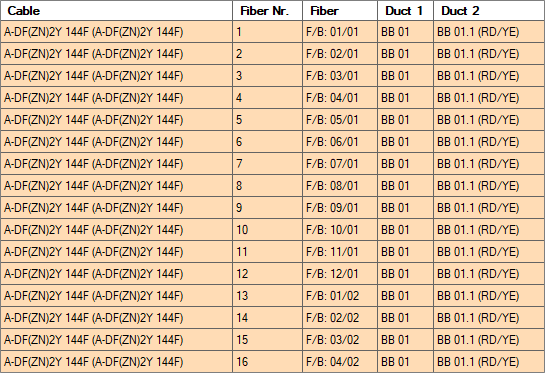

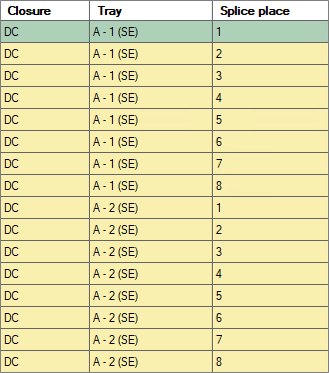

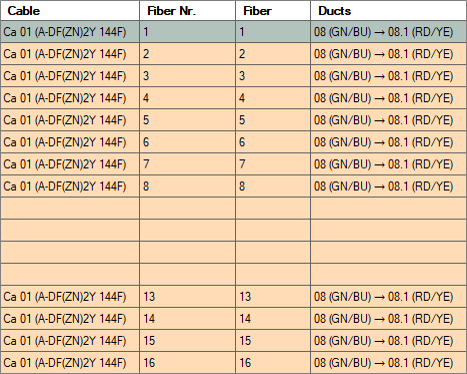

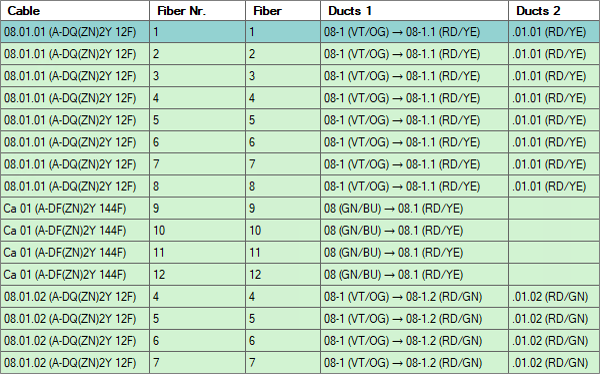

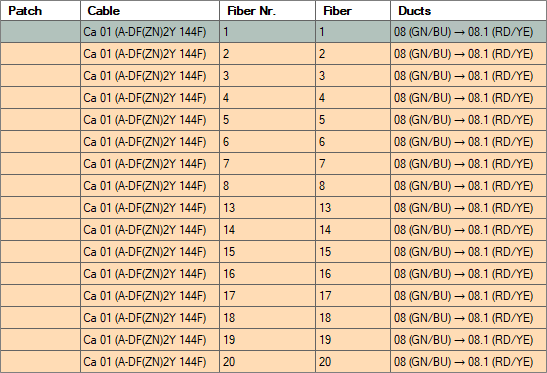

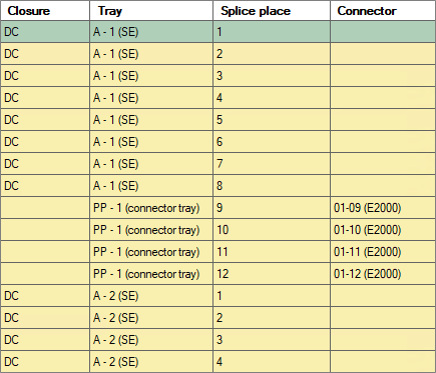

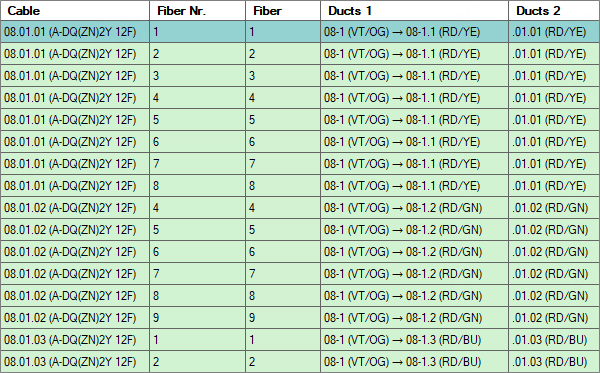

Information on cables, ducts and closures.

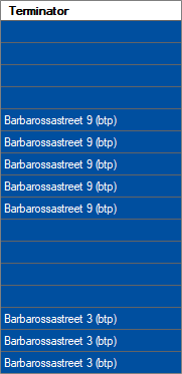

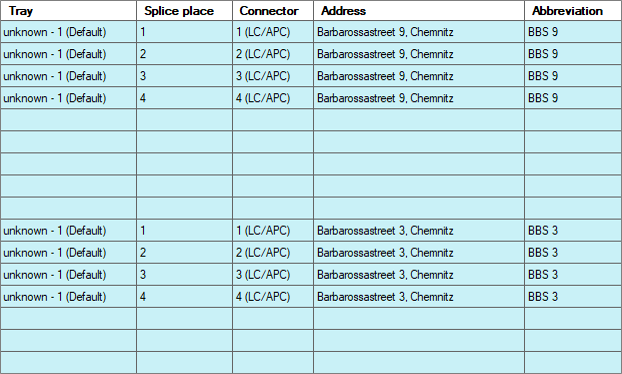

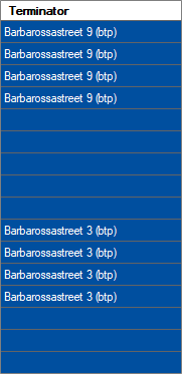

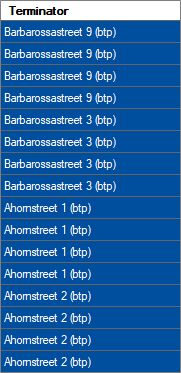

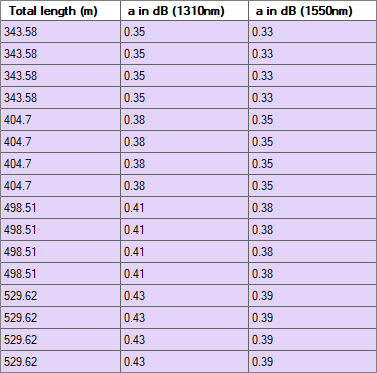

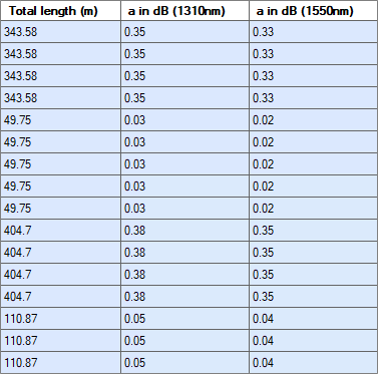

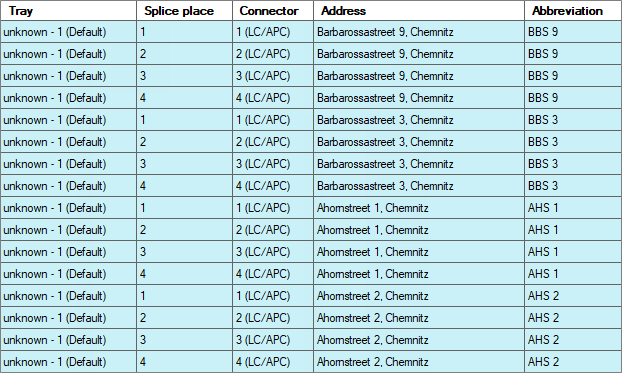

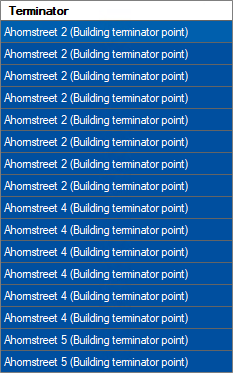

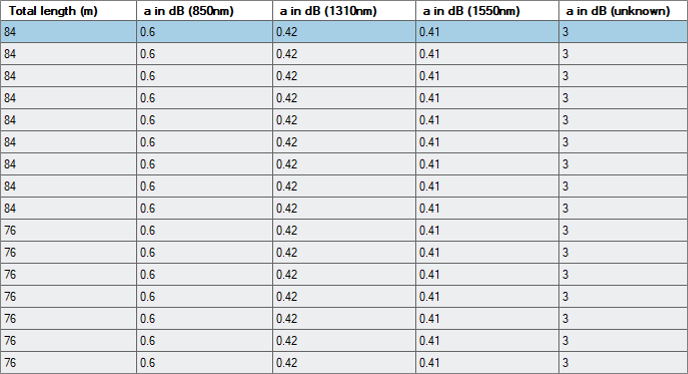

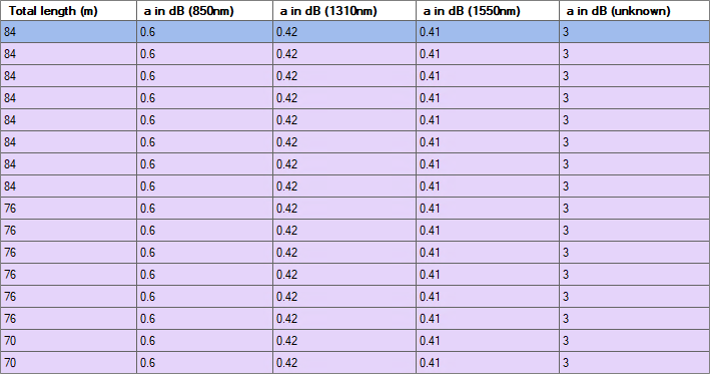

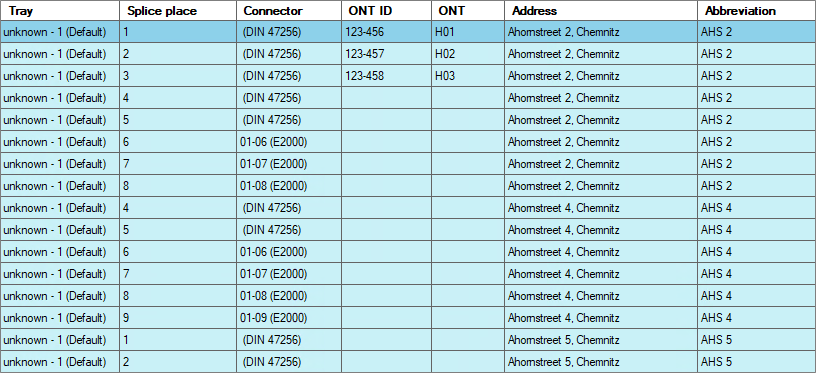

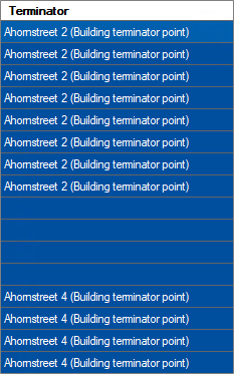

Information on the end point, path length and attenuation values.


Within this list, individual objects can be filtered as desired. Right-click on the column name to open the filter:


These options can be used to enter the filter options:


The filters can be removed individually mceclip10.pngor all in one stepmceclip9.png.
Output of the list

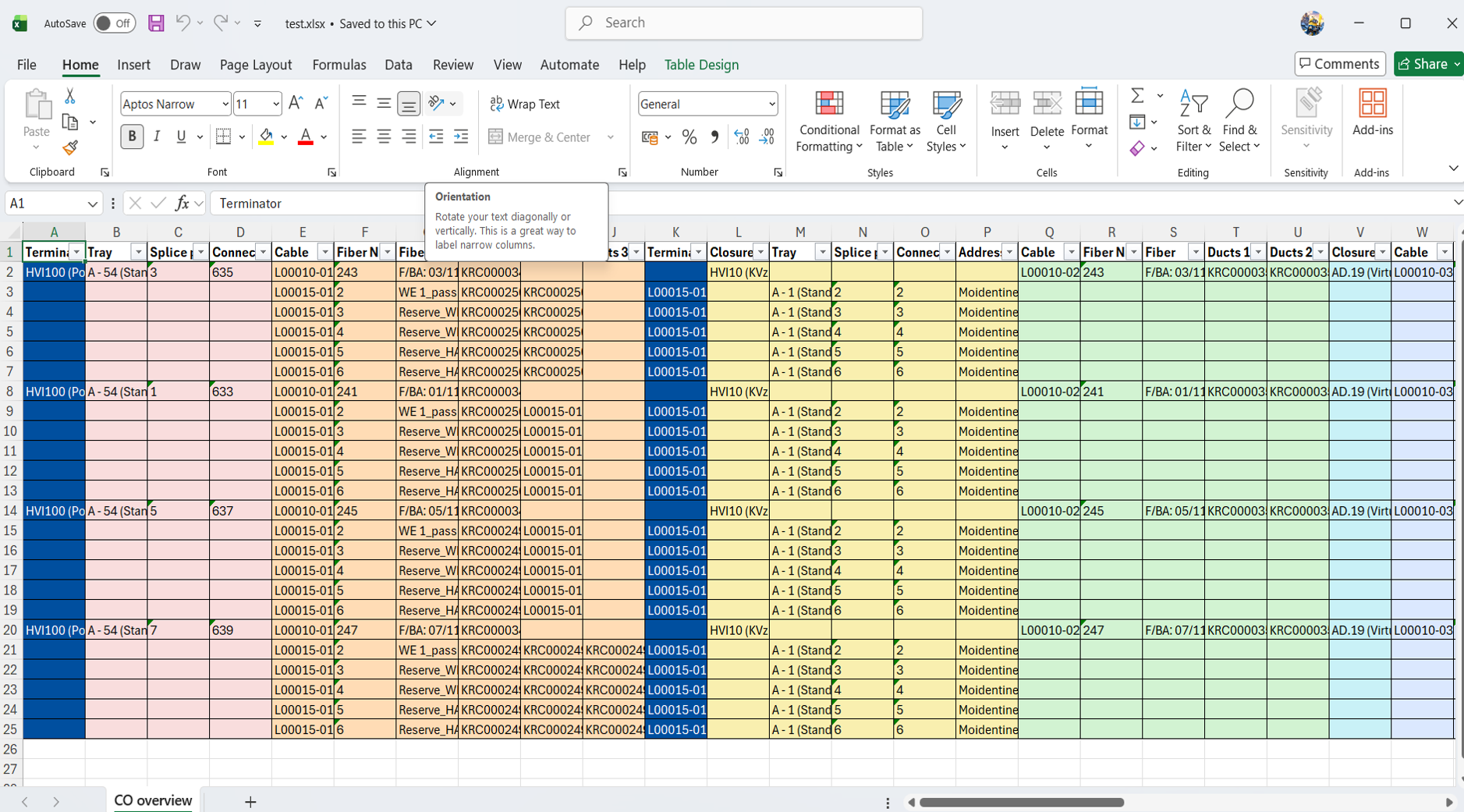

The CO overview can be exported to an Excel table or output on a printer.
The mceclip8.png buttons are located at the bottom right of the overview.
