The splice plans for the selected cable section or all cable sections in the filter from a tracing can be opened via the “Overviews/Reports” menu.

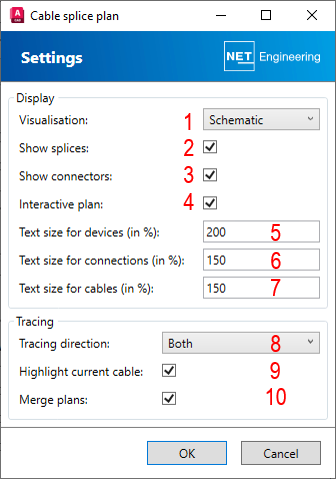

The following options can be set:
The splice plan will be opened in a separate DWG. All cable sections, closures and terminators that connect them are determined and displayed via a network tracking.
1. The splice plan can be created schematically or with georeferencing.
2. You can specify whether the splices are to be applied in the plan.
3. You can specify whether the connectors/pins are to be applied in the plan.
4. It is possible to create an interactive plan. The associated database object can then be opened in the form by double-clicking on the drawing objects.
5. The text size for devices (closures/terminators) can be customised.
6. The text size for connections (closures/terminators) can be customised.
7. The text size for cables (closures/terminators) can be customised.
8. The network tracking can be done in individual directions or for all directions.
9. The current cable section from which the splice plan was opened can be colour-coded (red).
10. If the splice plan is opened from several cable sections (in the filter), you can specify whether a summary should be created.

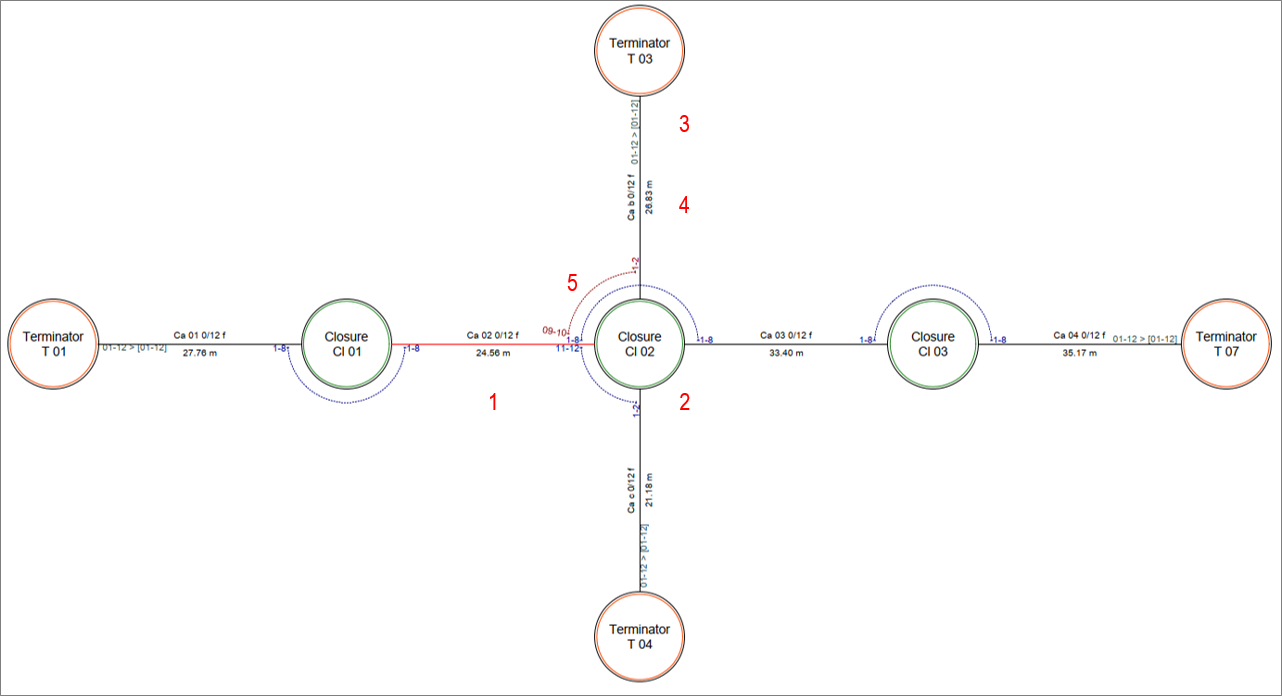

Example splice plan from tracing
1. The cable section from which the splice plan was opened is shown in red.
2. Closures that connect the cable section with other cable sections are displayed and highlighted in green. The name is displayed.
3. Terminators where connected cable sections end are displayed and highlighted in red. The name is displayed.
4. Cable sections connected to the start-up cable section are displayed with the name and number of fibers/wires.
5. The numbers of the spliced fibers/wires are displayed in a grouped display.
