Edit attributes of assigned trays, connectors/pins, splitters and fibers/wires

Trays, connectors/pins and splitters

Changing the numbers and names of the trays, connectors/pins and splitters of a closure or a terminator can be started in the menu item "Edit".

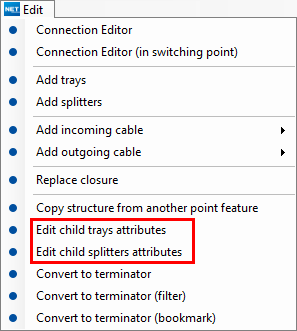

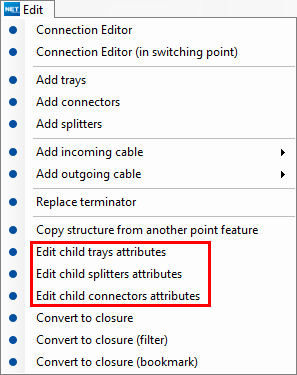

FO-Terminator FO-Closure TP-Terminator
mceclip0.png mceclip1.png mceclip2.png


The following dialogue opens:

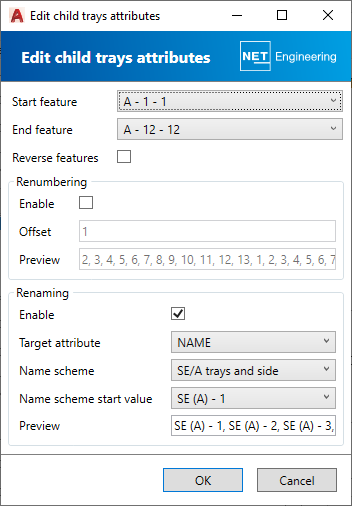

Trays

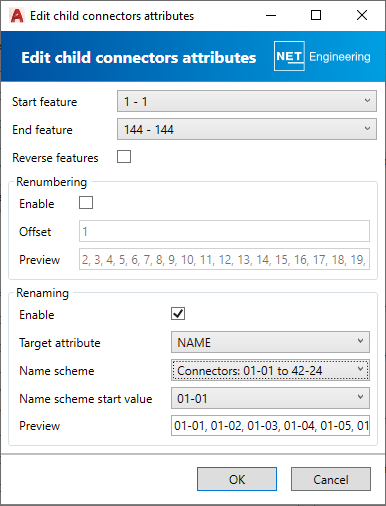

Connectors

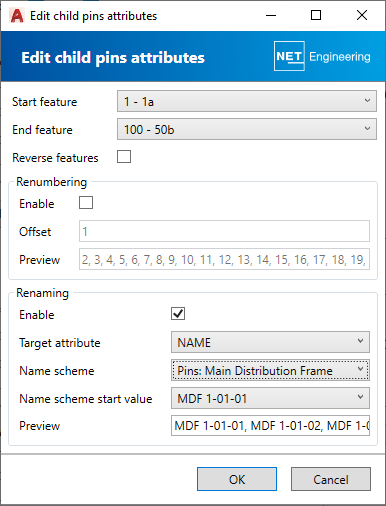

Pins

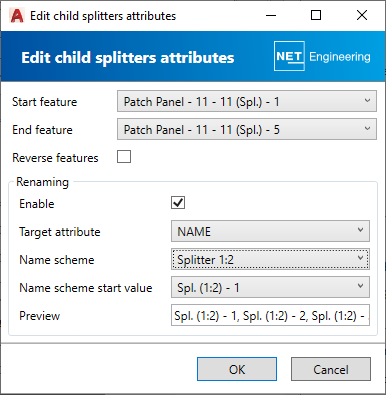

Splitter


Depending on the selected object class, the objects of the point are listed.

Fibers/Wires

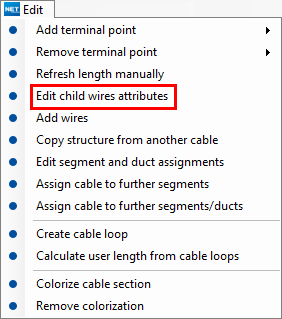

Changing the numbers and names of fibers or wires of a cable can be started in the menu item "Edit".

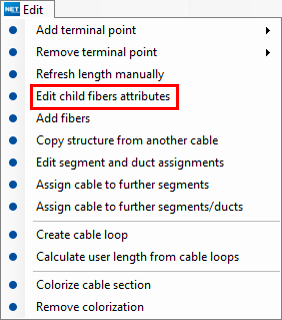

FO cable TP cable
mceclip7.png mceclip8.png

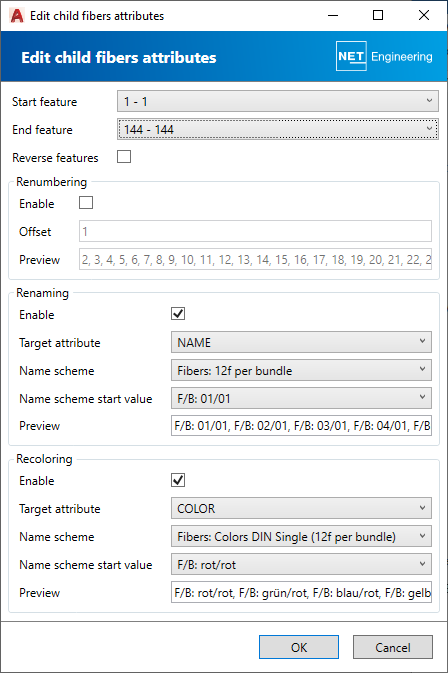

Fibers

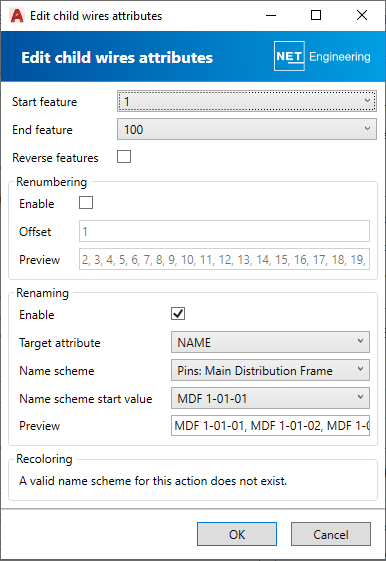

Wires

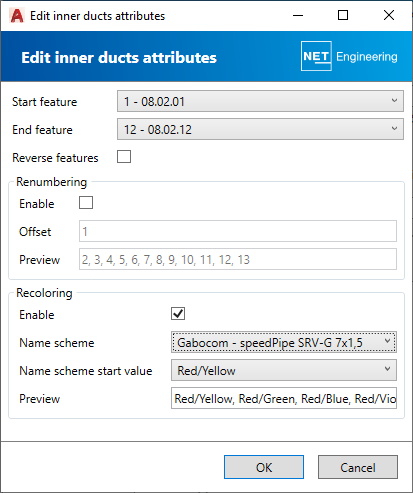

Ducts

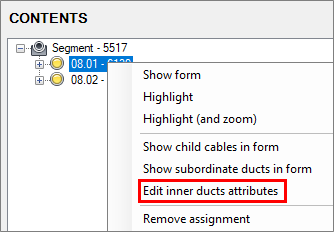

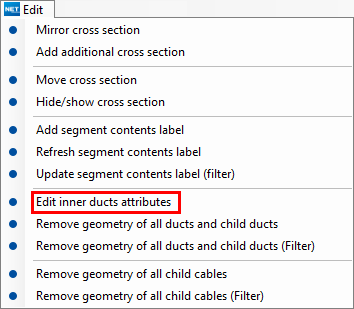

Changing the numbers and colours of the inner ducts of a duct bundle can be started in the menu item "Edit" of a duct or in the context menus for segment (contents) and duct (occupancy).

menu "edit" context menu
mceclip11.png mceclip12.png




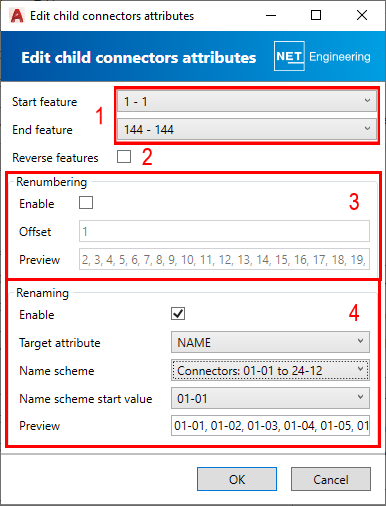

Procedure


1. The start and end features are displayed. This is a combination of number and name. For the trays, the side on which the tray is installed is also displayed.
Here the range must be selected for which objects the renumbering or renaming is to be carried out. If all objects are affected, the first and the last value must be selected. Otherwise, any range in between can be specified.
2. The order of the objects can be reversed for both numbering and naming.
3. This area must be activated if the "numbers" of the objects are to be changed. The value entered must be a positive integer. The numbers of the selected objects are shifted by this value. Under Preview, the new numbers of the objects that they receive during renumbering are displayed.
4. This area must be activated if the "names" of the objects are to be changed. The name scheme can be selected in the selection list. Only name schemes are displayed to which the object class is assigned for which the attributes are to be edited. The start value for the renaming must be specified. Under Preview, the new names of the objects that they receive during renaming are displayed.

With "OK" the renumbering or renaming is started.

"Cancel" closes the workflow without making any changes.
