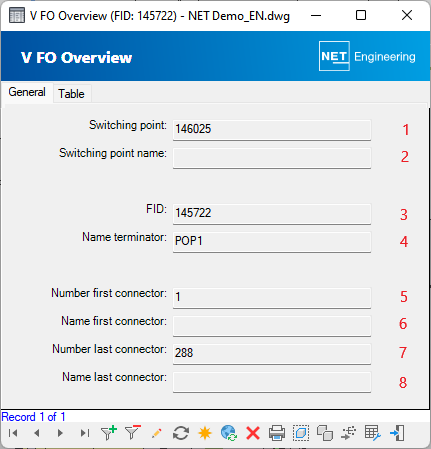

V FO Overview

All FO terminators that are assigned to the switching point from which the overview was opened are displayed in the V FO overview. The connectors for these FO terminators are also displayed.

Tabs


Switching point FID of the switching point from which the overview was opened is displayed. (1)
Name of the switching point Name of the switching point from which the overview was opened is displayed. (2)
FID FID of the FO terminator assigned to the switching point is displayed. (3)
Name terminator Name of the FO terminator assigned to the switching point is displayed. (4)
Number first connector Number of the first connector created in the FO terminator is displayed. (5)
Name first connector Name of the first connector created in the FO terminator is displayed. (6)
Number last connector Number of the last connector created in the FO terminator is displayed. (7)
Name last connector Name of the last connector created in the FO terminator is displayed. (8)
