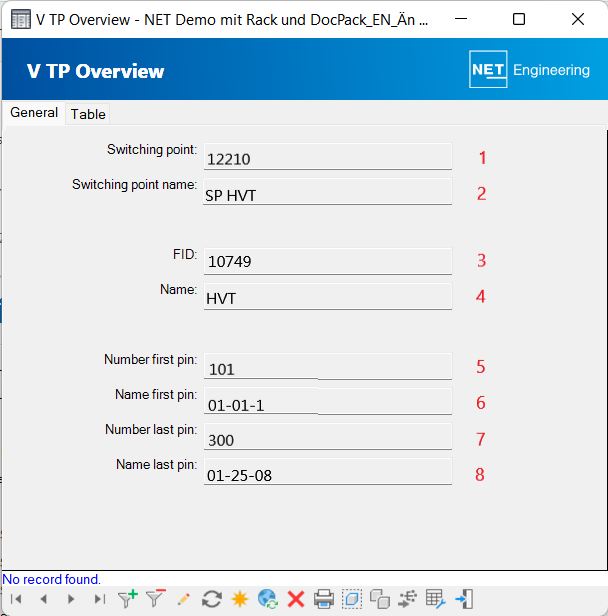

V TP Overview

All TP terminators that are assigned to the switching point from which the overview was opened are displayed in the V TP overview. The pins for these TP terminators are also displayed.

Tabs


Switching point FID of the switching point from which the overview was opened is displayed. (1)
Name of the switching point Name of the switching point from which the overview was opened is displayed. (2)
FID FID of the TP terminator assigned to the switching point is displayed. (3)
Name Name of the TP terminator assigned to the switching point is displayed. (4)
Number first pin Number of the first pin created in the TP terminator is displayed. (5)
Name first pin Name of the first pin created in the TP terminator is displayed. (6)
Number last pin Number of the last pin created in the TP terminator is displayed. (7)
Name last pin Name of the last pin created in the TP terminator is displayed. (8)
