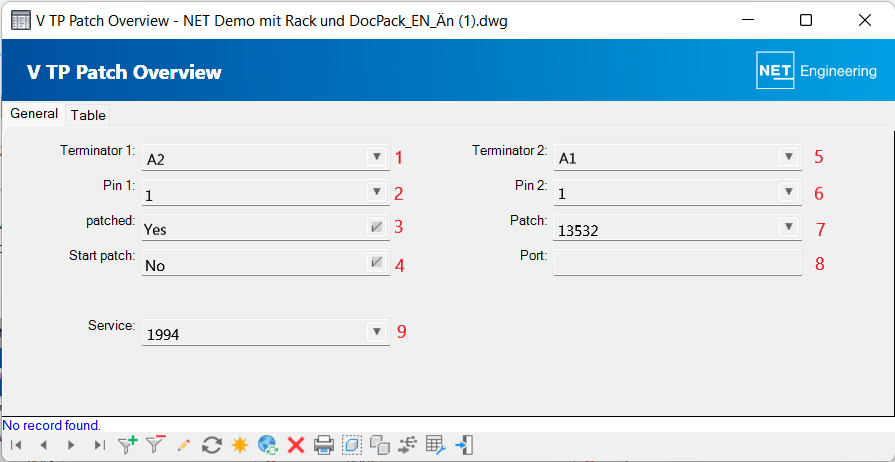

In the V TP patching overview, the patches within the switching point is displayed. The points between which patches has created are listed and important information about the patch is displayed.
Tabs
| Terminator 1 | Name of the TP terminator assigned to the switching point is displayed. (1) |
| Pin 1 | Name of the pin created in the TP terminator is displayed. (2) |
| Patched | It is indicated with "yes" or "no" whether the pin (2) is connected to another pin (5) via a patch. (3) |
| Start patch | It is displayed whether it is a start patch. (4) |
| Terminator 2 | Name of the TP terminator assigned to the switching point and where the patch from the first pin (2) ends is displayed. (5) |
| Pin 2 | The number of the pin where the patch from the first pin (2) ends is displayed. (6) |
| Patch | FID of the patch is displayed. (7) |
| Port | The name of the technical port to which the patch was made is displayed. (8) |
| Service | The name of the service that has been switched to the pin (2) or patch is displayed. (9) |
