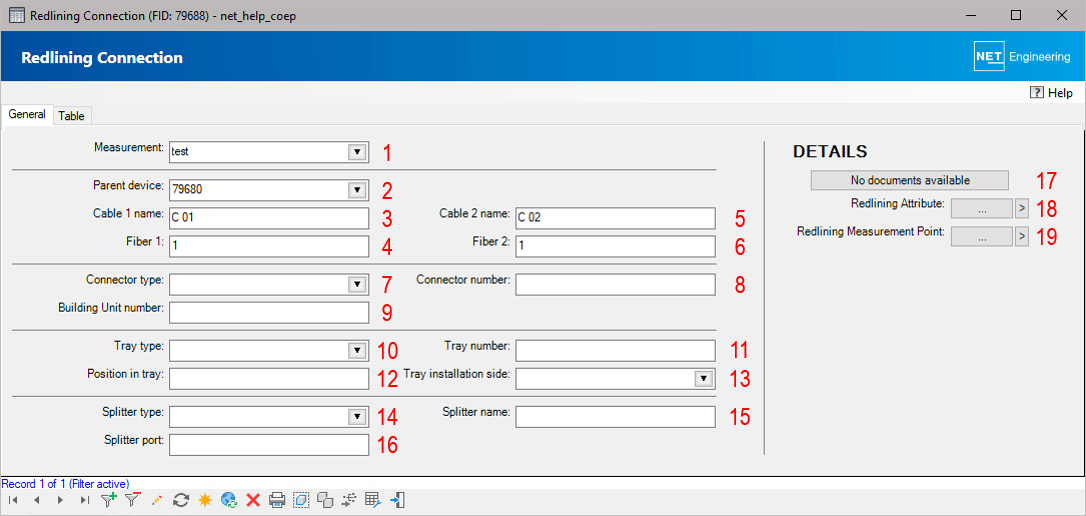

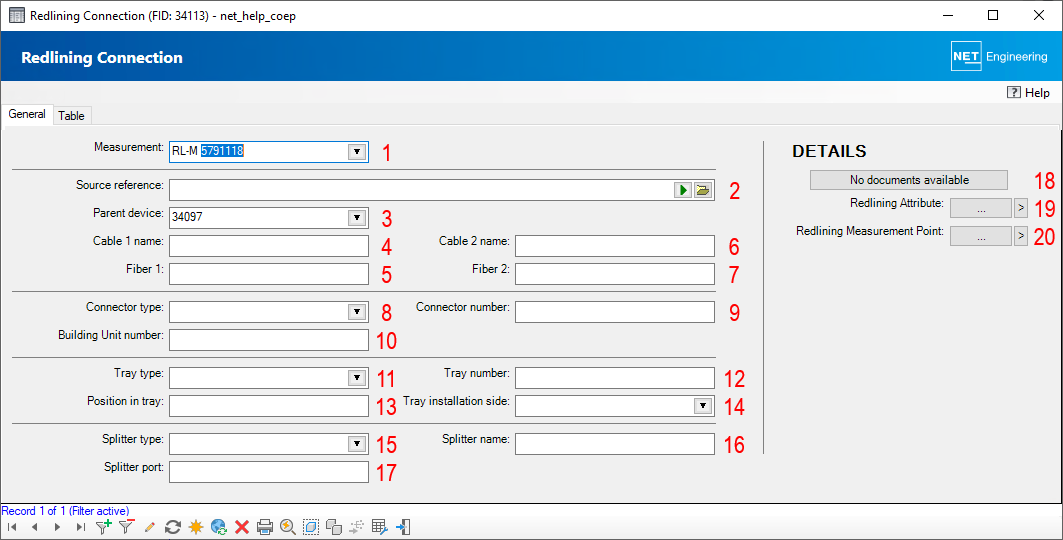

In the form of the redlining (RL) connection, the attributes are displayed that were assigned to the connection in NET Build.
The objects of the respective object class belonging to the connection can also be opened.
1. The name of the measurement with which the connection was imported is displayed.
2. The FID of the parent device is displayed.
3. The name of the first cable of the connection is displayed.
4. The number of the fiber from the first cable is displayed.
5. The name of the second cable of the connection is displayed.
6. The number of the fiber from the second cable is displayed.
7. The type of connector to which one of the other objects is connected is displayed.
8. The number of the connector to which one of the other objects is connected is displayed.
9. The number of the building unit to which the connector is assigned is displayed.
10. The type of tray in which the splice is located is displayed.
11. The number of the tray in which the splice is located is displayed.
12. The position of the splice in the tray (splice location) is displayed.
13. The installation side of the tray is displayed.
14. The type of splitter to which one of the other objects is connected is displayed.
15. The name of the splitter to which one of the other objects is connected is displayed.
16. The IN/OUT of the splitter to which one of the other objects is connected is displayed.
17. The document management can be opened and files belonging to the connection can be linked or opened.
18. The RL attributes assigned to the connection can be opened with in the form or with
for all connections in the filter. These are the attributes from NET BUILD.
19. The RL measurement points with which the position of the connection was created can be opened with in the form or with
for all connections in the filter.
