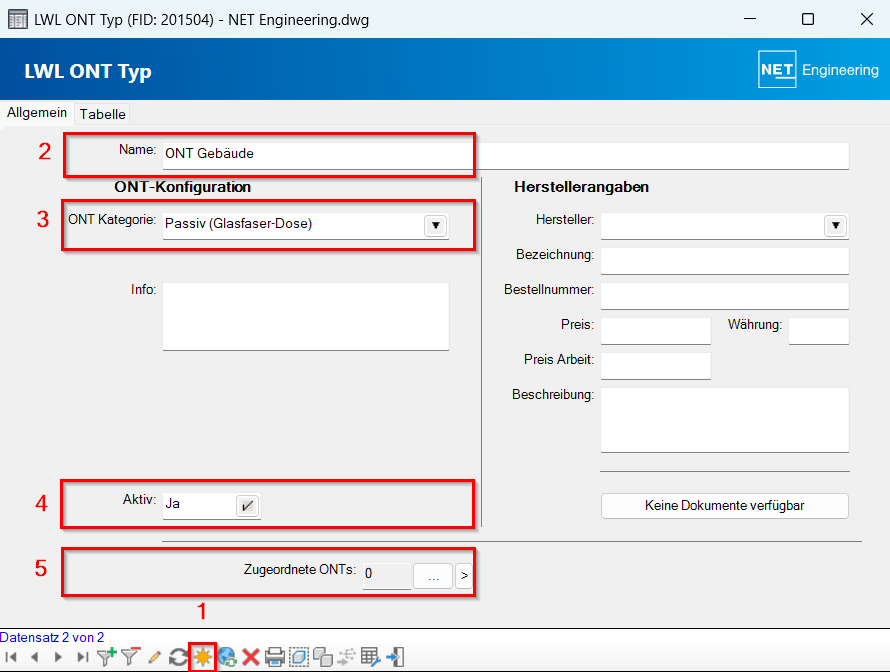

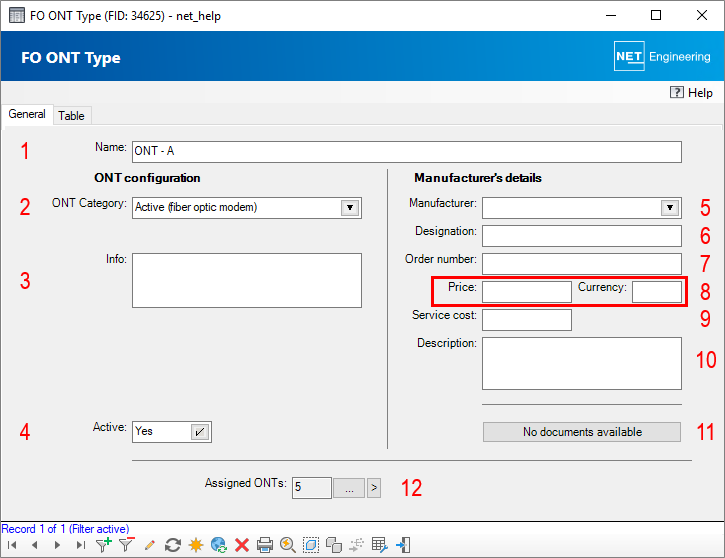

In NET Engineering, users have the option of defining ONT types themselves. The form is opened by double-clicking in the Type field in the ONT form or in Industry-Model Explorer > FO Network > ONT > ONT Type.
Tabs
| Attribute | Description |
| Name | Enter the name of the ONT type here. (1) |
| ONT category | The ONT category assigned to the ONT type is displayed or can be selected from a drop-down list via |
| Info | Information about the ONT type can be entered. (3) |
| Active | Only active ONT types can be selected from the drop-down list in the detailed form for FO ONT. (4) |
| Manufacturer’s details | |
| Manufacturer | Selection of the manufacturer from a drop-down list. (5) |
| Designation | A designation can be specified. (6) |
| Order number | Specification of the order number. (7) |
| Material cost | Specification of the cost and currency for the material. (8) |
| Service cost | Specification of the cost for the service. (9) |
| Description | The description of the type can be entered here. (10) |
| Documents | Whether documents have been attached to the form is displayed. (11) |
| Assigned terminators | The number of FO Terminators to which this type is assigned is displayed. Clicking on |

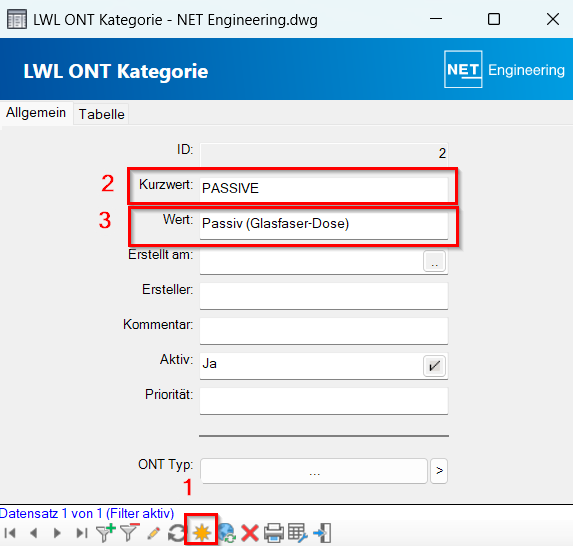

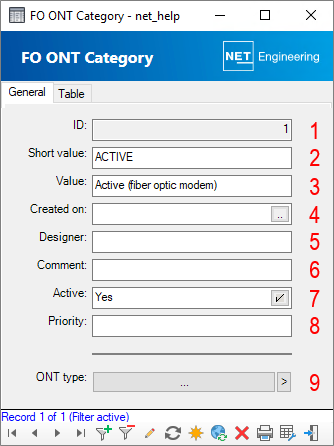

ONT Category
| Attribute | Description |
| ID | The ID of the ONT category is displayed. (1) |
| Short value | This is where you enter the short value. (2) |
| Value | Enter the name of the ONT category here. (3) |
| Created on | The date when the record was created can be specified. (4) |
| Designer | The person who created the record can be entered. (5) |
| Comment | A comment on the ONT category can be entered here. (6) |
| Active | Only active ONT categories can be selected from the drop-down list in the FO ONT type. (7) |
| Priority | A priority can be assigned for the category. (8) |
| ONT type | Clicking on |
