Duct category

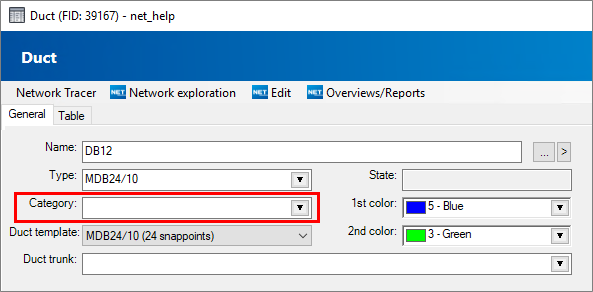

In NET Engineering, users have the option of defining different categories of ducts themselves. The form is opened by double-clicking in the Category field in the duct form.


Tabs

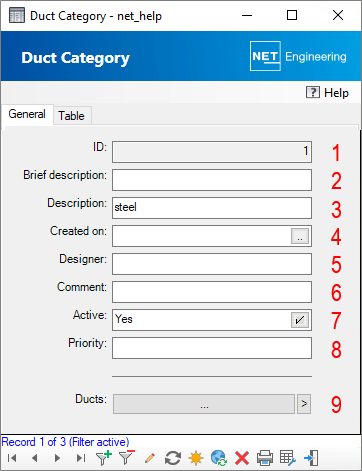

Attribute Description
ID The ID of the duct category is displayed. (1)
Short value This is where you enter the short name. (2)
Value Enter the name of the duct category here. (3)
Created on The date when the record was created can be specified. (4)
Author The person who created the record can be entered. (5)
Comment A comment on the duct category can be entered here. (6)
Active Only active duct categories can be selected from the drop-down list in the detailed form for ducts. (7)
Priority A priority can be assigned for the category. (8)
Ducts Clicking on mceclip2.pnglists all ducts that use the current duct category. The mceclip3.pngbutton shows all ducts to which a duct category has been assigned in the filter. (9)
