Cable Category

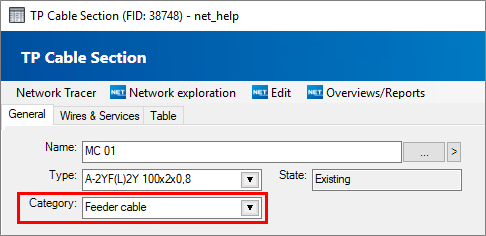

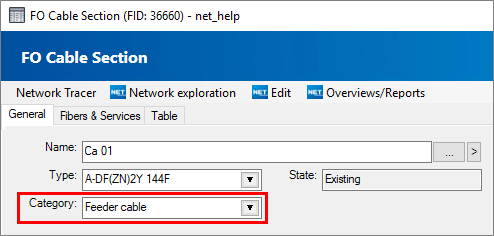

In NET Engineering, users have the option of defining Cable Categories themselves. The form is opened by double-clicking in the Category field in the FO Cable Section or TP Cable Section form.




Tabs

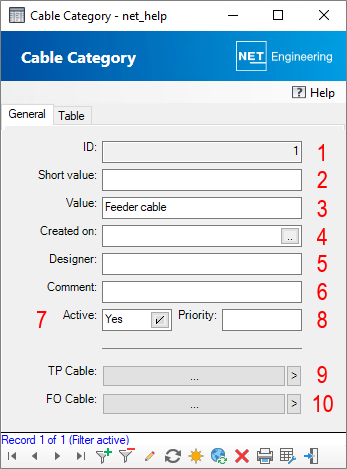

Attribute Description
ID The ID of the cable category is displayed. (1)
Short value This is where you enter the short value. (2)
Value Enter the name of the cable category here. (3)
Created on The date when the record was created can be specified. (4)
Designer The person who created the record can be entered. (5)
Comment A comment on the cable category can be entered here. (6)
Active Only active cable categories can be selected from the drop-down list in the FO cable section or FM cable section detailed form. (7)
Priority A priority can be assigned for the category. (8)
TP (telephony) cable Clicking on mceclip2.pnglists all TP Cable Sections that use the current cable category. The mceclip3.pngbutton displays all TP Cable Sections to which a cable category has been assigned in the filter. (9)
FO (fiber-optic) cable Clicking on mceclip2.pnglists all FO Cable Sections that use the current cable category. The mceclip3.pngbutton displays all FO Cable Sections to which a Cable Category has been assigned in the filter. (10)
