Patch

TP Patch is a connection within the telephony network created using patches within or at points. The connection is made either between the pin and the technical port in a terminator, between two pins of different terminators in a switching point, or between two pins of one terminator.

Tabs

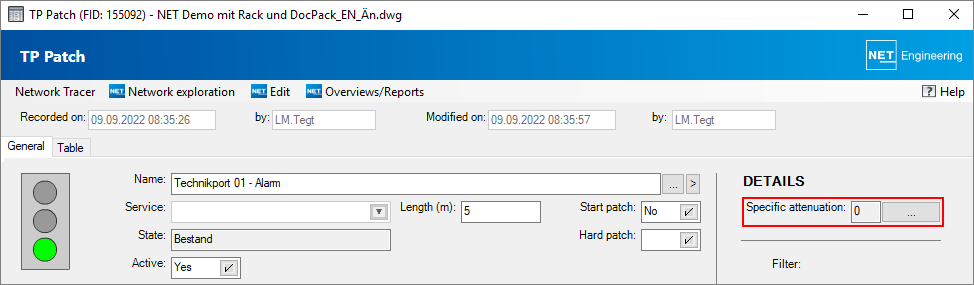

General information about the patch fiber is managed in the “General” home tab.


Attribute Description
Name The name of the patch is displayed or can be entered. Clicking on the mceclip2.png button opens the line form for the current patch or, with mceclip3.png, for all patches in the filter. (1)
Service The service connected to the patch is displayed or can be selected from a drop-down list using mceclip7.png. Double-clicking on the list box opens the detailed form for managing services. (2)
Length The length of the patch is displayed and can be changed. (3)
Start/permanent patch Shows whether it is a start patch. Clicking on mceclip2.png switches between YES and NO.
Shows whether it is a permanent patch. Clicking on mceclip2.png switches between YES and NO. (4)
State The state assigned to the patch in the line form is displayed. (5)
Active “Yes” or “No” indicates whether or not the TP Patch is active. (6)
Traffic light The color of the traffic light shows whether a patch is active or not, or whether it has been prepared for connection via a work order. (7)
mceclip3.png                                   mceclip4.png
Prepared for connection          Active/connected
via a work order
Work order In the case of a connection order, the name of the work order, the person and the date of connection are displayed.
In the case of a disconnection order, the name of the work order, the person and the date of disconnection are displayed. (8)
Connected objects with higher-layer points/lines Information on the switching point, terminator, pin and pin type from which the patch will be made. Clicking on the mceclip2.png button opens the detailed form of the associated terminator.
Information on the terminator, pin and pin type to which the patch will be made. Clicking on the mceclip2.png button opens the detailed form of the associated terminator.
Details of the technical port to which the patch will be made. (9)
Information Information on patching can be entered. (10)
Details The button opens the form with TP Patch data for the specific attenuation of a patch. See Patch data for more information. (11)
Filters These buttons filter all existing patches according to the following criteria:
mceclip1.png filters all active patches (see No. 6)
mceclip2.png filters all patches that have not yet been connected, i.e., that are not yet active.
mceclip3.png filters all patches that are to be disconnected. (12)
Documents This displays whether documents have been attached to the form. (13)


Menu items

A Connection Overview can be displayed via “Network exploration”.


Various workflows can be started via the “Edit” menu.


1. The network path originating from the patch can be disconnected.
2. The selected patch can be rerouted.
3. The selected patch can be disconnected.
4. A service can be transferred to the network path starting from the patch.
5. A service can be transferred to the corresponding network paths starting from the patches in the filter.
6. A service can be removed from the network path starting from the patch.
7. A service can be removed from the corresponding network paths starting from the patches in the filter.

The TP Connection Plan and the forms for the generated labels can be opened via the “Overviews/Reports” menu.


Print reports

The printer icon at the bottom of the form can be used to print the available reports

Formular_unterer Rand_Druckersymbol_für Berichte_engl.png

available reports

  • TP network overview (patch)

Patch data

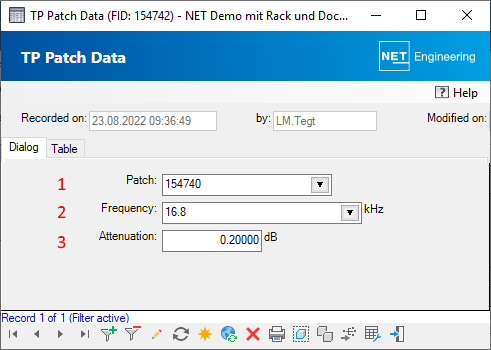

The detailed form for patch data is opened in the form for TP Patches by clicking on:


Tabs

Information for a patch, such as frequency and attenuation, are managed in the “Form” home tab.


1. Selection of the TP Patch for which the patch data is to be created.
2. Frequency selection Double-clicking in the list box opens the form for the frequency.
3. Input of the attenuation value
