Some views differ depending on the open NET module.

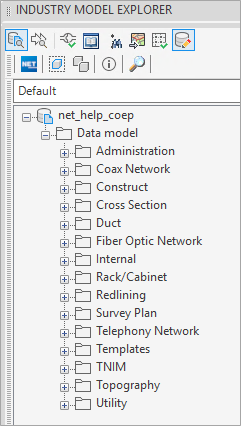

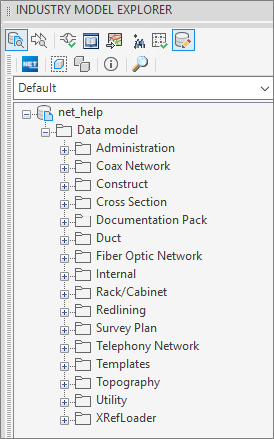

Industry Model Explorer
| Feature classes | Workflows |
NET tabs

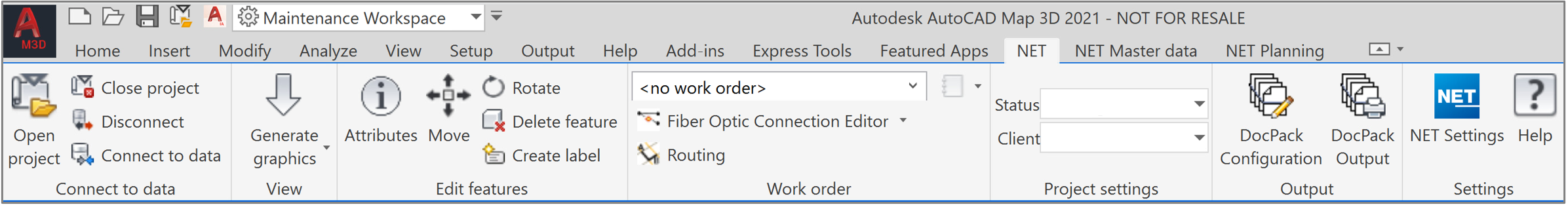

NET general
The “Work order” group can be used to create new work orders or open existing ones; the connection editor (FO and TP) and the network-path search can be launched.
The “project options” can be set. All newly created objects are created with the selected status and/or client.
The output with the documentation pack can be controlled.
The NET options and NET help can be opened.

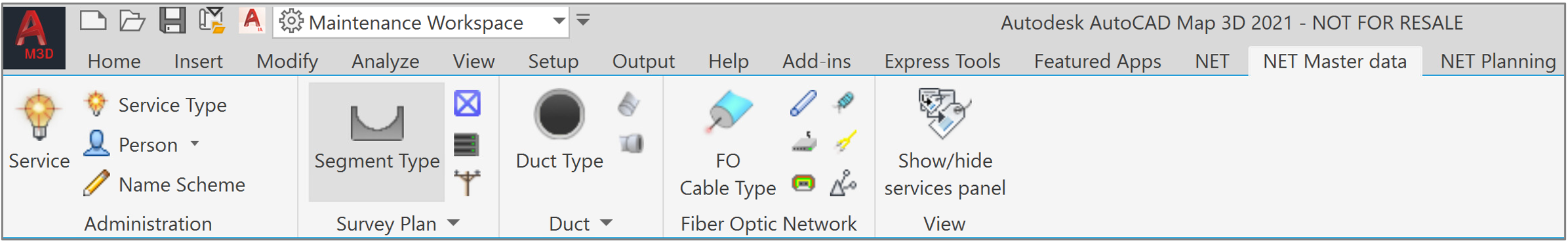

NET Master data
The most important types and models required in the project can be clearly opened and configured here.
NET Planning
Some important workflows can be started here quickly. Most workflows can also be opened in the Workflow Explorer. However, “Label collision resolution” and “Create multilines” can only be started in this tab.
Cyclomedia integration
NET Engineering provides the option of displaying navigation data from Cyclomedia in a separate window, the Cyclorama, in the NET Engineering project. A separate contract with Cyclomedia is required for this.
The functionalities of the Cyclomedia integration are summarized on a separate “Cyclomedia” tab.
The Cyclomedia integration is also available in NET Design and in the Field Survey data model.
Note for customers with customizations
The Cyclomedia integration is not automatically provided in the customized installers. If you want to use the integration, you can contact our support to activate the Cyclomedia integration in your installer.
